Page 2089 of 3502

NISSAN TEANA 2003 Service Manual BODY SIDE TRIM EI-41 C D E F G H J K L MA B EI 2. Remove kicking plate inner mounting clips using a clip clamp remover, and then remove kicking plate inner. Installation Install in the reverse order

Page 2090 of 3502

NISSAN TEANA 2003 Service Manual EI-42 BODY SIDE TRIM CAUTION: Insert a clip clamp remover wrapped with a shop cloth or clip clamp remover into the part shown by the arrow (between the clips and the body side panel). Remove clips.

Page 2091 of 3502

NISSAN TEANA 2003 Service Manual REAR PARCEL SHELF FINISHER EI-43 C D E F G H J K L MA B EI REAR PARCEL SHELF FINISHERPFP:79910 Removal and InstallationB I S 0 0 11T PIIA9529E 1. Rear parcel shelf finisher (standard) 2. Clip (C106)

Page 2092 of 3502

NISSAN TEANA 2003 Service Manual EI-44 REAR PARCEL SHELF FINISHER REMOVAL 1. Remove rear seatback and rear seat cushion. Refer to SE-112, "REAR SEAT" . 2. Remove rear seat belt floor anchor bolt and rear seat belt shoulder anchor b

Page 2093 of 3502

NISSAN TEANA 2003 Service Manual REAR PARCEL SHELF FINISHER EI-45 C D E F G H J K L MA B EI REAR WINDOW SUNSHADE Removal 1. Remove rear parcel shelf finisher. Refer to EI-43, "REAR PARCEL SHELF FINISHER" . 2. Disconnect rear window

Page 2094 of 3502

NISSAN TEANA 2003 Service Manual EI-46 SUNSHADE SUNSHADEPFP:97580 Component Parts and Harness Connector LocationBIS0011U 1. Rear sunshade front switch M172. Rear sunshade rear switch B1723. Rear sunshade (Open condition) B172 4. R

Page 2095 of 3502

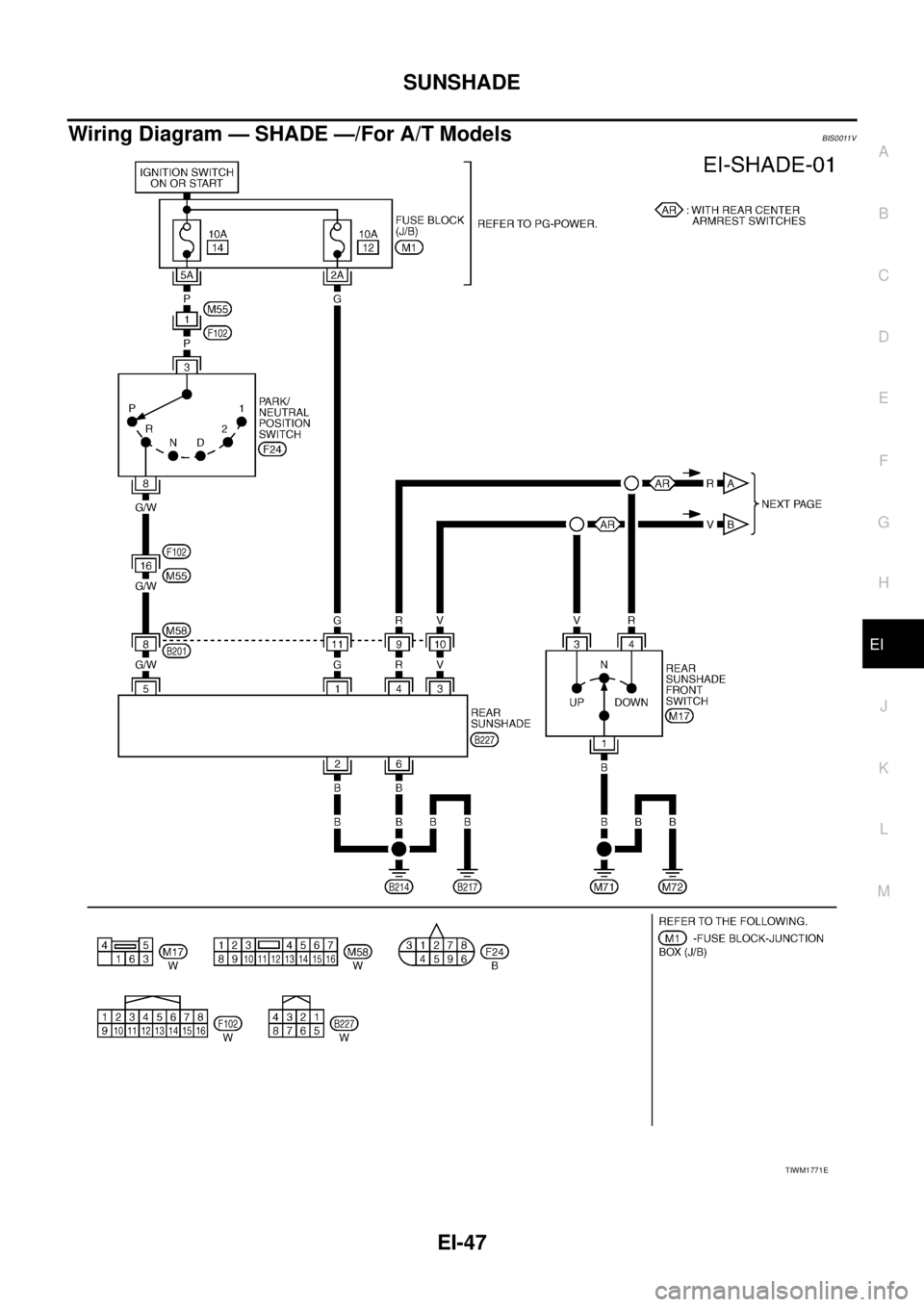

NISSAN TEANA 2003 Service Manual SUNSHADE EI-47 C D E F G H J K L MA B EI Wiring Diagram — SHADE —/For A/T ModelsBIS0011V TIWM1771E

Page 2096 of 3502

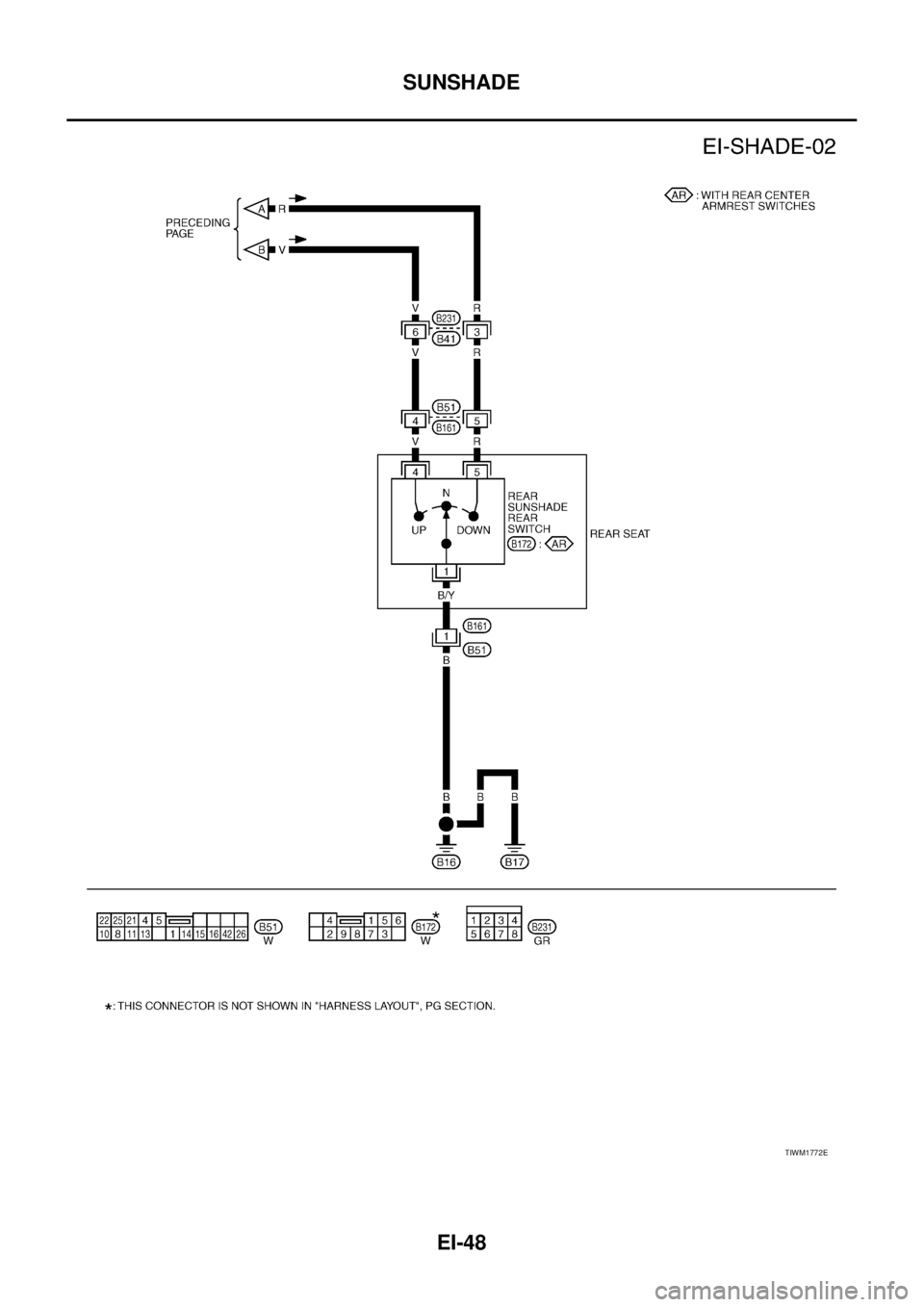

NISSAN TEANA 2003 Service Manual EI-48 SUNSHADE TIWM1772E
