Page 3177 of 3502
SUNROOF
RF-13
C
D
E
F
G
H
J
K
L
MA
B
RF

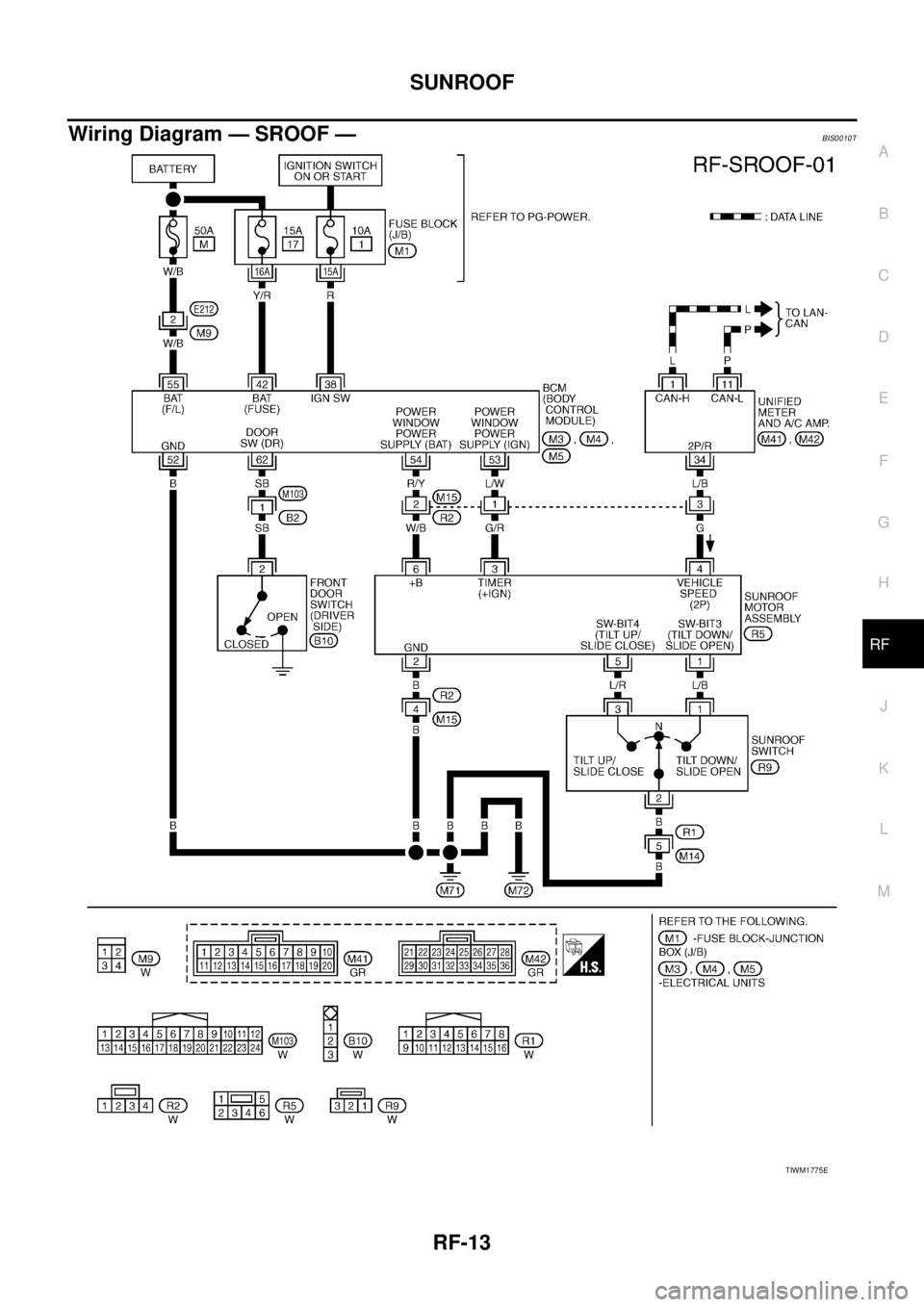

Wiring Diagram — SROOF —BIS0010T
TIWM1775E
Page 3178 of 3502

RF-14
SUNROOF
Terminals and Reference Value for BCMBIS0010U
Terminals and Reference Value for Sunroof Motor AssemblyBIS0010V
Te r m i n a lWire
colorItemSignal
Input/OutputConditionVoltage (V)
(Approx.)
38 RIgnition switch ON power supply
(ON or START)Input Ignition switch (ON or START position) Battery voltage
42 Y/R Power source (Fuse) Input — Battery voltage
52 B Ground — — 0
53 L/W RAP signal OutputIgnition switch ON Battery voltage
Within 15 minutes after ignition switch is
turned to OFF positionBattery voltage
When front door (driver side) is open in
retained power is operates.0
54 R/Y Power window power supply Output — Battery voltage
55 W/B Power source (Fusible link) Input — Battery voltage
62 SBFront door switch driver side
signalInputOPEN (ON) 0
CLOSE (OFF) Battery voltage
Te r m i -
nalWire
colorItemSignal
Input/OutputConditionVoltage (V)
(Approx.)
1L/BSunroof (BIT 3) switch
signalInputIgnition switch ON and sunroof switch
in TILT DOWN / SLIDE OPEN position0
Other than above Battery voltage
2 B Ground — — 0
3 G/R Timer signal InputIgnition switch ON Battery voltage
Within 15 minutes after ignition switch
is turned to OFF positionBattery voltage
When front door (driver side) is open in
retained power is operates0
4GVehicle speed signal
(2-pulse)InputSpeedometer operated [When vehicle
speed is approx. 40 km/h (25 MPH)]
5L/RSunroof (BIT 4) switch
signalInputIgnition switch ON and sunroof switch
in TILT UP / SLIDE CLOSE position0
Other than above Battery voltage
6W/BPower window power
supply Input — Battery voltage
ELF1080D
Page 3179 of 3502

SUNROOF
RF-15
C
D
E
F
G
H
J
K
L
MA
B
RF
Work FlowBIS0010W
1. Check the symptom and customer's requests.
2. Understand the outline of system. Refer to RF-11, "
System Description" .
3. According to the trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to RF-15,
"Trouble Diagnosis Chart by Symptom" .
4. Does sunroof system operate normally? If Yes, GO TO 5. If No, GO TO 3.
5. INSPECTION END.
Trouble Diagnosis Chart by SymptomBIS0010X
Check BCM Power Supply and Ground CircuitBIS0010Y
1. CHECK FUSE
Check 10A fuse [No.1, located in fuse block (J/B)]
Check 15A fuse [No.17, located in fuse block (J/B)]
Check 50A fusible link (letter M located in the fuse and fusible link box).
NOTE:
Refer to RF-10, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown out, be sure to eliminate cause of malfunction before installing new fuse. Refer to
PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between BCM connector M3, M4 terminal 38, 42,
55 and ground.
OK or NG
OK >> GO TO 3.
NG >> Check BCM power supply circuit for open or short.
Symptom Diagnostic procedure and repair orderReference
page
Sunroof does not operate.1. Check BCM power supply and ground circuit.RF-15
2. Check sunroof motor assembly power supply and ground circuit.RF-16
3. Check sunroof switch system.RF-17
4. Replace sunroof motor assembly.RF-27
Motor does not stop at the sunroof fully -open
or fully- closed position.1. Check initialization procedure.RF-12
2. Replace sunroof motor assembly.RF-27
Timer function does not operate properly.1. Check driver side door switch.RF-192. Replace sunroof motor assembly.RF-27
Sunroof does not operate the interruption
detection function.1. Replace sunroof motor assembly.RF-27
38 (R) – Ground : Battery voltage
42 (Y/R) – Ground : Battery voltage
55 (W/B) – Ground : Battery voltage
PIIA6160E

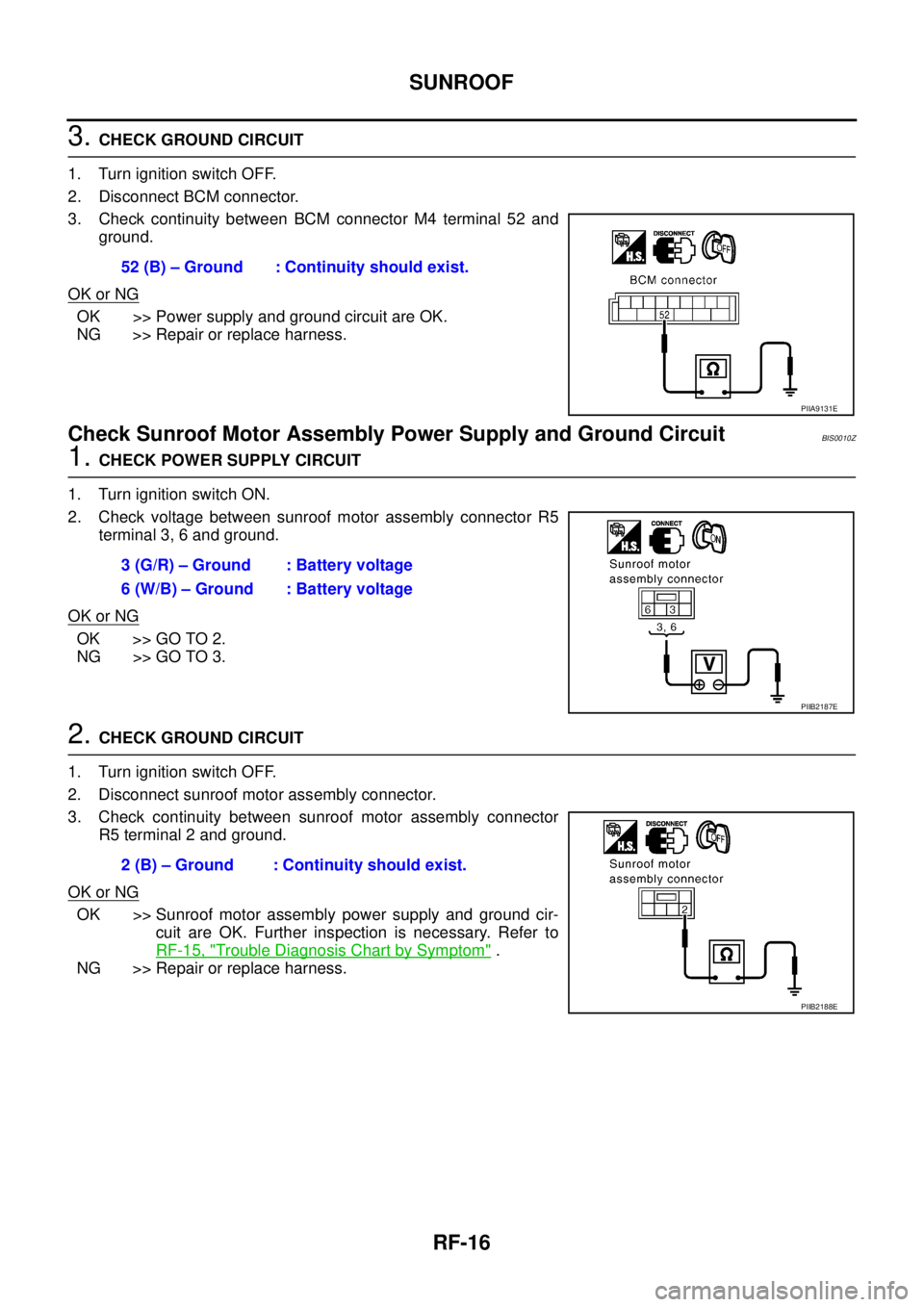

Page 3180 of 3502

RF-16
SUNROOF
3. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check continuity between BCM connector M4 terminal 52 and
ground.
OK or NG
OK >> Power supply and ground circuit are OK.
NG >> Repair or replace harness.
Check Sunroof Motor Assembly Power Supply and Ground CircuitBIS0010Z
1. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between sunroof motor assembly connector R5
terminal 3, 6 and ground.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect sunroof motor assembly connector.
3. Check continuity between sunroof motor assembly connector
R5 terminal 2 and ground.
OK or NG
OK >> Sunroof motor assembly power supply and ground cir-
cuit are OK. Further inspection is necessary. Refer to
RF-15, "
Trouble Diagnosis Chart by Symptom" .
NG >> Repair or replace harness.52 (B) – Ground : Continuity should exist.
PIIA9131E
3 (G/R) – Ground : Battery voltage
6 (W/B) – Ground : Battery voltage
PIIB2187E
2 (B) – Ground : Continuity should exist.
PIIB2188E

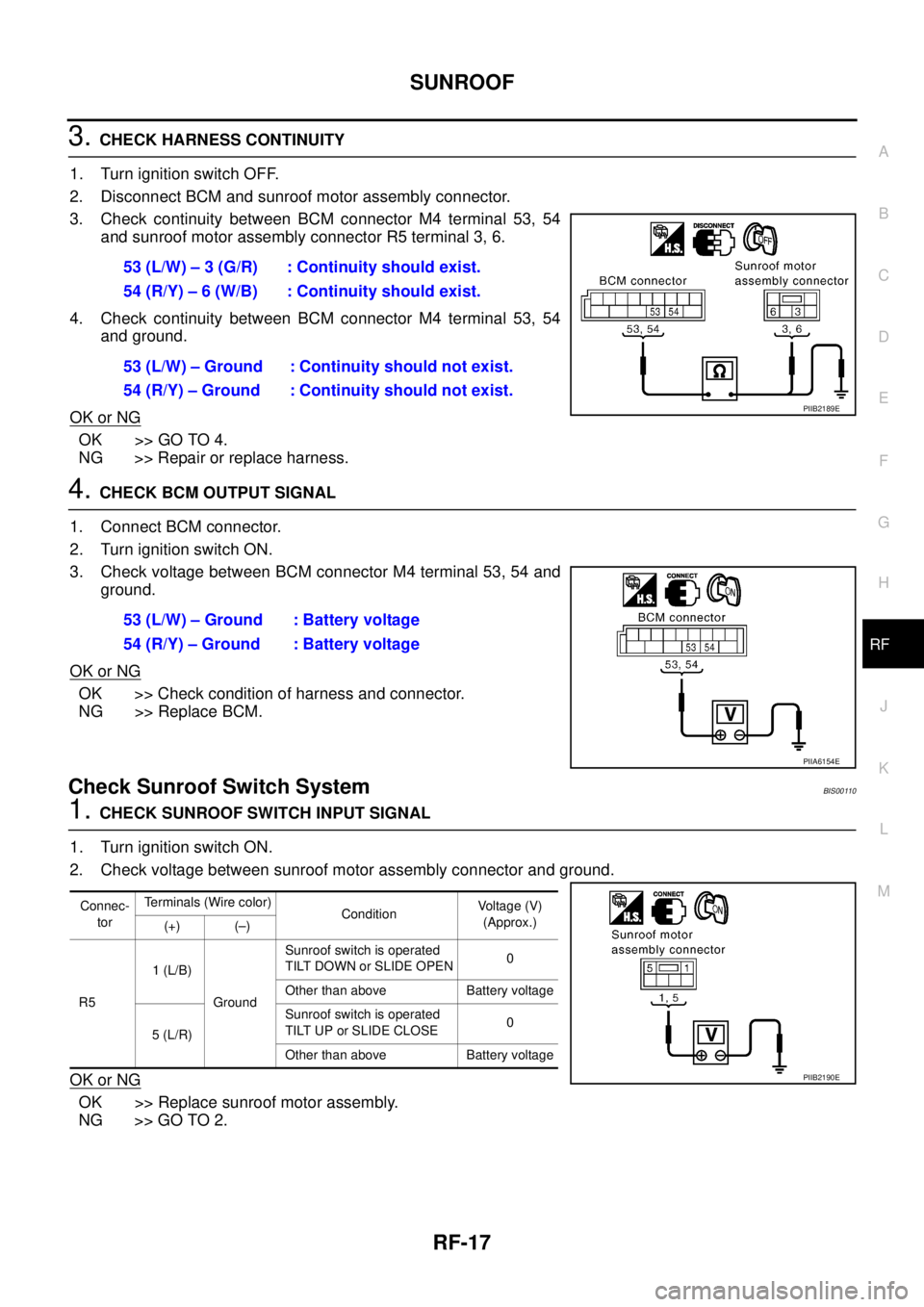

Page 3181 of 3502

SUNROOF
RF-17
C
D
E
F
G
H
J
K
L
MA
B
RF
3. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect BCM and sunroof motor assembly connector.
3. Check continuity between BCM connector M4 terminal 53, 54
and sunroof motor assembly connector R5 terminal 3, 6.
4. Check continuity between BCM connector M4 terminal 53, 54
and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK BCM OUTPUT SIGNAL
1. Connect BCM connector.
2. Turn ignition switch ON.
3. Check voltage between BCM connector M4 terminal 53, 54 and
ground.
OK or NG
OK >> Check condition of harness and connector.
NG >> Replace BCM.
Check Sunroof Switch SystemBIS00110
1. CHECK SUNROOF SWITCH INPUT SIGNAL
1. Turn ignition switch ON.
2. Check voltage between sunroof motor assembly connector and ground.
OK or NG
OK >> Replace sunroof motor assembly.
NG >> GO TO 2.53 (L/W) – 3 (G/R) : Continuity should exist.
54 (R/Y) – 6 (W/B) : Continuity should exist.
53 (L/W) – Ground : Continuity should not exist.
54 (R/Y) – Ground : Continuity should not exist.
PIIB2189E
53 (L/W) – Ground : Battery voltage
54 (R/Y) – Ground : Battery voltage
PIIA6154E
Connec-
torTerminals (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (–)
R51 (L/B)
GroundSunroof switch is operated
TILT DOWN or SLIDE OPEN0
Other than above Battery voltage
5 (L/R)Sunroof switch is operated
TILT UP or SLIDE CLOSE0
Other than above Battery voltage
PIIB2190E

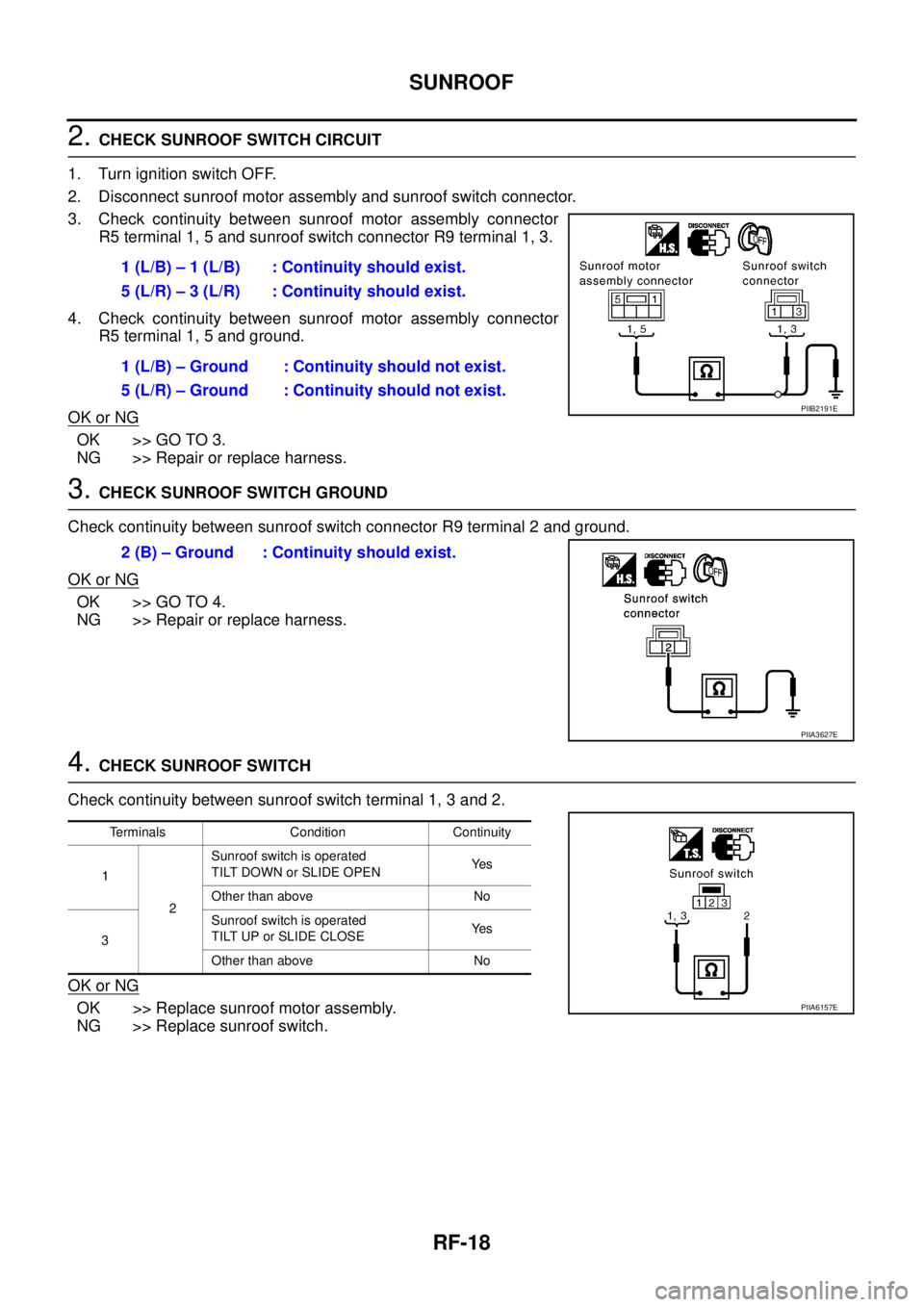

Page 3182 of 3502

RF-18
SUNROOF
2. CHECK SUNROOF SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect sunroof motor assembly and sunroof switch connector.
3. Check continuity between sunroof motor assembly connector
R5 terminal 1, 5 and sunroof switch connector R9 terminal 1, 3.
4. Check continuity between sunroof motor assembly connector
R5 terminal 1, 5 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. CHECK SUNROOF SWITCH GROUND
Check continuity between sunroof switch connector R9 terminal 2 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK SUNROOF SWITCH
Check continuity between sunroof switch terminal 1, 3 and 2.
OK or NG
OK >> Replace sunroof motor assembly.
NG >> Replace sunroof switch.1 (L/B) – 1 (L/B) : Continuity should exist.
5 (L/R) – 3 (L/R) : Continuity should exist.
1 (L/B) – Ground : Continuity should not exist.
5 (L/R) – Ground : Continuity should not exist.
PIIB2191E
2 (B) – Ground : Continuity should exist.
PIIA3627E
Terminals Condition Continuity
1
2Sunroof switch is operated
TILT DOWN or SLIDE OPENYe s
Other than above No
3Sunroof switch is operated
TILT UP or SLIDE CLOSEYe s
Other than above No
PIIA6157E
Page 3183 of 3502

SUNROOF
RF-19
C
D
E
F
G
H
J
K
L
MA
B
RF
Check Driver Side Door Switch BIS00111
1. CHECK DOOR SWITCH INPUT SIGNAL
With CONSULT-II
Check “DOOR SW-DR” in “DATA MONITOR” mode with CONSULT-II. Refer to BL-30, "
Data Monitor"
Without CONSULT-II
Check voltage between BCM connector and ground.
OK or NG
OK >> Driver side door switch circuit is OK.
NG >> GO TO 2.
2. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect driver side door switch and BCM connector.
3. Check continuity between BCM connector M5 terminal 62 and
driver side door switch connector B10 terminal 2.
4. Check continuity between BCM connector M5 terminal 62 and
ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
Monitor item Condition
DOOR SW-DROPEN : ON
CLOSE : OFF
PIIA2464E
ConnectorTerminals (Wire color)
Condition of
driver side doorVoltage (V)
(Approx.)
(+) (–)
M5 62 (SB) GroundOPEN 0
CLOSE Battery voltage
PIIA9880E
62 (SB) – 2 (SB) : Continuity should exist.
62 (SB) – Ground : Continuity should not exist.
PIIB1225E

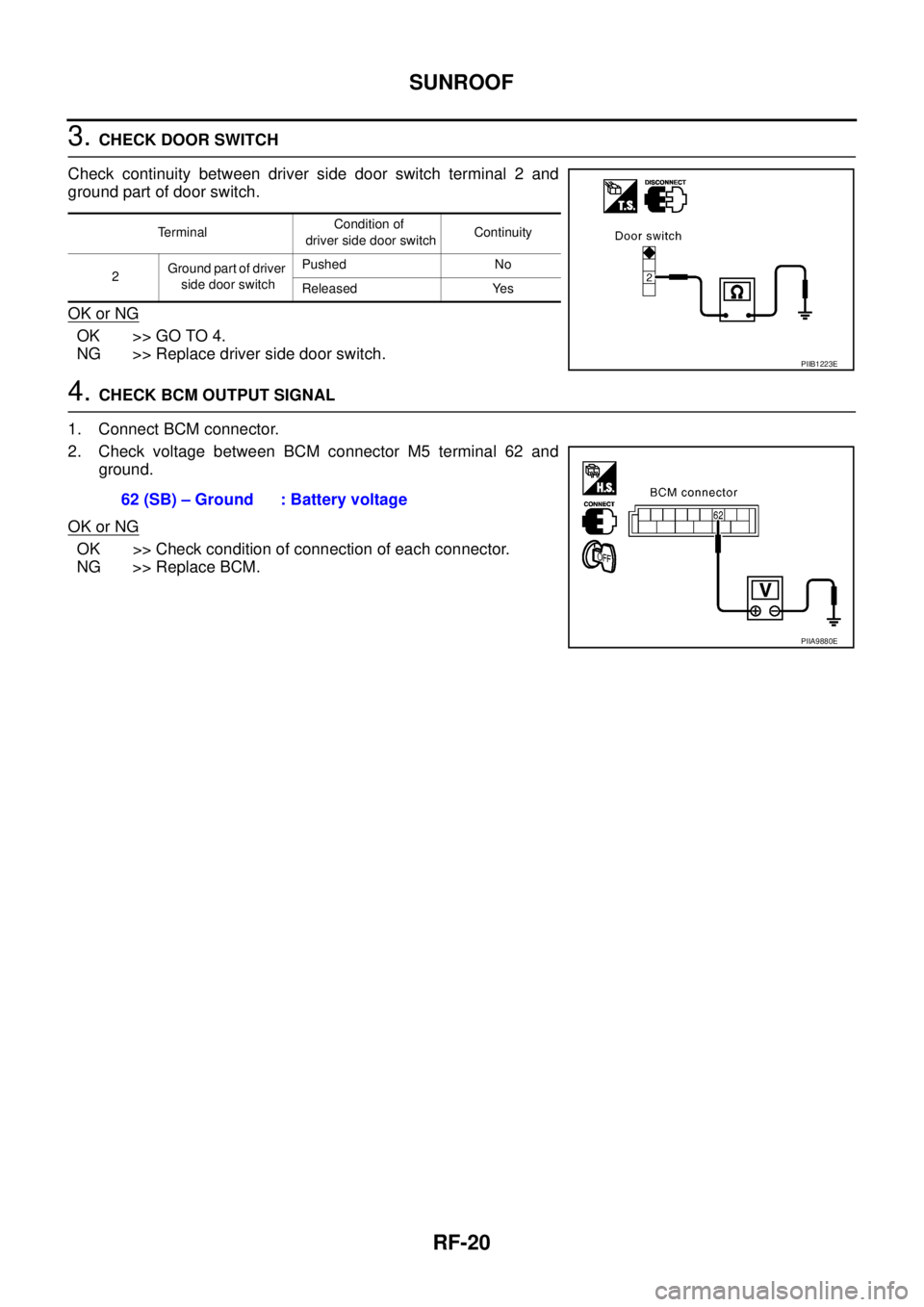

Page 3184 of 3502
RF-20
SUNROOF
3. CHECK DOOR SWITCH
Check continuity between driver side door switch terminal 2 and
ground part of door switch.
OK or NG
OK >> GO TO 4.
NG >> Replace driver side door switch.
4. CHECK BCM OUTPUT SIGNAL
1. Connect BCM connector.
2. Check voltage between BCM connector M5 terminal 62 and
ground.
OK or NG
OK >> Check condition of connection of each connector.
NG >> Replace BCM.
TerminalCondition of
driver side door switchContinuity
2Ground part of driver
side door switchPushed No
Released Yes
PIIB1223E
62 (SB) – Ground : Battery voltage
PIIA9880E
