NISSAN TEANA 2003 Service Manual FUEL INJECTOR AND FUEL TUBE
EM-157
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM

8. Disconnect harness connector from fuel injector.
9. Loosen mounting bolts in the reverse order as shown in the fig-
ure, and remo

Page 2266 of 3502

NISSAN TEANA 2003 Service Manual EM-158
[VQ]
FUEL INJECTOR AND FUEL TUBE

CAUTION:
Upper and lower O-rings are different. Be careful not to confuse them.
Handle O-ring with bare hands. Do not wear gloves.
Lubricate O-ring with ne

Page 2267 of 3502

NISSAN TEANA 2003 Service Manual FUEL INJECTOR AND FUEL TUBE
EM-159
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM

6. Connect fuel injector harness connector.
7. Install intake manifold collectors (upper and lower). Refer to EM-133, "
INTAKE MANIF

FUEL INJECTOR AND FUEL TUBE
EM-159
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM

6. Connect fuel injector harness connector.
7. Install intake manifold collectors (upper and lower). Refer to EM-133, "
INTAKE MANIFOLD COLLECTOR"
.
8. Connect fuel feed hose (with damper).
Handling procedure of O-ring is the same as that of fuel damper.
Insert fuel damper straight into fuel tube.
Tighten mounting bolts evenly in turn.
After tightening mounting bolts, make sure that there is no gap between flange and fuel tube.
9. Connect quick connector between fuel feed hose (with damper) and centralized under-floor piping con-
nection as follows:
a. Make sure no foreign substances are deposited in and around centralized under-floor piping and quick
connector, and no damage on them.
b. Thinly apply new engine oil around centralized under-floor piping from tip end to spool end.
c. Align center to insert quick connector straightly into centralized under-floor piping.
Insert quick connector to centralized under-floor piping until
top spool is completely inside quick connector, and 2nd level
spool exposes right below quick connector.
CAUTION:
Hold “A” position as shown in the figure when inserting
centralized under-floor piping into quick connector.
Carefully align center to avoid inclined insertion to pre-
vent damage to O-ring inside quick connector.
Insert until you hear a “click” sound and actually feel the
engagement.
To avoid misidentification of engagement with a similar
sound, be sure to perform the next step.
d. Pull quick connector by hand holding “A” position. Make sure it is completely engaged (connected) so that
it does not come out from centralized under-floor piping.
e. Install quick connector cap to quick connector.
Install quick connector cap with arrow on surface facing in
direction of quick connector [fuel feed hose (with damper)
side].
CAUTION:
If quick connector cap cannot be installed smoothly, quick
connector may have not been installed correctly. Check
connection again.
10. Install in the reverse order of removal after this step.
INSPECTION AFTER INSTALLATION
Check Fuel Leakage
1. Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel
leakage at connection points.
NOTE:
Use mirrors for checking at points out of clear sight.
2. Start engine. With engine speed increased, check again for fuel leakage at connection points.
CAUTION:
Do not touch engine immediately after stopped, as engine becomes extremely hot.
PBIC2471E
PBIC2893E

Page 2268 of 3502

NISSAN TEANA 2003 Service Manual EM-160
[VQ]
ROCKER COVER

ROCKER COVERPFP:13264
Removal and InstallationBBS004VY
REMOVAL
1. Remove engine cover. Refer to EM-133, "INTAKE MANIFOLD COLLECTOR" .
2. Remove intake manifold collectors (u

Page 2269 of 3502

NISSAN TEANA 2003 Service Manual ROCKER COVER
EM-161
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM

7. Loosen mounting bolts in the reverse order shown in the figure.
8. Remove rocker cover gaskets from rocker covers.
9. Use scraper to remove all

Page 2270 of 3502

NISSAN TEANA 2003 Service Manual EM-162
[VQ]
ROCKER COVER

4. Tighten mounting bolts two steps separately in numerical order
as shown in the figure.
5. Install oil filer cap to rocker cover (left bank), if removed.
6. Install new O-

Page 2271 of 3502

NISSAN TEANA 2003 Service Manual FRONT TIMING CHAIN CASE
EM-163
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM

FRONT TIMING CHAIN CASEPFP:13599
Removal and InstallationBBS004VZ
NOTE:
This section describes removal/installation procedure of front

FRONT TIMING CHAIN CASE
EM-163
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM

FRONT TIMING CHAIN CASEPFP:13599
Removal and InstallationBBS004VZ
NOTE:
This section describes removal/installation procedure of front timing chain case and timing chain related
parts without removing oil pan (upper) on vehicle.
When oil pan (upper) needs to be removed or installed, or when rear timing chain case is removed or
installed, remove oil pans (lower and upper) first. Then remove front timing chain case, timing chain
related parts, and rear timing chain case in this order, and install in the reverse order of removal. Refer to
EM-173, "
TIMING CHAIN" .
Refer to EM-173, "TIMING CHAIN" for component parts location.
REMOVAL
1. Remove engine cover. Refer to EM-133, "INTAKE MANIFOLD COLLECTOR" .
2. Remove air duct (inlet), air cleaner case (upper) with mass air flow sensor and air duct assembly. Refer to
EM-131, "
AIR CLEANER AND AIR DUCT" .
3. Remove undercover and splash guard (RH).
4. Remove right side front road wheel and tire.
5. Drain engine oil. Refer to LU-21, "
Changing Engine Oil" .
CAUTION:
Perform this step when engine is cold.
Do not spill engine oil on drive belts.
6. Drain engine coolant from radiator. Refer to CO-34, "
Changing Engine Coolant" .
CAUTION:
Perform this step when engine is cold.
Do not spill engine coolant on drive belts.
7. Remove intake manifold collectors (upper and lower). Refer to EM-133, "
INTAKE MANIFOLD COLLEC-
TOR" .
8. Remove drive belts. Refer to EM-128, "
DRIVE BELTS" .
9. Remove alternator. Refer to SC-27, "
CHARGING SYSTEM" .
10. Remove power steering oil pump from bracket with piping connected, and temporarily secure it to aside.
Refer to PS-29, "
POWER STEERING OIL PUMP" .
11. Remove power steering oil pump bracket. Refer to PS-29, "
POWER STEERING OIL PUMP" .
12. Remove idler pulley and bracket. Refer to EM-173, "
TIMING CHAIN" .
13. Separate engine harnesses removing their brackets from front timing chain case.
14. Remove rocker covers (right and left bank). Refer to EM-160, "
ROCKER COVER" .
NOTE:
When only timing chain (primary) is removed, rocker cover does not need to be removed.
15. Obtain No. 1 cylinder at TDC of its compression stroke as follows:
NOTE:
When timing chain is not removed/installed, this step is not required.
a. Rotate crankshaft pulley clockwise to align timing mark (grooved
line without color) with timing indicator.
SEM918G

Page 2272 of 3502

NISSAN TEANA 2003 Service Manual EM-164
[VQ]
FRONT TIMING CHAIN CASE

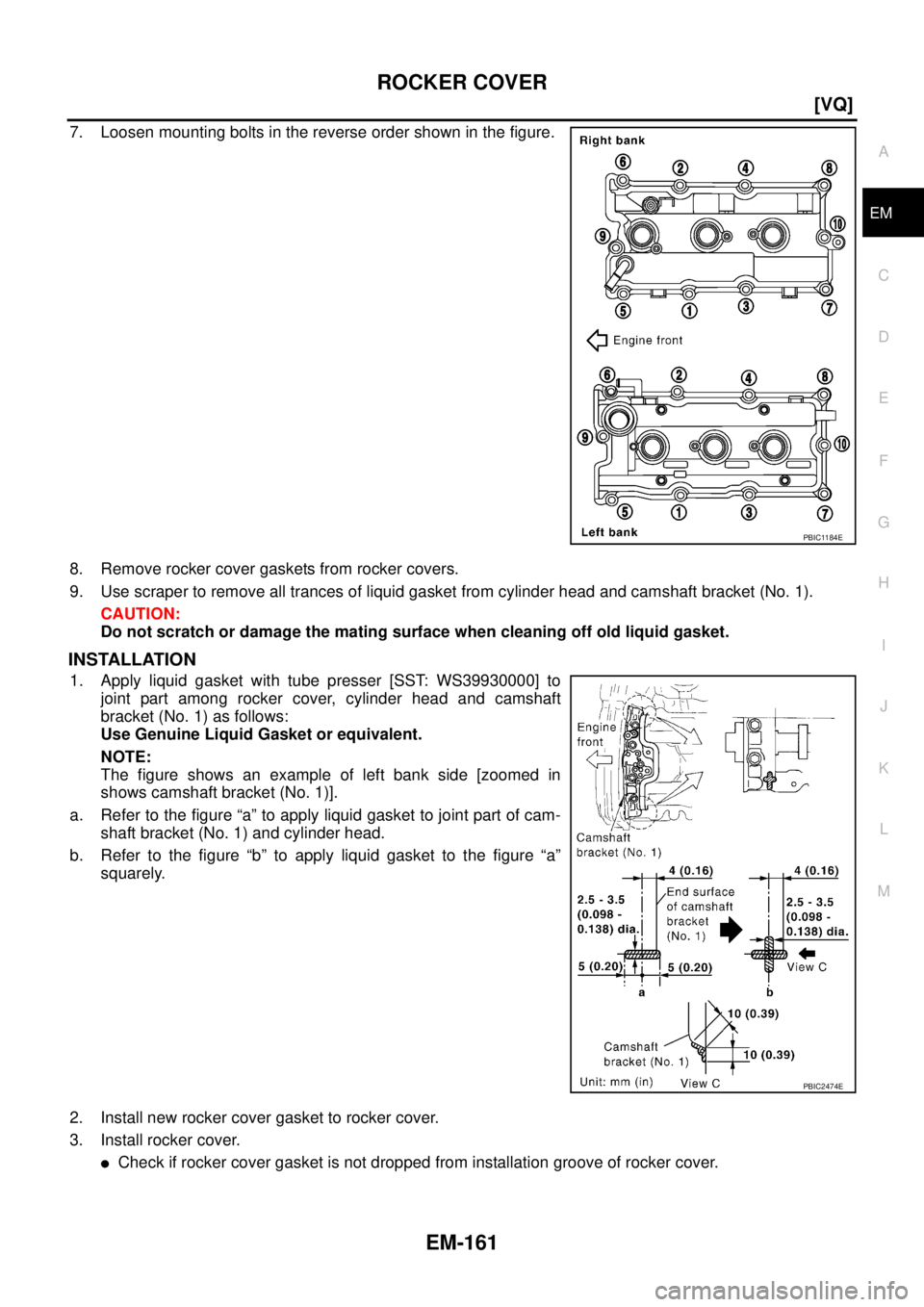

b. Make sure that intake and exhaust cam noses on No. 1 cylinder
(engine front side of right bank) are located as shown in the fig-
ure.
If not, turn crankshaft

Load next 8 pages
