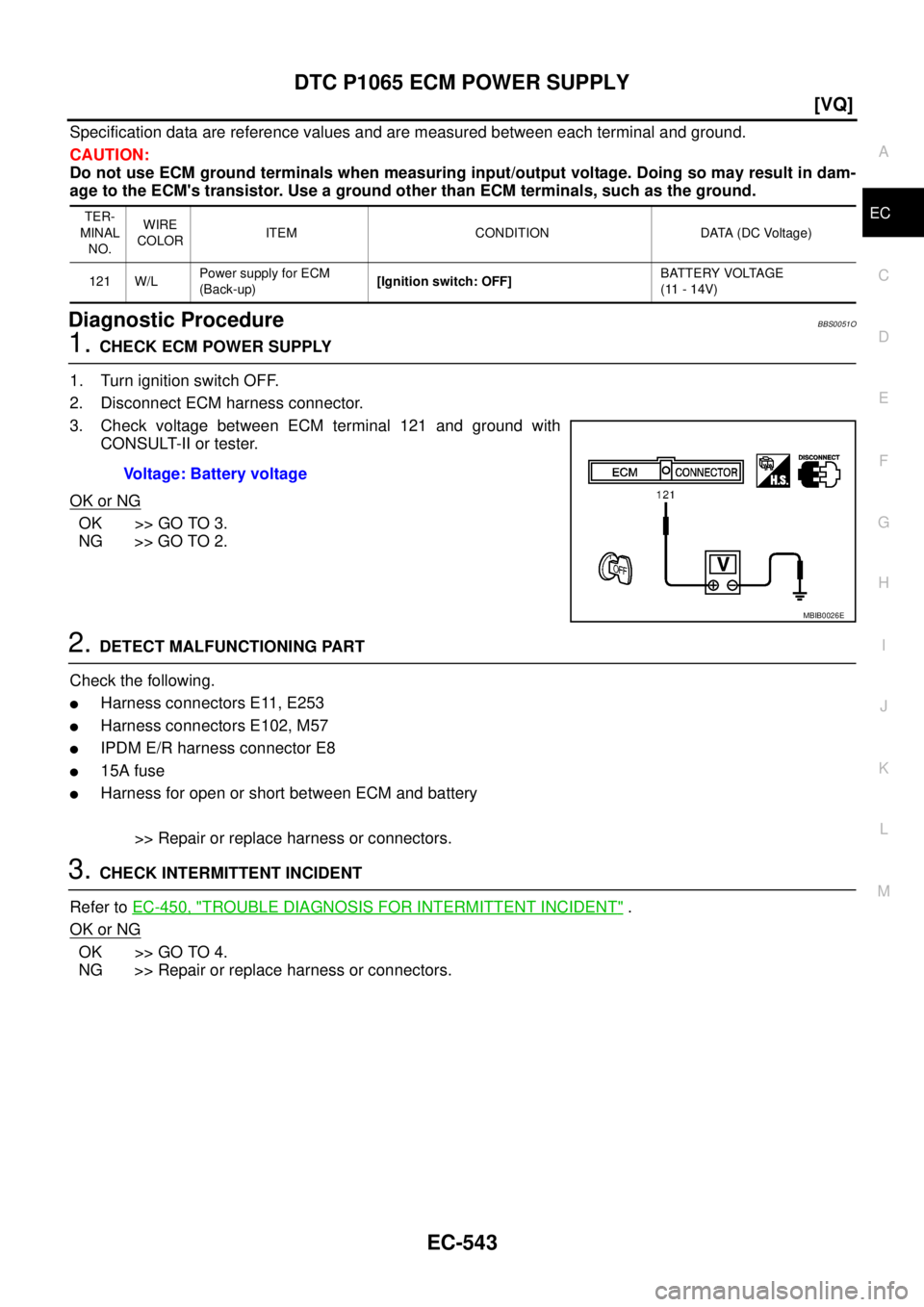

NISSAN TEANA 2003 Service Manual DTC P1065 ECM POWER SUPPLY
EC-543
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals w

Page 1826 of 3502

NISSAN TEANA 2003 Service Manual EC-544
[VQ]
DTC P1065 ECM POWER SUPPLY

4. PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT-II
1. Turn ignition switch ON.
2. Select “SELF DIAG RESULTS” mode with CONSULT-II.
3. Touch “ERASE”

Page 1827 of 3502

NISSAN TEANA 2003 Service Manual DTC P1111, P1136 IVT CONTROL SOLENOID VALVE
EC-545
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

D T C P 1111 , P 11 3 6 I V T C O N T R O L SO L E N O I D VA LV EPFP:23796
Component DescriptionBBS0051P
Inta

DTC P1111, P1136 IVT CONTROL SOLENOID VALVE
EC-545
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

D T C P 1111 , P 11 3 6 I V T C O N T R O L SO L E N O I D VA LV EPFP:23796
Component DescriptionBBS0051P
Intake valve timing control solenoid valve is activated by ON/OFF
pulse duty (ratio) signals from the ECM.
The intake valve timing control solenoid valve changes the oil
amount and direction of flow through intake valve timing control unit
or stops oil flow.
The longer pulse width advances valve angle.
The shorter pulse width retards valve angle.
When ON and OFF pulse widths become equal, the solenoid valve
stops oil pressure flow to fix the intake valve angle at the control
position.
CONSULT-II Reference Value in Data Monitor ModeBBS0051Q
Specification data are reference values.
On Board Diagnosis LogicBBS0051R
DTC Confirmation ProcedureBBS0051S
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 5 seconds.
4. If 1st trip DTC is detected, go to EC-550, "
Diagnostic Procedure"
.
WITHOUT CONSULT-II
1. Start engine and let it idle for 5 seconds.
2. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
3. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
4. It 1st trip DTC is detected, go to EC-550, "
Diagnostic Procedure" .
PBIB1842E
MONITOR ITEM CONDITION SPECIFICATION
INT/V SOL (B1)
INT/V SOL (B2)
Engine: After warming up
Shift lever: P or N
Air conditioner switch: OFF
No loadIdle 0% - 2%
When revving engine up to 2,000 rpm
quicklyApprox. 0% - 50%
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P 1111
1111
(Bank 1)
Intake valve timing control
solenoid valve circuitAn improper voltage is sent to the ECM
through intake valve timing control solenoid
valve.
Harness or connectors
(The intake valve timing control solenoid
valve circuit is open or shorted.)
Intake valve timing control solenoid valve P1136
11 3 6
(Bank 2)
SEF058Y

Page 1828 of 3502

NISSAN TEANA 2003 Service Manual EC-546
[VQ]
DTC P1111, P1136 IVT CONTROL SOLENOID VALVE

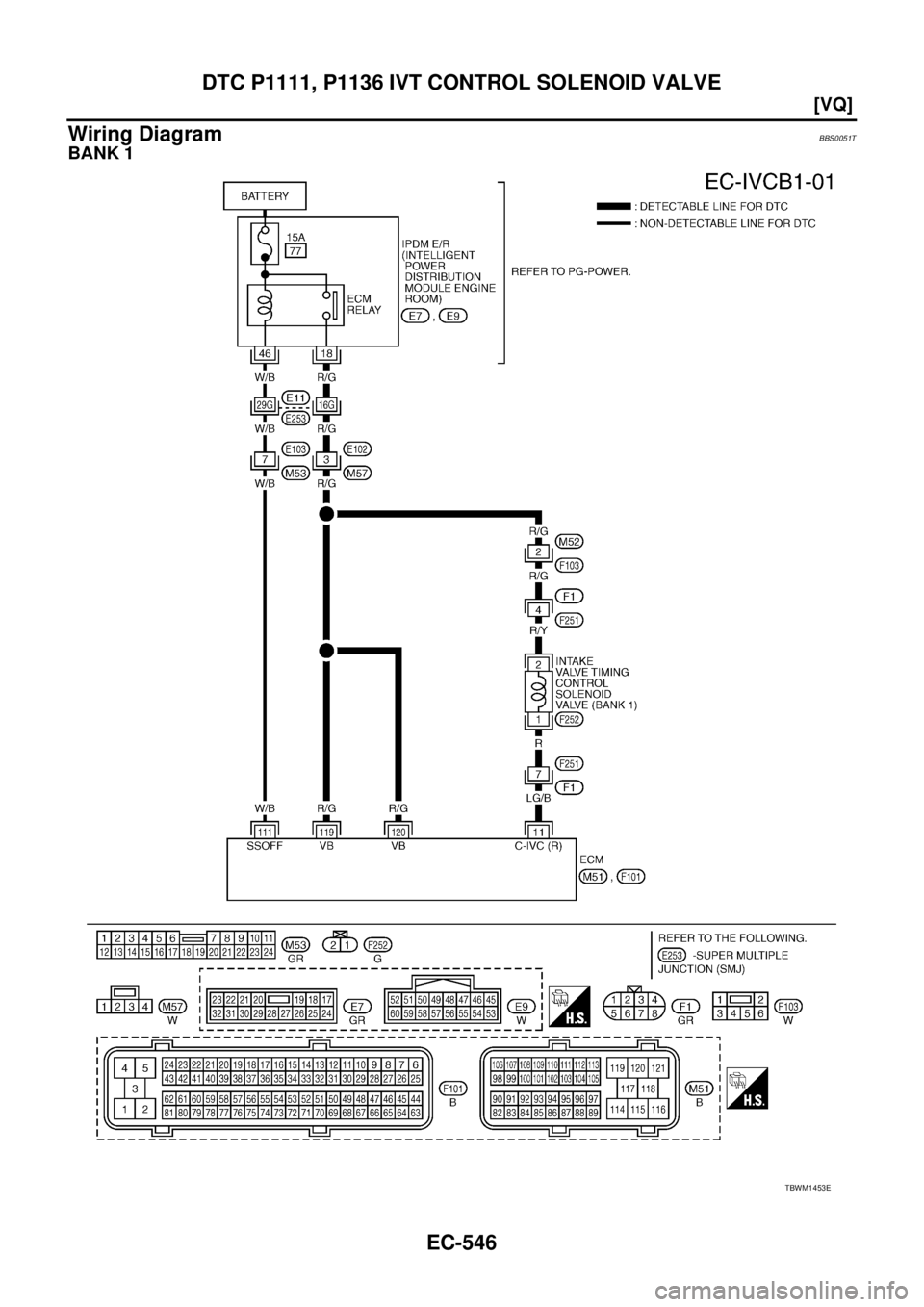

Wiring DiagramBBS0051T
BANK 1
TBWM1453E

Page 1829 of 3502

NISSAN TEANA 2003 Service Manual DTC P1111, P1136 IVT CONTROL SOLENOID VALVE
EC-547
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

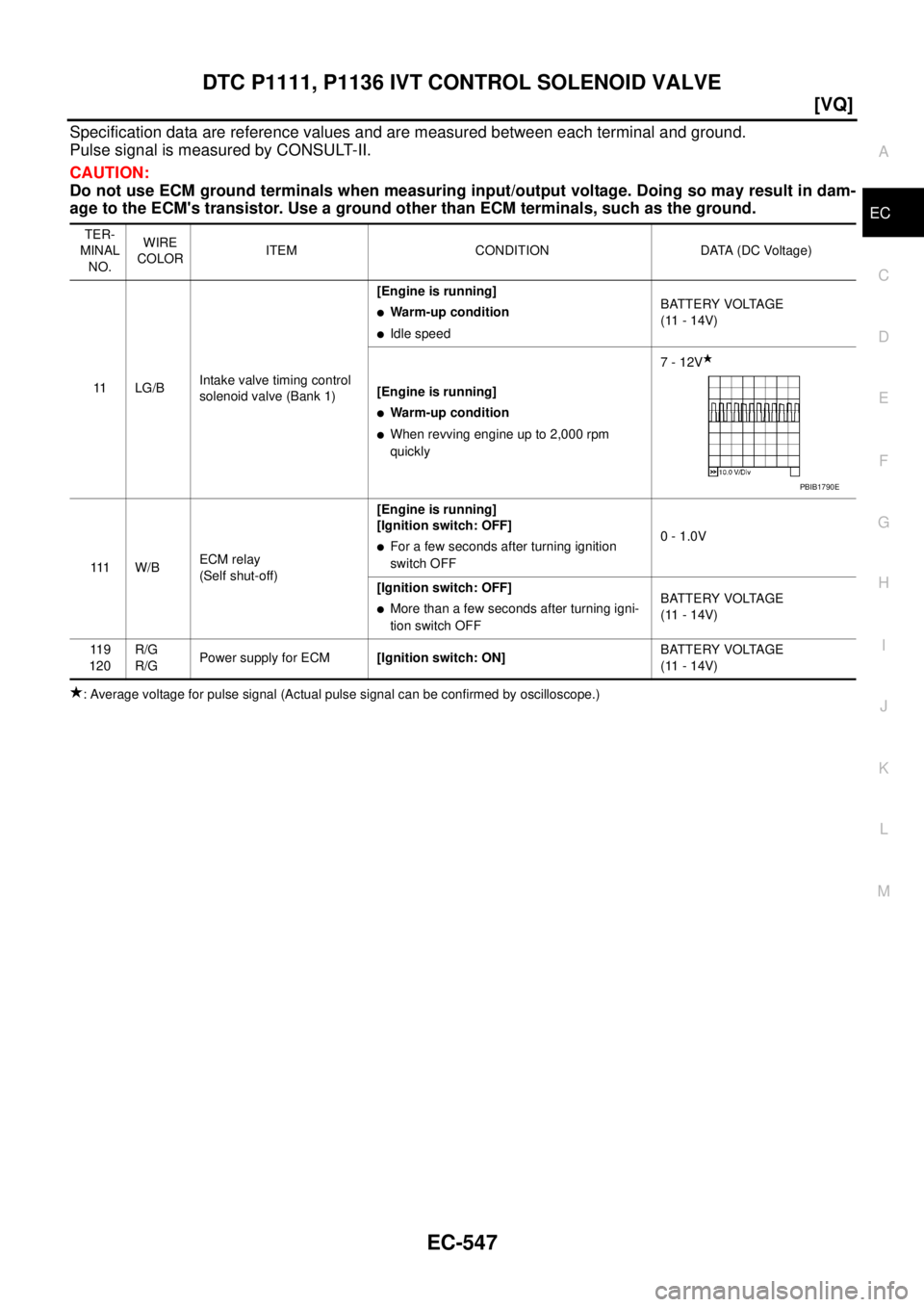

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured

Page 1830 of 3502

NISSAN TEANA 2003 Service Manual EC-548
[VQ]
DTC P1111, P1136 IVT CONTROL SOLENOID VALVE

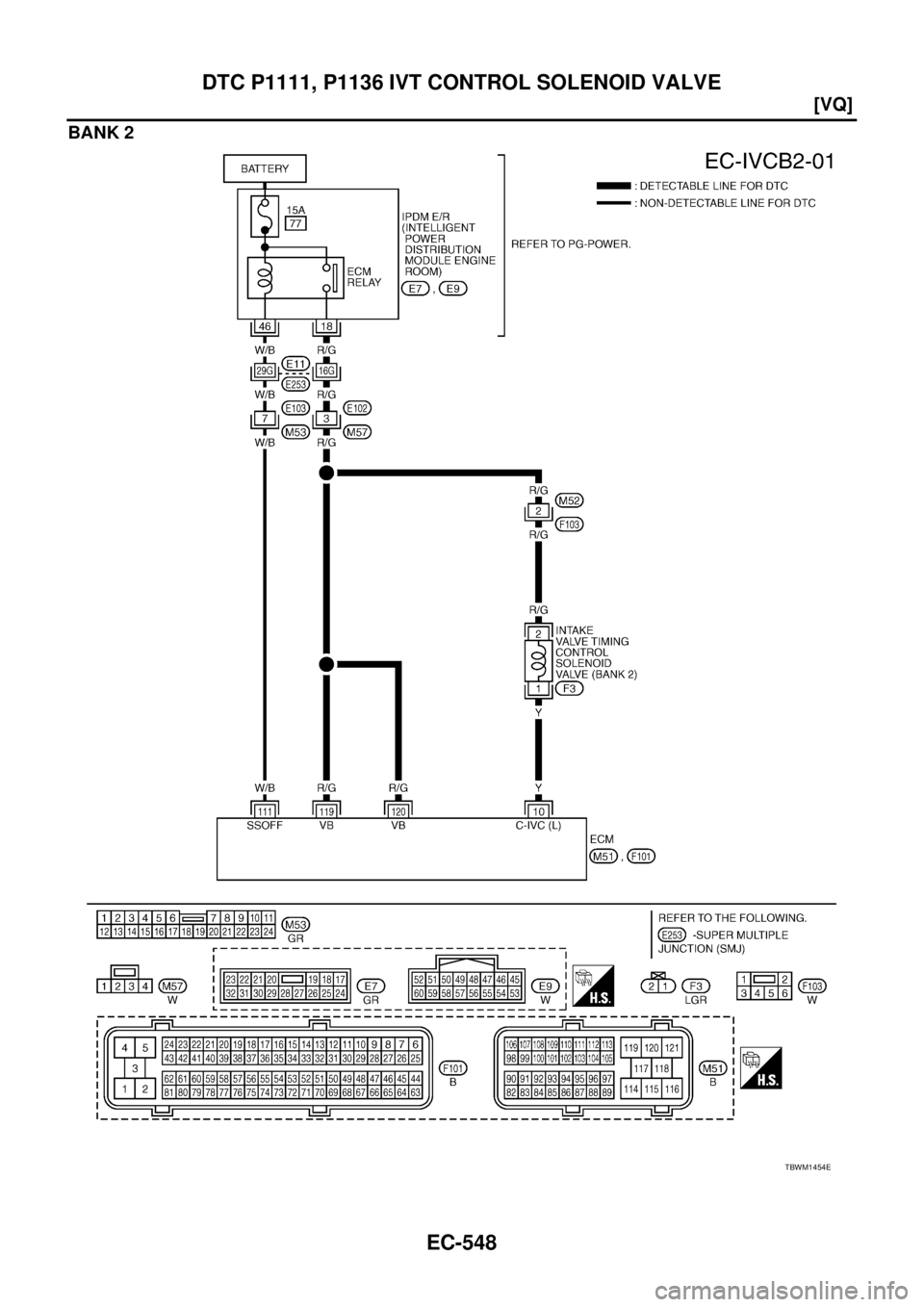

BANK 2
TBWM1454E

Page 1831 of 3502

NISSAN TEANA 2003 Service Manual DTC P1111, P1136 IVT CONTROL SOLENOID VALVE
EC-549
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured

Page 1832 of 3502

NISSAN TEANA 2003 Service Manual EC-550
[VQ]
DTC P1111, P1136 IVT CONTROL SOLENOID VALVE

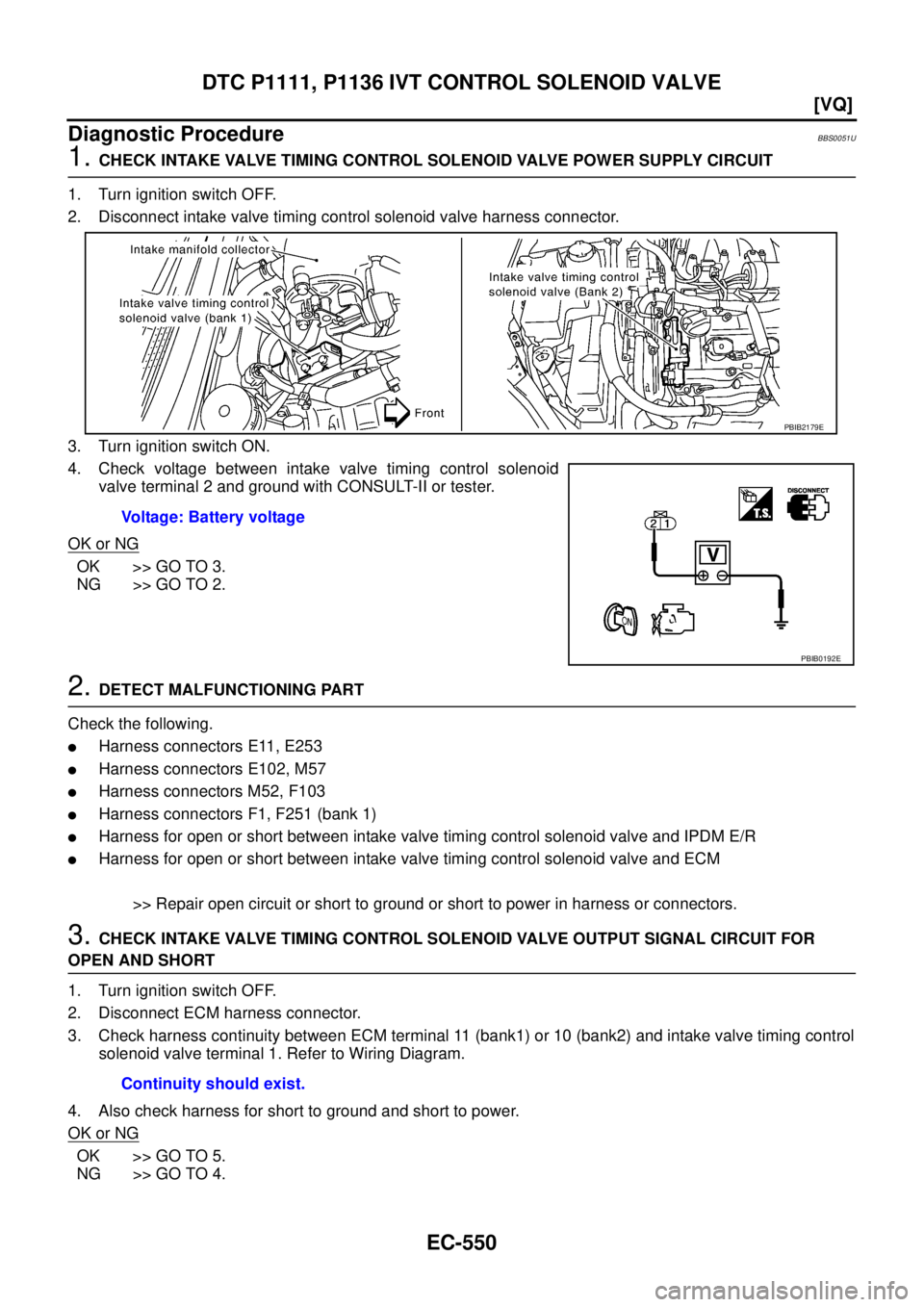

Diagnostic ProcedureBBS0051U
1. CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconne
