NISSAN TEANA 2003 Service Manual CYLINDER BLOCK
EM-101
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

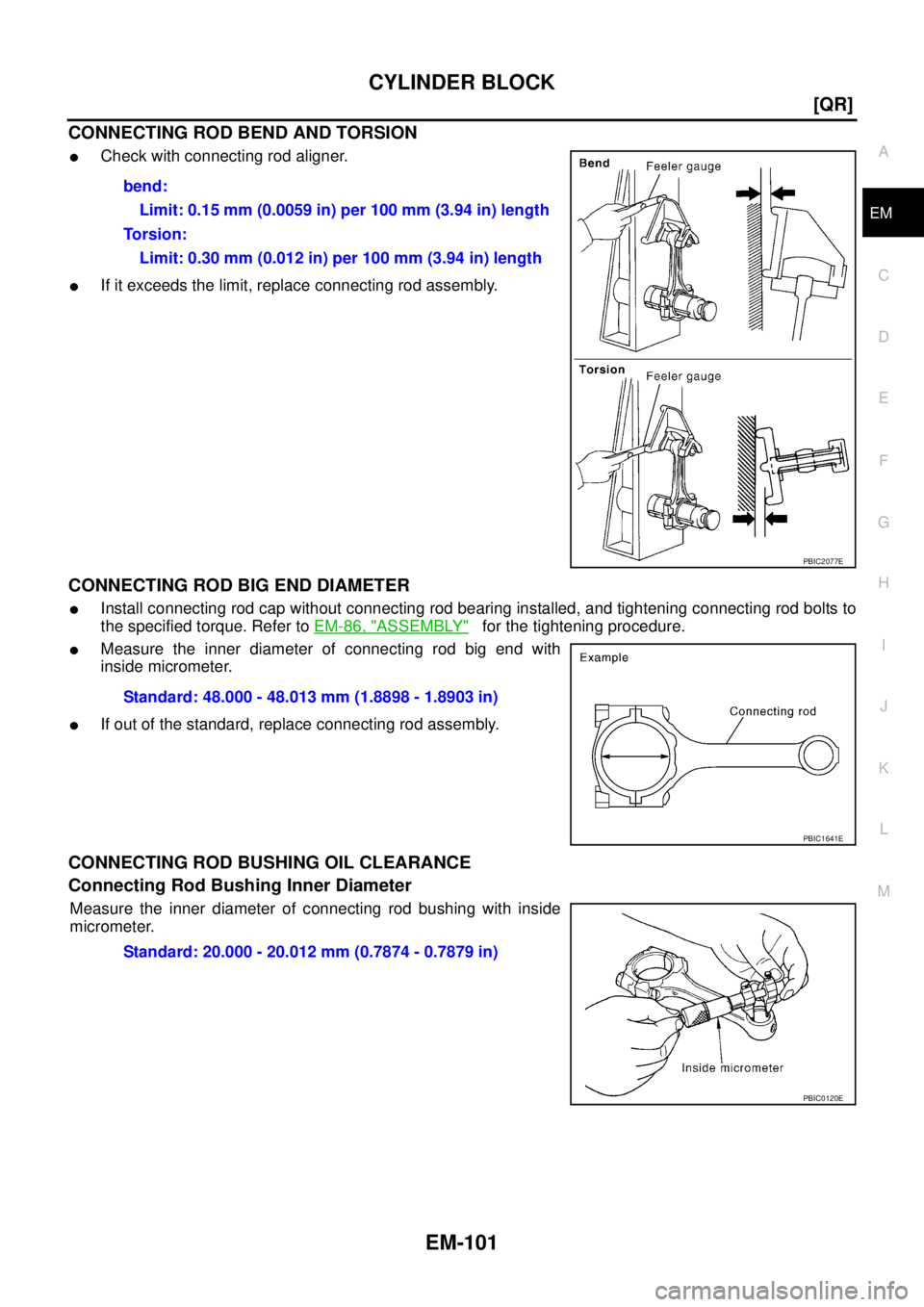

CONNECTING ROD BEND AND TORSION
Check with connecting rod aligner.
If it exceeds the limit, replace connecting rod assembly.
CONNECTING ROD BIG

Page 2210 of 3502

NISSAN TEANA 2003 Service Manual EM-102
[QR]
CYLINDER BLOCK

Piston Pin Outer Diameter
Measure the outer diameter of piston pin with micrometer.
Connecting Rod Bushing Oil Clearance
(Connecting rod bushing oil clearance) = (Connecti

Page 2211 of 3502

NISSAN TEANA 2003 Service Manual CYLINDER BLOCK
EM-103
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

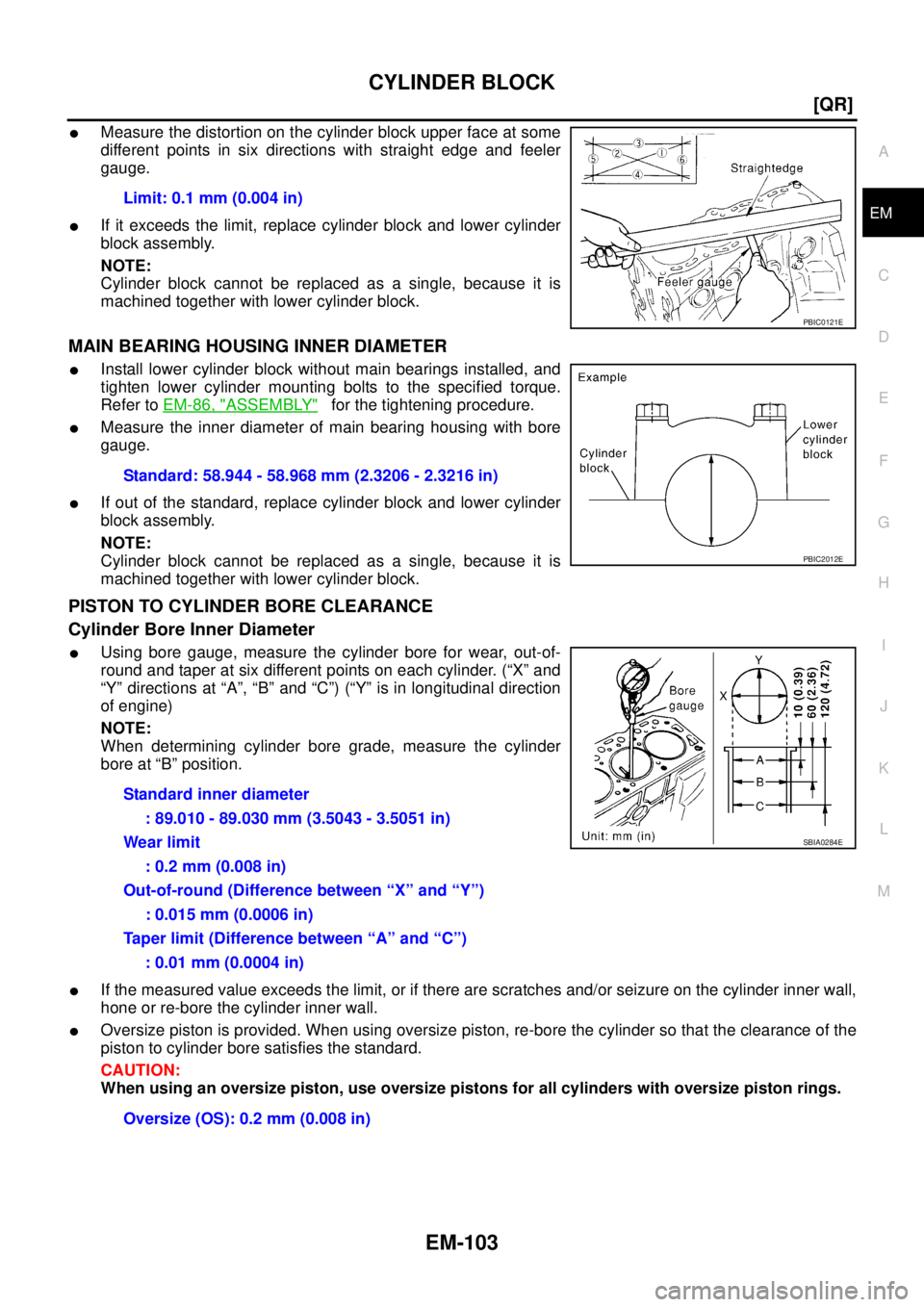

Measure the distortion on the cylinder block upper face at some
different points in six directions with straight edge and feeler
gauge.
If it e

CYLINDER BLOCK
EM-103
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

Measure the distortion on the cylinder block upper face at some
different points in six directions with straight edge and feeler
gauge.
If it exceeds the limit, replace cylinder block and lower cylinder
block assembly.
NOTE:
Cylinder block cannot be replaced as a single, because it is
machined together with lower cylinder block.
MAIN BEARING HOUSING INNER DIAMETER
Install lower cylinder block without main bearings installed, and
tighten lower cylinder mounting bolts to the specified torque.
Refer to EM-86, "
ASSEMBLY" for the tightening procedure.
Measure the inner diameter of main bearing housing with bore
gauge.
If out of the standard, replace cylinder block and lower cylinder
block assembly.
NOTE:
Cylinder block cannot be replaced as a single, because it is
machined together with lower cylinder block.
PISTON TO CYLINDER BORE CLEARANCE
Cylinder Bore Inner Diameter
Using bore gauge, measure the cylinder bore for wear, out-of-
round and taper at six different points on each cylinder. (“X” and
“Y” directions at “A”, “B” and “C”) (“Y” is in longitudinal direction
of engine)
NOTE:
When determining cylinder bore grade, measure the cylinder
bore at “B” position.
If the measured value exceeds the limit, or if there are scratches and/or seizure on the cylinder inner wall,
hone or re-bore the cylinder inner wall.
Oversize piston is provided. When using oversize piston, re-bore the cylinder so that the clearance of the
piston to cylinder bore satisfies the standard.
CAUTION:
When using an oversize piston, use oversize pistons for all cylinders with oversize piston rings.Limit: 0.1 mm (0.004 in)
PBIC0121E
Standard: 58.944 - 58.968 mm (2.3206 - 2.3216 in)
PBIC2012E
Standard inner diameter
: 89.010 - 89.030 mm (3.5043 - 3.5051 in)
Wear limit
: 0.2 mm (0.008 in)
Out-of-round (Difference between “X” and “Y”)
: 0.015 mm (0.0006 in)
Taper limit (Difference between “A” and “C”)
: 0.01 mm (0.0004 in)
Oversize (OS): 0.2 mm (0.008 in)
SBIA0284E

Page 2212 of 3502

NISSAN TEANA 2003 Service Manual EM-104
[QR]
CYLINDER BLOCK

Piston Skirt Diameter
Measure the outer diameter of piston skirt with micrometer.
Piston to Cylinder Bore Clearance
Calculate by piston skirt diameter and cylinder bore in

Page 2213 of 3502

NISSAN TEANA 2003 Service Manual CYLINDER BLOCK
EM-105
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

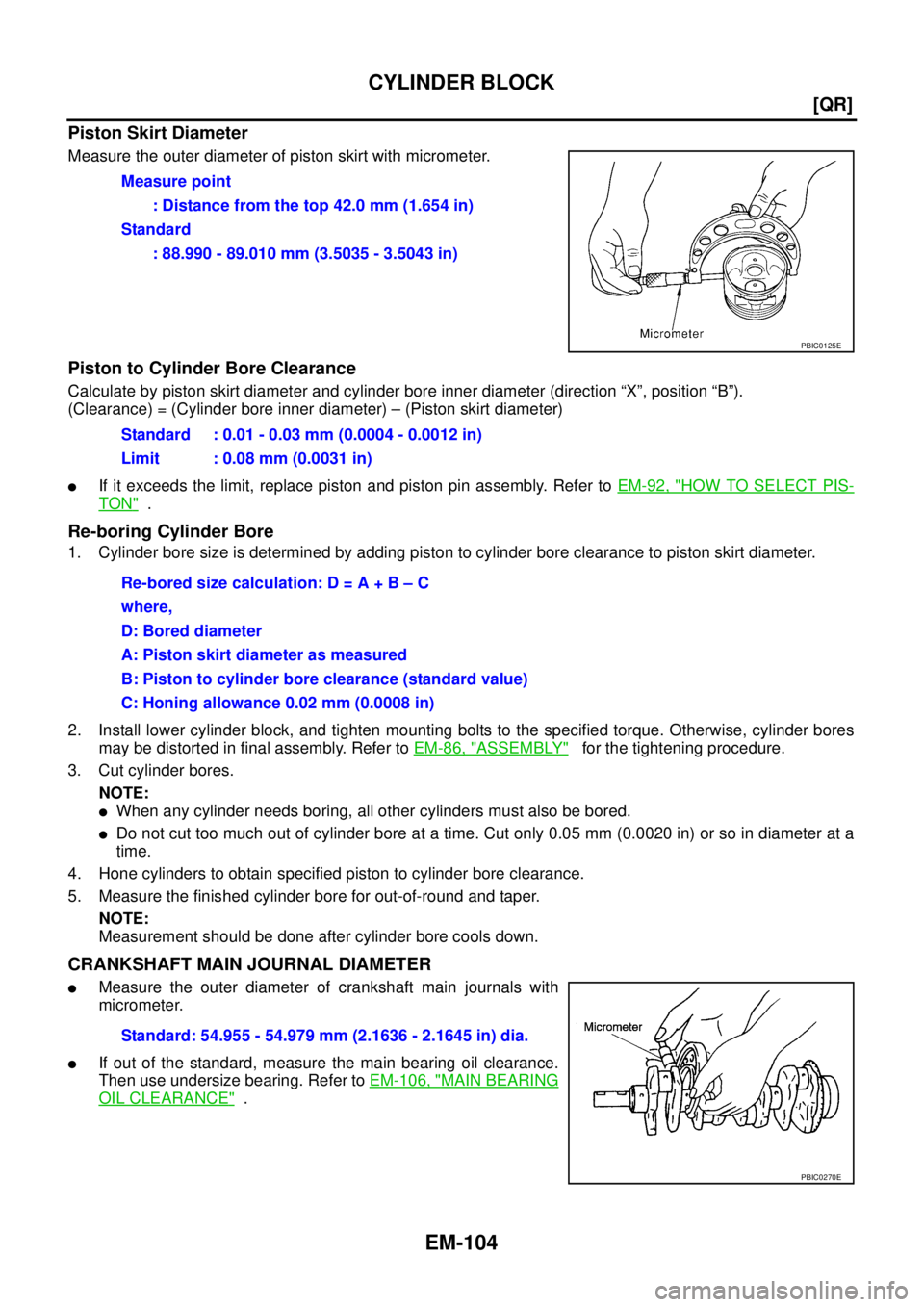

CRANKSHAFT PIN JOURNAL DIAMETER
Measure the outer diameter of crankshaft pin journal with micrometer.
If out of the standard, measure the conn

CYLINDER BLOCK
EM-105
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

CRANKSHAFT PIN JOURNAL DIAMETER
Measure the outer diameter of crankshaft pin journal with micrometer.
If out of the standard, measure the connecting rod bearing oil clearance. Then use undersize bearing.
Refer to EM-105, "
CONNECTING ROD BEARING OIL CLEARANCE" .
OUT-OF-ROUND AND TAPER OF CRANKSHAFT
Measure the dimensions at four different points as shown in the
figure on each main journal and pin journal with micrometer.
Out-of-round is indicated by the difference in dimensions
between “X” and “Y” at “A” and “B”.
Taper is indicated by the difference in dimension between “A”
and “B” at “X” and “Y”.
If the measured valve exceeds the limit, correct or replace crankshaft.
If corrected, measure the bearing oil clearance of the corrected main journal and/or pin journal. Then
select main bearing and/or connecting rod bearing. Refer to EM-106, "
MAIN BEARING OIL CLEAR-
ANCE" and/or EM-105, "CONNECTING ROD BEARING OIL CLEARANCE" .
CRANKSHAFT RUNOUT
Place a V-block on a precise flat table to support the journals on
the both end of the crankshaft.
Place a dial indicator straight up on the No. 3 journal.
While rotating crankshaft, read the movement of the pointer on
the dial indicator. (Total indicator reading)
If it exceeds the limit, replace crankshaft.
CONNECTING ROD BEARING OIL CLEARANCE
Method by Calculation
Install connecting rod bearings to connecting rod and cap, and tighten connecting rod bolts to the speci-
fied torque. Refer to EM-86, "
ASSEMBLY" for the tightening procedure.
Measure the inner diameter of connecting rod bearing with
inside micrometer.
(Bearing oil clearance) = (Connecting rod bearing inner diame-
ter) – (Crankshaft pin journal diameter)
If the clearance exceeds the limit, select proper connecting rod
bearing according to connecting rod big end diameter and
crankshaft pin journal diameter to obtain specified bearing oil
clearance. Refer to EM-92, "
HOW TO SELECT CONNECTING
ROD BEARING" .
Method of Using Plastigage
Remove engine oil and dust on crankshaft pin and the surfaces of each bearing completely. Standard: 44.956 - 44.974 mm (1.7699-1.7706 in) dia.
Limit:
Out-of-round (Difference between “X” and “Y”)
: 0.005 mm (0.0002 in)
Taper (Difference between “A” and “B”)
: 0.005 mm (0.0002 in)
PBIC2203E
Limit : 0.03 mm (0.0012 in)
PBIC2541E
Standard : 0.028 - 0.045 mm (0.0011 - 0.0018 in)
Limit : 0.1 mm (0.004 in)
PBIC1642E

Page 2214 of 3502

NISSAN TEANA 2003 Service Manual EM-106
[QR]
CYLINDER BLOCK

Cut a plastigage slightly shorter than the bearing width, and place it in crankshaft axial direction, avoiding
oil holes.
Install connecting rod bearings to connecting r

EM-106
[QR]
CYLINDER BLOCK

Cut a plastigage slightly shorter than the bearing width, and place it in crankshaft axial direction, avoiding
oil holes.
Install connecting rod bearings to connecting rod and cap, and tighten connecting rod bolts to the speci-
fied torque. Refer to EM-86, "
ASSEMBLY" for the tightening procedure.
CAUTION:
Do not rotate crankshaft.
Remove connecting rod cap and bearing, and using the scale on
the plastigage bag, measure the plastigage width.
NOTE:
The procedure when the measured value exceeds the limit is
same as that described in the “Method by Calculation”.
MAIN BEARING OIL CLEARANCE
Method by Calculation
Install main bearings to cylinder block and lower cylinder block, and tighten lower cylinder block mounting
bolts to the specified torque. Refer to EM-86, "
ASSEMBLY" for the tightening procedure.
Measure the inner diameter of main bearing with bore gauge.
(Bearing oil clearance) = (Main bearing inner diameter) – (Crank-
shaft main journal diameter)
If the clearance exceeds the limit, select proper main bearing
according to main bearing housing inner diameter and crankshaft main journal diameter to obtain speci-
fied bearing oil clearance. Refer to EM-95, "
HOW TO SELECT MAIN BEARING" .
Method of Using Plastigage
Remove engine oil and dust on crankshaft main journal and the surfaces of each bearing completely.
Cut a plastigage slightly shorter than the bearing width, and place it in crankshaft axial direction, avoiding
oil holes.
Install main bearings to cylinder block and lower cylinder block, and tighten lower cylinder block mounting
bolts to the specified torque. Refer to EM-86, "
ASSEMBLY" for the tightening procedure.
CAUTION:
Do not rotate crankshaft.
Remove lower cylinder block and bearings, and using the scale
on the plastigage bag, measure the plastigage width.
NOTE:
The procedure when the measured value exceeds the limit is
same as that described in the “Method by Calculation”.
PBIC1149E
Standard:
No. 1, 3 and 5 journals
: 0.012 - 0.022 mm (0.0005 - 0.0009 in)
No. 2 and 4 journals
: 0.018 - 0.028 mm (0.0007 - 0.0011 in)
Limit : 0.1 mm (0.004 in)
PBIC2204E
PBIC1149E

Page 2215 of 3502

NISSAN TEANA 2003 Service Manual CYLINDER BLOCK
EM-107
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

MAIN BEARING CRUSH HEIGHT
When lower cylinder block is removed after being tightened to
the specified torque with main bearings installed, the

Page 2216 of 3502

NISSAN TEANA 2003 Service Manual EM-108
[QR]
SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitBBS0059J
GENERAL SPECIFICATIONS
DRIVE BELT
EXHAUST MANIFOLD
Unit: mm (in)
SPARK PLU
