STARTING SYSTEM
SC-15
C
D
E
F
G
H
I
J
L
MA
B
SC

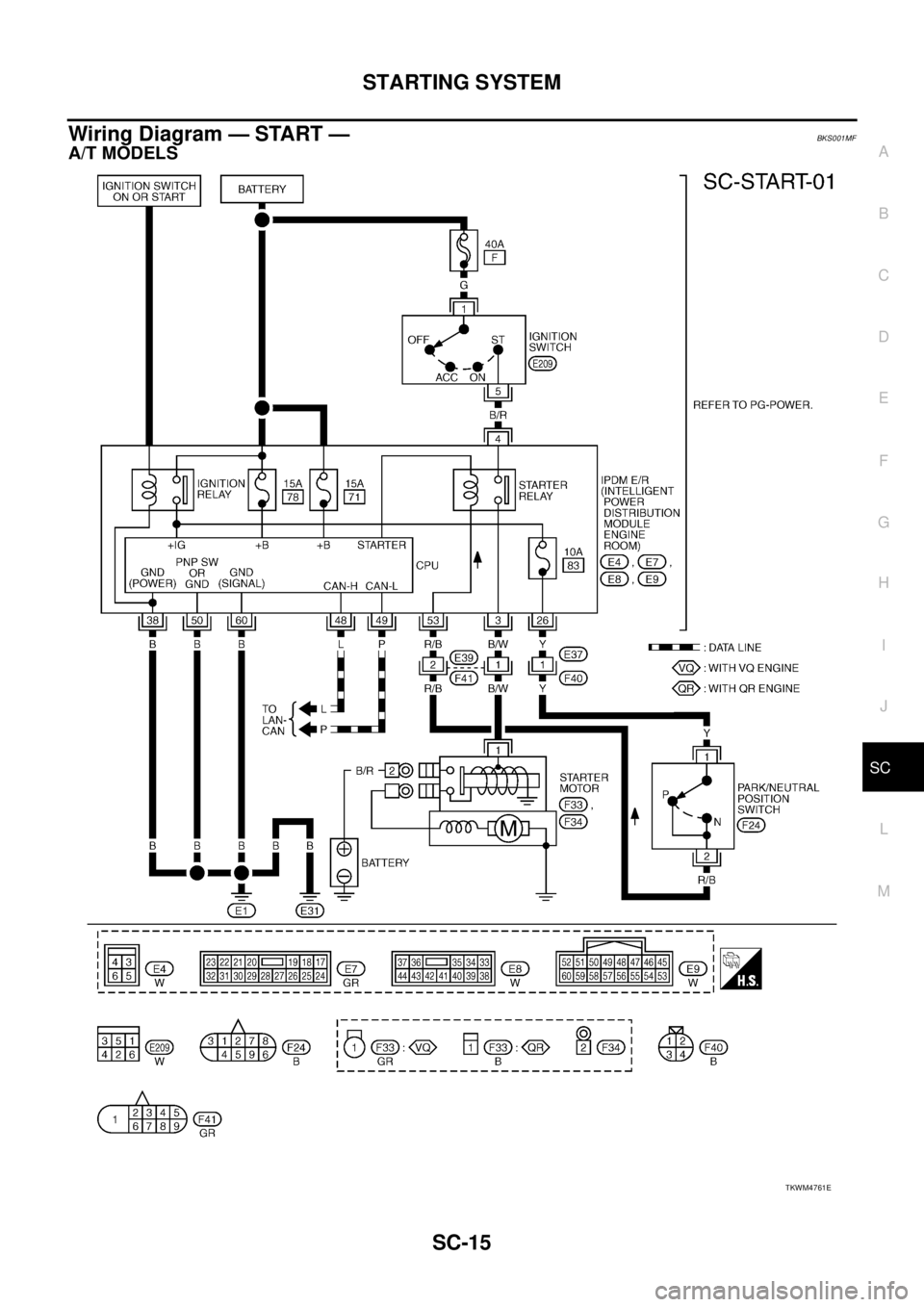

Wiring Diagram — START —BKS001MF
A/T MODELS
TKWM4761E
Page 3234 of 3502
SC-16
STARTING SYSTEM

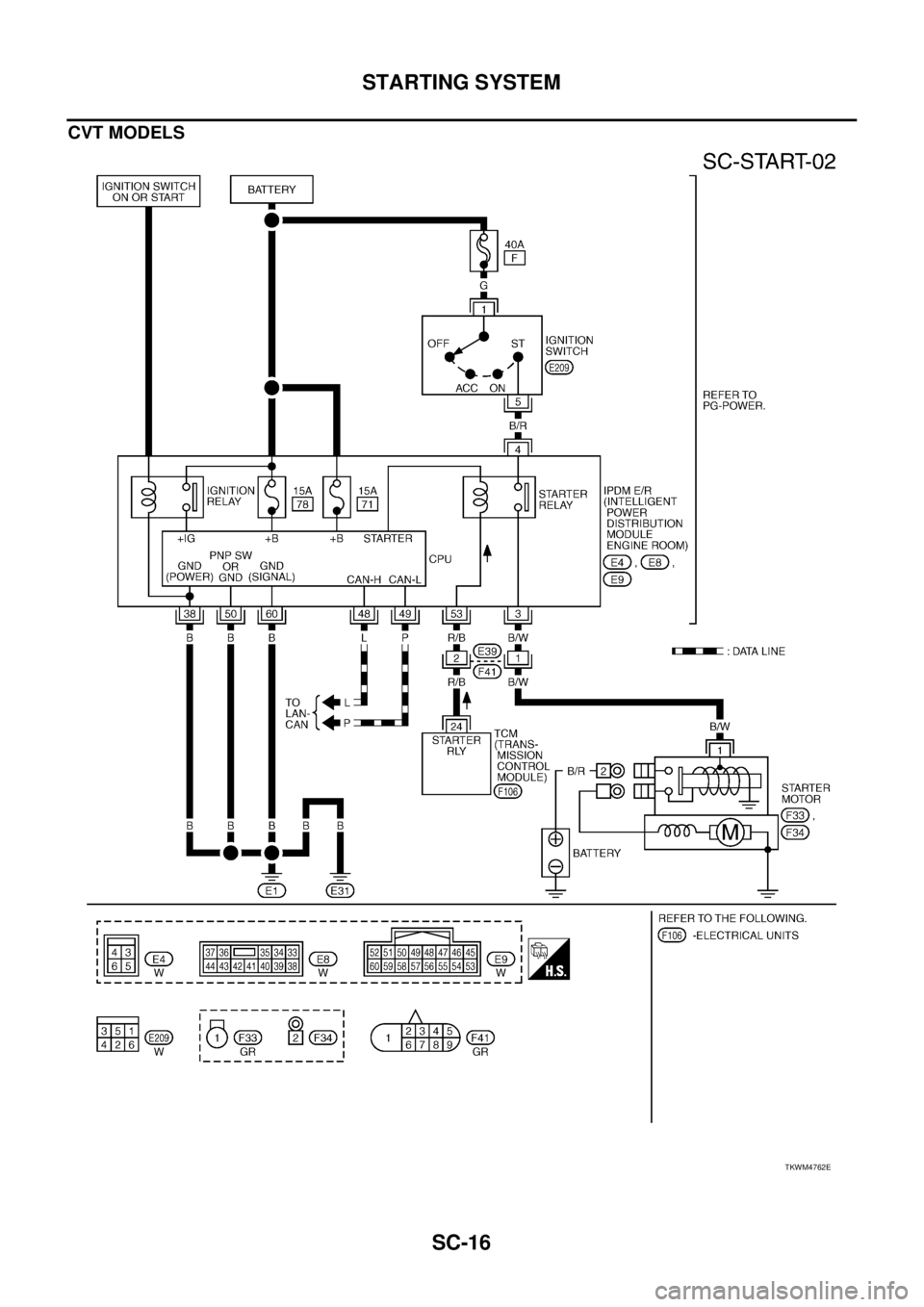

CVT MODELS
TKWM4762E
Page 3235 of 3502
STARTING SYSTEM
SC-17
C
D
E
F
G
H
I
J
L
MA
B
SC

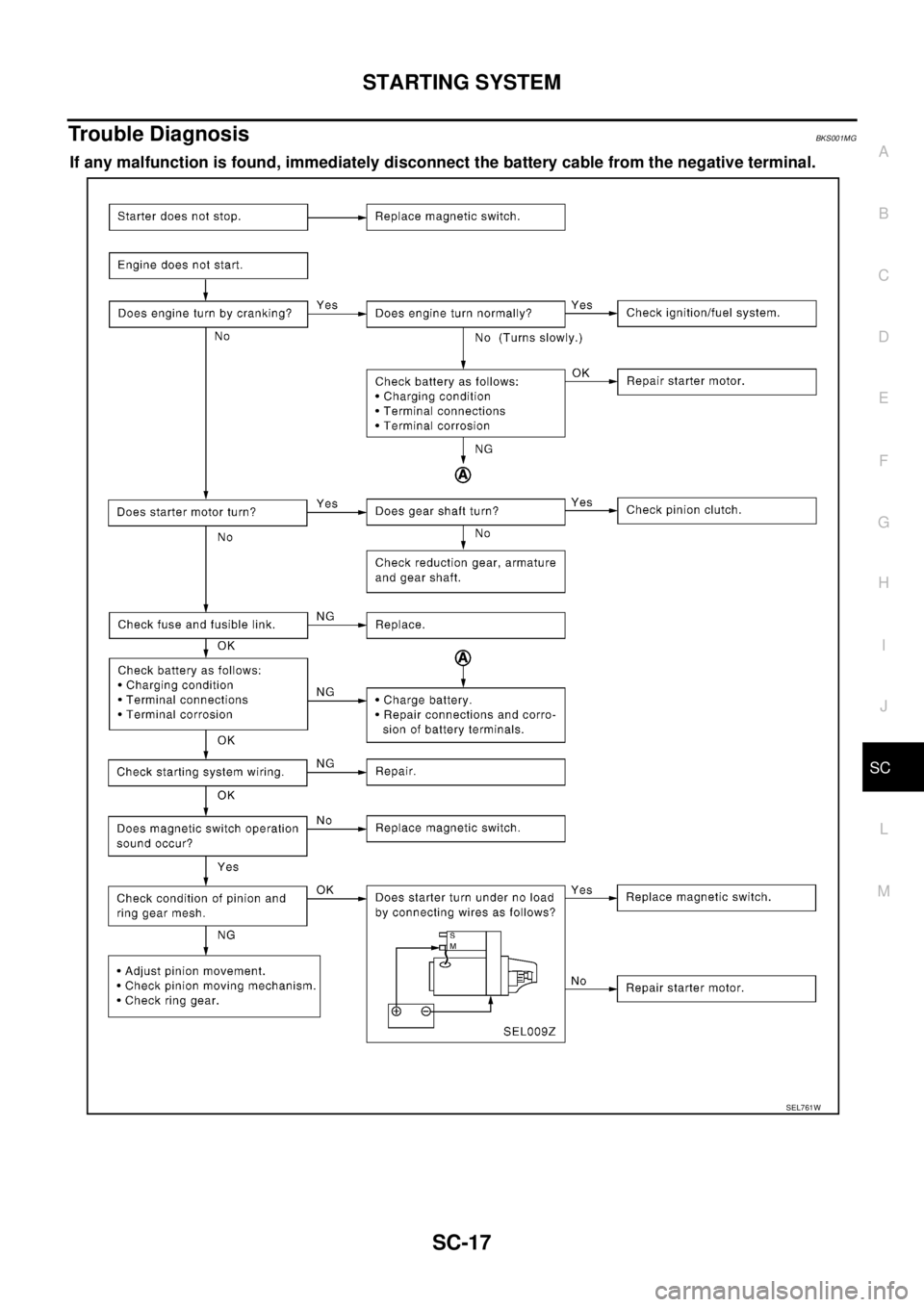

Trouble DiagnosisBKS001MG
If any malfunction is found, immediately disconnect the battery cable from the negative terminal.
SEL761W
Page 3236 of 3502
SC-18
STARTING SYSTEM
Removal and Installation BKS001MH
VQ23DE AND VQ35DE MODELS
REMOVAL
1. Disconnect the battery cable from the negative terminal.
2. Remove air duct assembly and air cleaner case (upper). Refer
to EM-131, "
AIR CLEANER AND AIR DUCT" .
3. Remove “S” connector bracket.
4. Disconnect “S” connector.
5. Remove “B” terminal nut.
6. Remove starter motor mounting bolts, using power tools.
7. Remove starter motor to the direction of upper side the vehicle.
INSTALLATION
Installation is the reverse order of removal.
CAUTION:
Be sure to tighten “B” terminal nut carefully.

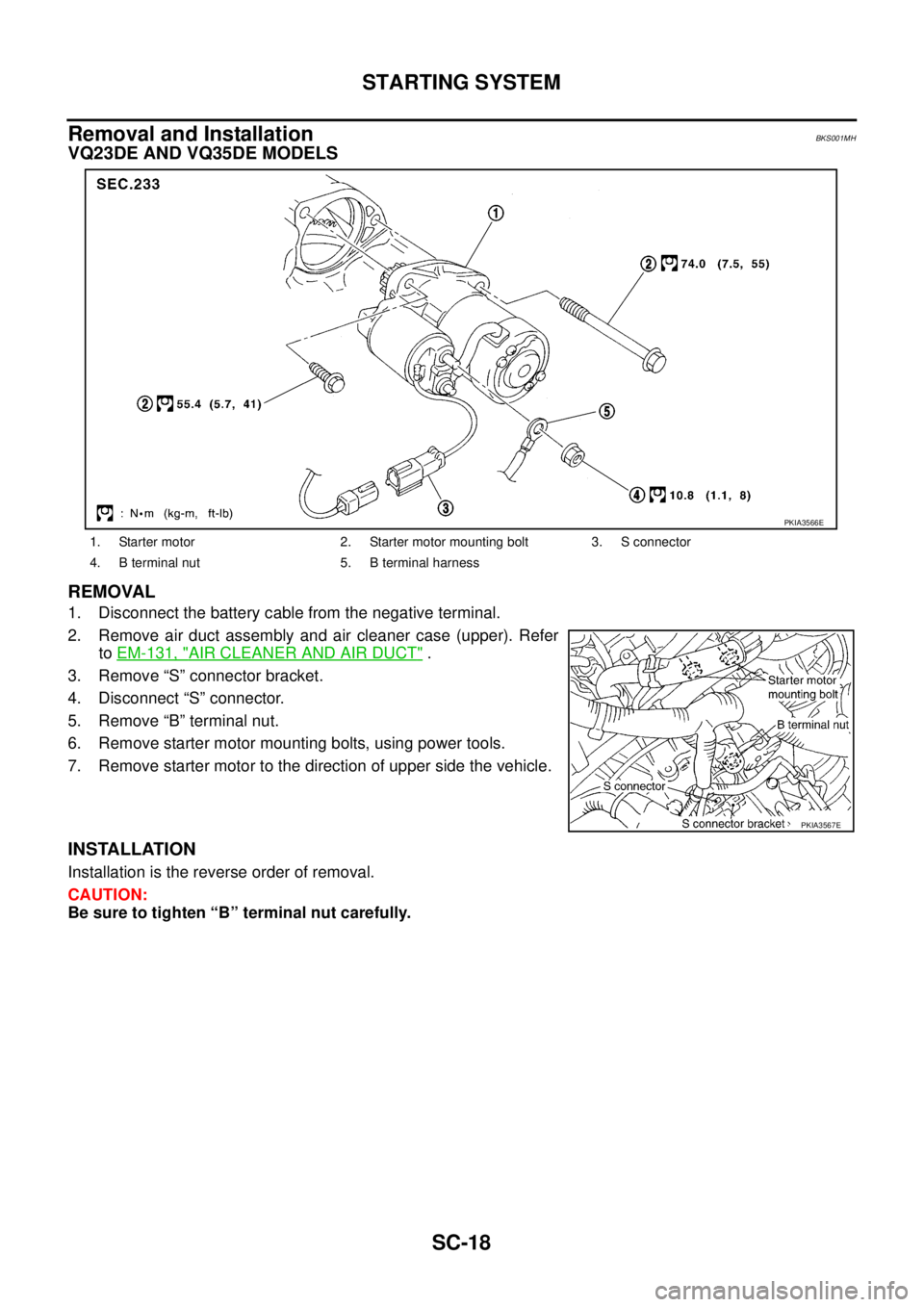

1. Starter motor 2. Starter motor mounting bolt 3. S connector
4. B terminal nut 5. B terminal harness
PKIA3566E
PKIA3567E
Page 3237 of 3502
STARTING SYSTEM
SC-19
C
D
E
F
G
H
I
J
L
MA
B
SC
QR20DE MODELS
REMOVAL
1. Disconnect the battery cable from the negative terminal.
2. Remove air duct assembly and air cleaner case (upper). Refer
to EM-131, "
AIR CLEANER AND AIR DUCT" .
3. Remove “S” connector bracket.
4. Disconnect “S” connector.
5. Remove “B” terminal nut.
6. Remove starter motor mounting bolts, using power tools.
7. Remove starter motor to the direction of upper side the vehicle.
INSTALLATION
Installation is the reverse order of removal.
CAUTION:
Be sure to tighten “B” terminal nut carefully.

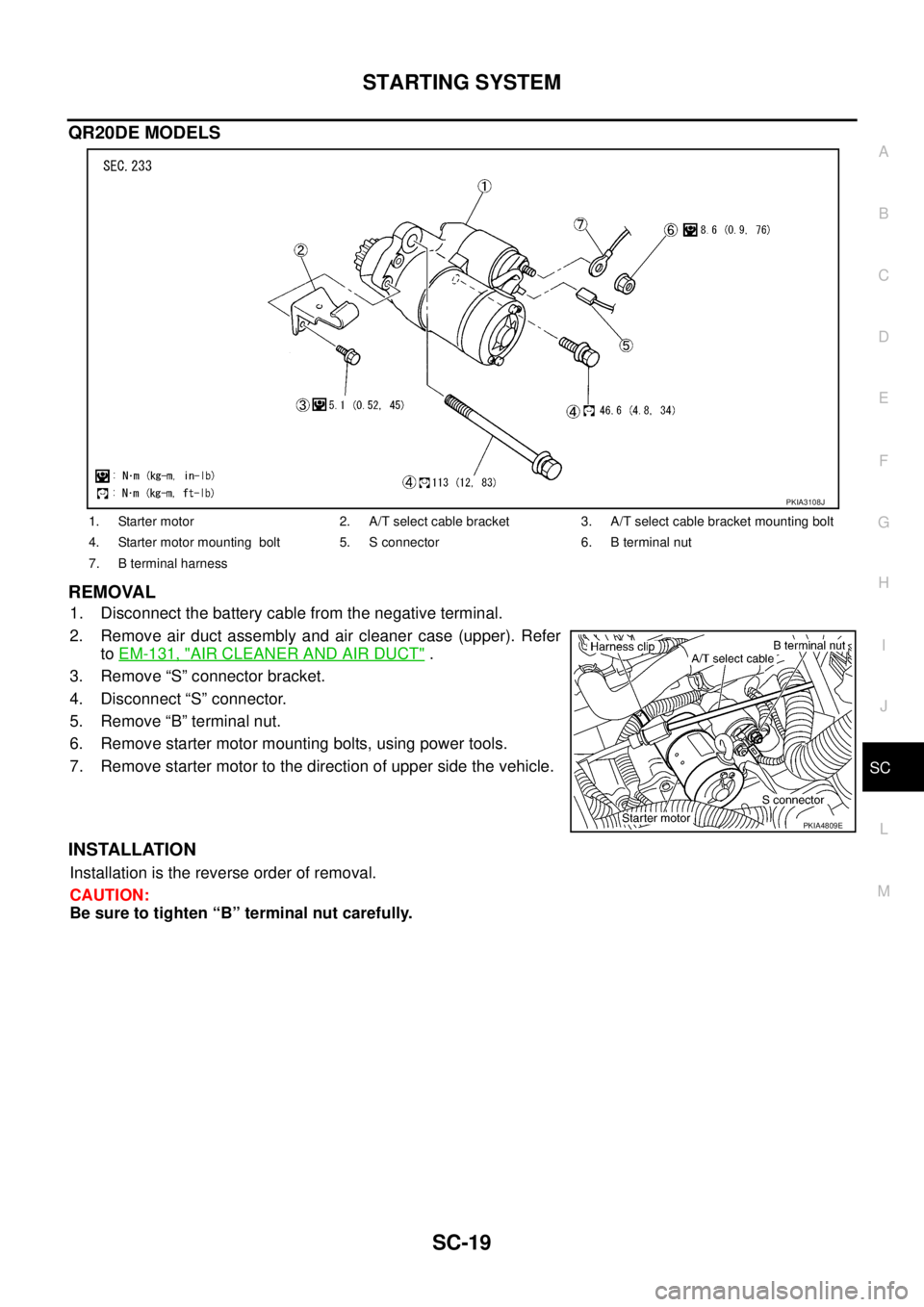

1. Starter motor 2. A/T select cable bracket 3. A/T select cable bracket mounting bolt
4. Starter motor mounting bolt 5. S connector 6. B terminal nut
7. B terminal harness
PKIA3108J
PKIA4809E
Page 3238 of 3502
SC-20
STARTING SYSTEM
Disassembly and Assembly BKS0027C
DISASSEMBLY
VQ23DE MODELS
PKIA3568E
1. Magnetic switch assembly 2. Adjusting plate 3. Packing
4. Metal FR 5. Plate 6. Shift lever
7. Gear case 8. Yoke 9. Armature
10. Brush holder assembly 11. Metal RR 12. Rear cover
13. Through-bolt 14. Packing 15. Ball
16. Planetary gear 17. Gear shaft 18. Internal gear
19. Pinion assembly 20. Stopper 21. Stopper ring
Page 3239 of 3502
STARTING SYSTEM
SC-21
C
D
E
F
G
H
I
J
L
MA
B
SC
VQ35DE MODELS
SKIB6768E
1. Magnetic switch assembly 2. Plate 3. Packing
4. Plate 5. Shift lever 6. Front bracket assembly
7. Pinion spring 8. Pinion assembly 9. Pinion stopper
10. Stopper ring 11. Brush holder assembly 12. Metal
13. Rear cover 14. Through-bolt 15. Armature assembly
16. Yoke assembly 17. Packing 18. Ball
19. Gear assembly 20. Gear shaft 21. Internal gear assembly
22. Clutch gear assembly
: N·m (kg-m, in-lb)
(H): High-temperature grease point
Page 3240 of 3502
SC-22
STARTING SYSTEM
QR20DE MODELS
PKIA4810E
1. Magnetic switch assembly 2. Dust cover kit 3. Shift lever set
4. Gear case assembly 5. Center bracket (A) 6. Yoke
7. Armature 8. Brush holder assembly 9. Thrust washer
10. Rear cover assembly 11. Through-bolt 12. Internal gear
13. Planetary gear 14. Packing 15. Thrust washer
16. Center bracket (P) 17. E-ring 18. Pinion shaft
19. Pinion spring 20. Pinion 21. Pinion stopper
22. Pinion stopper clip
