INTAKE MANIFOLD
EM-21
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
10. Loosen mounting nuts and bolts in reverse order as shown in
the figure, and remove intake manifold (with fuel tube and fuel
injector assembly) and gasket.
CAUTION:
Do not disassemble intake manifold.
Cover engine openings to avoid entry of foreign materi-
als.
NOTE:
Disregard No. 6 when loosening.
INSTALLATION
Note the following, and install in the reverse order of removal.
Intake Manifold
If stud bolts were removed, install them and tighten to the specified torque below.
Check if gasket is not dropped from the installation groove of intake manifold.
Tighten in numerical order as shown in the figure.
NOTE:
No. 6 means double tightening of bolt No. 1.
Intake Manifold Support
Tighten mounting bolt from “A” to “B” in order as shown in the figure.
NOTE:
Tighten “A” in the figure together with electric throttle control actua-
tor. Refer to EM-21, "
Electric Throttle Control Actuator" for the tight-
ening procedure.
Electric Throttle Control Actuator
Tighten mounting bolts equally and diagonally in several steps
and in numerical order as shown in the figure.
Perform the “Throttle Valve Closed Position Learning” when har-
ness connector of electric throttle control actuator is discon-
nected. Refer to EC-47, "
Throttle Valve Closed Position
Learning" .
Perform the “Idle Air Volume Learning” and “Throttle Valve
Closed Position Learning” when electric throttle control actuator
is replaced. Refer to EC-47, "
Idle Air Volume Learning" .
PBIC2173E
: 10.8 N·m (1.1 kg-m, 8 ft-lb)
PBIC2173E
PBIC2628E
EMJ1612D
Page 2130 of 3502
EM-22
[QR]
INTAKE MANIFOLD
INSPECTION AFTER INSTALLATION
Make sure there are no fuel leaks at connections with the following procedure:
1. Apply fuel pressure to fuel lines with turning ignition switch “ON” (with engine stopped). Then make sure
there are no fuel leaks at connections.
NOTE:
Use mirrors for checking on invisible points.
2. Start engine. With engine speed increased, make sure again there are no fuel leaks at connections.
CAUTION:
Do not touch the engine immediately after stopped as engine becomes extremely hot.
Page 2131 of 3502
EXHAUST MANIFOLD AND THREE WAY CATALYST
EM-23
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
EXHAUST MANIFOLD AND THREE WAY CATALYSTPFP:14004
Removal and InstallationBBS0058Z
REMOVAL
1. Remove undercover.
2. Remove drive belt. Refer to EM-14, "
DRIVE BELTS" .
3. Remove exhaust front tube. Refer to EX-2, "
EXHAUST SYSTEM" .
4. Remove alternator. Refer to SC-27, "
CHARGING SYSTEM" .
5. Remove heated oxygen sensors with the following procedure:
a. Put marks to identify installation positions of each heated oxygen sensor.
b. Disconnect harness connector of each heated oxygen sensor, and harness from bracket and middle
clamp.
1. Heated oxygen sensor 1 2.Exhaust manifold and three way cat-
alyst assembly3. Gasket
4. Three way catalyst cover 5. Exhaust manifold cover (lower) 6. Exhaust manifold stay
7. Heated oxygen sensor 2 8. Exhaust manifold cover (upper)
PBIC4678E
Page 2132 of 3502
![NISSAN TEANA 2003 Service Manual EM-24
[QR]
EXHAUST MANIFOLD AND THREE WAY CATALYST
c. Using heated oxygen sensor wrench (SST), remove heated oxy-
gen sensors.
CAUTION:
Be careful not to damage heated oxygen sensor.
Discard any h NISSAN TEANA 2003 Service Manual EM-24
[QR]
EXHAUST MANIFOLD AND THREE WAY CATALYST
c. Using heated oxygen sensor wrench (SST), remove heated oxy-
gen sensors.
CAUTION:
Be careful not to damage heated oxygen sensor.
Discard any h](/manual-img/5/57392/w960_57392-2131.png)
EM-24
[QR]
EXHAUST MANIFOLD AND THREE WAY CATALYST
c. Using heated oxygen sensor wrench (SST), remove heated oxy-
gen sensors.
CAUTION:
Be careful not to damage heated oxygen sensor.
Discard any heated oxygen sensor which has been
dropped onto a hard surface such as a concrete floor;
replace with a new one.
6. Remove exhaust manifold stay.
7. Remove exhaust manifold cover (upper).
8. Loosen nuts in reverse order as shown in the figure to remove
exhaust manifold and three way catalyst assembly.
NOTE:
Disregard No. 6 and 7 when loosening.
9. Remove gasket.
CAUTION:
Cover engine openings to avoid entry of foreign materials.
10. Remove exhaust manifold cover (lower) and three way catalyst cover from exhaust manifold and three
way catalyst assembly.
INSPECTION AFTER REMOVAL
Surface Distortion
Using straightedge and feeler gauge, check the surface distor-
tion of exhaust manifold and three way catalyst assembly mating
surface.
If it exceeds the limit, replace exhaust manifold and three way
catalyst assembly.
INSTALLATION
Note the following, and install in the reverse order of removal.
Exhaust Manifold
If stud bolts were removed, install them and tighten to the specified torque below.
KBIA0094E
KBIA0045E
Limit : 0.3 mm (0.012 in)
KBIA0046E
: 14.7 N·m (1.5 kg-m, 11 ft-lb)
Page 2133 of 3502
EXHAUST MANIFOLD AND THREE WAY CATALYST
EM-25
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
Tighten nuts in numerical order as shown in the figure.
NOTE:
No. 6 and 7 mean double tightening of bolts No. 1 and 3.
Heated Oxygen Sensor
Install heated oxygen sensors in the original position.
Install referring the following if the installation positions cannot
be identified.
CAUTION:
Before installing a new heated oxygen sensor, clean exhaust system threads using heated oxygen
sensor thread cleaner (commercial service tool) and apply anti-seize lubricant (commercial ser-
vice tool).
Do not exceed the specified torque heated oxygen sensor. Doing so may cause damage to heated
oxygen sensor, resulting in the “MIL” coming on.
KBIA0045E
Glass tube color
Heated oxygen sensor 1 : Black
Heated oxygen sensor 2 : White
PBIC2652E
Page 2134 of 3502
![NISSAN TEANA 2003 Service Manual EM-26
[QR]
OIL PAN AND OIL STRAINER
OIL PAN AND OIL STRAINERP F P : 1111 0
Removal and InstallationBBS00590
REMOVAL
WARNING:
To avoid the danger of being scalded, do not drain the engine oil when th NISSAN TEANA 2003 Service Manual EM-26
[QR]
OIL PAN AND OIL STRAINER
OIL PAN AND OIL STRAINERP F P : 1111 0
Removal and InstallationBBS00590
REMOVAL
WARNING:
To avoid the danger of being scalded, do not drain the engine oil when th](/manual-img/5/57392/w960_57392-2133.png)

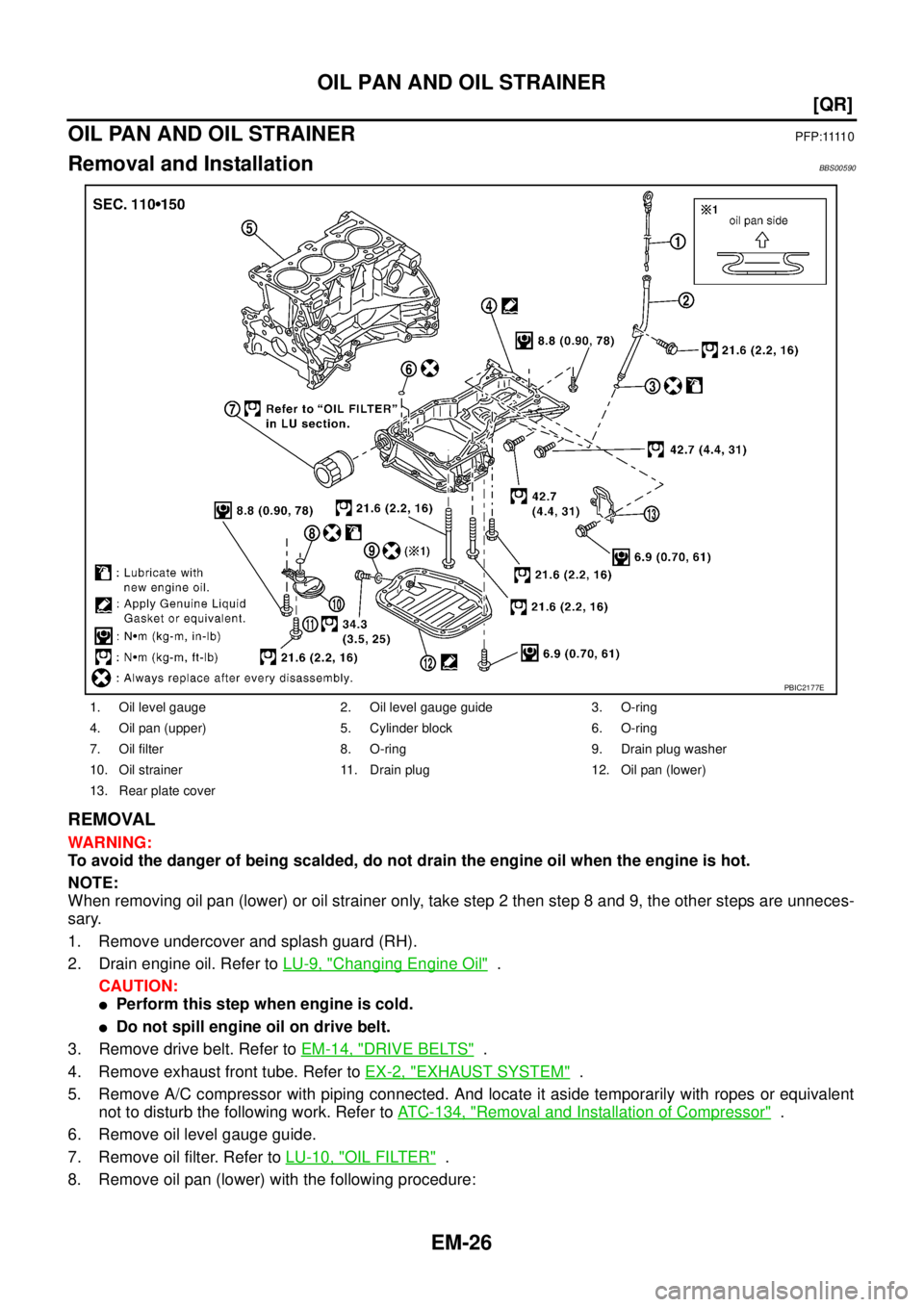

EM-26
[QR]
OIL PAN AND OIL STRAINER
OIL PAN AND OIL STRAINERP F P : 1111 0
Removal and InstallationBBS00590
REMOVAL
WARNING:
To avoid the danger of being scalded, do not drain the engine oil when the engine is hot.
NOTE:
When removing oil pan (lower) or oil strainer only, take step 2 then step 8 and 9, the other steps are unneces-
sary.
1. Remove undercover and splash guard (RH).
2. Drain engine oil. Refer to LU-9, "
Changing Engine Oil" .
CAUTION:
Perform this step when engine is cold.
Do not spill engine oil on drive belt.
3. Remove drive belt. Refer to EM-14, "
DRIVE BELTS" .
4. Remove exhaust front tube. Refer to EX-2, "
EXHAUST SYSTEM" .
5. Remove A/C compressor with piping connected. And locate it aside temporarily with ropes or equivalent
not to disturb the following work. Refer to ATC-134, "
Removal and Installation of Compressor" .
6. Remove oil level gauge guide.
7. Remove oil filter. Refer to LU-10, "
OIL FILTER" .
8. Remove oil pan (lower) with the following procedure:
1. Oil level gauge 2. Oil level gauge guide 3. O-ring
4. Oil pan (upper) 5. Cylinder block 6. O-ring
7. Oil filter 8. O-ring 9. Drain plug washer
10. Oil strainer 11. Drain plug 12. Oil pan (lower)
13. Rear plate cover
PBIC2177E
Page 2135 of 3502
![NISSAN TEANA 2003 Service Manual OIL PAN AND OIL STRAINER
EM-27
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

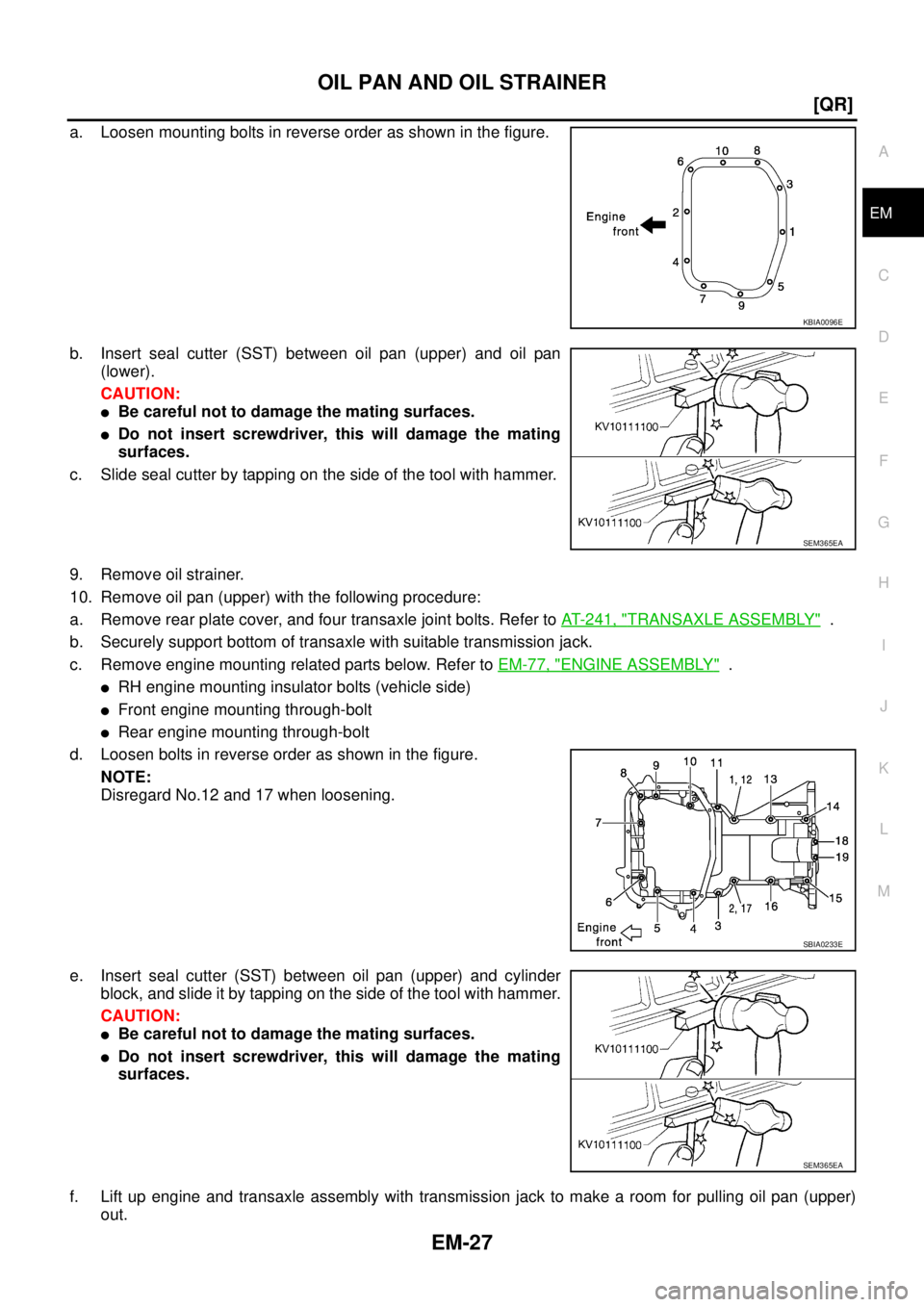

a. Loosen mounting bolts in reverse order as shown in the figure.
b. Insert seal cutter (SST) between oil pan (upper) and oil pan
(lower NISSAN TEANA 2003 Service Manual OIL PAN AND OIL STRAINER
EM-27
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
a. Loosen mounting bolts in reverse order as shown in the figure.
b. Insert seal cutter (SST) between oil pan (upper) and oil pan
(lower](/manual-img/5/57392/w960_57392-2134.png)
OIL PAN AND OIL STRAINER
EM-27
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
a. Loosen mounting bolts in reverse order as shown in the figure.
b. Insert seal cutter (SST) between oil pan (upper) and oil pan
(lower).
CAUTION:
Be careful not to damage the mating surfaces.
Do not insert screwdriver, this will damage the mating
surfaces.
c. Slide seal cutter by tapping on the side of the tool with hammer.
9. Remove oil strainer.
10. Remove oil pan (upper) with the following procedure:
a. Remove rear plate cover, and four transaxle joint bolts. Refer to AT- 2 4 1 , "
TRANSAXLE ASSEMBLY" .
b. Securely support bottom of transaxle with suitable transmission jack.
c. Remove engine mounting related parts below. Refer to EM-77, "
ENGINE ASSEMBLY" .
RH engine mounting insulator bolts (vehicle side)
Front engine mounting through-bolt
Rear engine mounting through-bolt
d. Loosen bolts in reverse order as shown in the figure.
NOTE:
Disregard No.12 and 17 when loosening.
e. Insert seal cutter (SST) between oil pan (upper) and cylinder
block, and slide it by tapping on the side of the tool with hammer.
CAUTION:
Be careful not to damage the mating surfaces.
Do not insert screwdriver, this will damage the mating
surfaces.
f. Lift up engine and transaxle assembly with transmission jack to make a room for pulling oil pan (upper)
out.
KBIA0096E
SEM365EA
SBIA0233E
SEM365EA
Page 2136 of 3502
![NISSAN TEANA 2003 Service Manual EM-28
[QR]
OIL PAN AND OIL STRAINER
g. Pull oil pan (upper) out.
11. Remove O-rings at front cover side.
INSPECTION AFTER REMOVAL
Oil Strainer
Clean oil strainer if any object attached.
INSTALLATION NISSAN TEANA 2003 Service Manual EM-28
[QR]
OIL PAN AND OIL STRAINER
g. Pull oil pan (upper) out.
11. Remove O-rings at front cover side.
INSPECTION AFTER REMOVAL
Oil Strainer
Clean oil strainer if any object attached.
INSTALLATION](/manual-img/5/57392/w960_57392-2135.png)
EM-28
[QR]
OIL PAN AND OIL STRAINER
g. Pull oil pan (upper) out.
11. Remove O-rings at front cover side.
INSPECTION AFTER REMOVAL
Oil Strainer
Clean oil strainer if any object attached.
INSTALLATION
1. Install oil pan (upper) with the following procedure:
a. Use scraper to remove old liquid gasket from mating surfaces.
Also remove the old liquid gasket from mating surface of cyl-
inder block.
Remove old liquid gasket from the bolt holes and threads.
CAUTION:
Do not scratch or damage the mating surfaces when clean-
ing off old liquid gasket.
b. Apply a continuous bead of liquid gasket with tube presser [SST:
WS39930000] as shown in the figure.
Use Genuine Liquid Gasket or equivalent.
CAUTION:
Apply liquid gasket to outside of bolt hole for the posi-
tions shown by arrows.
Attaching should be done within 5 minutes after coating.
c. Install new O-rings at front cover side.
d. Tighten bolts in numerical order as shown in the figure.
NOTE:
No. 12 and 17 mean double tightening of bolts No. 1 and 2.
Refer to the following for locating bolts.
e. Tighten transaxle joint bolts. Refer to AT- 2 4 1 , "
TRANSAXLE ASSEMBLY" .
f. Install rear plate cover.
g. Install engine mounting related parts below. Refer to EM-77, "
ENGINE ASSEMBLY" .
RH engine mounting insulator bolts (vehicle side)
Front engine mounting through-bolt
Rear engine mounting through-bolt
h. Release supporting with the transmission jack.
2. Install oil strainer.
3. Install oil pan (lower) with the following procedure:
MEM108A
SBIA0253E
M6 × 20 mm (0.79 in) : No. 18, 19
M8 × 25 mm (0.98 in) : No. 1, 2, 3, 11
M8 × 45 mm (1.77 in) : No. 4, 10, 13, 14, 15, 16
M8 × 100 mm (3.97 in) : No. 5, 6, 7, 8, 9
SBIA0233E
