Page 1265 of 3502

NISSAN TEANA 2003 Service Manual WARNING CHIME
DI-59
C
D
E
F
G
H
I
J
L
MA
B
DI

SchematicBKS001T1
TKWM2320E

Page 1266 of 3502

NISSAN TEANA 2003 Service Manual DI-60
WARNING CHIME

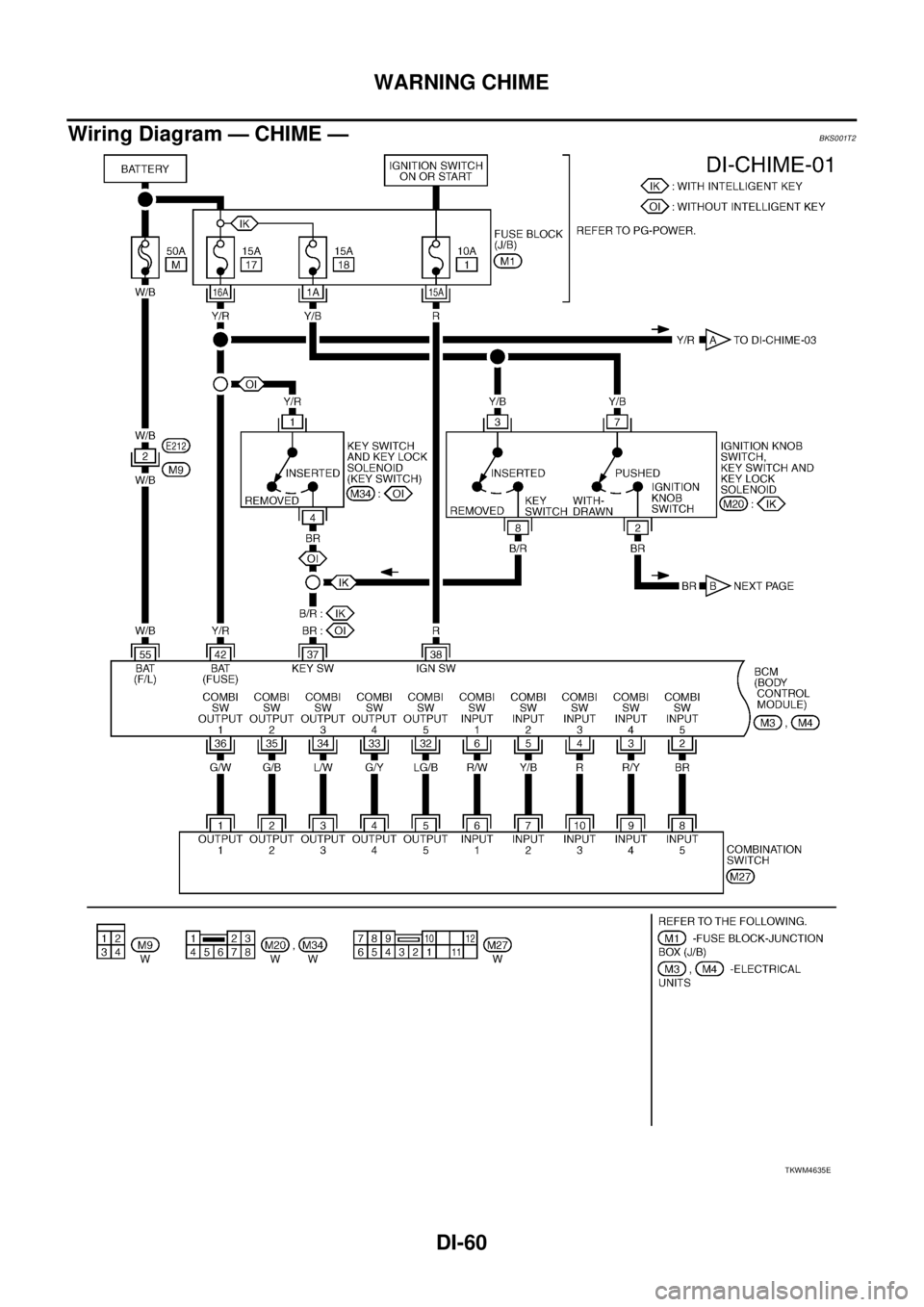

Wiring Diagram — CHIME —BKS001T2
TKWM4635E

Page 1267 of 3502

NISSAN TEANA 2003 Service Manual WARNING CHIME
DI-61
C
D
E
F
G
H
I
J
L
MA
B
DI

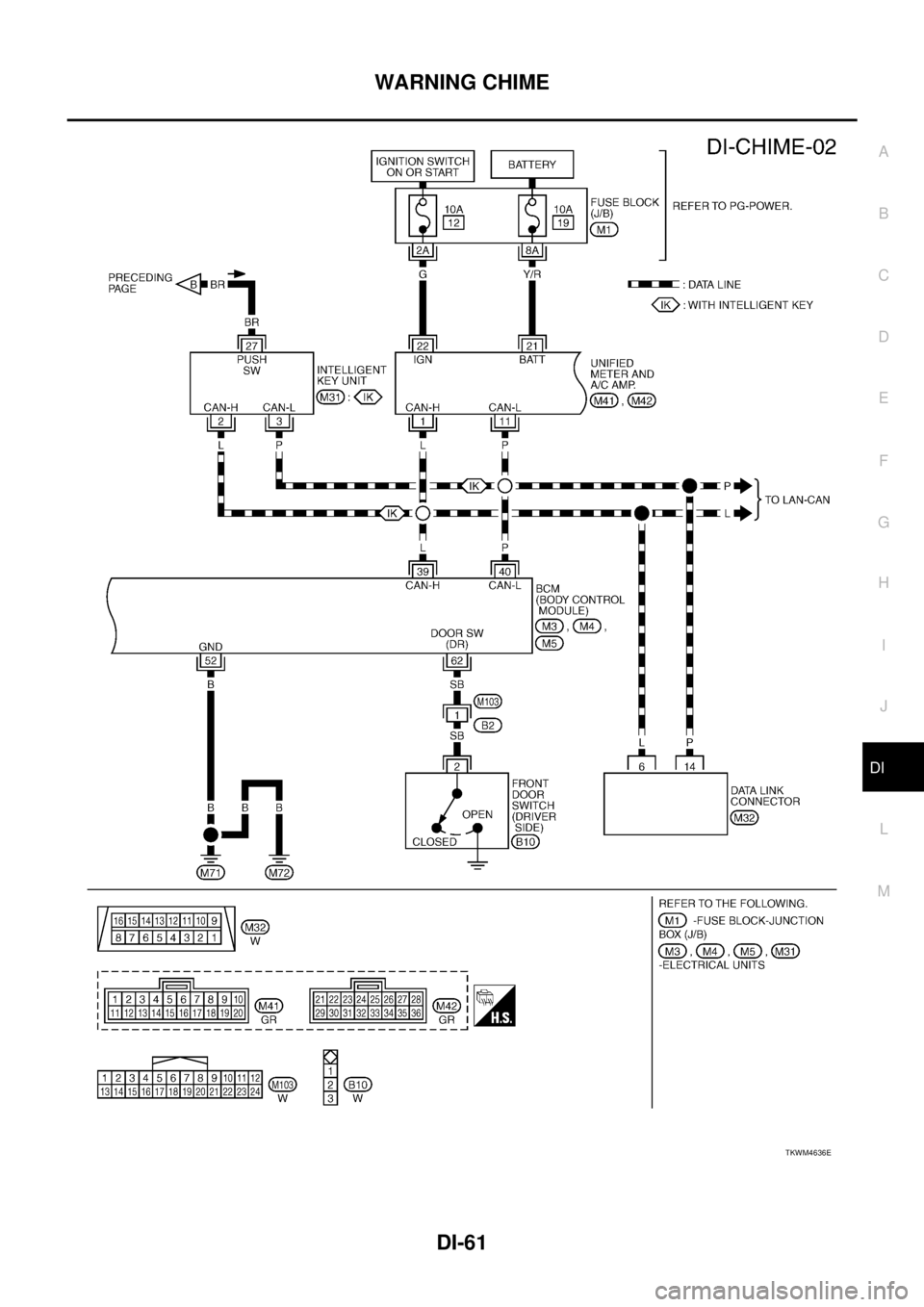

TKWM4636E

Page 1268 of 3502

NISSAN TEANA 2003 Service Manual DI-62
WARNING CHIME

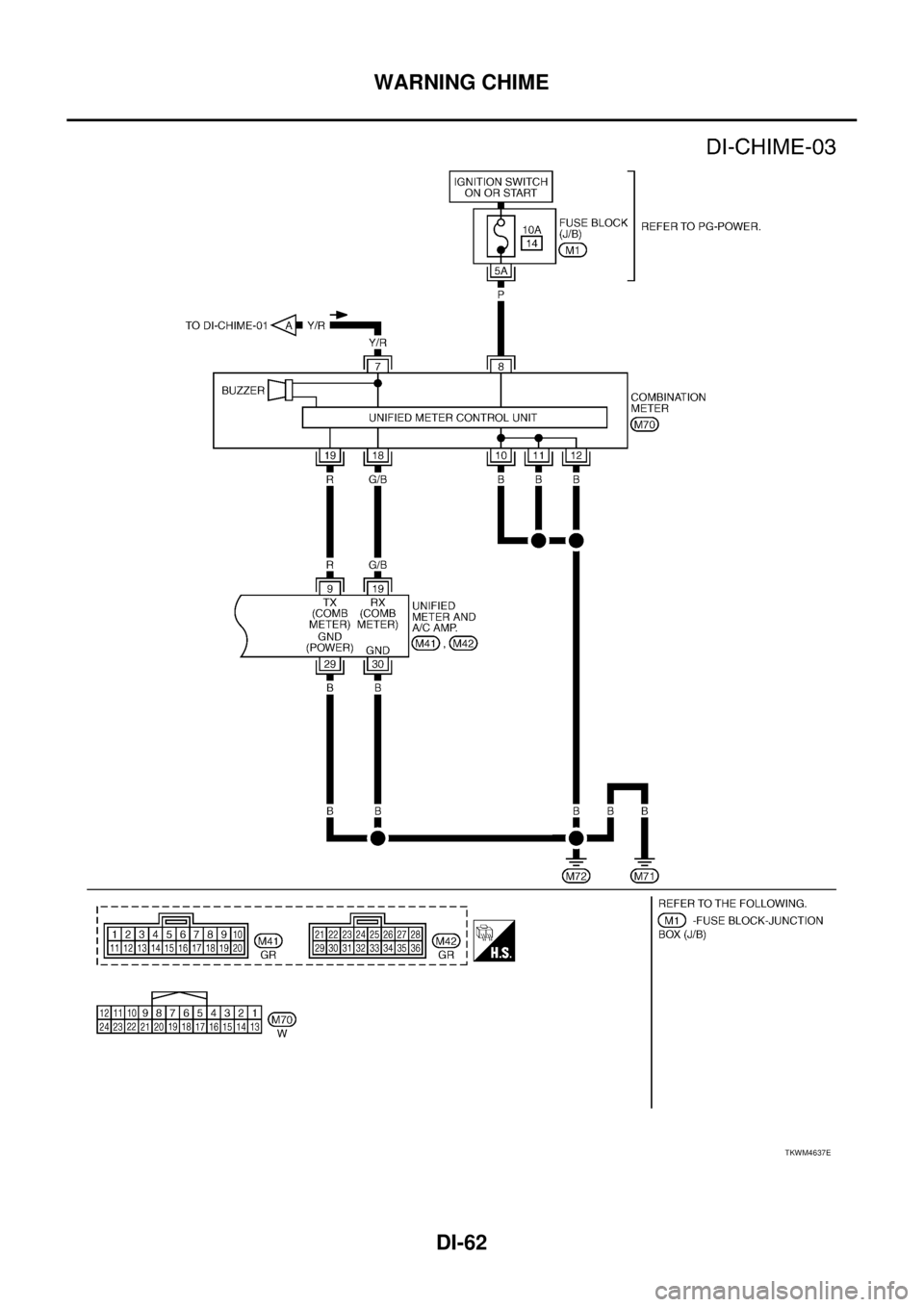

TKWM4637E

Page 1269 of 3502

NISSAN TEANA 2003 Service Manual WARNING CHIME
DI-63
C
D
E
F
G
H
I
J
L
MA
B
DI

Terminals and Reference Value for BCMBKS001T3
TerminalWire
colorItemMeasuring condition
Reference value
Ignition
switchOperation or condition
2 BR Com

Page 1270 of 3502

NISSAN TEANA 2003 Service Manual DI-64
WARNING CHIME

*1: With Intelligent key
*2: Without Intelligent key
Terminals and Reference Value for Unified Meter and A/C Amp. BKS001T4
35 G/B Combination switch output 2
ONLights, turn signa

Page 1271 of 3502

NISSAN TEANA 2003 Service Manual WARNING CHIME
DI-65
C
D
E
F
G
H
I
J
L
MA
B
DI

Terminals and Reference Value for Combination MeterBKS001T5
CONSULT-II FunctionBKS001T6
CONSULT-II performs the following functions communicating with t

Page 1272 of 3502

NISSAN TEANA 2003 Service Manual DI-66
WARNING CHIME

Display Item List
ACTIVE TEST
Operation procedure
1. Touch “BUZZER” on “SELECT TEST ITEM” screen.
2. Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen.
3. Touch th

DI-66
WARNING CHIME

Display Item List
ACTIVE TEST
Operation procedure
1. Touch “BUZZER” on “SELECT TEST ITEM” screen.
2. Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen.
3. Touch the item to be tested, and check the operation.
4. During the operation check, touching “OFF” deactivates the operation.
Display Item LIst
Trouble DiagnosisBKS001T7
HOW TO PROCEED WITH TROUBLE DIAGNOSIS
1. Confirm the malfunction symptom or customer complaint.
2. Understand the outline of system. Refer to DI-56, "
System Description" .
3. Perform preliminary check. Refer to DI-66, "
PRELIMINARY CHECK" .
4. Select “METER A/C AMP” on CONSULT-II, and then perform self-diagnosis of unified meter and A/C
amp. Refer to DI-29, "
CONSULT-II Function (METER A/C AMP)" . When no malfunction detected, go to
next step 5. When malfunction detected, go to DI-17, "
SYMPTOM CHART 2" in “COMBINATION
METER”.
5. Check symptom and repair or replace the cause of malfunction.
6. Does the warning chime operate normally? If so, GO TO 7. If not, GO TO 5.
7. INSPECTION END
PRELIMINARY CHECK
1. CHECK FUSE AND FUSIBLE LINK
Check BCM fuses and fusible link for blown-out.
OK or NG
OK >> GO TO 2.
NG >> If fuse or fusible link is blown, be sure to eliminate cause of malfunction before installing new fuse
or fusible link. Refer to PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
Monitor item [Unit] ALL SIGNALSSELECTION
FROM MENUDescription
IGN ON SW [ON/OFF] X X Indicates [ON/OFF] condition of ignition switch.
KEY ON SW [ON/OFF] X X Indicates [ON/OFF] condition of key switch.
DOOR SW-DR [ON/OFF] X X Indicates [ON/OFF] condition of front door switch (driver side).
LIGHT SW 1ST [ON/OFF] X X Indicates [ON/OFF] condition of lighting switch.
FR FOG SW [ON/OFF] X X Indicates [ON/OFF] condition of front fog lamp switch.
Test item Malfunction is detected when···
IGN KEY WARN ALMThis test is able to check key warning chime operation. Key warning chime sounds for 2 seconds
after touching “ON” on CONSULT-ll screen.
LIGHT WARN ALMThis test is able to check light warning chime operation. Light warning chime sounds for 2 seconds
after touching “ON” on CONSULT-ll screen.
Unit Power source Fuse and fusible link No.
BCMBatteryM
17
Ignition switch ON or START 1
