Page 1569 of 3502

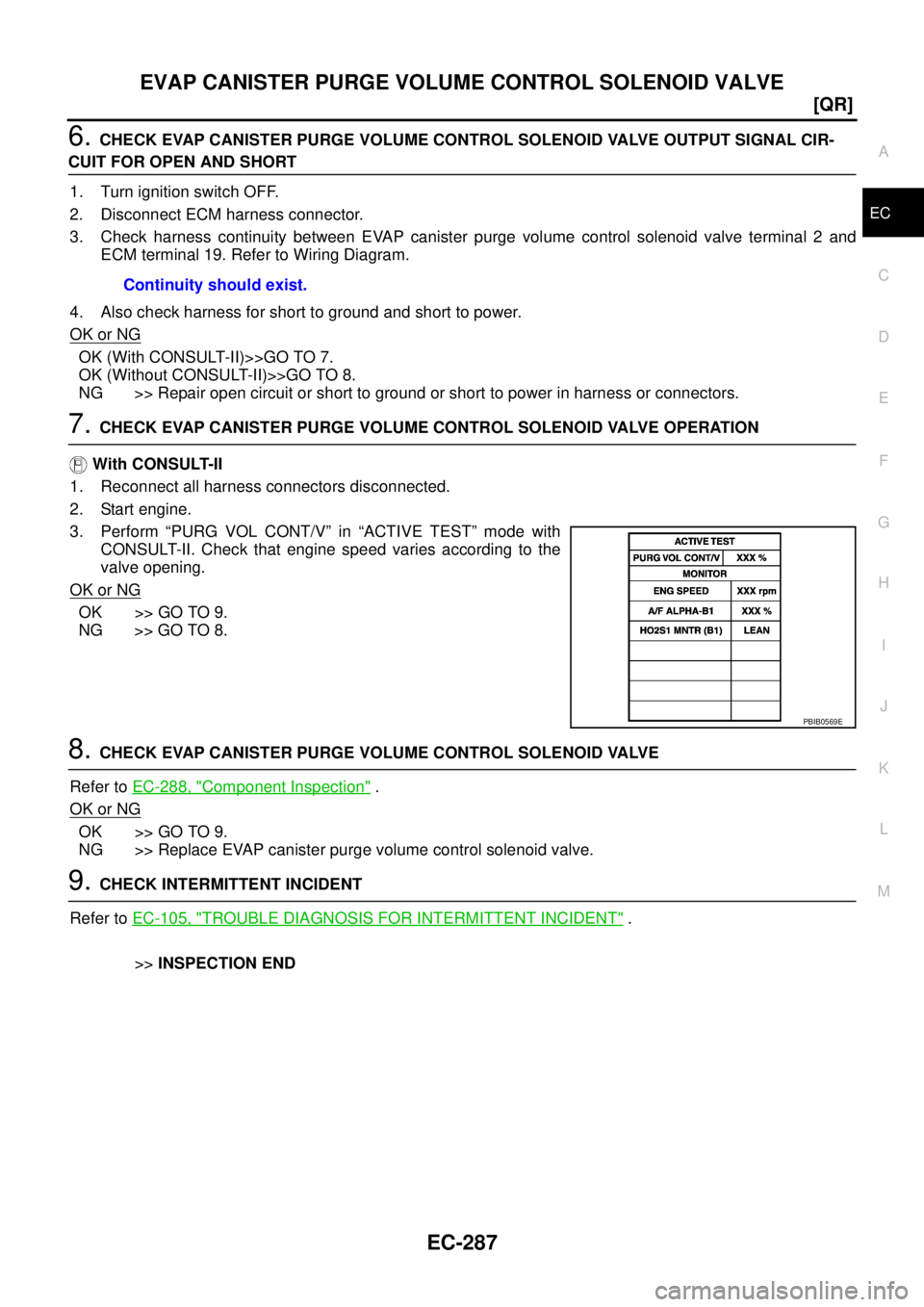

NISSAN TEANA 2003 Service Manual EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE EC-287 [QR] C D E F G H I J K L MA EC 6. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OUTPUT SIGNAL CIR- CUIT FOR OPEN AND SHORT 1. Turn

Page 1570 of 3502

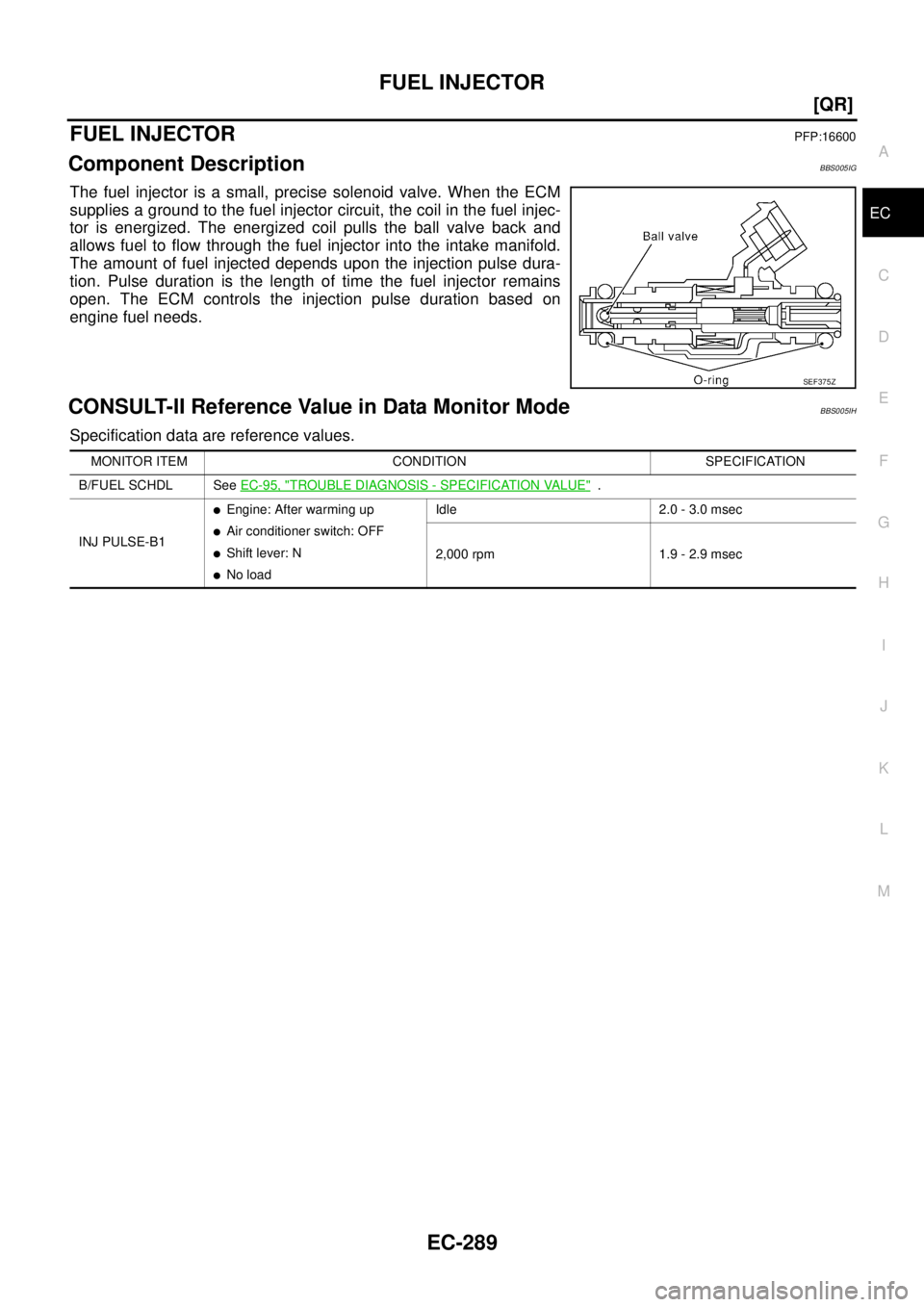

NISSAN TEANA 2003 Service Manual EC-288 [QR] EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE Component InspectionBBS005IE EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE With CONSULT-II Check air passage continuity of EVAP can

Page 1571 of 3502

NISSAN TEANA 2003 Service Manual FUEL INJECTOR EC-289 [QR] C D E F G H I J K L MA EC FUEL INJECTORPFP:16600 Component DescriptionBBS005IG The fuel injector is a small, precise solenoid valve. When the ECM supplies a ground to the f

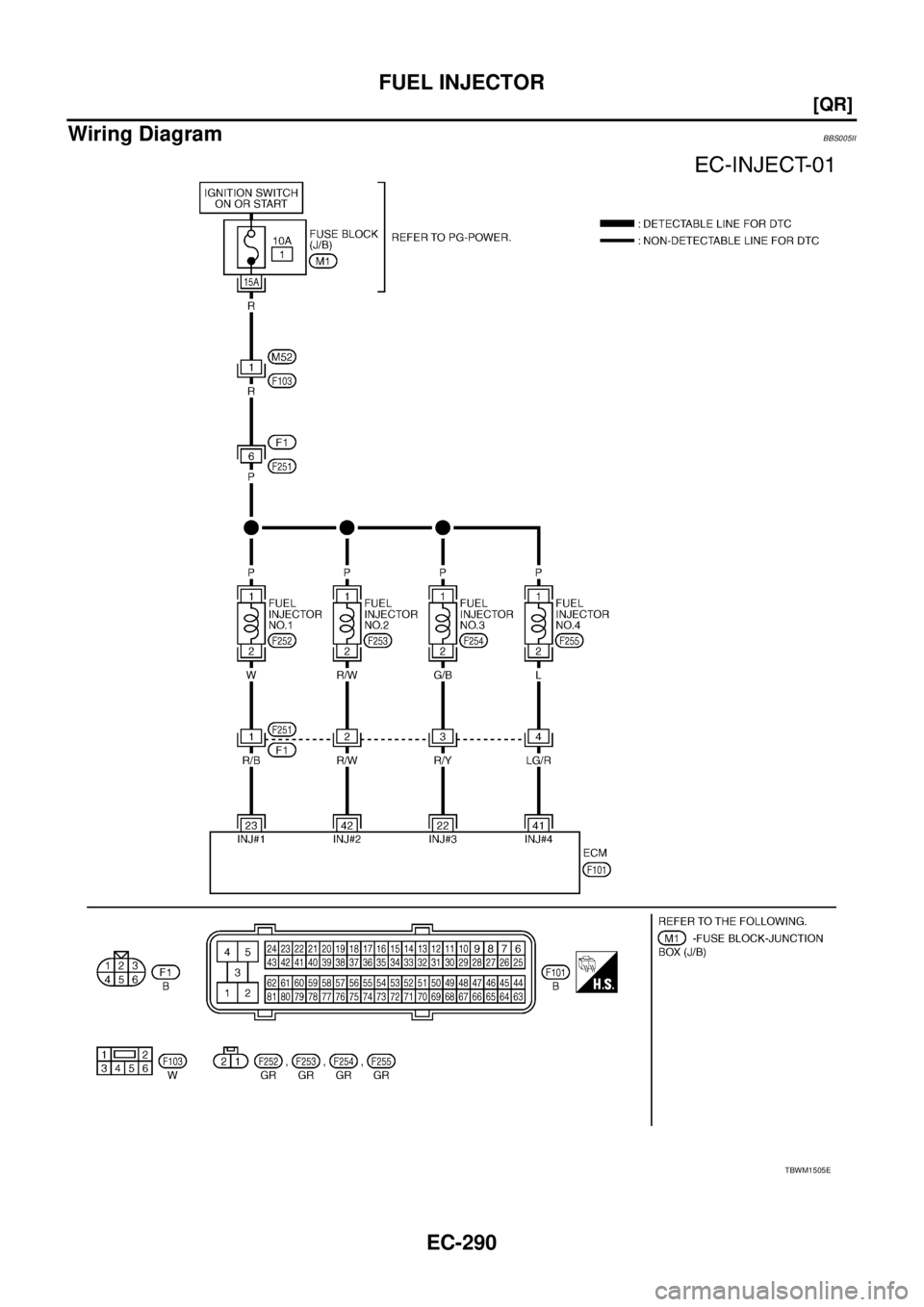

Page 1572 of 3502

NISSAN TEANA 2003 Service Manual EC-290 [QR] FUEL INJECTOR Wiring DiagramBBS005II TBWM1505E

Page 1573 of 3502

NISSAN TEANA 2003 Service Manual FUEL INJECTOR EC-291 [QR] C D E F G H I J K L MA EC Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II. CAUTION: Do not

Page 1574 of 3502

NISSAN TEANA 2003 Service Manual EC-292 [QR] FUEL INJECTOR 2. CHECK OVERALL FUNCTION With CONSULT-II 1. Start engine. 2. Perform “POWER BALANCE” in “ACTIVE TEST” mode with CONSULT-II. 3. Make sure that each circuit produce

Page 1575 of 3502

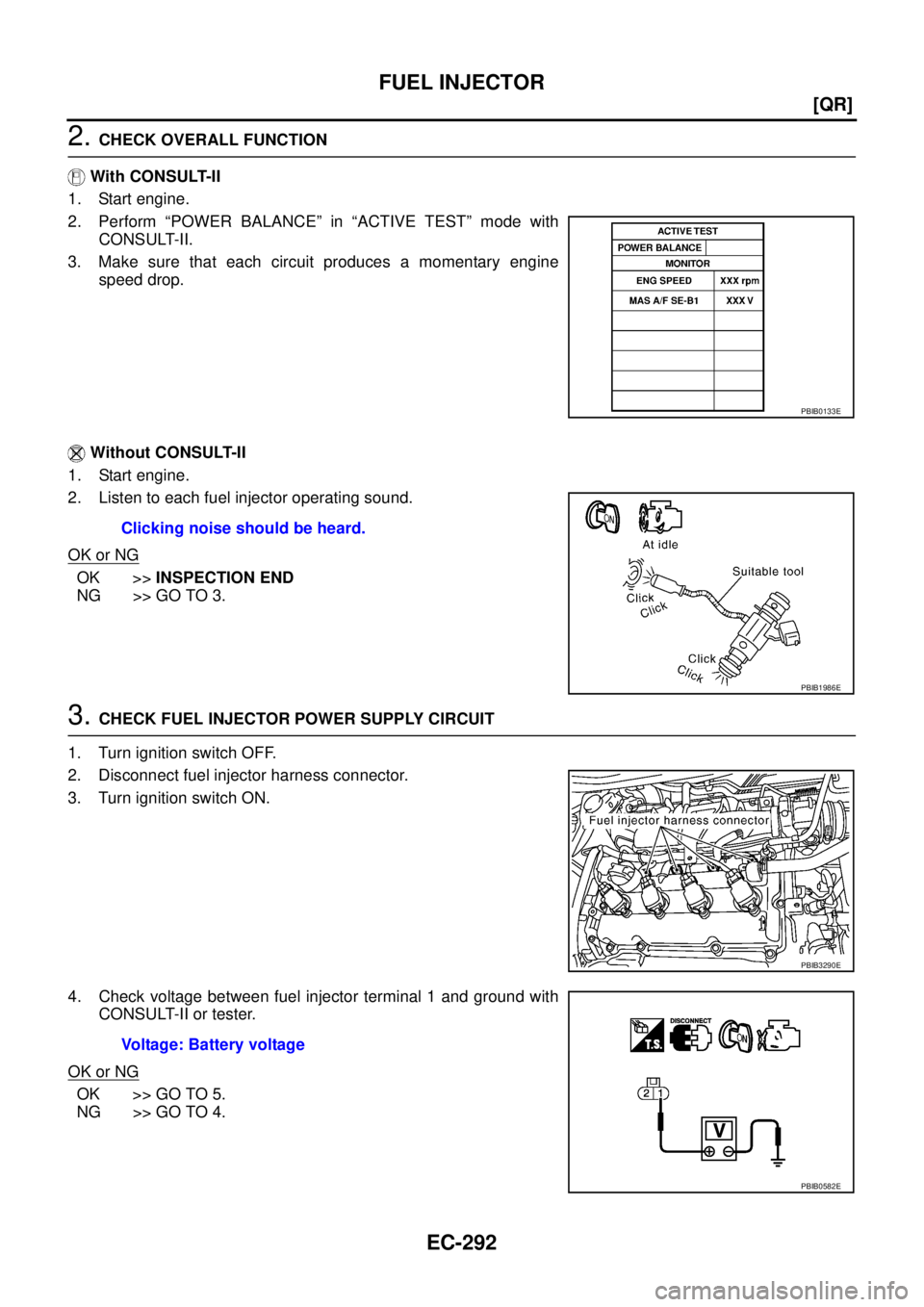

NISSAN TEANA 2003 Service Manual FUEL INJECTOR EC-293 [QR] C D E F G H I J K L MA EC 4. DETECT MALFUNCTIONING PART Check the following. Harness connectors M52, F103 Harness connectors F1, F251 Fuse block (J/B) connector M1 10A

Page 1576 of 3502

NISSAN TEANA 2003 Service Manual EC-294 [QR] FUEL INJECTOR 2. Check resistance between terminals as shown in the figure. Removal and InstallationBBS005IL FUEL INJECTOR Refer to EM-34, "FUEL INJECTOR AND FUEL TUBE" . Resistance: 11.
