c. Remove control valve assembly fitting bolts A , B and C .
Bolt length, number and location:
d. Remove control valve assembly from transaxle case.
CAUTION:
Be careful not to drop manual valve.
17. Remove manual valve from control valve assembly.
Check the sliding surfaces of manual valve and valve body,
and replace if damage or dented.
CAUTION:
Be careful not to drop manual valve.
18. Remove O-ring from terminal body.
19. Remove return spring from servo release accumulator piston.
Bolt symbol A B C
Bolt length “ ” mm (in)
40.0
(1.575)33.0
(1.299)43.5
(1.713)
Number of bolts 5 6 2
AAT260A
SAT005F
SCIA3477E
Page 266 of 3502
AT-258
DISASSEMBLY

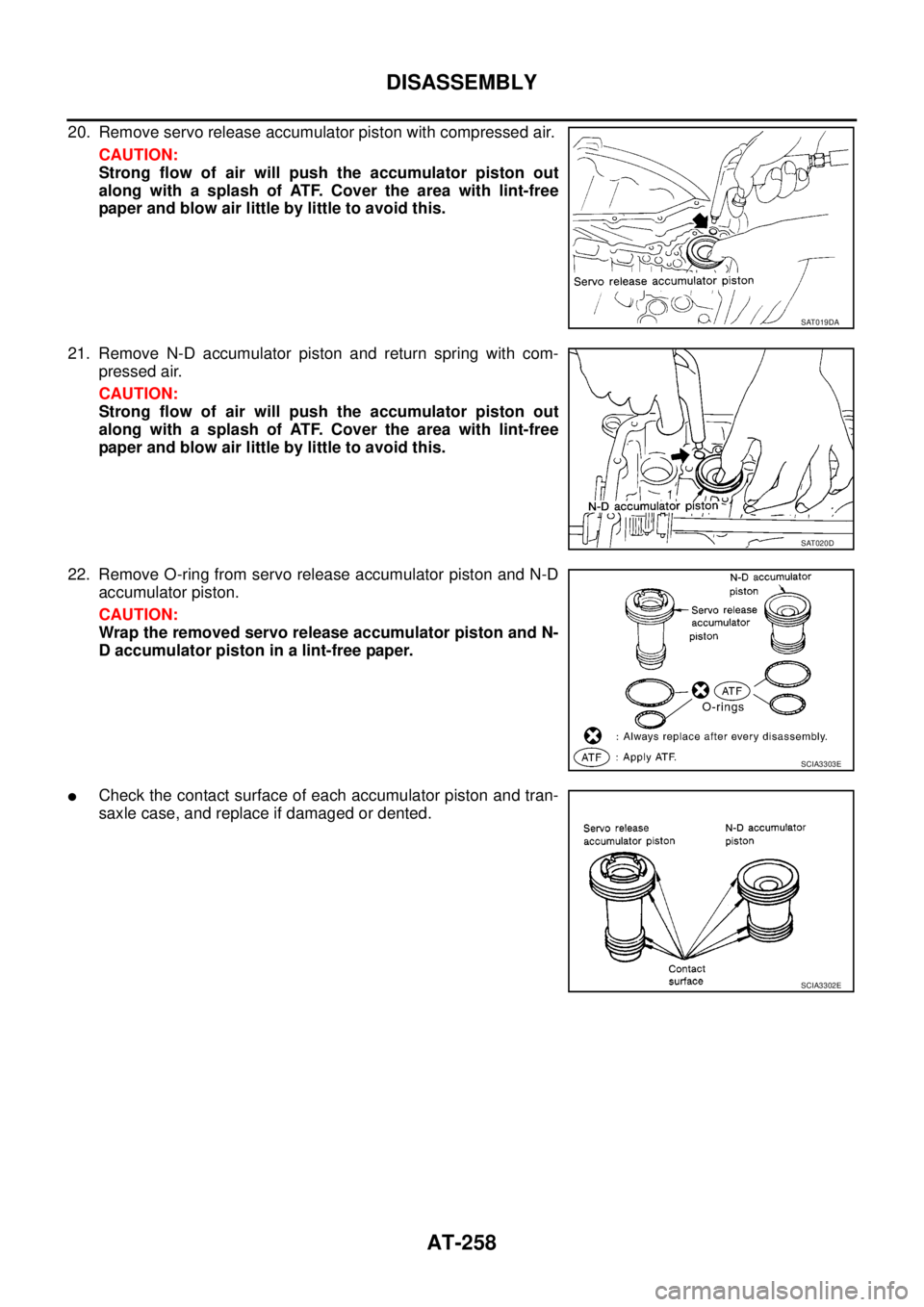

20. Remove servo release accumulator piston with compressed air.
CAUTION:
Strong flow of air will push the accumulator piston out
along with a splash of ATF. Cover the area with lint-free
paper and blow air little by little to avoid this.
21. Remove N-D accumulator piston and return spring with com-
pressed air.
CAUTION:
Strong flow of air will push the accumulator piston out
along with a splash of ATF. Cover the area with lint-free
paper and blow air little by little to avoid this.
22. Remove O-ring from servo release accumulator piston and N-D
accumulator piston.
CAUTION:
Wrap the removed servo release accumulator piston and N-
D accumulator piston in a lint-free paper.
Check the contact surface of each accumulator piston and tran-
saxle case, and replace if damaged or dented.
SAT019DA
SAT020D
SCIA3303E
SCIA3302E
Page 267 of 3502
DISASSEMBLY
AT-259
D
E
F
G
H
I
J
K
L
MA
B
AT

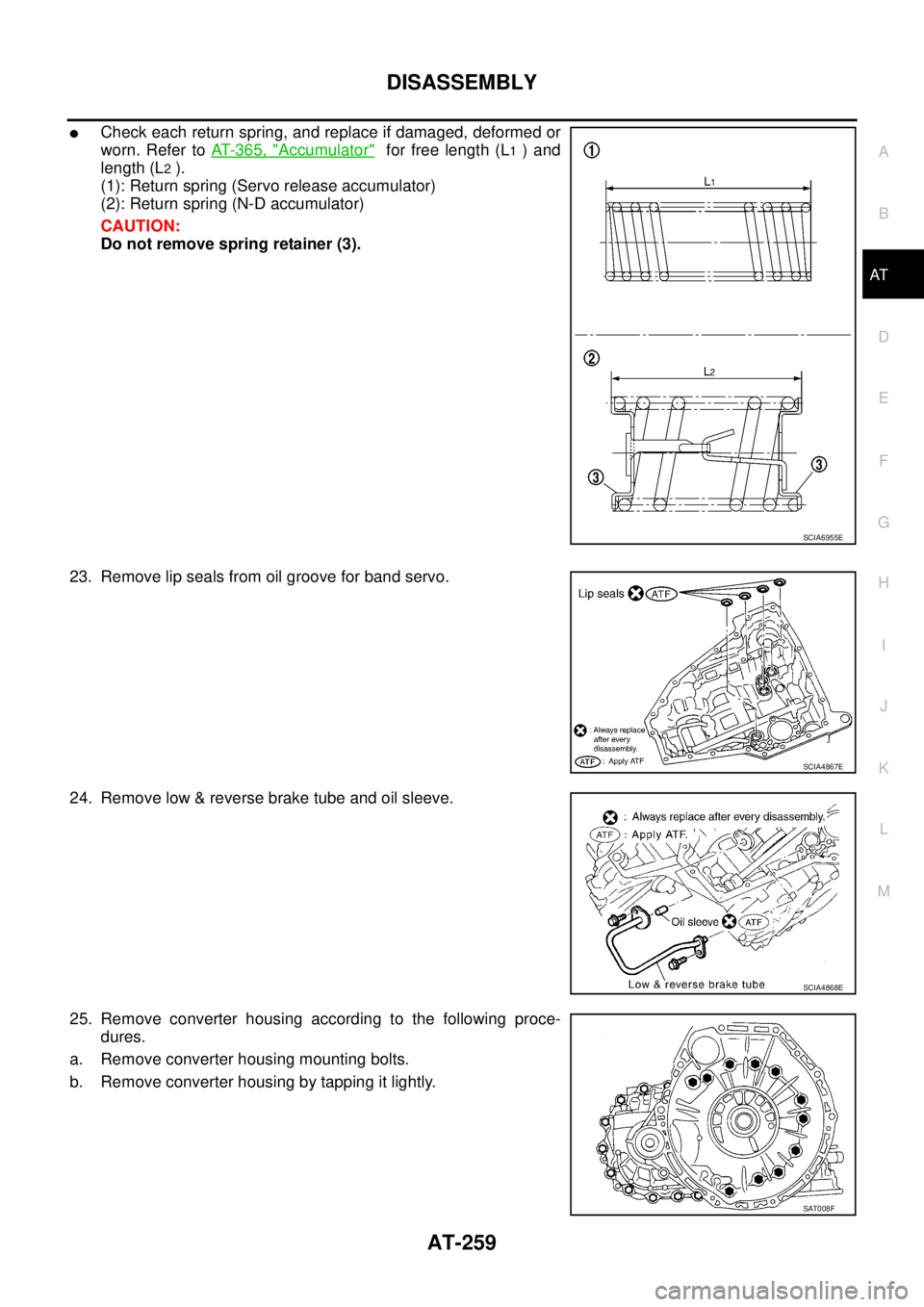

Check each return spring, and replace if damaged, deformed or
worn. Refer to AT- 3 6 5 , "
Accumulator" for free length (L1 ) and
length (L
2 ).
(1): Return spring (Servo release accumulator)
(2): Return spring (N-D accumulator)
CAUTION:
Do not remove spring retainer (3).
23. Remove lip seals from oil groove for band servo.
24. Remove low & reverse brake tube and oil sleeve.
25. Remove converter housing according to the following proce-
dures.
a. Remove converter housing mounting bolts.
b. Remove converter housing by tapping it lightly.
SCIA6955E
SCIA4867E
SCIA4868E
SAT008F
Page 268 of 3502
AT-260
DISASSEMBLY

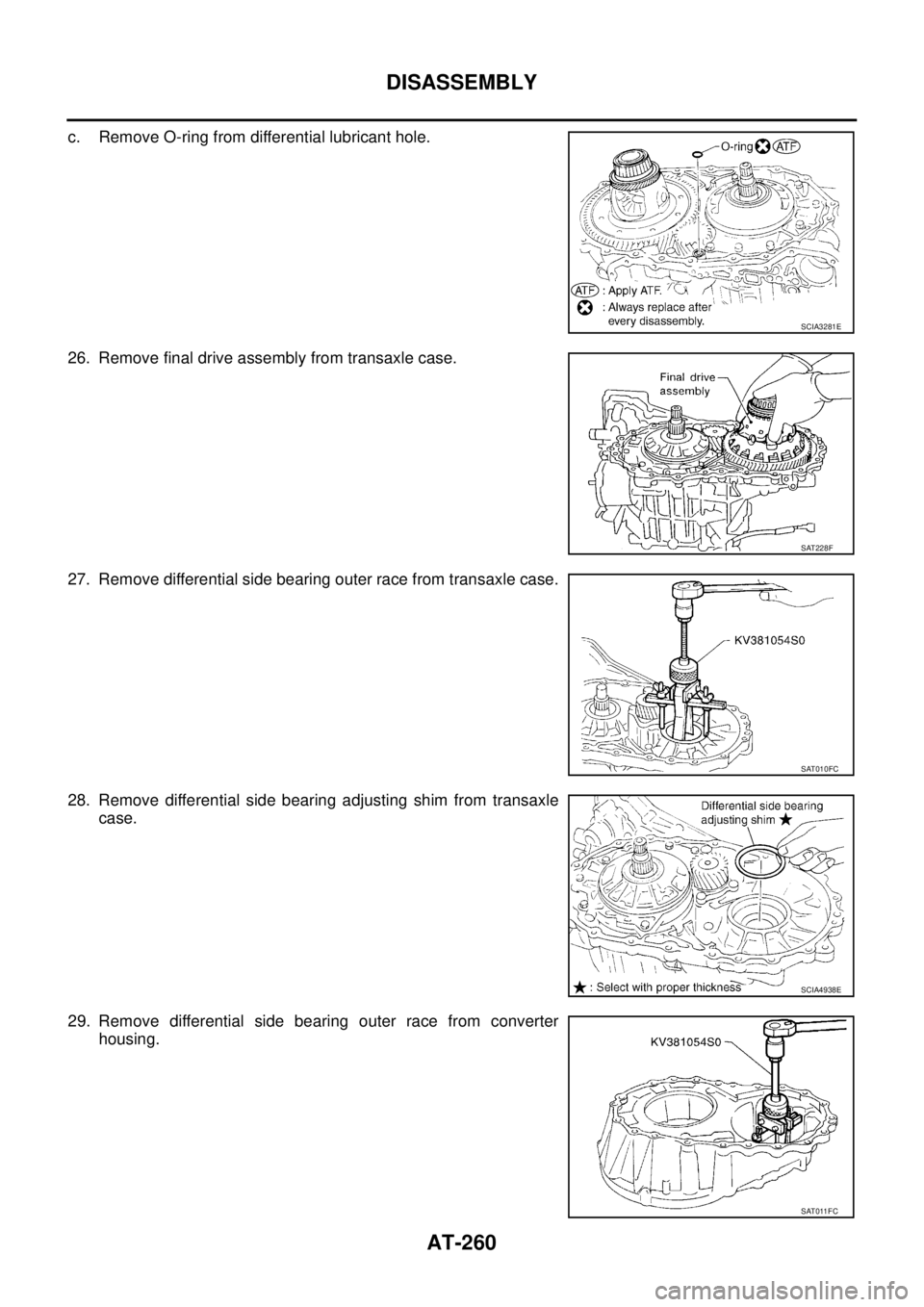

c. Remove O-ring from differential lubricant hole.
26. Remove final drive assembly from transaxle case.
27. Remove differential side bearing outer race from transaxle case.
28. Remove differential side bearing adjusting shim from transaxle
case.
29. Remove differential side bearing outer race from converter
housing.
SCIA3281E
SAT228F
SAT010FC
SCIA4938E
SAT011FC
Page 269 of 3502
DISASSEMBLY
AT-261
D
E
F
G
H
I
J
K
L
MA
B
AT

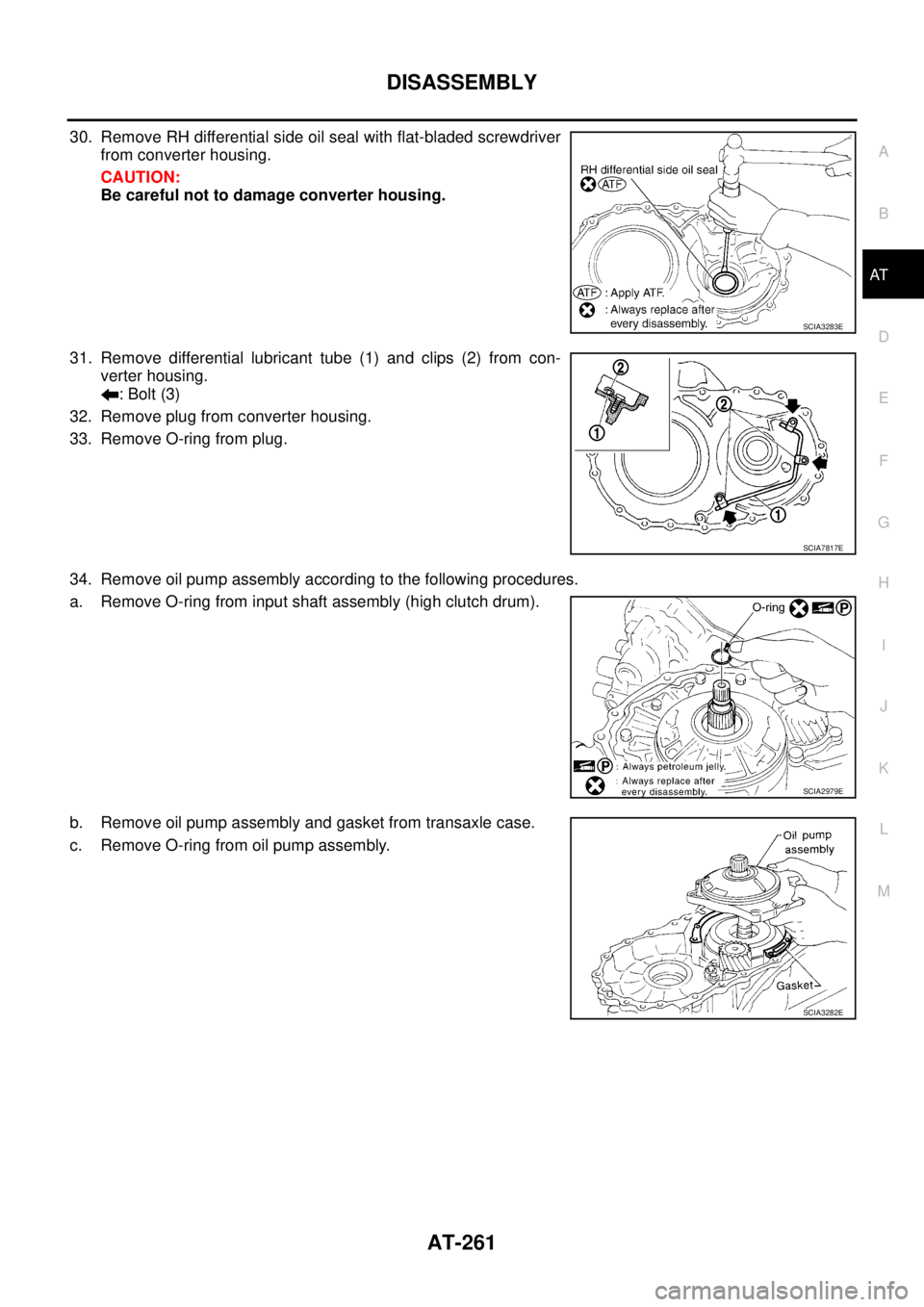

30. Remove RH differential side oil seal with flat-bladed screwdriver
from converter housing.
CAUTION:
Be careful not to damage converter housing.
31. Remove differential lubricant tube (1) and clips (2) from con-
verter housing.
: Bolt (3)
32. Remove plug from converter housing.
33. Remove O-ring from plug.
34. Remove oil pump assembly according to the following procedures.
a. Remove O-ring from input shaft assembly (high clutch drum).
b. Remove oil pump assembly and gasket from transaxle case.
c. Remove O-ring from oil pump assembly.
SCIA3283E
SCIA7817E
SCIA2979E
SCIA3282E
Page 270 of 3502
AT-262
DISASSEMBLY
d. Remove thrust washer and bearing race from oil pump assem-
bly.
35. Remove brake band according to the following procedures.
a. Loosen lock nut, and then remove anchor end pin and lock nut
as a set from transaxle case.
b. Remove brake band and strut from transaxle case.
To prevent brake linings from cracking or peeling, do not
stretch the flexible band unnecessarily. When removing
brake band, always secure it with a clip as shown in the
figure.
Leave the clip in position after removing brake band.
SCIA3629E
SCIA4869E
SAT196F
SAT039D
Page 271 of 3502
DISASSEMBLY
AT-263
D
E
F
G
H
I
J
K
L
MA
B
AT
c. Check brake band facing for damage, cracks, wear or burns.
Replace brake band if necessary.
36. Remove input shaft assembly (high clutch assembly) and reverse clutch assembly according to the follow-
ing procedures.
a. Remove input shaft assembly (high clutch assembly) with
reverse clutch assembly.
b. Remove input shaft assembly (high clutch assembly) (1) from
reverse clutch assembly (2).
c. Remove needle bearing from input shaft assembly (high clutch
drum).
Check needle bearing and input shaft assembly (high clutch
drum), and replace if damaged or worn.
SAT040D
SCIA4009E
SCIA7818E
SCIA4872E
Page 272 of 3502
AT-264
DISASSEMBLY

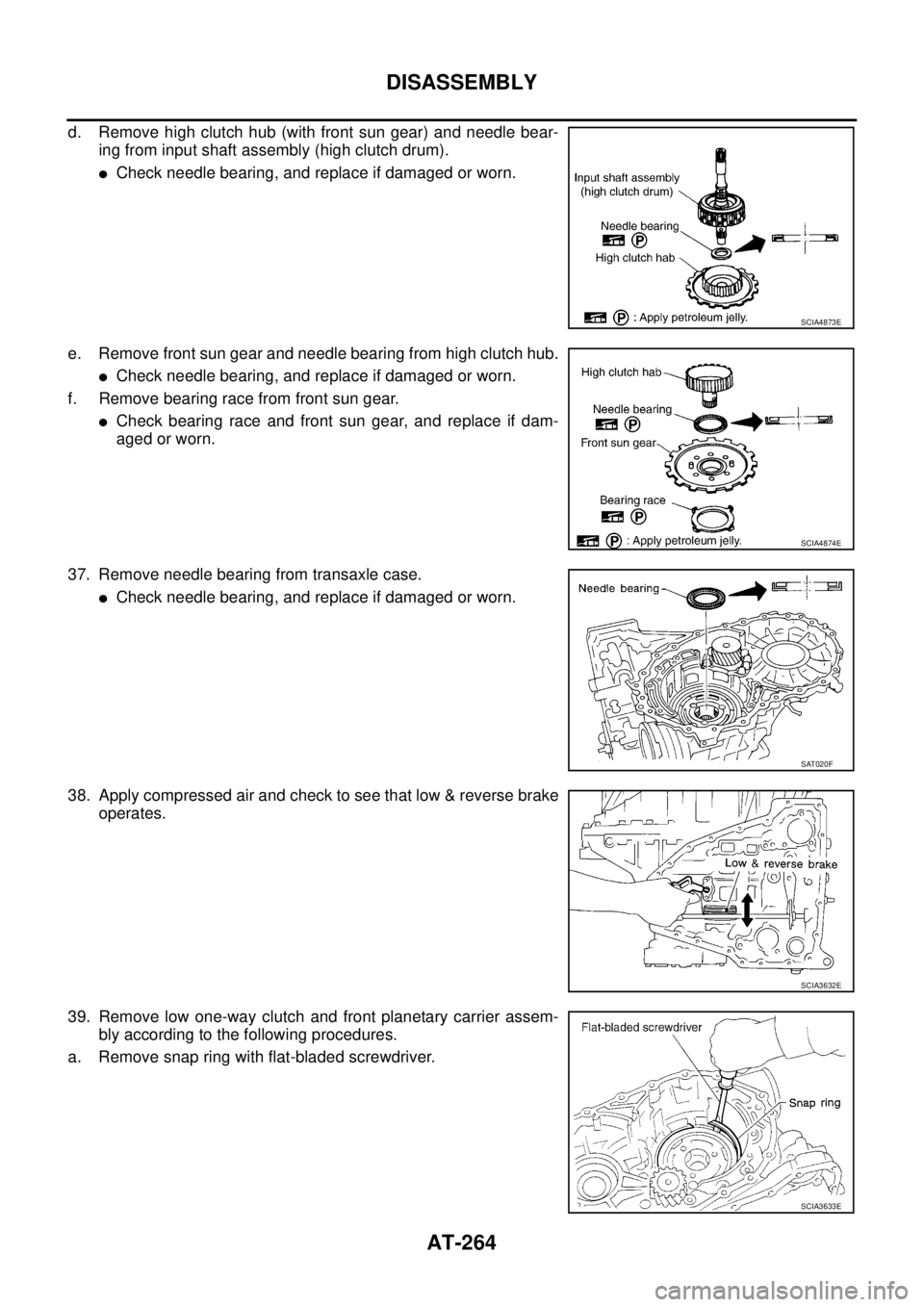

d. Remove high clutch hub (with front sun gear) and needle bear-
ing from input shaft assembly (high clutch drum).
Check needle bearing, and replace if damaged or worn.
e. Remove front sun gear and needle bearing from high clutch hub.
Check needle bearing, and replace if damaged or worn.
f. Remove bearing race from front sun gear.
Check bearing race and front sun gear, and replace if dam-
aged or worn.
37. Remove needle bearing from transaxle case.
Check needle bearing, and replace if damaged or worn.
38. Apply compressed air and check to see that low & reverse brake
operates.
39. Remove low one-way clutch and front planetary carrier assem-
bly according to the following procedures.
a. Remove snap ring with flat-bladed screwdriver.
SCIA4873E
SCIA4874E
SAT020F
SCIA3632E
SCIA3633E
