Page 801 of 3502
NATS(NISSAN ANTI-THEFT SYSTEM)
BL-143
C
D
E
F
G
H
J
K
L
MA
B
BL

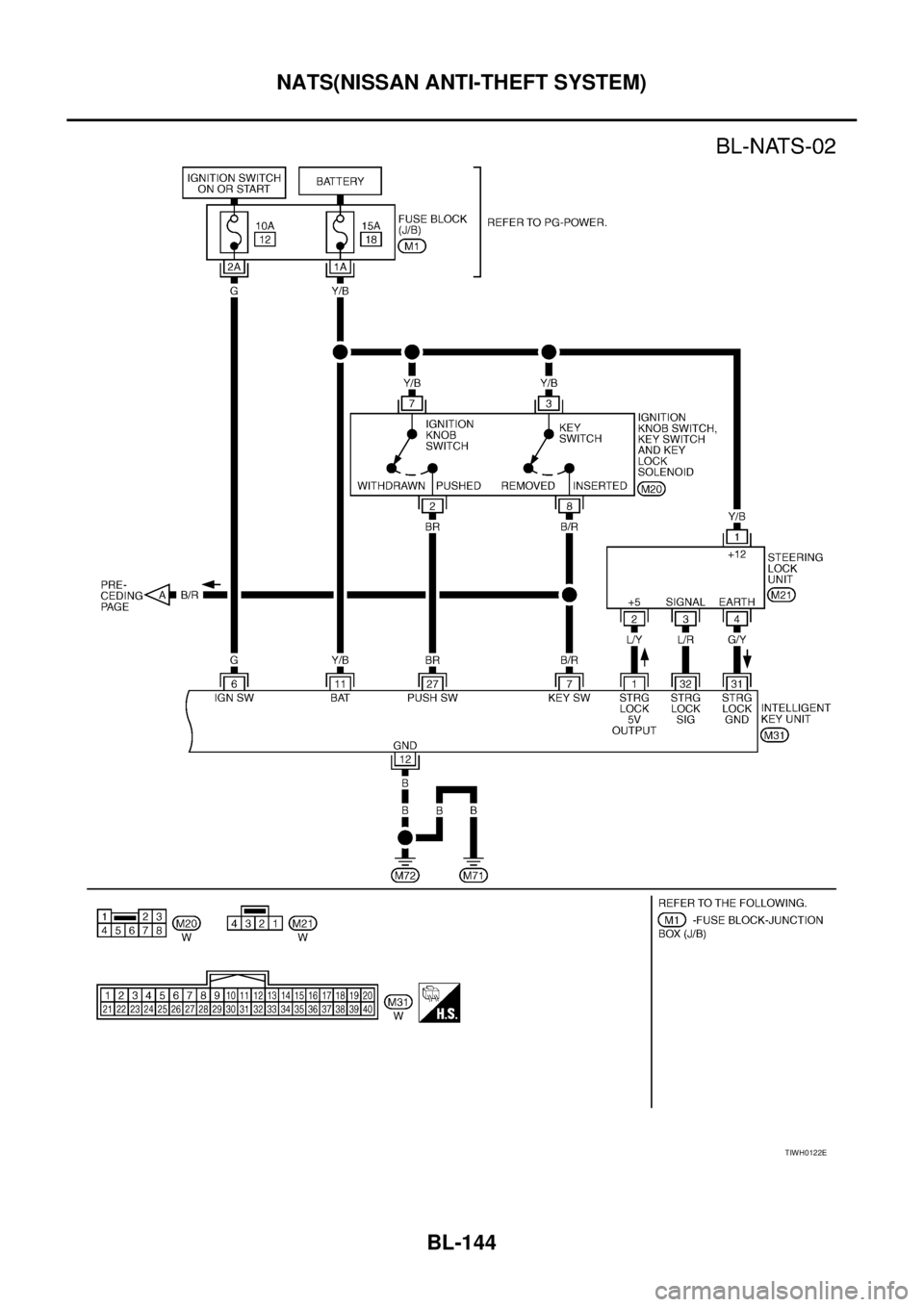

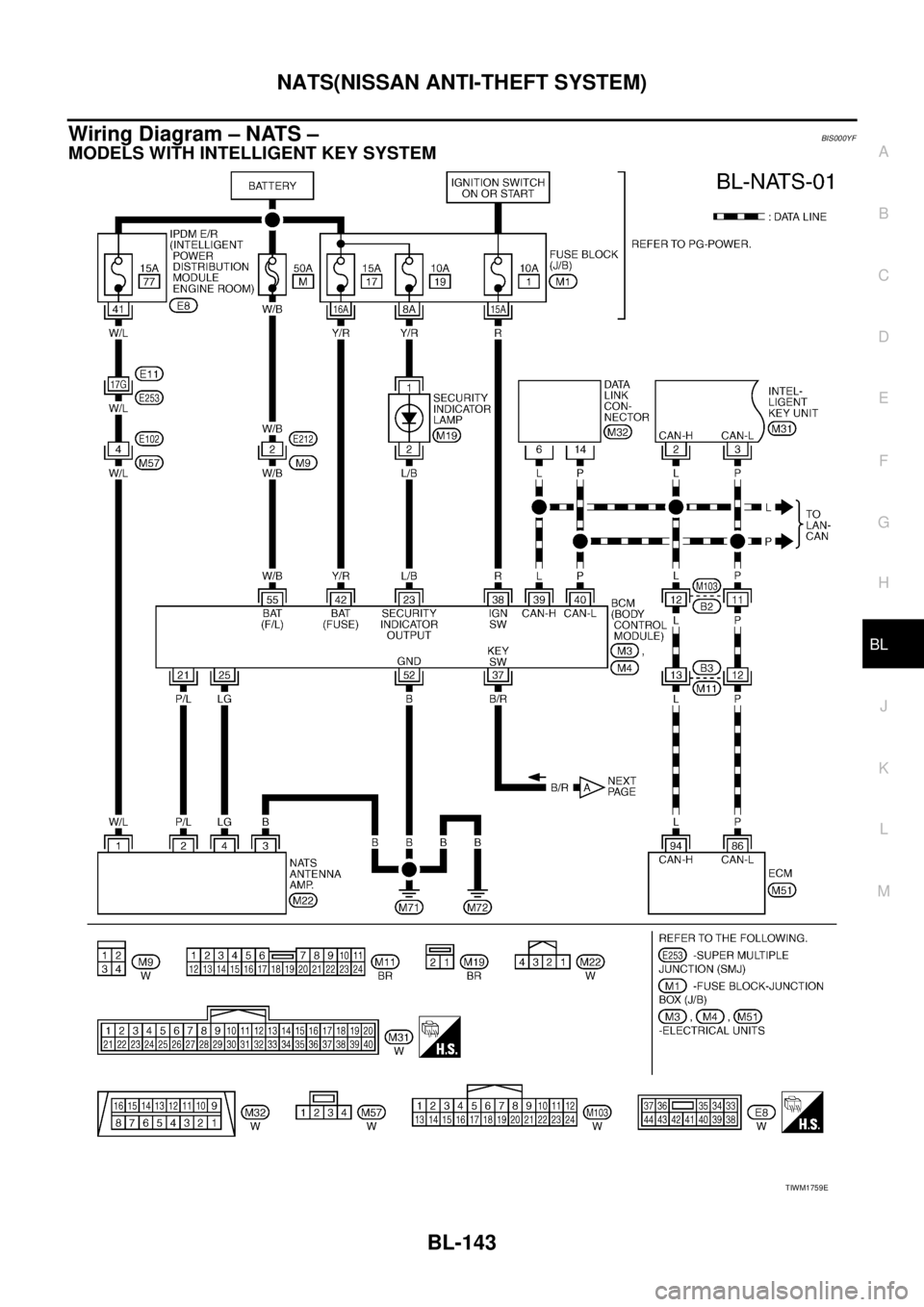

Wiring Diagram – NATS –BIS000YF
MODELS WITH INTELLIGENT KEY SYSTEM
TIWM1759E
Page 802 of 3502
BL-144
NATS(NISSAN ANTI-THEFT SYSTEM)
TIWH0122E
Page 803 of 3502
NATS(NISSAN ANTI-THEFT SYSTEM)
BL-145
C
D
E
F
G
H
J
K
L
MA
B
BL

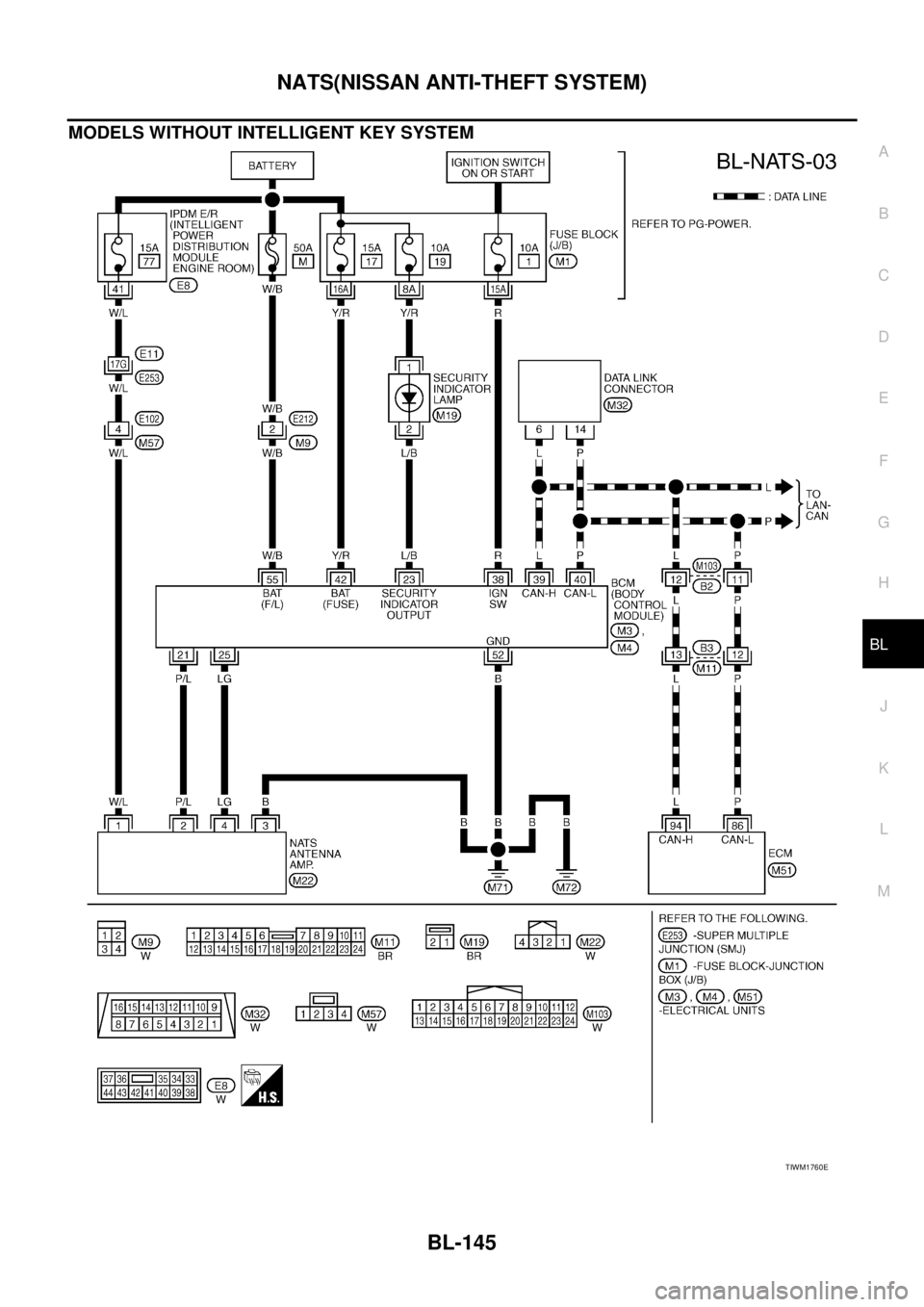

MODELS WITHOUT INTELLIGENT KEY SYSTEM
TIWM1760E
Page 804 of 3502

BL-146
NATS(NISSAN ANTI-THEFT SYSTEM)
Terminals and Reference Value for Steering Lock Unit/with Intelligent Key Sys-
tem
BIS000YG
Terminals and Reference Value for Intelligent Key Unit/with Intelligent Key Sys-
tem
BIS000YH
Te r -
minalWire
ColorItemSignal
Input/
OutputCondition
Voltage (V)
(Approx.) Ignition
Knob
PositionOperation Or Conditions
1Y/BBattery power sup-
plyInput LOCK — Battery voltage
2L/YSteering lock unit
power supplyInput LOCK — 5
3L/RSteering lock unit
communication sig-
nalInput/
OutputLOCKPress ignition knob with Intelli-
gent Key inside vehicle.
Other than the above 5
4G/YSteering lock unit
ground—ON — 0
PIIB8449J
Te r -
minalWire
ColorItemSignal
Input/
OutputCondition
Voltage (V)
(Approx.) Ignition
Knob
PositionOperation Or Conditions
1L/YSteering lock unit
power supplyOutput LOCK — 5
2 L CAN communication HInput/
Output—— —
3 P CAN communication LInput/
Output—— —
6 G Ignition power supply Input ON — Battery voltage
7 B/R Key switch Input LOCKInsert mechanical key into
ignition key cylinder.Battery voltage
Remove mechanical key from
ignition key cylinder.0
11 Y/B Battery power supply Input LOCK — Battery voltage
12 B Ground — ON — 0
27 BR Ignition knob switch Input —Press ignition knob. Battery voltage
Return ignition knob to LOCK
position.0
31 G/YSteering lock unit
ground—ON — 0
32 L/RSteering lock unit com-
munication signalInput/
OutputLOCKPress ignition knob with Intelli-
gent Key inside vehicle.
Other than the above 5
PIIB8449J
Page 805 of 3502

NATS(NISSAN ANTI-THEFT SYSTEM)
BL-147
C
D
E
F
G
H
J
K
L
MA
B
BL
Terminals and Reference Value for BCMBIS000YI
*: With Intelligent Key systemTe r -
minalWire
ColorItemSignal
Input/
OutputCondition
Voltage (V)
(Approx.) Ignition
Knob
PositionOperation Or Conditions
21 P/L NATS antenna amp. Output — Ignition knob OFF → ON positionShould move just after
turning ignition knob
“ON” pointer tester
23 L/B Security indicator lamp Output LOCKGoes OFF → illuminates (Every 2.4
seconds)Battery voltage → 0
25 LG NATS antenna amp.Input/
Output— Ignition knob OFF → ON positionShould move just after
turning ignition knob
“ON” pointer tester
37* B/R Key switch Input —Insert mechanical key into ignition key
cylinderBattery voltage
Remove mechanical key from ignition
key cylinder0
38 R Ignition power supply Input ON Ignition knob ON or START position Battery voltage
39 L CAN-HInput/
Output—— —
40 P CAN-LInput/
Output—— —
42 Y/R Battery power supply Input LOCK — Battery voltage
52 B Ground — ON — 0
55 W/B Battery power supply Input LOCK — Battery voltage
Page 806 of 3502
BL-148
NATS(NISSAN ANTI-THEFT SYSTEM)
CONSULT-IIBIS000YJ
CONSULT-II INSPECTION PROCEDURE
CAUTION:
If CONSULT-II is used with no connection CONSULT-II CONVERTER, malfunctions might be detected
in self-diagnosis depending on control unit which carry out CAN Communication.
1. Turn ignition switch OFF.
2. Insert NATS program card into CONSULT-II.
3. Connect CONSULT-II and “CONSULT-II CONVERTER” to data
link connector.
4. Turn ignition switch ON.
5. Touch “START”.
6. Touch “OTHER”.
7. Select “NATS V.5.0”.Program card : NATS (AEN06A)
PBIB2120E
PBR455D
PIIB0900E
PIIB1053E
Page 807 of 3502

NATS(NISSAN ANTI-THEFT SYSTEM)
BL-149
C
D
E
F
G
H
J
K
L
MA
B
BL
8. Perform each diagnostic test mode according to each service
procedure.
For further information, see the CONSULT-II Operation Manual,
NATS.
CONSULT-II DIAGNOSTIC TEST MODE FUNCTION
NOTE:
When any initialization is performed, all ID numbers previously registered will be erased and all ignition key or
mechanical key must be registered again. The engine cannot be started with an unregistered key. The system
will show “DIFFERENCE OF KEY” or “LOCK MODE” as a self-diagnostic result on the CONSULT-II screen.
HOW TO READ SELF-DIAGNOSTIC RESULTS
NATS SELF-DIAGNOSTIC RESULT ITEM CHART
SEL150X
CONSULT- II DIAGNOSTIC TEST MODE Description
C/U INITIALIZATIONWhen replacing any of the following three components, C/U initialization is necessary.
[NATS ignition key/ BCM/ ECM]
SELF- DIAGNOSTIC RESULTS Detected items (screen terms) are as shown in the chart.
PIIA1124E
Detected items (Screen terms)P No.Code
(Self-diagnostic
results of
“ENGINE”)Description Diagnostic procedure
CHAIN OF ECM-IMMU P1612Communication impossible between
ECM and BCM.Refer to BL-153, "
Diagnostic
Procedure 1" .
DIFFERENCE OF KEY P1615BCM can receive the key ID signal but
the result of ID verification between key
ID and BCM is NG.Refer to BL-154, "
Diagnostic
Procedure 2" .
CHAIN OF IMMU-KEY P1614 BCM cannot receive the key ID signal.Refer to BL-157, "
Diagnostic
Procedure 5" .
ID DISCORD, IMM-ECM P1611The result of ID verification between
BCM and ECM is NG. System initializa-
tion is required.Refer to BL-155, "
Diagnostic
Procedure 3" .
Page 808 of 3502
BL-150
NATS(NISSAN ANTI-THEFT SYSTEM)
LOCK MODE P1610When the starting operation is performed
5 or more times consecutively under the
following conditions, IVIS(NATS) will shift
the mode to one which prevents the
engine from being started.
unregistered ignition key is used (with-
out intelligent key system)
BCM or ECM malfunctioningRefer to BL-156, "
Diagnostic
Procedure 4" .
DON'T ERASE BEFORE
CHECKING ENG DIAG—Engine trouble data and NATS trouble
data have been detected in ECM.Refer to BL-151, "
WORK
FLOW" . Detected items (Screen terms)P No.Code
(Self-diagnostic
results of
“ENGINE”)Description Diagnostic procedure
