Page 161 of 3502

NISSAN TEANA 2003 Service Manual A/T TCC S/V FUNCTION (LOCK-UP) AT-153 D E F G H I J K L MA B AT 3. CHECK CONTROL VALVE 1. Disassemble control valve assembly. Refer to AT- 2 8 0 , " Control Valve Assembly" . 2. Check to ensure tha

Page 162 of 3502

NISSAN TEANA 2003 Service Manual AT-154 A/T TCC S/V FUNCTION (LOCK-UP) 8. CHECK CONTROL VALVE 1. Disassemble control valve assembly. Refer to AT- 2 8 0 , " Control Valve Assembly" . 2. Check line pressure circuit valves for sticki

Page 163 of 3502

NISSAN TEANA 2003 Service Manual A/T TCC S/V FUNCTION (LOCK-UP) AT-155 D E F G H I J K L MA B AT 13. CHECK VALVE OPERATION 1. Remove control valve assembly. Refer to AT- 2 2 5 , " Control Valve Assembly and Accumulators" . –Torq

Page 164 of 3502

NISSAN TEANA 2003 Service Manual AT-156 CONTROL UNIT (RAM) CONTROL UNIT (RAM)PFP:31036 DescriptionBCS0013Q TCM consists of a microcomputer and connectors for signal input and output and for power supply. The unit controls A/T. On B

Page 165 of 3502

NISSAN TEANA 2003 Service Manual CONTROL UNIT (ROM) AT-157 D E F G H I J K L MA B AT CONTROL UNIT (ROM)PFP:31036 DescriptionBCS0013V TCM consists of a microcomputer and connectors for signal input and output and for power supply. T

Page 166 of 3502

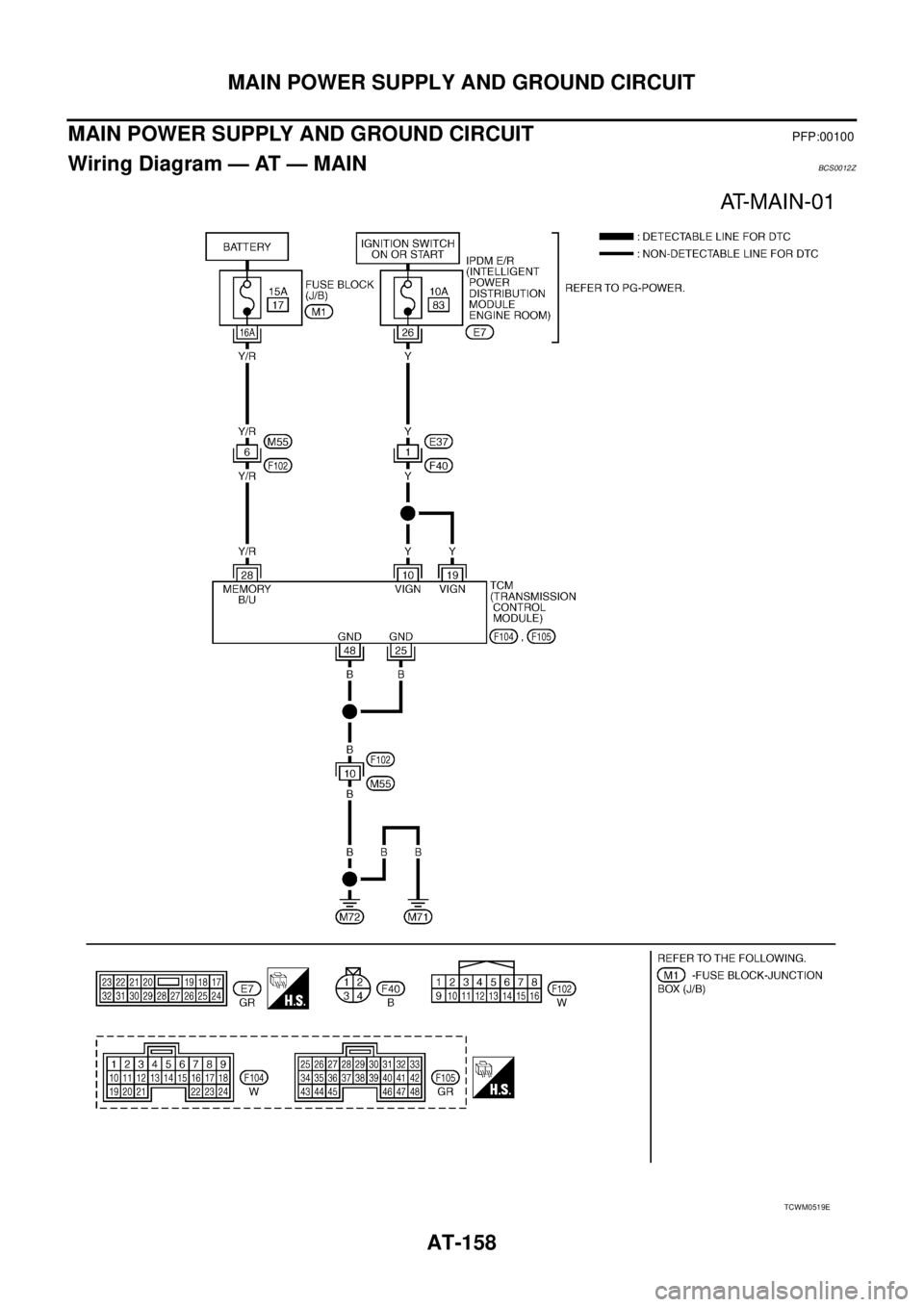

NISSAN TEANA 2003 Service Manual AT-158 MAIN POWER SUPPLY AND GROUND CIRCUIT MAIN POWER SUPPLY AND GROUND CIRCUITPFP:00100 Wiring Diagram — AT — MAINBCS0012Z TCWM0519E

Page 167 of 3502

NISSAN TEANA 2003 Service Manual MAIN POWER SUPPLY AND GROUND CIRCUIT AT-159 D E F G H I J K L MA B AT Data are reference value and are measured between each terminal and ground. Diagnostic ProcedureBCS0026M 1. CHECK TCM POWER SOU

Page 168 of 3502

NISSAN TEANA 2003 Service Manual AT-160 MAIN POWER SUPPLY AND GROUND CIRCUIT 3. CHECK TCM GROUND CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect TCM connector. 3. Check continuity between TCM connector terminal and ground. OK or
