2003 NISSAN TEANA Service Manual

power steering coolant level belt fuel oil capacity inflation pressure

Load previous 8 pages

Page 1857 of 3502

NISSAN TEANA 2003 Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-575
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P1217 ENGINE OVER TEMPERATUREPFP:00000
System DescriptionBBS0052T
NOTE:
If DTC P1217 is displayed with DTC U1000 or U1001,

Page 1858 of 3502

NISSAN TEANA 2003 Service Manual EC-576
[VQ]
DTC P1217 ENGINE OVER TEMPERATURE

Cooling Fan Relay Operation
The ECM controls cooling fan relays in the IPDM E/R through CAN communication line.
COMPONENT DESCRIPTION
Cooling Fan Motor

Page 1859 of 3502

NISSAN TEANA 2003 Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-577
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

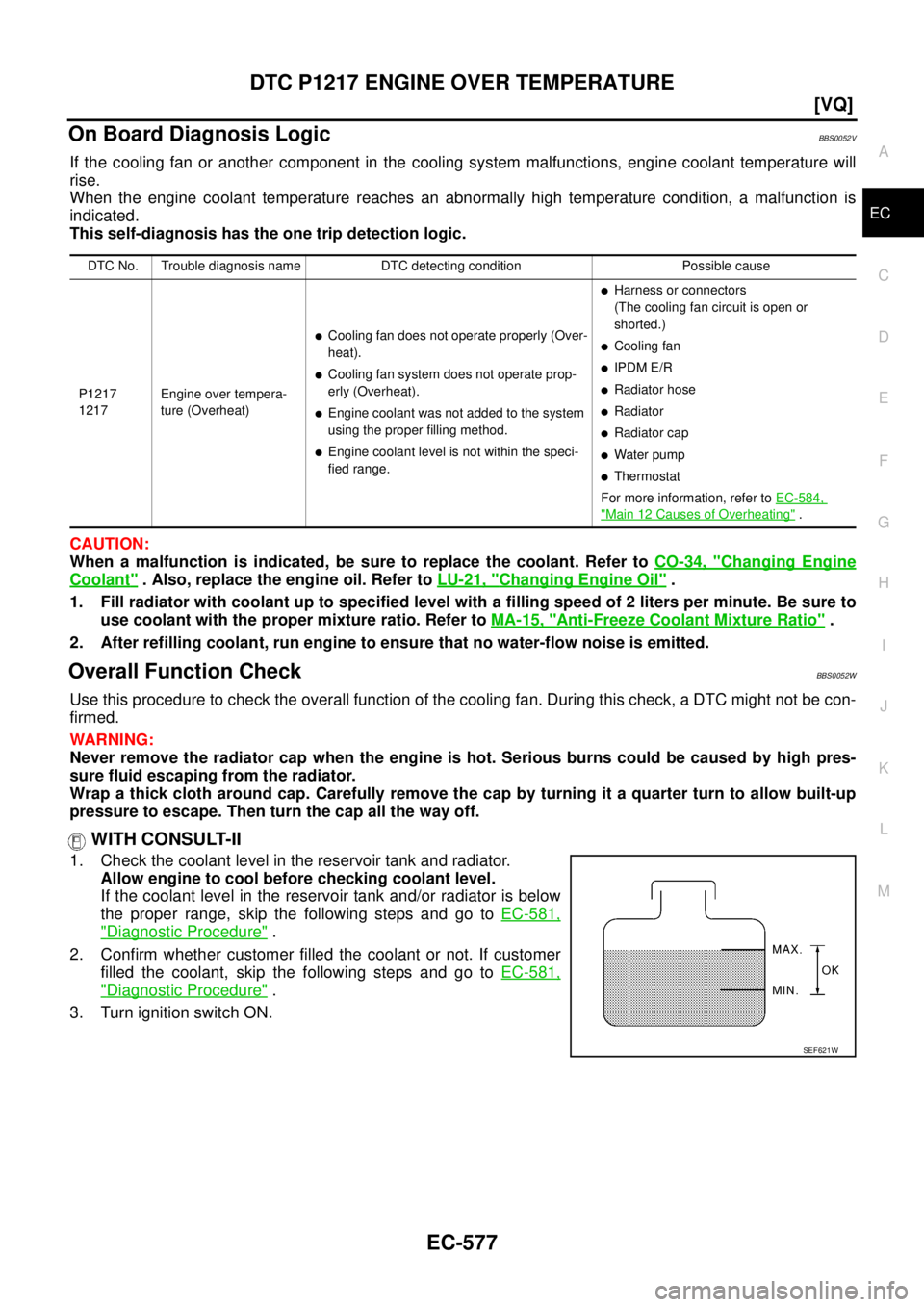

On Board Diagnosis LogicBBS0052V
If the cooling fan or another component in the cooling system malfunctions, engine coolant te

DTC P1217 ENGINE OVER TEMPERATURE
EC-577
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

On Board Diagnosis LogicBBS0052V
If the cooling fan or another component in the cooling system malfunctions, engine coolant temperature will
rise.
When the engine coolant temperature reaches an abnormally high temperature condition, a malfunction is
indicated.
This self-diagnosis has the one trip detection logic.
CAUTION:
When a malfunction is indicated, be sure to replace the coolant. Refer to CO-34, "
Changing Engine
Coolant" . Also, replace the engine oil. Refer to LU-21, "Changing Engine Oil" .
1. Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Be sure to
use coolant with the proper mixture ratio. Refer to MA-15, "
Anti-Freeze Coolant Mixture Ratio" .
2. After refilling coolant, run engine to ensure that no water-flow noise is emitted.
Overall Function CheckBBS0052W
Use this procedure to check the overall function of the cooling fan. During this check, a DTC might not be con-
firmed.
WARNING:
Never remove the radiator cap when the engine is hot. Serious burns could be caused by high pres-
sure fluid escaping from the radiator.
Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-up
pressure to escape. Then turn the cap all the way off.
WITH CONSULT-II
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-581,
"Diagnostic Procedure" .
2. Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to EC-581,
"Diagnostic Procedure" .
3. Turn ignition switch ON.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1217
1217Engine over tempera-
ture (Overheat)
Cooling fan does not operate properly (Over-
heat).
Cooling fan system does not operate prop-
erly (Overheat).
Engine coolant was not added to the system
using the proper filling method.
Engine coolant level is not within the speci-
fied range.
Harness or connectors
(The cooling fan circuit is open or
shorted.)
Cooling fan
IPDM E/R
Radiator hose
Radiator
Radiator cap
Water pump
Thermostat
For more information, refer to EC-584,
"Main 12 Causes of Overheating" .
SEF621W

Page 1860 of 3502

NISSAN TEANA 2003 Service Manual EC-578
[VQ]
DTC P1217 ENGINE OVER TEMPERATURE

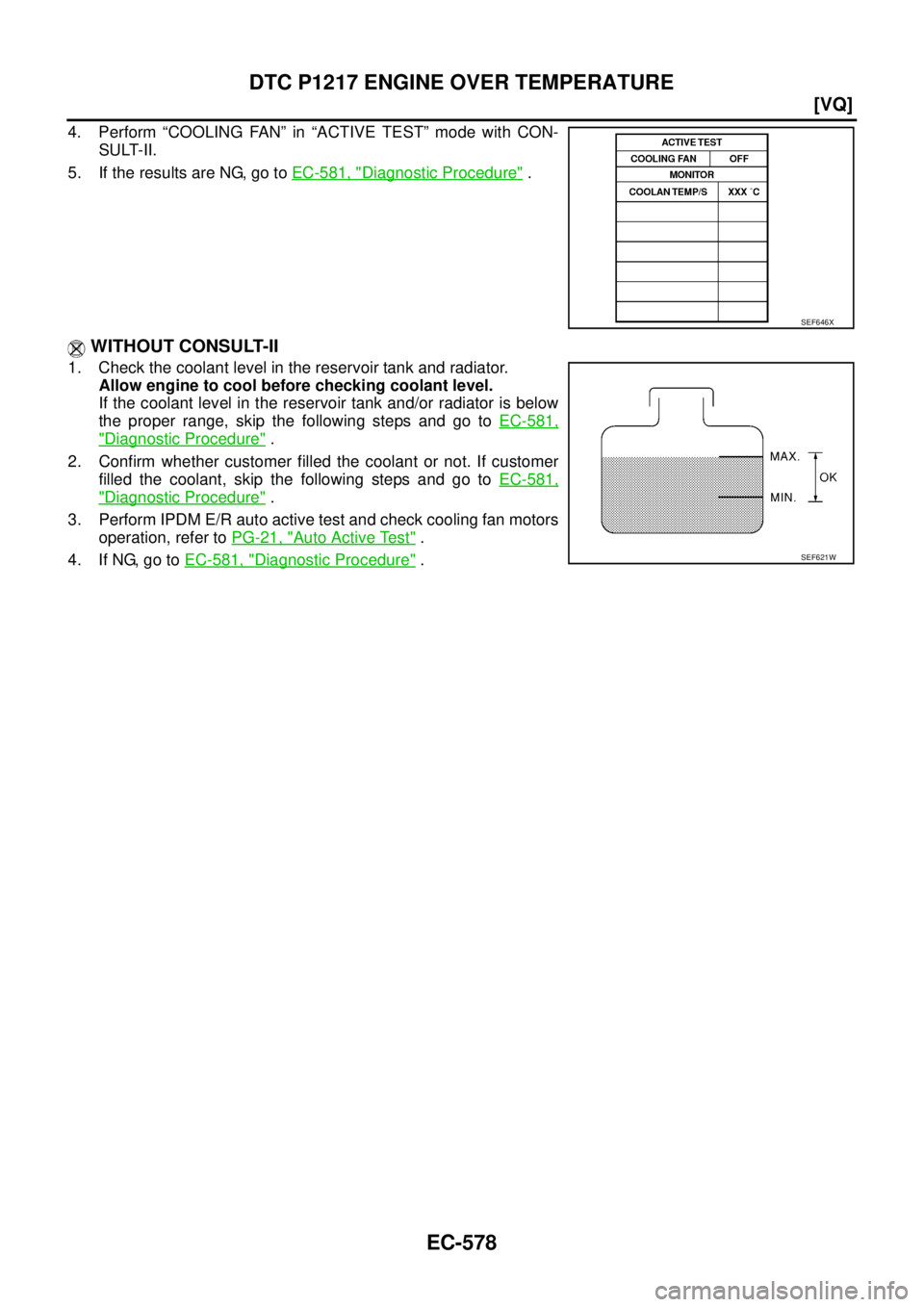

4. Perform “COOLING FAN” in “ACTIVE TEST” mode with CON-
SULT-II.
5. If the results are NG, go to EC-581, "
Diagnostic Procedure" .
WITHOUT CON

Page 1861 of 3502

NISSAN TEANA 2003 Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-579
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

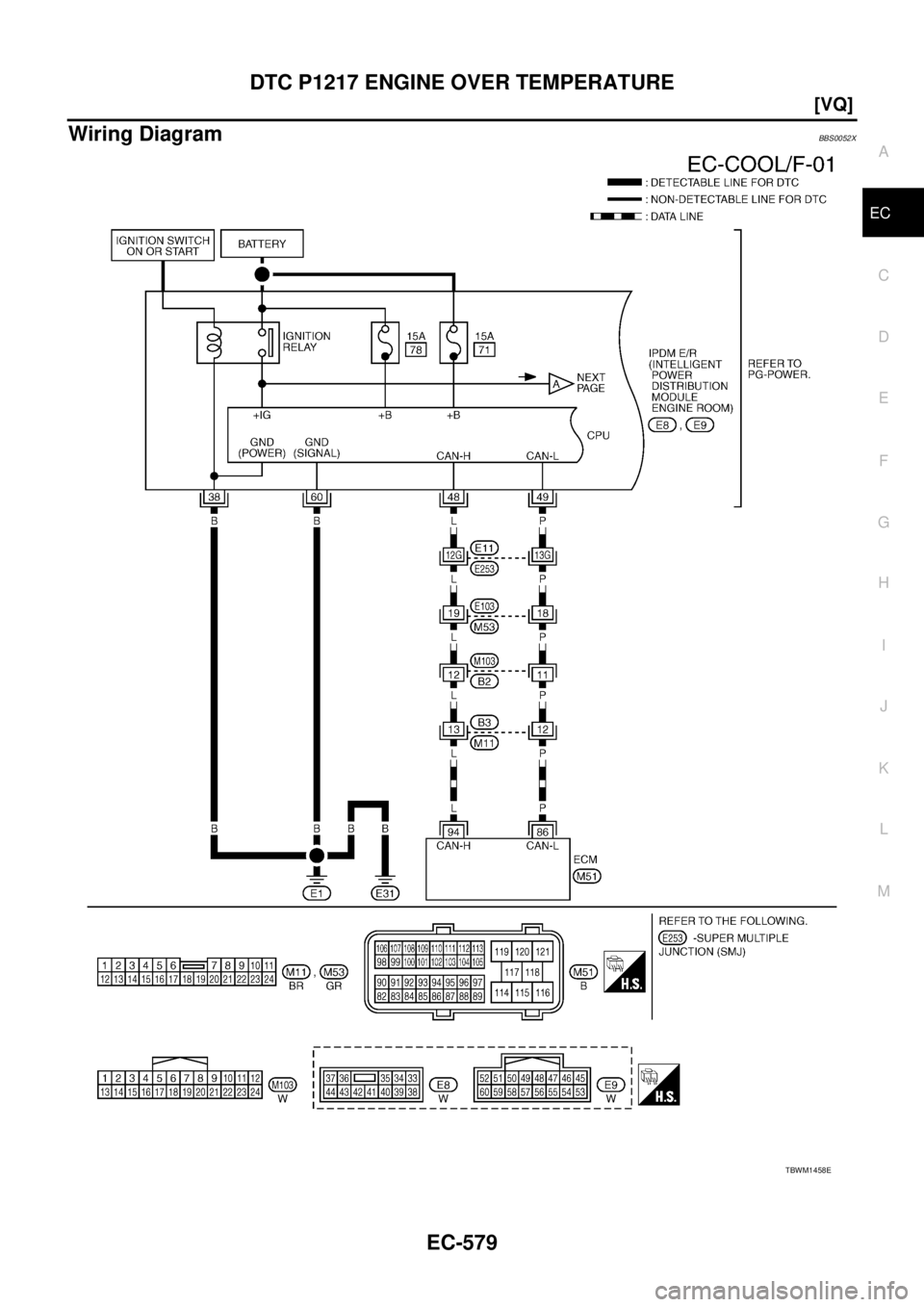

Wiring DiagramBBS0052X
TBWM1458E

Page 1862 of 3502

NISSAN TEANA 2003 Service Manual EC-580
[VQ]
DTC P1217 ENGINE OVER TEMPERATURE

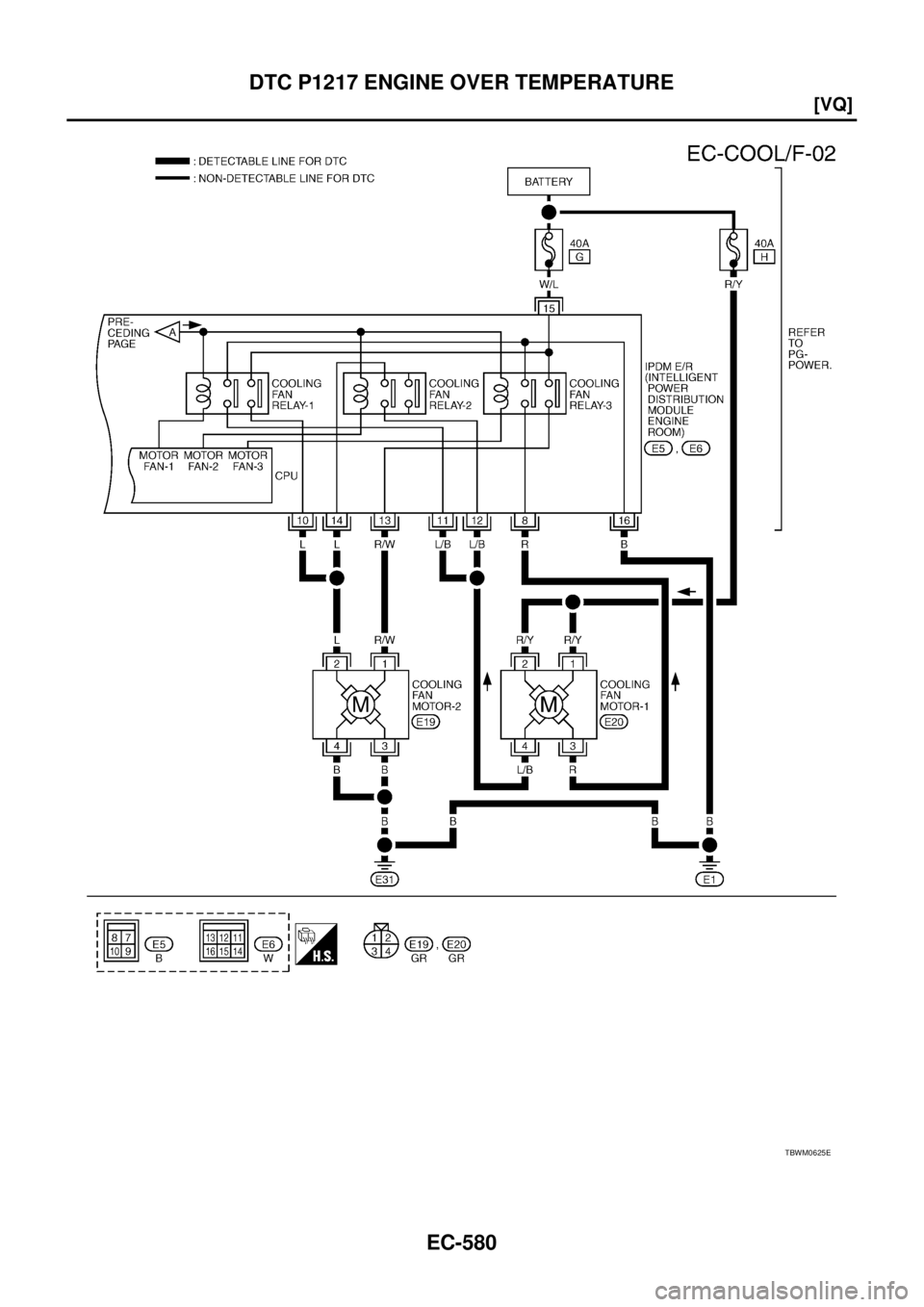

TBWM0625E

Page 1863 of 3502

NISSAN TEANA 2003 Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-581
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

Diagnostic ProcedureBBS0052Y
1. INSPECTION START
Do you have CONSULT-II?
Ye s o r N o
Ye s > > G O T O 2 .
No >> GO TO 3.

Page 1864 of 3502

NISSAN TEANA 2003 Service Manual EC-582
[VQ]
DTC P1217 ENGINE OVER TEMPERATURE

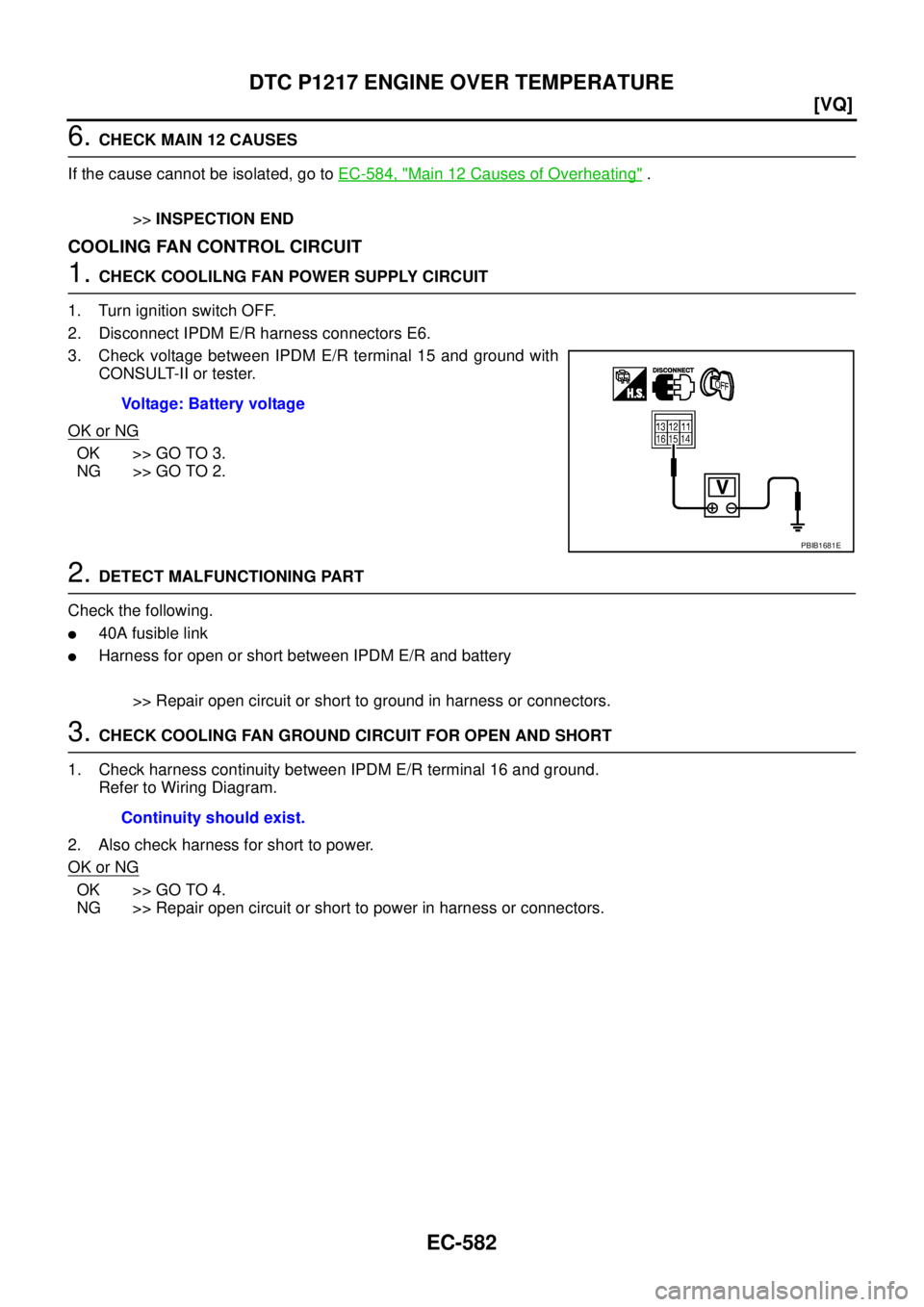

6. CHECK MAIN 12 CAUSES
If the cause cannot be isolated, go to EC-584, "
Main 12 Causes of Overheating" .
>>INSPECTION END
COOLING FAN CONTROL CIRCUIT
1
