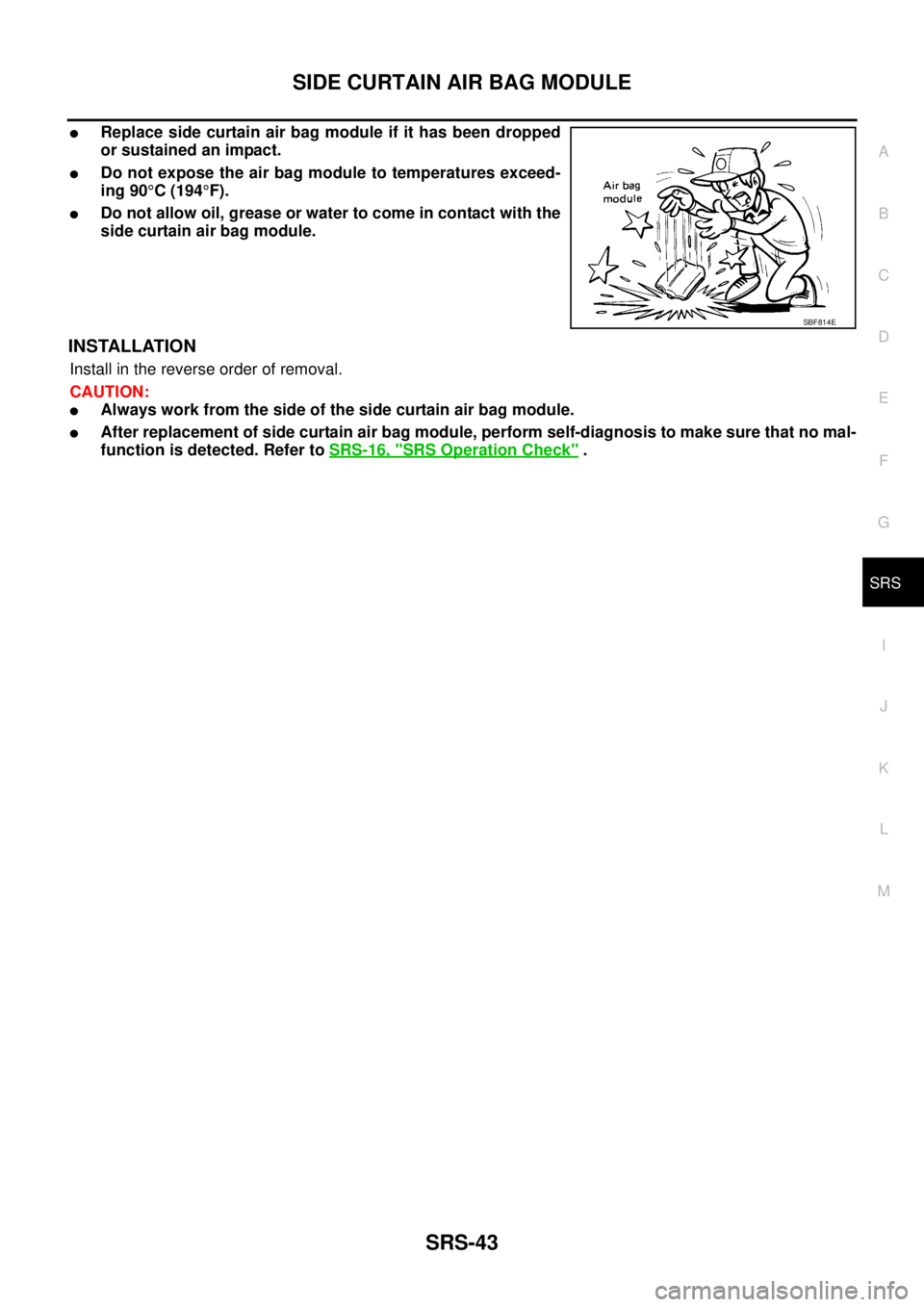

Replace side curtain air bag module if it has been dropped
or sustained an impact.
Do not expose the air bag module to temperatures exceed-
ing 90°C (194°F).
Do not allow oil, grease or water to come in contact with the
side curtain air bag module.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Always work from the side of the side curtain air bag module.
After replacement of side curtain air bag module, perform self-diagnosis to make sure that no mal-
function is detected. Refer to SRS-16, "
SRS Operation Check" .
SBF814E
Page 3418 of 3502
SRS-44
CRASH ZONE SENSOR
CRASH ZONE SENSORPFP:98531
Removal and InstallationBHS0004J
REMOVAL
CAUTION:
Before servicing SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3 min-
utes.
1. Remove crash zone sensor fixing nuts.
2. Remove crash zone sensor connector, then crash zone sensor.
CAUTION:
Replace crash zone sensor if it has been dropped or sustained an impact.
Do not disassemble crash zone sensor.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Check crash zone sensor for proper installation.
After the work is complete, perform self-diagnosis to make sure that no malfunction is detected.
Refer to SRS-16, "
SRS Operation Check" . Nut : 10.8 N·m (1.1 kg-m, 8 ft-lb)
PHIA0605E
Page 3419 of 3502

SIDE AIR BAG (SATELLITE) SENSOR
SRS-45
C
D
E
F
G
I
J
K
L
MA
B
SRS
SIDE AIR BAG (SATELLITE) SENSORPFP:98830
Removal and InstallationBHS0004K
REMOVAL
CAUTION:
Before servicing SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3
minutes.
When the front SRS side air bag is deployed, always replace it with a new one.
1. Remove seat belt pre-tensioner. Refer to SB-3, "
Removal and Installation of Front Seat Belt" .
2. Remove the side air bag (Satellite) sensor connector.
3. Remove side air bag (Satellite) sensor fixing nuts, then side air
bag (Satellite) sensor.
CAUTION:
Do not use old nuts; replace with new ones.
Check side air bag (Satellite) sensor to ensure it is free of deformities, dents, cracks or rust. If it
shows any visible signs of damage, replace it with new one.
Do not disassemble side air bag (Satellite) sensor.
Replace side air bag (Satellite) sensor if it has been dropped or sustained an impact.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Check side air bag (Satellite) sensor for proper installation.
After replacement of side air bag (Satellite) sensor, perform self-diagnosis to make sure that no
malfunction is detected. Refer to SRS-16, "
SRS Operation Check" . Nut: 10.8 N·m (1.1 kg-m, 8 ft-lb)
PHIA0606E
Page 3420 of 3502
SRS-46
FRONT SEAT BELT PRE-TENSIONER
FRONT SEAT BELT PRE-TENSIONERPFP:86884
Removal and InstallationBHS0004L
For removal and installation procedures, refer to SB-3, "Removal and Installation of Front Seat Belt" .
Page 3421 of 3502

DIAGNOSIS SENSOR UNIT
SRS-47
C
D
E
F
G
I
J
K
L
MA
B
SRS
DIAGNOSIS SENSOR UNITPFP:28556
Removal and InstallationBHS0004M
REMOVAL
CAUTION:
Before servicing SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3 min-
utes.
1. Disconnect each harness connector for the air bag module and seat belt pre-tensioner.
2. Remove A/T selector lever knob. Refer to IP-12, "
(C) A/T Selector Lever Knob" .
3. Remove A/T console finisher. Refer to IP-12, "
(D) A/T Console Finisher" .
4. Remove ashtray. Refer to IP-12, "
(F) Front Ashtray" .
5. Remove instrument panel lower cover (LH/RH). Refer to IP-13, "
(G) Instrument Panel Lower Cover (LH/
RH)" .
6. Remove instrument panel stay cover. Refer to IP-13, "
(H) Instrument Panel Stay Cover" .
7. Remove console rear cover. Refer to IP-13, "
(I) Console Rear Cover" .
8. Remove center console. Refer to IP-14, "
(J) Center Console" .
9. Disconnect diagnosis sensor unit connector.
10. Remove fixing bolts and ground bolt from the diagnosis sensor
unit.
CAUTION:
Do not use old bolts. Replace with new ones.
Check diagnosis sensor unit bracket to ensure that it is free
of deformation, dents, cracks or rust. If it shows any visible
things of damage, replace with new one.
Replace diagnosis sensor unit if it has been dropped or sustained an impact.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Check the diagnosis sensor unit for proper installation.
After replacement of diagnosis sensor unit, perform self-diagnosis to make sure that no malfunc-
tion is detected. Refer to SRS-16, "
SRS Operation Check" .
ECU DISCRIMINATED NO.
After replacing the diagnosis sensor unit, confirm that the diagnosis sensor unit identification is correct for the
vehicle as equipped.Ground bolt : 6.9 N·m (0.70 kg-m, 61 in-lb)
Fixing bolt : 24.5 N·m (2.5 kg-m, 18 ft-lb)
PHIA1342E
Specification ECU DISCRIMINATED No.
Models with driver and passenger air bags, seat belt pre-tensioner AA90
Models with driver and passenger air bags, seat belt pre-tensioner, side air bags and curtain air bags AA8C
Page 3422 of 3502

SRS-48
DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER
DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONERPFP:00014
Caution for Air Bag Module and Seat Belt Pre-TensionerBHS0004N
Before disposing of air bag module and seat belt pre-tensioner, or vehicles equipped with such systems,
deploy the systems. If such systems have already been deployed due to an accident, dispose of them as
indicated in SRS-48, "
DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER" .
When deploying the air bag module and seat belt pre-tensioner, always use the Special Service Tool;
Deployment tool (KV99106400).
When deploying the air bag module and seat belt pre-tensioner, stand at least 5 m (16 ft) away from the
deployment component.
When deploying air bag module and seat belt pre-tensioner, a fairly loud noise is made, followed by
smoke being released. The smoke is not poisonous, however, be careful not to inhale smoke since it irri-
tates the throat and can cause choking.
Always activate one air bag module at a time.
Due to heat, leave air bag module unattended for more than 30 minutes after deployment. Also leave seat
belt pre-tensioner unattended for more than 10 minutes after deployment.
Be sure to wear gloves when handling a deployed air bag module and seat belt pre-tensioner.
Never apply water to the deployed air bag module and seat belt pre-tensioner.
Wash your hands clean after finishing work.
Place the vehicle outdoors with an open space of at least 6 m (20 ft) on all sides when deploying air bag
module and seat belt pre-tensioner while mounted in vehicle.
Use a voltmeter to make sure the vehicle battery is fully charged.
Do not dispose the air bag module and seat belt pre-tensioner undeployed.
CHECKING DEPLOYMENT TOOL
Connecting to Battery
CAUTION:
The battery must show voltage of 9.6V or more.
Remove the battery from the vehicle and place it on dry wood blocks
approximately 5 m (16 ft) away from the vehicle.
Wait 3 minutes after the vehicle battery is disconnected before
proceeding.
Connect red clip of deployment tool to battery positive terminal
and black clip to negative terminal.
Make sure the polarity is correct. The right side lamp in the tool,
marked “deployment tool power”, should glow with a green
light. If the right side lamp glows red, reverse the connections
to the battery.
Deployment Tool Check
Press the deployment tool switch to the ON position. The left side
lamp in the tool, marked “air bag connector voltage” should illumi-
nate. If it does not illuminate, replace the tool.
PHIA0003E
SBF266H
Page 3423 of 3502

DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER
SRS-49
C
D
E
F
G
I
J
K
L
MA
B
SRS
Air Bag Deployment Tool Lamp Illumination Chart (Battery Connected)
*: If this lamp glows red, the tool is connected to the battery incorrectly. Reverse the connections and make sure the lamp glows green.
DEPLOYMENT PROCEDURES FOR AIR BAG MODULE (OUTSIDE OF VEHICLE)
Unless the vehicle is being scrapped, deploying the air bag in the
vehicle is not recommended. This may cause damage to the vehicle
interior.
Anchor air bag module bracket (SST: KV99105300) in a vise
secured to a firm foundation during deployment.
Deployment of Driver Air Bag Module (Outside of Vehicle)

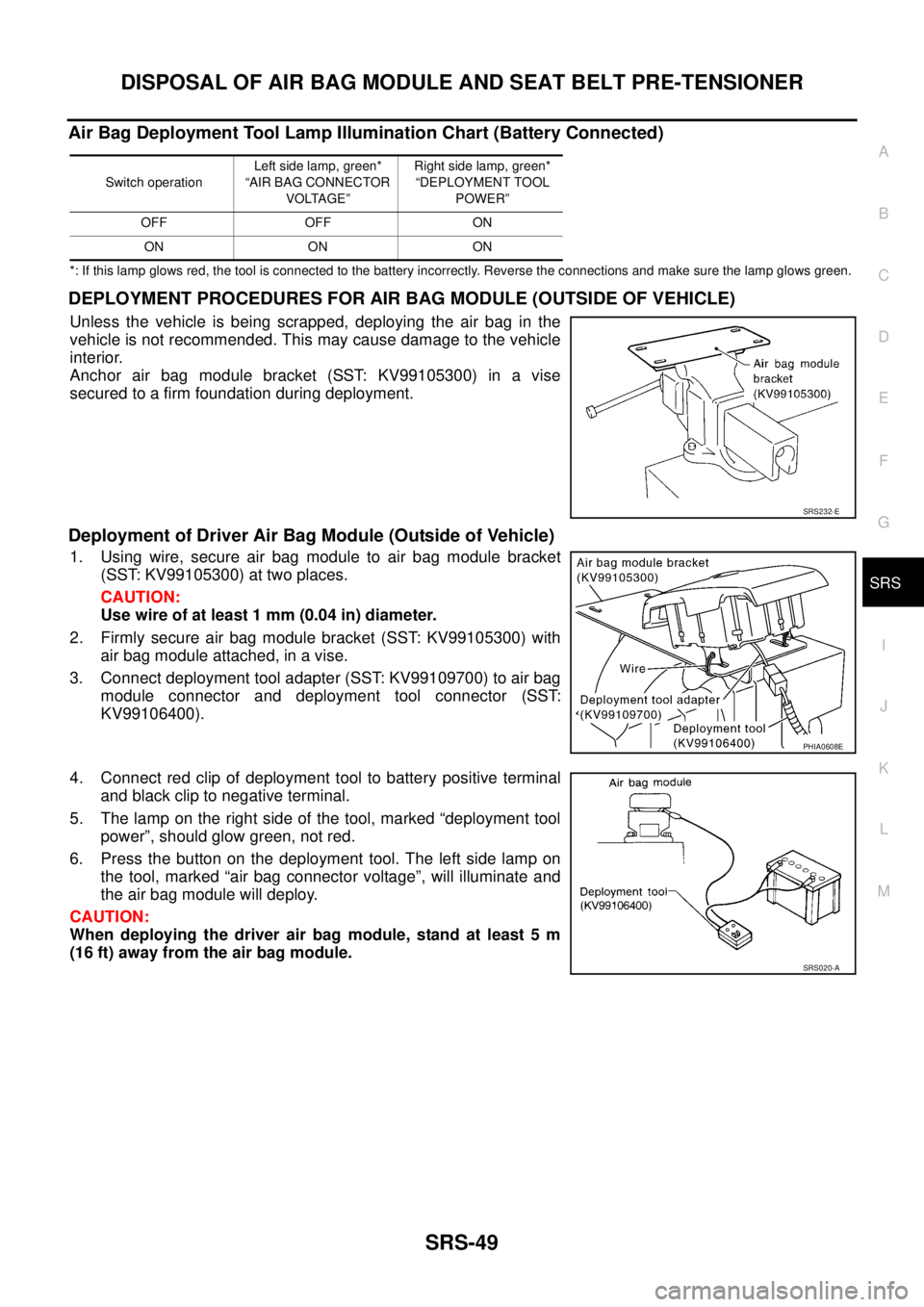

1. Using wire, secure air bag module to air bag module bracket
(SST: KV99105300) at two places.
CAUTION:
Use wire of at least 1 mm (0.04 in) diameter.
2. Firmly secure air bag module bracket (SST: KV99105300) with
air bag module attached, in a vise.
3. Connect deployment tool adapter (SST: KV99109700) to air bag
module connector and deployment tool connector (SST:
KV99106400).
4. Connect red clip of deployment tool to battery positive terminal
and black clip to negative terminal.
5. The lamp on the right side of the tool, marked “deployment tool
power”, should glow green, not red.
6. Press the button on the deployment tool. The left side lamp on
the tool, marked “air bag connector voltage”, will illuminate and
the air bag module will deploy.
CAUTION:
When deploying the driver air bag module, stand at least 5 m
(16 ft) away from the air bag module.
Switch operationLeft side lamp, green*
“AIR BAG CONNECTOR
VOLTAGE”Right side lamp, green*
“DEPLOYMENT TOOL
POWER”
OFF OFF ON
ON ON ON
SRS232-E
PHIA0608E
SRS020-A
Page 3424 of 3502

SRS-50
DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER
Deployment of Front Passenger Air Bag Module (Outside of Vehicle)

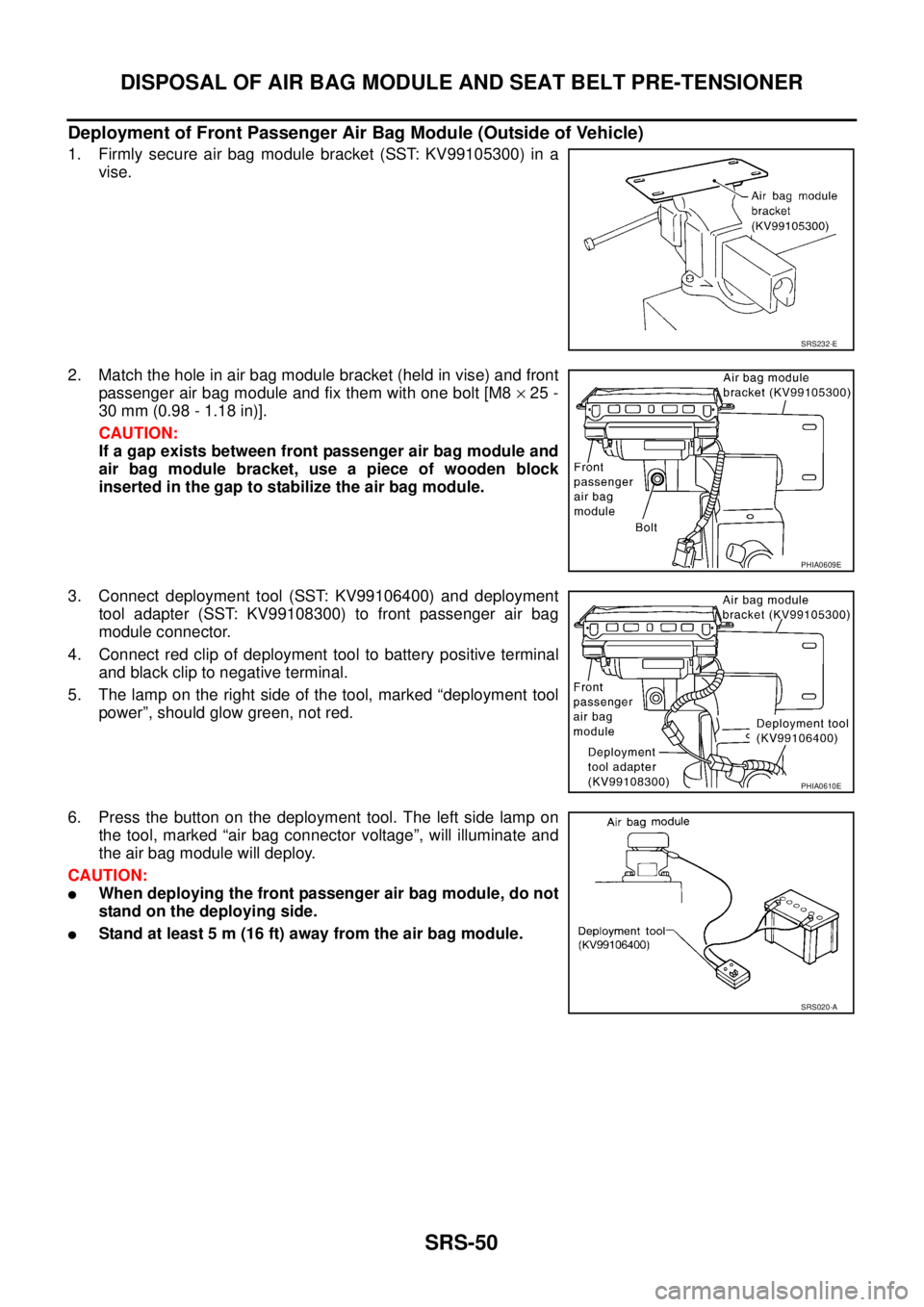

1. Firmly secure air bag module bracket (SST: KV99105300) in a
vise.
2. Match the hole in air bag module bracket (held in vise) and front
passenger air bag module and fix them with one bolt [M8 × 25 -
30 mm (0.98 - 1.18 in)].
CAUTION:
If a gap exists between front passenger air bag module and
air bag module bracket, use a piece of wooden block
inserted in the gap to stabilize the air bag module.
3. Connect deployment tool (SST: KV99106400) and deployment
tool adapter (SST: KV99108300) to front passenger air bag
module connector.
4. Connect red clip of deployment tool to battery positive terminal
and black clip to negative terminal.
5. The lamp on the right side of the tool, marked “deployment tool
power”, should glow green, not red.
6. Press the button on the deployment tool. The left side lamp on
the tool, marked “air bag connector voltage”, will illuminate and
the air bag module will deploy.
CAUTION:
When deploying the front passenger air bag module, do not
stand on the deploying side.
Stand at least 5 m (16 ft) away from the air bag module.
SRS232-E
PHIA0609E
PHIA0610E
SRS020-A
