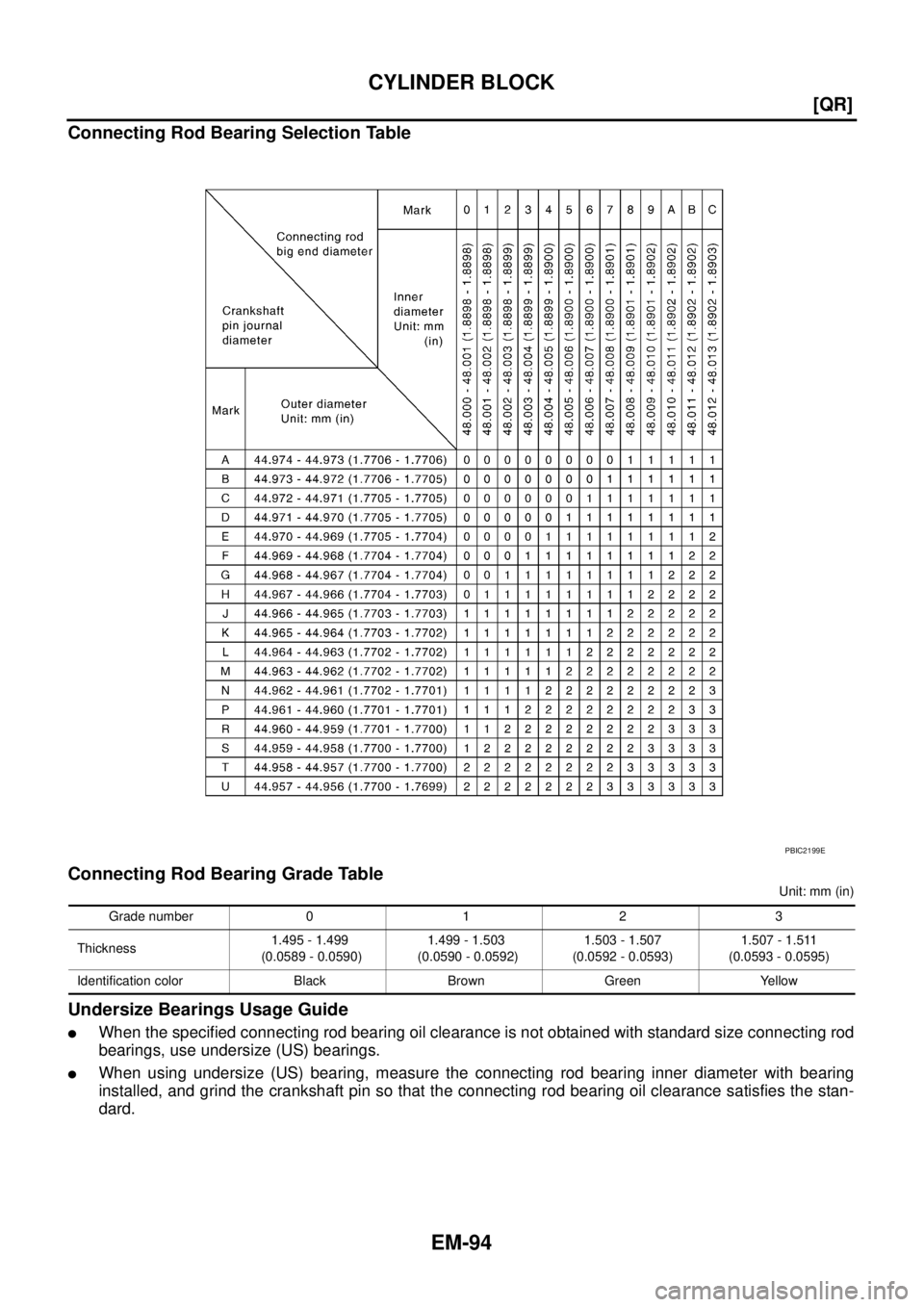

Page 2201 of 3502

NISSAN TEANA 2003 Service Manual CYLINDER BLOCK EM-93 [QR] C D E F G H I J K L MA EM 2. Apply crankshaft pin journal diameter grade stamped on crank- shaft front side to the column in the “Connecting Rod Bearing Selection Table

Page 2202 of 3502

NISSAN TEANA 2003 Service Manual EM-94 [QR] CYLINDER BLOCK Connecting Rod Bearing Selection Table Connecting Rod Bearing Grade Table Unit: mm (in) Undersize Bearings Usage Guide When the specified connecting rod bearing oil cleara

Page 2203 of 3502

NISSAN TEANA 2003 Service Manual CYLINDER BLOCK EM-95 [QR] C D E F G H I J K L MA EM CAUTION: In grinding crankshaft pin to use undersize bearings, keep the fillet R [1.5 - 1.7 mm (0.059 - 0.067 in)]. Bearing undersize table Unit:

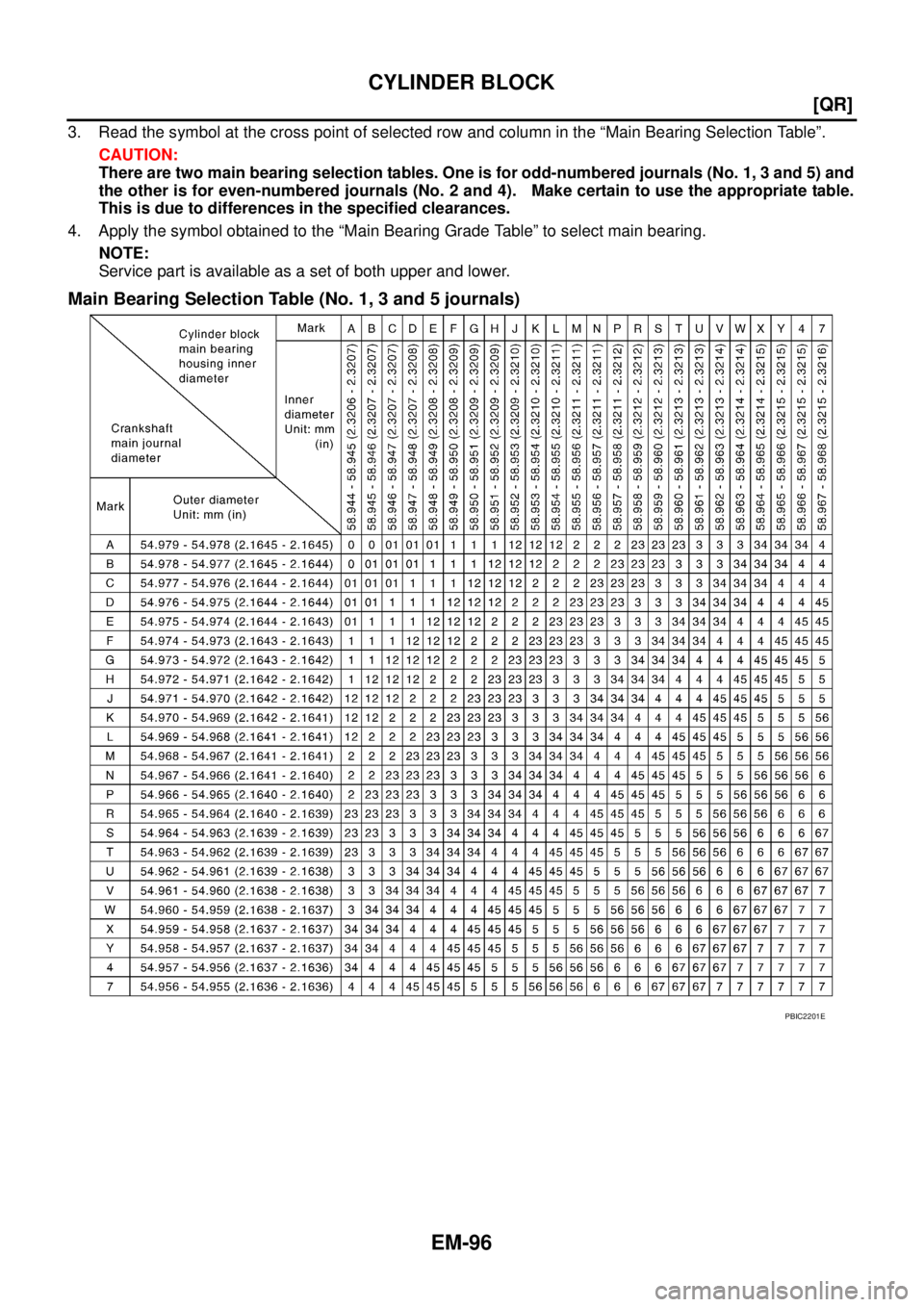

Page 2204 of 3502

NISSAN TEANA 2003 Service Manual EM-96 [QR] CYLINDER BLOCK 3. Read the symbol at the cross point of selected row and column in the “Main Bearing Selection Table”. CAUTION: There are two main bearing selection tables. One is for

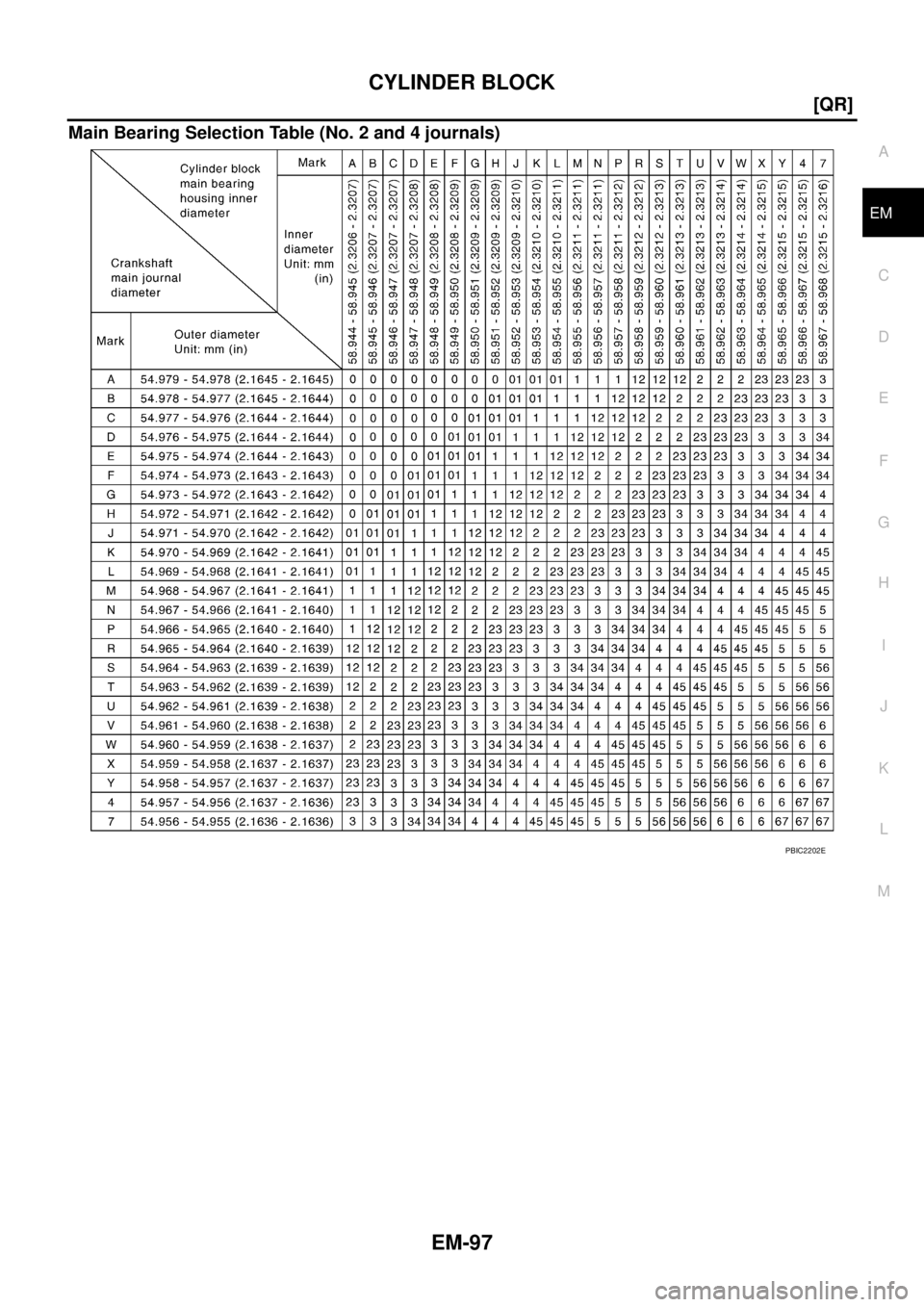

Page 2205 of 3502

NISSAN TEANA 2003 Service Manual CYLINDER BLOCK EM-97 [QR] C D E F G H I J K L MA EM Main Bearing Selection Table (No. 2 and 4 journals) PBIC2202E

Page 2206 of 3502

NISSAN TEANA 2003 Service Manual EM-98 [QR] CYLINDER BLOCK Main Bearing Grade Table (All Journals) Unit: mm (in) Use Undersize Bearing Usage Guide When the specified main bearing oil clearance is not obtained with standard size ma

Page 2207 of 3502

NISSAN TEANA 2003 Service Manual CYLINDER BLOCK EM-99 [QR] C D E F G H I J K L MA EM Inspection After DisassemblyBBS0059I CRANKSHAFT END PLAY Measure the clearance between thrust bearings and crankshaft arm when crankshaft is move

Page 2208 of 3502

NISSAN TEANA 2003 Service Manual EM-100 [QR] CYLINDER BLOCK When replacing piston and piston pin assembly, refer to EM-92, "HOW TO SELECT PISTON" . NOTE: Piston is available together with piston pin as an assembly. The piston p
