Page 1433 of 3502

NISSAN TEANA 2003 Service Manual DTC P0134 HO2S1
EC-151
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

Overall Function CheckBBS005DW
Use this procedure to check the overall function of the heated oxygen sensor 1 circuit. During this check, a 1st

Page 1434 of 3502

NISSAN TEANA 2003 Service Manual EC-152
[QR]
DTC P0134 HO2S1

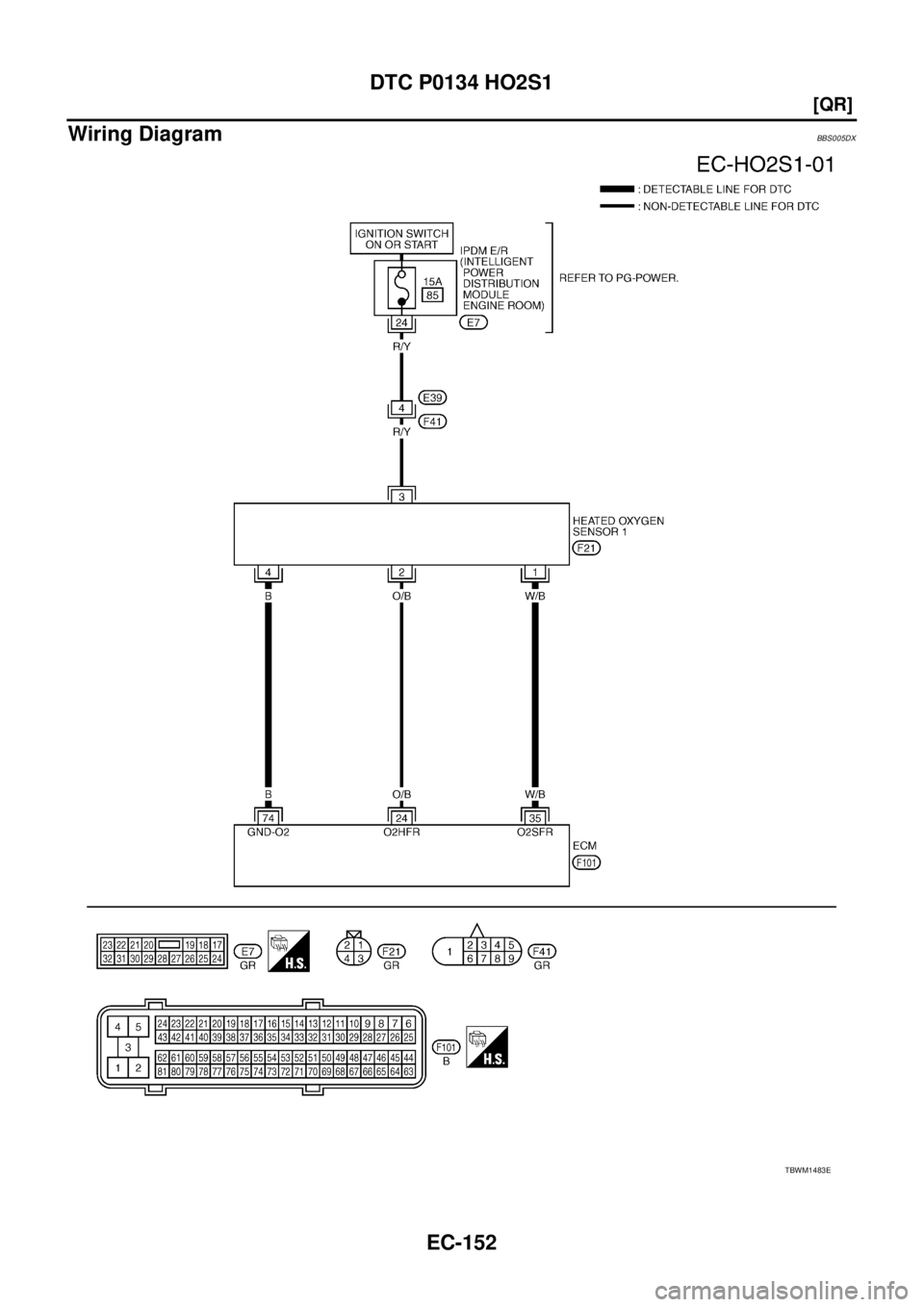

Wiring DiagramBBS005DX
TBWM1483E

Page 1435 of 3502

NISSAN TEANA 2003 Service Manual DTC P0134 HO2S1
EC-153
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do n

Page 1436 of 3502

NISSAN TEANA 2003 Service Manual EC-154
[QR]
DTC P0134 HO2S1

2. CHECK HO2S1 GROUND CIRCUIT FOR OPEN AND SHORT
1. Disconnect heated oxygen sensor 1 harness connector.
2. Disconnect ECM harness connector.
3. Check harness continuity

Page 1437 of 3502

NISSAN TEANA 2003 Service Manual DTC P0134 HO2S1
EC-155
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

3. Select “HO2S1 (B1)” and “HO2S1 MNTR (B1)”.
4. Hold engine speed at 2,000 rpm under no load during the follow-
ing steps.
5. Touch “

Page 1438 of 3502

NISSAN TEANA 2003 Service Manual EC-156
[QR]
DTC P0134 HO2S1

Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread
Cleaner and approved anti-seize lubricant.
Removal and InstallationBBS005E0

Page 1439 of 3502

NISSAN TEANA 2003 Service Manual DTC P0222, P0223 TP SENSOR
EC-157
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P0222, P0223 TP SENSORPFP:16119
Component DescriptionBBS005E1
Electric throttle control actuator consists of throttle control mot

DTC P0222, P0223 TP SENSOR
EC-157
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P0222, P0223 TP SENSORPFP:16119
Component DescriptionBBS005E1
Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
CONSULT-II Reference Value in Data Monitor ModeBBS005E2
Specification data are reference values.
*: Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.
On Board Diagnosis LogicBBS005E3
These self-diagnoses have the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.
PBIB0145E
MONITOR ITEM CONDITION SPECIFICATION
THRTL SEN 1
THRTL SEN 2*
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released More than 0.36V
Shift lever: D Accelerator pedal: Fully depressed Less than 4.75V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0222
0222Throttle position sensor 1
circuit low inputAn excessively low voltage from the TP sensor 1
is sent to ECM.
Harness or connectors
(TP sensor 1 circuit is open or shorted.)
(APP sensor 2 circuit is shorted.)
Electric throttle control actuator
(TP sensor 1)
Accelerator pedal position sensor
(APP sensor 2) P0223
0223Throttle position sensor 1
circuit high inputAn excessively high voltage from the TP sensor
1 is sent to ECM.
Engine operation condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.

Page 1440 of 3502

NISSAN TEANA 2003 Service Manual EC-158
[QR]
DTC P0222, P0223 TP SENSOR

DTC Confirmation ProcedureBBS005E4
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seco
