NISSAN TEANA 2003 Service Manual PNP, 3RD POSITION SWITCH AND CLOSED THROTTLE, WIDE OPEN THROT-
TLE POSITION SIGNAL
AT-161
D
E
F
G
H
I
J
K
L
MA
B
AT

PNP, 3RD POSITION SWITCH AND CLOSED THROTTLE, WIDE OPEN THROT-
TLE POSITION SIGNAL

PNP, 3RD POSITION SWITCH AND CLOSED THROTTLE, WIDE OPEN THROT-
TLE POSITION SIGNAL
AT-161
D
E
F
G
H
I
J
K
L
MA
B
AT

PNP, 3RD POSITION SWITCH AND CLOSED THROTTLE, WIDE OPEN THROT-
TLE POSITION SIGNAL
PFP:31918
CONSULT-II Reference ValueBCS00145
TCM Terminals and Reference ValueBCS00146
Data are reference value and are measured between each terminal and ground.Item name Condition Display value
PN POSI SW (ON/OFF)When setting selector lever to “N” or “P” position. ON
When setting selector lever to other positions. OFF
R POSITION SW (ON/OFF)When setting selector lever to “R” position. ON
When setting selector lever to other positions. OFF
D POSITION SW (ON/OFF)When setting selector lever to “D” and “3” positions. ON
When setting selector lever to other positions. OFF
2 POSITION SW (ON/OFF)When setting selector lever to “2” position. ON
When setting selector lever to other positions. OFF
1 POSITION SW (ON/OFF)When setting selector lever to “1” position. ON
When setting selector lever to other positions. OFF
OVERDRIVE SW (ON/OFF)When setting selector lever to “3” and “2” positions. ON
When setting selector lever to other positions. OFF
CLOSED THL/SW (ON/OFF)Released accelerator pedal. ON
Fully depressed accelerator pedal. OFF
W/O THRL/P-SW (ON/OFF)Fully depressed accelerator pedal. ON
Released accelerator pedal. OFF
Terminal Wire color Item ConditionJudgement standard
(Approx.)
26 V/W PNP switch “1” position
andWhen setting selector
lever to “1” position.Battery voltage
When setting selector
lever to other posi-
tions.0V
27 P/B PNP switch “2” positionWhen setting selector
lever to “2” position.Battery voltage
When setting selector
lever to other posi-
tions.0V
34 BR PNP switch “D” positionWhen setting selector
lever to “D” and “3”
positions.Battery voltage
When setting selector
lever to other posi-
tions.0V
35 G/W PNP switch “R” positionWhen setting selector
lever to “R” position.Battery voltage
When setting selector
lever to other posi-
tions.0V
36 R/B PNP switch “N” or “P” positionWhen setting selector
lever to “N” or “P”
position.Battery voltage
When setting selector
lever to other posi-
tions.0V

Page 170 of 3502

NISSAN TEANA 2003 Service Manual AT-162
PNP, 3RD POSITION SWITCH AND CLOSED THROTTLE, WIDE OPEN THROT-
TLE POSITION SIGNAL

Diagnostic ProcedureBCS00147
1. CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis. Refer to AT- 6 9 ,

Page 171 of 3502

NISSAN TEANA 2003 Service Manual PNP, 3RD POSITION SWITCH AND CLOSED THROTTLE, WIDE OPEN THROT-
TLE POSITION SIGNAL
AT-163
D
E
F
G
H
I
J
K
L
MA
B
AT

3. CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignit

Page 172 of 3502

NISSAN TEANA 2003 Service Manual AT-164
PNP, 3RD POSITION SWITCH AND CLOSED THROTTLE, WIDE OPEN THROT-
TLE POSITION SIGNAL

6. CHECK 3RD POSITION SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine)
2. S

Page 173 of 3502

NISSAN TEANA 2003 Service Manual PNP, 3RD POSITION SWITCH AND CLOSED THROTTLE, WIDE OPEN THROT-
TLE POSITION SIGNAL
AT-165
D
E
F
G
H
I
J
K
L
MA
B
AT

9. CHECK CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION SIGNAL CIRCUIT

Page 174 of 3502

NISSAN TEANA 2003 Service Manual AT-166
PNP, 3RD POSITION SWITCH AND CLOSED THROTTLE, WIDE OPEN THROT-
TLE POSITION SIGNAL

Component InspectionBCS001PQ
3RD POSITION SWITCH
Check continuity between A/T device harness connector term

Page 175 of 3502

NISSAN TEANA 2003 Service Manual BRAKE SIGNAL CIRCUIT
AT-167
D
E
F
G
H
I
J
K
L
MA
B
AT

BRAKE SIGNAL CIRCUITPFP:25320
CONSULT-II Reference ValueBCS0026P
Diagnostic ProcedureBCS0026Q
1. CHECK CAN COMMUNICATION LINE
Perform the self-d

Page 176 of 3502

NISSAN TEANA 2003 Service Manual AT-168
TROUBLE DIAGNOSIS FOR SYMPTOMS

TROUBLE DIAGNOSIS FOR SYMPTOMSPFP:00007

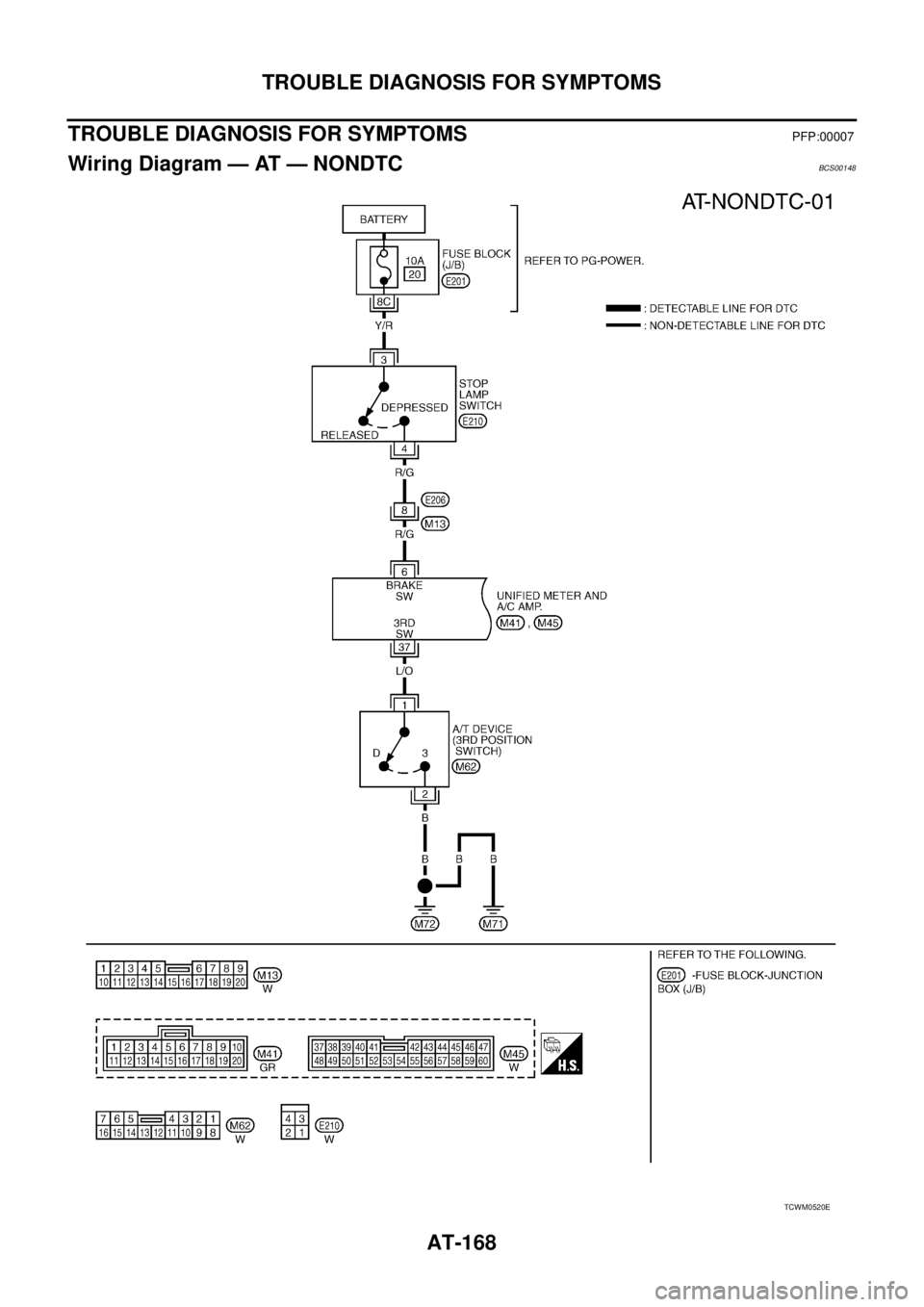

Wiring Diagram — AT — NONDTCBCS00148
TCWM0520E
