Page 3409 of 3502
DRIVER AIR BAG MODULE
SRS-35
C
D
E
F
G
I
J
K
L
MA
B
SRS

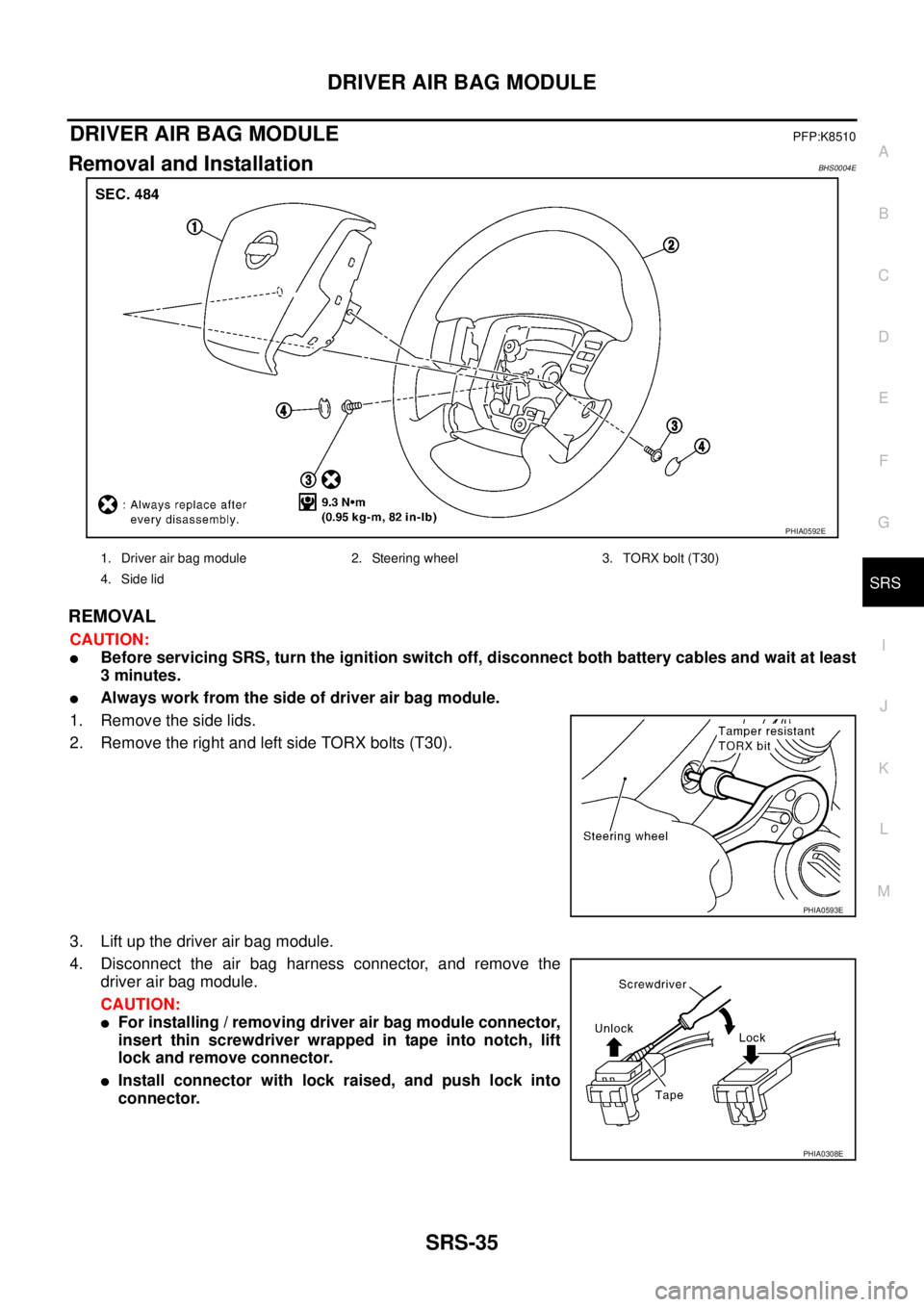

DRIVER AIR BAG MODULEPFP:K8510
Removal and InstallationBHS0004E
REMOVAL
CAUTION:
Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least
3 minutes.
Always work from the side of driver air bag module.
1. Remove the side lids.
2. Remove the right and left side TORX bolts (T30).
3. Lift up the driver air bag module.
4. Disconnect the air bag harness connector, and remove the
driver air bag module.
CAUTION:
For installing / removing driver air bag module connector,
insert thin screwdriver wrapped in tape into notch, lift
lock and remove connector.
Install connector with lock raised, and push lock into
connector.
PHIA0592E
1. Driver air bag module 2. Steering wheel 3. TORX bolt (T30)
4. Side lid
PHIA0593E
PHIA0308E
Page 3410 of 3502

SRS-36
DRIVER AIR BAG MODULE
CAUTION:
Always work from the side of driver air bag module.
Always place driver air bag module with pad side facing
upward.
Do not insert any foreign objects (screwdriver, etc.) into
driver air bag module.
Do not disassemble driver air bag module.
Do not use old bolts after removal; replace with new bolts.
Do not expose the driver air bag module to temperatures
exceeding 90°C (194°F).
Replace driver air bag module if it has been dropped or sus-
tained an impact.
Do not allow oil, grease or water to come in contact with the
driver air bag module.
INSTALLATION
1. Connect harness connector to air bag module.
CAUTION:
Fix air bag harness on the hook for harness fixing.
2. Install the air bag module with new TORX bolts (T30).
NOTE:
Align air bag module side hole with steering wheel side hole, and then tighten special bolts when installing
air bag module. Thread is damaged and installation is incorrect if both holes are not aligned.
3. Install side lids.
4. Connect both battery cables.
5. Check SRS air bag warning lamp to make sure that the system works normally after finishing work.
6. If SRS air bag warning lamp indicates a DTC exists, reset with self-diagnosis and erase the memory using
CONSULT-II.
7. After the work is completed, perform self-diagnosis to make sure that no malfunction is detected. Refer to
SRS-16, "
SRS Operation Check" .
PHIA0594E
SBF814E
PHIA0595E
Page 3411 of 3502

SPIRAL CABLE
SRS-37
C
D
E
F
G
I
J
K
L
MA
B
SRS

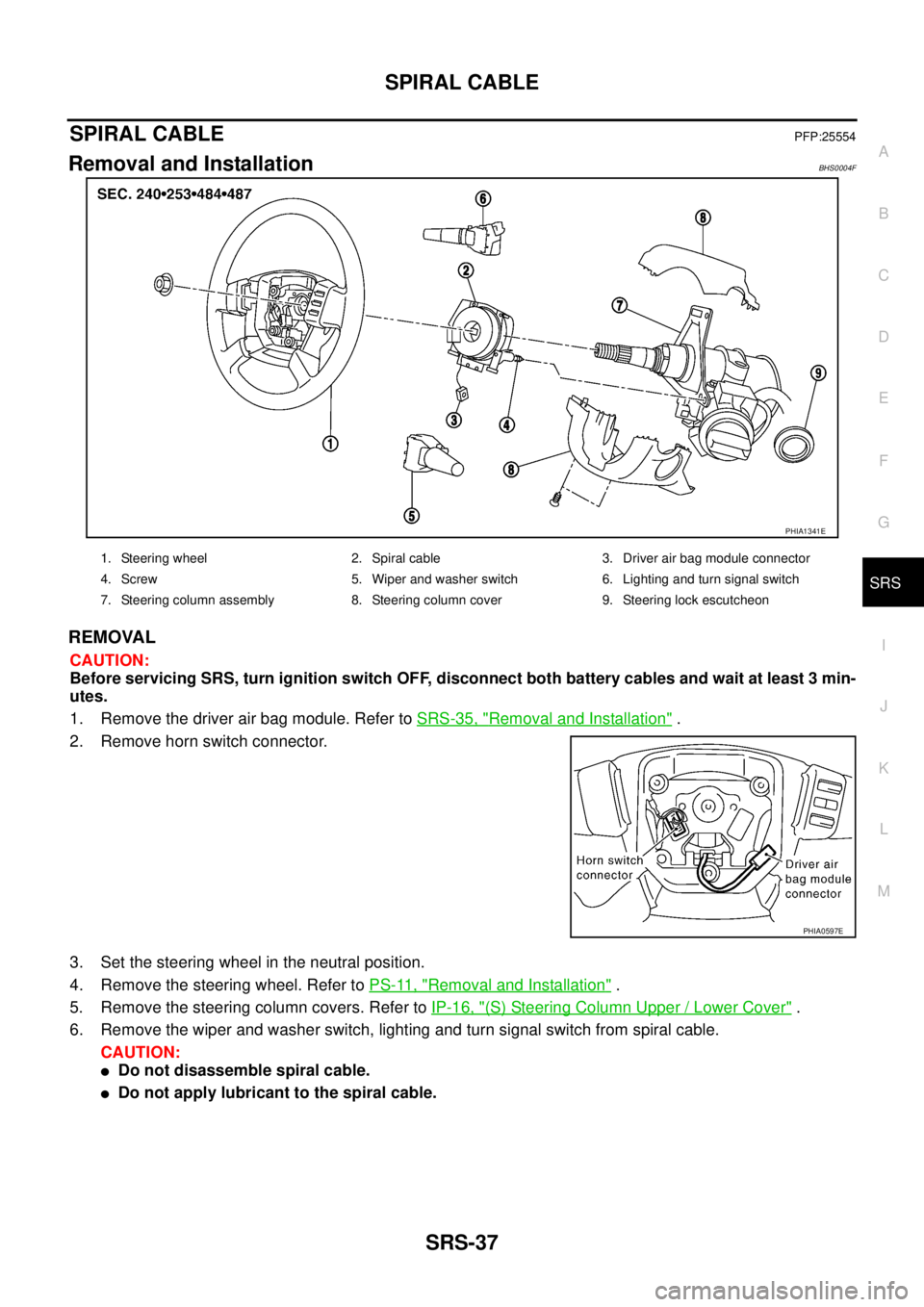

SPIRAL CABLEPFP:25554
Removal and InstallationBHS0004F
REMOVAL
CAUTION:
Before servicing SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3 min-
utes.
1. Remove the driver air bag module. Refer to SRS-35, "
Removal and Installation" .
2. Remove horn switch connector.
3. Set the steering wheel in the neutral position.
4. Remove the steering wheel. Refer to PS-11, "
Removal and Installation" .
5. Remove the steering column covers. Refer to IP-16, "
(S) Steering Column Upper / Lower Cover" .
6. Remove the wiper and washer switch, lighting and turn signal switch from spiral cable.
CAUTION:
Do not disassemble spiral cable.
Do not apply lubricant to the spiral cable.
PHIA1341E
1. Steering wheel 2. Spiral cable 3. Driver air bag module connector
4. Screw 5. Wiper and washer switch 6. Lighting and turn signal switch
7. Steering column assembly 8. Steering column cover 9. Steering lock escutcheon
PHIA0597E
Page 3412 of 3502

SRS-38
SPIRAL CABLE
7. Disconnect the horn switch connector and spiral cable connec-
tor.
NOTE:
Disconnect the horn switch connector, and then the spiral cable
connector.
CAUTION:
Do not tap or bump the steering wheel.
8. Loosen screws. While pushing upper plastic tab, remove spiral cable.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
If it is mounted in the inappropriate position, spiral cable
may be cut when performing steering operation.
Also, with the steering linkage disconnected the cable may
snap by turning the steering wheel beyond the limited num-
ber of turns. The spiral cable can be turned counterclock-
wise about 2.5 turns from the right end position.
Do not twist spiral cable freely or excessively after it
becomes tight (doing so may cause the cable to be torn
off).
Secure air bag harness to the harness fixing hook.
Check SRS air bag warning lamp to make sure that the sys-
tem works normally after finishing work.
If SRS air bag warning lamp indicates a DTC exists, reset
with self-diagnosis and erase the memory using CONSULT-
II.
After the operation above, if SRS air bag warning lamp still
shows a non-standard condition, perform system trouble
diagnosis again, and repair or replace the indicated compo-
nent. Refer to SRS-16, "
SRS Operation Check" .
SHIA0193E
PHIA0599E
Page 3413 of 3502

FRONT PASSENGER AIR BAG MODULE
SRS-39
C
D
E
F
G
I
J
K
L
MA
B
SRS

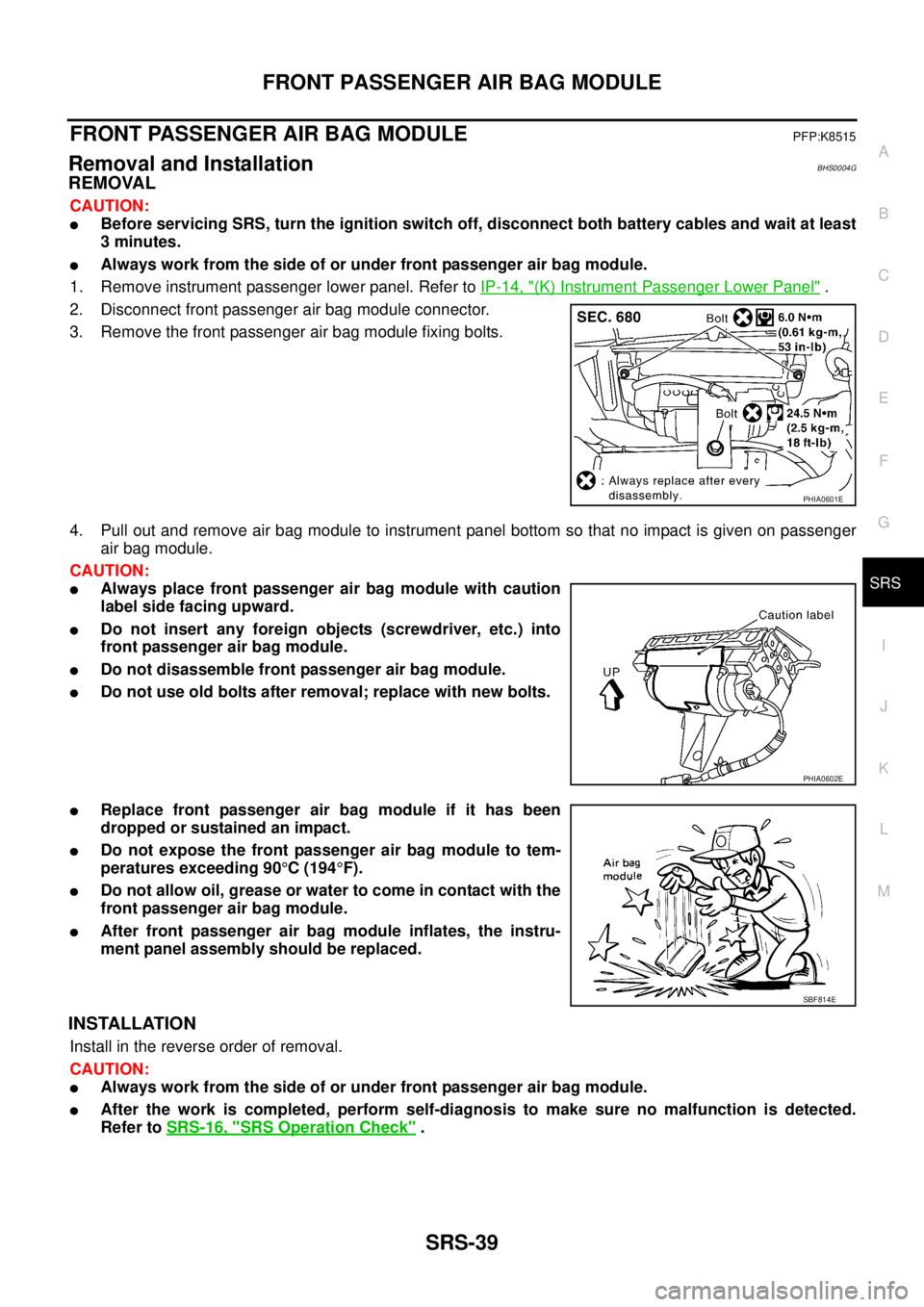

FRONT PASSENGER AIR BAG MODULEPFP:K8515
Removal and InstallationBHS0004G
REMOVAL
CAUTION:
Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least
3 minutes.
Always work from the side of or under front passenger air bag module.
1. Remove instrument passenger lower panel. Refer to IP-14, "
(K) Instrument Passenger Lower Panel" .
2. Disconnect front passenger air bag module connector.
3. Remove the front passenger air bag module fixing bolts.
4. Pull out and remove air bag module to instrument panel bottom so that no impact is given on passenger
air bag module.
CAUTION:
Always place front passenger air bag module with caution
label side facing upward.
Do not insert any foreign objects (screwdriver, etc.) into
front passenger air bag module.
Do not disassemble front passenger air bag module.
Do not use old bolts after removal; replace with new bolts.
Replace front passenger air bag module if it has been
dropped or sustained an impact.
Do not expose the front passenger air bag module to tem-
peratures exceeding 90°C (194°F).
Do not allow oil, grease or water to come in contact with the
front passenger air bag module.
After front passenger air bag module inflates, the instru-
ment panel assembly should be replaced.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Always work from the side of or under front passenger air bag module.
After the work is completed, perform self-diagnosis to make sure no malfunction is detected.
Refer to SRS-16, "
SRS Operation Check" .
PHIA0601E
PHIA0602E
SBF814E
Page 3414 of 3502

SRS-40

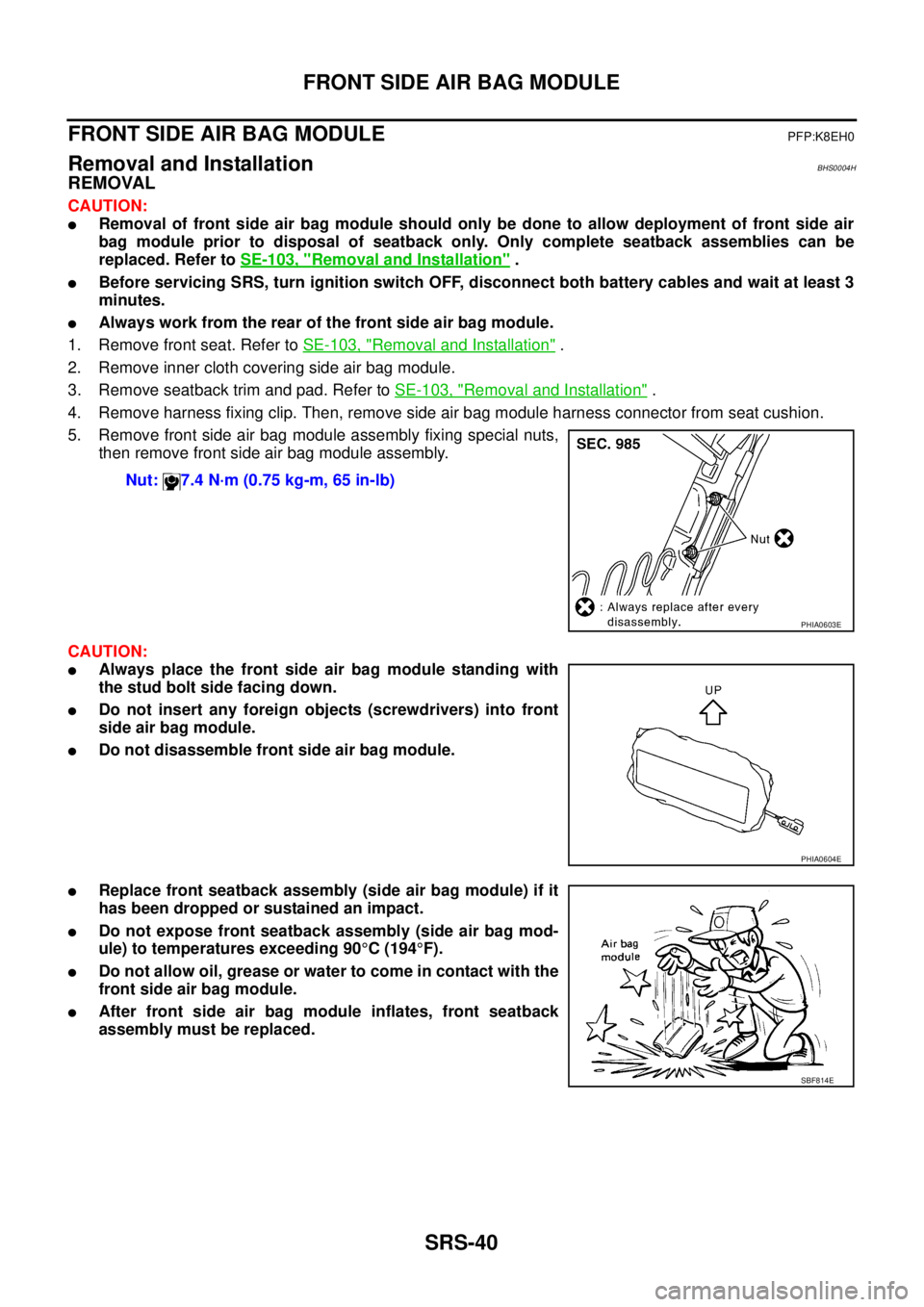

FRONT SIDE AIR BAG MODULE
FRONT SIDE AIR BAG MODULEPFP:K8EH0
Removal and InstallationBHS0004H
REMOVAL
CAUTION:
Removal of front side air bag module should only be done to allow deployment of front side air
bag module prior to disposal of seatback only. Only complete seatback assemblies can be
replaced. Refer to SE-103, "
Removal and Installation" .
Before servicing SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3
minutes.
Always work from the rear of the front side air bag module.
1. Remove front seat. Refer to SE-103, "
Removal and Installation" .
2. Remove inner cloth covering side air bag module.
3. Remove seatback trim and pad. Refer to SE-103, "
Removal and Installation" .
4. Remove harness fixing clip. Then, remove side air bag module harness connector from seat cushion.
5. Remove front side air bag module assembly fixing special nuts,
then remove front side air bag module assembly.
CAUTION:
Always place the front side air bag module standing with
the stud bolt side facing down.
Do not insert any foreign objects (screwdrivers) into front
side air bag module.
Do not disassemble front side air bag module.
Replace front seatback assembly (side air bag module) if it
has been dropped or sustained an impact.
Do not expose front seatback assembly (side air bag mod-
ule) to temperatures exceeding 90°C (194°F).
Do not allow oil, grease or water to come in contact with the
front side air bag module.
After front side air bag module inflates, front seatback
assembly must be replaced. Nut: 7.4 N·m (0.75 kg-m, 65 in-lb)
PHIA0603E
PHIA0604E
SBF814E
Page 3415 of 3502
FRONT SIDE AIR BAG MODULE
SRS-41
C
D
E
F
G
I
J
K
L
MA
B
SRS
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Always work from the rear of the front side air bag module.
After the work is completed, perform self-diagnosis to make sure no malfunction is detected.
Refer to SRS-16, "
SRS Operation Check" .
Page 3416 of 3502
SRS-42

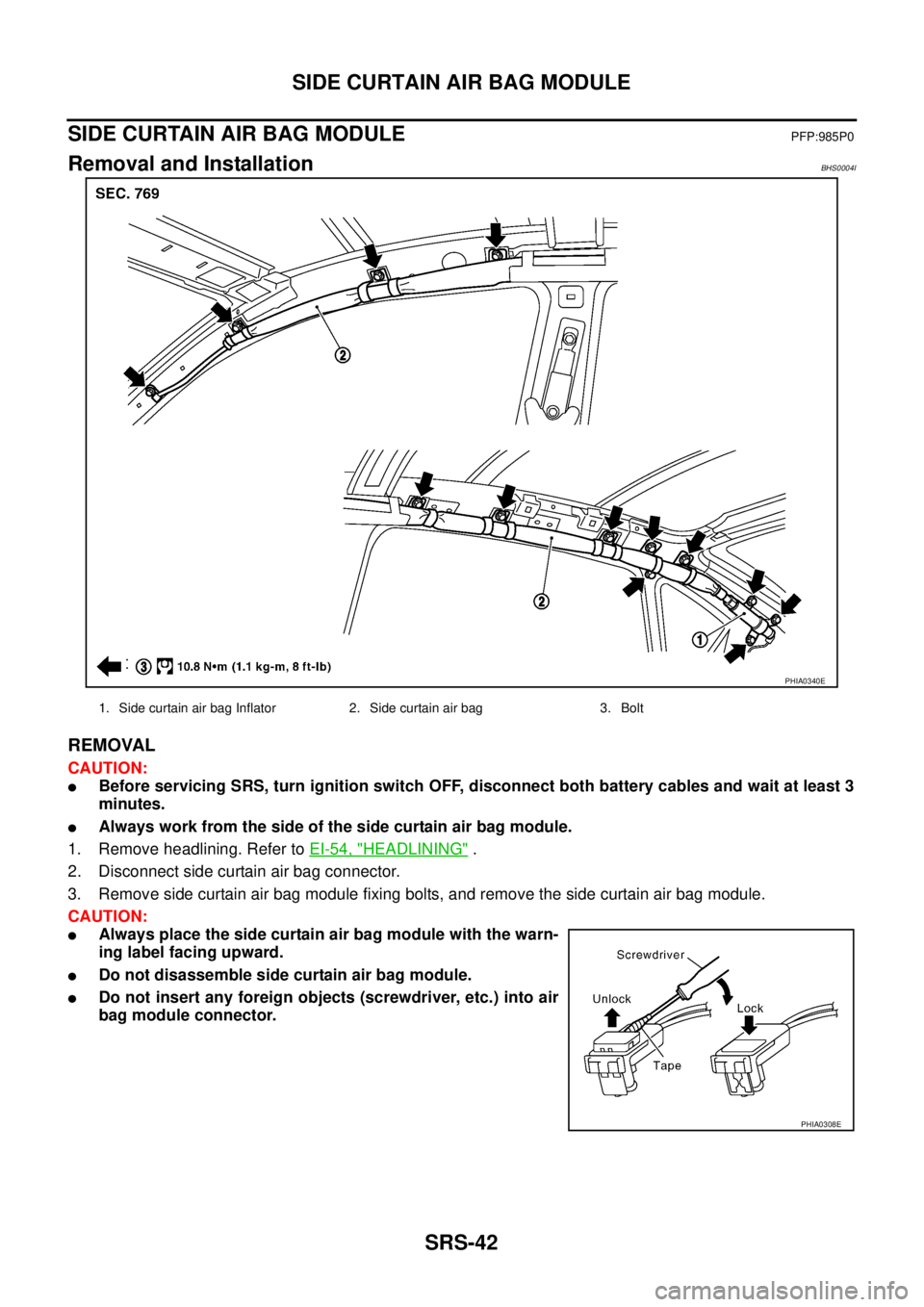

SIDE CURTAIN AIR BAG MODULE
SIDE CURTAIN AIR BAG MODULEPFP:985P0
Removal and InstallationBHS0004I
REMOVAL
CAUTION:
Before servicing SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3
minutes.
Always work from the side of the side curtain air bag module.
1. Remove headlining. Refer to EI-54, "
HEADLINING" .
2. Disconnect side curtain air bag connector.
3. Remove side curtain air bag module fixing bolts, and remove the side curtain air bag module.
CAUTION:
Always place the side curtain air bag module with the warn-
ing label facing upward.
Do not disassemble side curtain air bag module.
Do not insert any foreign objects (screwdriver, etc.) into air
bag module connector.
PHIA0340E
1. Side curtain air bag Inflator 2. Side curtain air bag 3. Bolt
PHIA0308E
