2003 NISSAN TEANA Service Manual

service schedule wiper blades navigation alternator belt ignition park assist

Load previous 8 pages

Page 745 of 3502

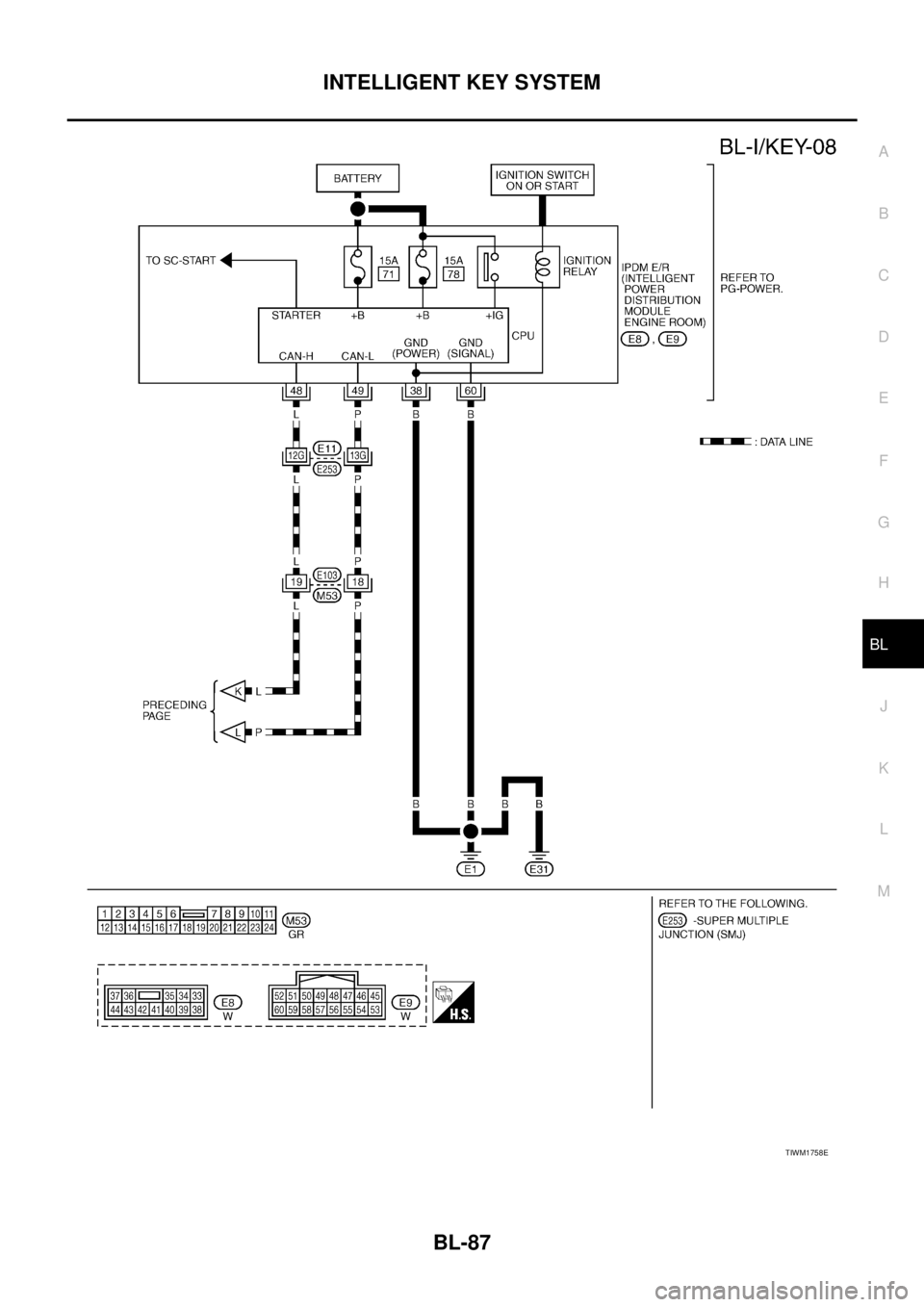

NISSAN TEANA 2003 Service Manual INTELLIGENT KEY SYSTEM
BL-87
C
D
E
F
G
H
J
K
L
MA
B
BL

TIWM1758E

Page 746 of 3502

NISSAN TEANA 2003 Service Manual BL-88
INTELLIGENT KEY SYSTEM

Terminals and Reference Value for Intelligent Key UnitBIS000X4
Te r m i -
nalWire
ColorItemSignal
Input/
OutputCondition
Voltage (V)
(Approx.) Ignition
Knob
PositionO

Page 747 of 3502

NISSAN TEANA 2003 Service Manual INTELLIGENT KEY SYSTEM
BL-89
C
D
E
F
G
H
J
K
L
MA
B
BL

25 P/LDoor request switch
(passenger side)Input LOCKDoor request switch operation:
Press (ON)0
Other than the above (OFF) 5
27 BR Ignition kn

Page 748 of 3502

NISSAN TEANA 2003 Service Manual BL-90
INTELLIGENT KEY SYSTEM

Terminals and Reference Value for Steering Lock UnitBIS000X5
Terminals and Reference Value for BCMBIS000X6
Te r m i -
nalWire
ColorSignal DesignationSignal
Input/
Outp

Page 749 of 3502

NISSAN TEANA 2003 Service Manual INTELLIGENT KEY SYSTEM
BL-91
C
D
E
F
G
H
J
K
L
MA
B
BL

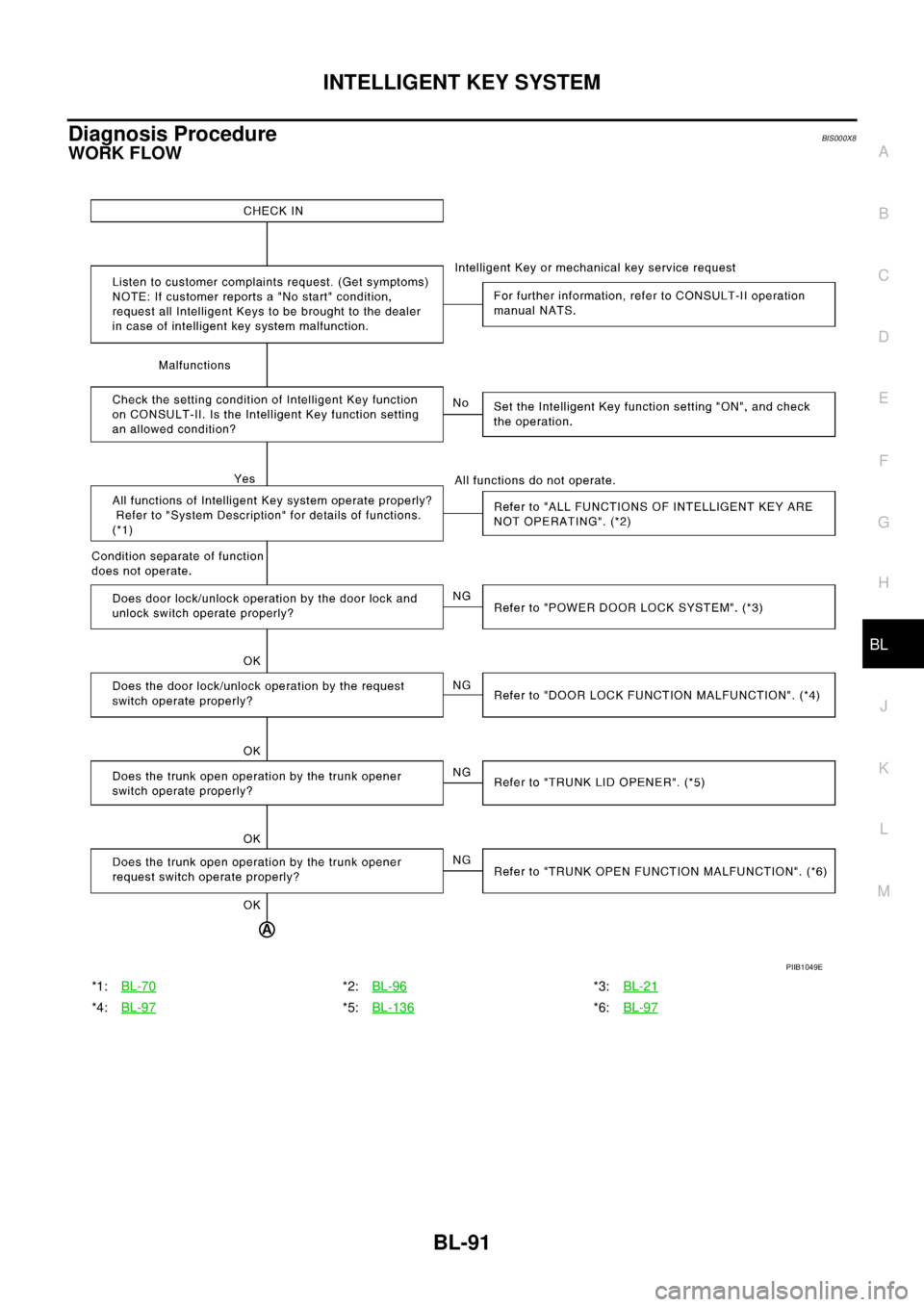

Diagnosis ProcedureBIS000X8
WORK FLOW
*1:BL-70*2:BL-96*3:BL-21
*4:BL-97*5:BL-136*6:BL-97
PIIB1049E

Page 750 of 3502

NISSAN TEANA 2003 Service Manual BL-92
INTELLIGENT KEY SYSTEM

ENGINE START FUNCTION DIAGNOSTIC PROCEDURE
*7:BL-96*8:BL-98*9:BL-70
*10:BL-99*11:BL-98
PIIB1050E
PIIB1051E

Page 751 of 3502

NISSAN TEANA 2003 Service Manual INTELLIGENT KEY SYSTEM
BL-93
C
D
E
F
G
H
J
K
L
MA
B
BL

CONSULT-II Functions (INTELLIGENT KEY)BIS001TD
CONSULT-II can display each diagnostic item using the diagnostic test modes as shown below.
CONS

INTELLIGENT KEY SYSTEM
BL-93
C
D
E
F
G
H
J
K
L
MA
B
BL

CONSULT-II Functions (INTELLIGENT KEY)BIS001TD
CONSULT-II can display each diagnostic item using the diagnostic test modes as shown below.
CONSULT-II Inspection ProcedureBIS001TE
CAUTION:
If CONSULT-II is used with no connection CONSULT-II CONVERTER, malfunctions might be detected
in self-diagnosis depending on control unit which performs CAN Communication.
BASIC OPERATION
Refer to GI-34, "CONSULT-II Start Procedure" .
CONSULT-II Application ItemsBIS001TF
SELF-DIAGNOSTIC RESULTS
*: It is possible to display it only with the program card for engine immobilizer system.
DATA MONITOR
Part to be diagnosed Test item, Diagnosis mode Description
Intelligent KeyWORK SUPPORT Changes settings for each function.
SELF-DIAG RESULTS Intelligent Key unit performs CAN communication diagnosis.
DATA MONITOR Displays Intelligent Key unit input data in real time.
CAN DIAGNOSTIC SUPPORT
MONITORThe results of transmit/receive diagnosis of CAN Communication can
be read.
ACTIVE TESTOperation of electrical loads can be checked by sending driving signal
to then.
ECU PART NUMBER Displays Intelligent Key unit part No.
DTC Self-diag results Description Diagnosis procedureReference
page
U1000 CAN COMM CIRCUITMalfunction is detected in CAN communica-
tion.Check CAN communica-
tion system.BL-100
U1010 CONTROL UNIT (CAN) Intelligent Key unit internal malfunctionCheck CAN communica-
tion system.BL-100
B2013*STRG COMM CIRCUITMalfunction is detected in communication of
Intelligent Key unit and steering lock unit.Check steering lock unit.BL-115
B2552*INTELLIGENT KEY Intelligent Key unit internal malfunctionReplace Intelligent Key
unit.BL-117
B2590*DISCORD BCM - I-KEY Malfunction is detected in immobilizer system. Check NATS.BL-139
Monitor item Content
PUSH SW Indicates [ON/OFF] condition of ignition knob switch.
KEY SW Indicates [ON/OFF] condition of key switch.
DR REQ SW Indicates [ON/OFF] condition of door request switch (driver side).
AS REQ SW Indicates [ON/OFF] condition of door request switch (passenger side).
BD/TR REQ SW Indicates [ON/OFF] condition of trunk opener request switch.
IGN SW Indicates [ON/OFF] condition of ignition switch in ON position.
ACC SW Indicates [ON/OFF] condition of ignition switch in ACC position.
DOOR STAT SW Indicates [ON/OFF] condition of stop lamp switch.
STOP LAMP SW Indicates [ON/OFF] condition of door unlock sensor.
P RANGE SW* Indicates [ON/OFF] condition of park position switch.
DOOR LOCK SIG* Indicates [ON/OFF] condition of door lock signal from Intelligent Key remote controller button.
DOOR UNLOCK SIG* Indicates [ON/OFF] condition of door unlock signal from Intelligent Key remote controller button.
KEYLESS TRUNK* Indicates [ON/OFF] condition of trunk open signal from Intelligent Key remote controller button.

Page 752 of 3502

NISSAN TEANA 2003 Service Manual BL-94
INTELLIGENT KEY SYSTEM

*: Select “SELECTION FROM MENU”.
WORK SUPPORT
DOOR SW DR*Indicates [OPEN/CLOSE] condition of front door switch driver side from BCM via CAN communica-
tion line.
DOO

BL-94
INTELLIGENT KEY SYSTEM

*: Select “SELECTION FROM MENU”.
WORK SUPPORT
DOOR SW DR*Indicates [OPEN/CLOSE] condition of front door switch driver side from BCM via CAN communica-
tion line.
DOOR SW AS*Indicates [OPEN/CLOSE] condition of front door switch passenger side from BCM via CAN commu-
nication line.
DOOR SW RR* Indicates [OPEN/CLOSE] condition of rear door switch LH from BCM via CAN communication line.
DOOR SW RL* Indicates [OPEN/CLOSE] condition of rear door switch RH from BCM via CAN communication line.
DOOR BK SW* Indicates [OPEN/CLOSE] condition of back door switch from BCM via CAN communication line.
TRUNK SW*Indicates [OPEN/CLOSE] condition of trunk room lamp switch from BCM via CAN communication
line.
VEHICLE SPEED* Indicates [km/h] condition of vehicle speed.Monitor item Content
Monitor item Description
CONFIRM KEY FOB ID It can be checked whether Intelligent Key ID code is registered or not in this mode.
TAKE OUT FROM WINDOW
WARNTake away warning chime (from window) mode can be changed to operate (ON) or not operate
(OFF) with this mode. The operation mode will be changed when “CHANGE SETT” on CON-
SULT-II screen is touched.
LOW BAT OF KEY FOB WARNIntelligent Key low battery warning mode can be changed to operate (ON) or not operate (OFF)
with this mode. The operation mode will be changed when “CHANGE SETT” on CONSULT-II
screen is touched.
HORN WITH KEYLESS LOCKHorn reminder function mode by Intelligent Key remote control button can be changed to operate
(ON) or not operate (OFF) with this mode. The operation mode will be changed when “CHANGE
SETT” on CONSULT-II screen is touched.
HAZARD ANSWER BACKHazard reminder function mode can be selected from the following with this mode. The operation
mode will be changed when “CHANGE SETT” on CONSULT-II screen is touched.
LOCK ONLY: Door lock operation only
UNLOCK ONLY: Door unlock operation only
LOCK/UNLOCK: Lock/Unlock operation
OFF: Non-operation
ANSWER BACK WITH I-KEY
LOCKHorn reminder function (lock operation) mode by door request switch (driver side, passenger side
and trunk) can be selected from the following with this mode. The operation mode will be
changed when “CHANGE SETT” on CONSULT-II screen is touched.
ON: Operation
OFF: Non-operation
ANSWER BACK WITH I-KEY
UNLOCKHorn reminder function (unlock operation) mode by door request switch can be changed to oper-
ate (ON) or not operate (OFF) with this mode.
AUTO RELOCK TIMERAuto door lock timer mode can select the following with this mode.
2 minutes
OFF: Non-operation
TRUNK/GLASS HATCH OPENHazard reminder function mode can be changed to operate (ON) or not operate (OFF) with this
mode. The operation mode will be changed when “CHANGE SETT” on CONSULT-II screen is
touched.
KEYLESS FUNCTIONRemote key less function mode (with other registered Intelligent Key is in the vehicle condition)
can be changed to operate (ON) or not operate (OFF) with this mode. The operation mode will
be changed when “CHANGE SETT” on CONSULT-II screen is touched.
TRUNK OPEN DELAYTrunk button's pressing time on Intelligent Key remote control button can be selected from the fol-
lowing with this mode. The operation mode will be changed when “CHANGE SETT” on CON-
SULT-II screen is touched.
0.5 second
1.5 second
OFF: Non-operation
