[QR]PRECAUTIONSPFP:00001
Precautions Necessary for Steering Wheel Rotation After Battery DisconnectBBS005KH
NOTE:
This Procedure is applied only to m

PRECAUTIONS
EM-5
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

[QR]PRECAUTIONSPFP:00001
Precautions Necessary for Steering Wheel Rotation After Battery DisconnectBBS005KH
NOTE:
This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT
SYSTEM).
Remove and install all control units after disconnecting both battery cables with the ignition knob in the
″LOCK″ position.
Always use CONSULT-II to perform self-diagnosis as a part of each function inspection after finishing
work. If DTC is detected, perform trouble diagnosis according to self-diagnostic results.
For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-
anism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.
OPERATION PROCEDURE
1. Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.
2. Use the Intelligent Key or mechanical key to turn the ignition switch to the ″ACC″ position. At this time, the
steering lock will be released.
3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.
4. Perform the necessary repair operation.
5. When the repair work is completed, return the ignition switch to the ″LOCK″ position before connecting
the battery cables. (At this time, the steering lock mechanism will engage.)
6. Perform a self-diagnosis check of all control units using CONSULT-II.
Precautions for Drain Engine CoolantBBS005KI
Drain engine coolant when engine is cooled.
Precautions for Disconnecting Fuel PipingBBS005KJ
Before starting work, make sure no fire or spark producing items are in the work area.
Release fuel pressure before disassembly.
After disconnecting pipes, plug openings to stop fuel leakage.
Precautions for Removal and DisassemblyBBS005KK
When instructed to use special service tools, use the specified tools. Always be careful to work safely,
avoid forceful or uninstructed operations.
Exercise maximum care to avoid damage to mating or sliding surfaces.
Cover openings of engine system with tape or the equivalent, if necessary, to seal out foreign materials.
Mark and arrange disassembly parts in an organized way for easy troubleshooting and re-assembly.
When loosening nuts and bolts, as a basic rule, start with the one furthest outside, then the one diagonally
opposite, and so on. If the order of loosening is specified, do exactly as specified.
Precautions for Inspection, Repair and ReplacementBBS005KL
Before repairing or replacing, thoroughly inspect parts. Inspect new replacement parts in the same way, and
replace if necessary.
Precautions for Assembly and InstallationBBS005KM
Use torque wrench to tighten bolts or nuts to specification.

Page 2114 of 3502

NISSAN TEANA 2003 Service Manual EM-6
[QR]
PRECAUTIONS

When tightening nuts and bolts, as a basic rule, equally tighten in several different steps starting with the
ones in center, then ones on inside and outside diagonally in thi

EM-6
[QR]
PRECAUTIONS

When tightening nuts and bolts, as a basic rule, equally tighten in several different steps starting with the
ones in center, then ones on inside and outside diagonally in this order. If the order of tightening is speci-
fied, do exactly as specified.
Replace with new gasket, packing, oil seal or O-ring.
Dowel pins are used for several parts alignment. When replacing and reassemling with dowel pins, make
sure that dowel pins are installed in the original portion.
Thoroughly wash, clean, and air-blow each part. Carefully check oil or coolant passages for any restriction
and blockage.
Avoid damaging sliding or mating surfaces. Completely remove foreign materials such as cloth lint or dust.
Before assembly, oil sliding surfaces well.
Release air within route when refilling after draining coolant.
Before starting engine, apply fuel pressure to fuel lines with turning ignition switch “ON” (with engine
stopped). Then make sure that there are no leaks at fuel line connections.
After repairing, start engine and increase engine speed to check engine coolant, fuel, engine oil, and
exhaust gases for leakage.
Parts Requiring Angle TighteningBBS005KN
Use angle wrench [SST: KV10112100] for the final tightening of the following engine parts.
–Cylinder head bolts
–Lower cylinder block bolts
–Connecting rod cap bolts
–Crankshaft pulley bolt (No angle wrench is required as the bolt flange is provided with notches for angle
tightening)
–Balancer unit
Do not use a torque value for final tightening.
The torque value for these parts are for a preliminary step.
Ensure thread and seat surfaces are clean and coated with engine oil.
Precautions For Liquid GasketBBS005KO
REMOVAL OF LIQUID GASKET
After removing the mounting nuts and bolts, separate the mating
surface using seal cutter (SST) and remove the old liquid gasket
sealing.
CAUTION:
Be careful not to damage the mating surfaces.
Tap seal cutter to insert it, and then slide it by tapping on the
side as shown in the figure.
In areas where seal cutter is difficult to use, use plastic hammer
to lightly tap the areas where the liquid gasket is applied.
CAUTION:
If for some unavoidable reason tool such as screwdriver is
used, be careful not to damage the mating surfaces.
LIQUID GASKET APPLICATION PROCEDURE
1. Using scraper, remove the old liquid gasket adhering to the liq-
uid gasket application surface and the mating surface.
Remove the liquid gasket completely from the groove of the
liquid gasket application surface, mounting bolts and bolt
holes.
2. Wipe the liquid gasket application surface and the mating sur-
face with white gasoline (lighting and heating use) to remove
adhering moisture, grease and foreign materials.
PBIC0275E
PBIC0003E

Page 2115 of 3502

NISSAN TEANA 2003 Service Manual PRECAUTIONS
EM-7
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

3. Attach liquid gasket tube to the tube presser (SST).
Use Genuine Liquid Gasket or equivalent.
4. Apply the liquid gasket without breaks to the spec

Page 2116 of 3502

NISSAN TEANA 2003 Service Manual EM-8
[QR]
PREPARATION

PREPARATIONPFP:00002

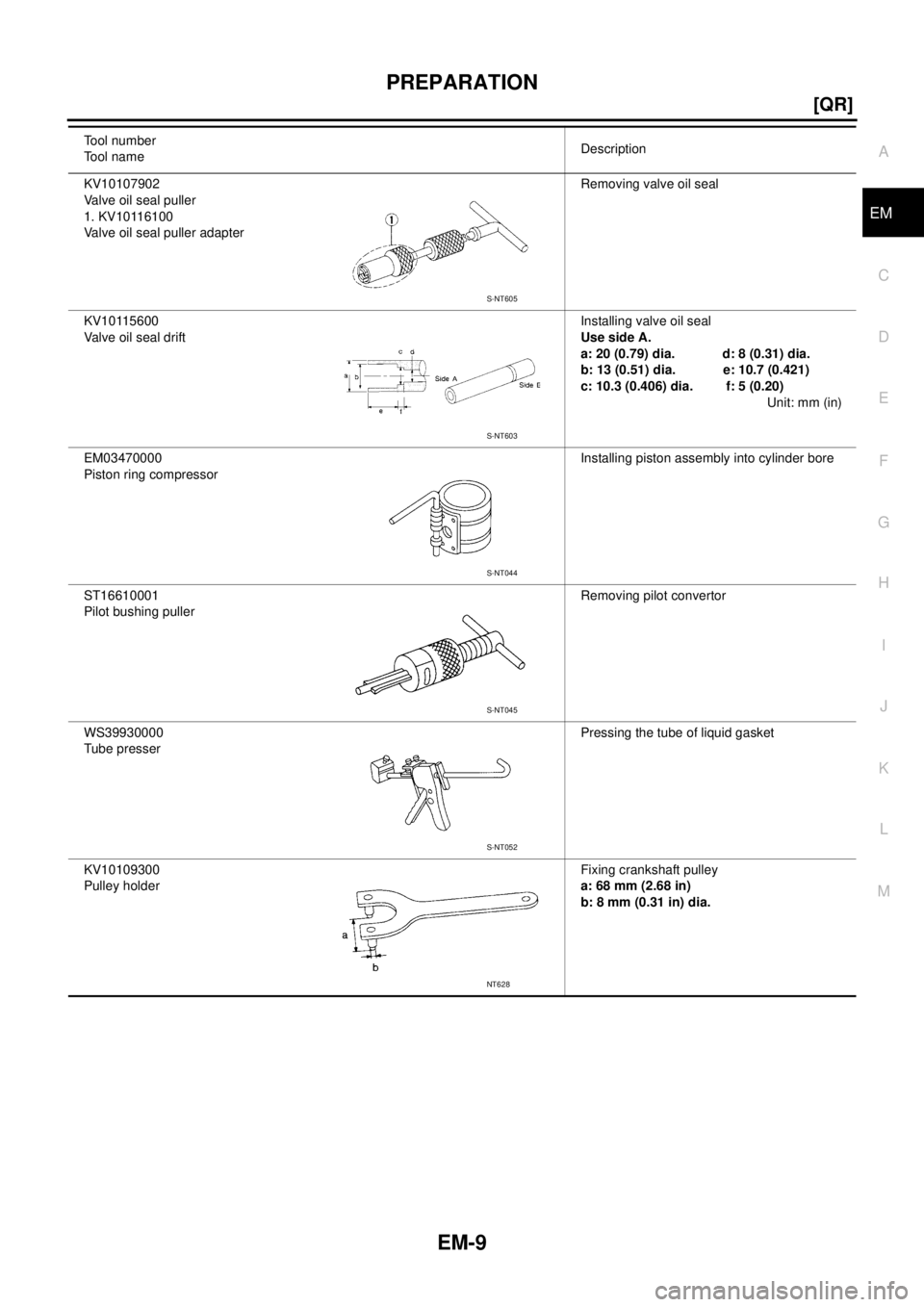

Special Service ToolsBBS0058O
Tool number
Tool nameDescription
KV10111100
Seal cutterRemoving oil pan (lower and upper) and front
cover, etc.
ST0501S000
E

Page 2117 of 3502

NISSAN TEANA 2003 Service Manual PREPARATION
EM-9
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

KV10107902
Valve oil seal puller
1. KV10116100
Valve oil seal puller adapterRemoving valve oil seal
KV10115600
Valve oil seal driftInstalling valve oi

Page 2118 of 3502

NISSAN TEANA 2003 Service Manual EM-10
[QR]
PREPARATION

Commercial Service ToolsBBS0058P
KV11103000
Pulley pullerRemoving crankshaft pulley
Quick connector release Removing fuel tube quick connectors in
engine room
(Available in S

Page 2119 of 3502

NISSAN TEANA 2003 Service Manual PREPARATION
EM-11
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

Oxygen sensor thread cleaner Reconditioning the exhaust system threads
before installing a new heated oxygen sensor
(Use with anti-seize lubricant

Page 2120 of 3502

NISSAN TEANA 2003 Service Manual EM-12
[QR]
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTINGPFP:00003

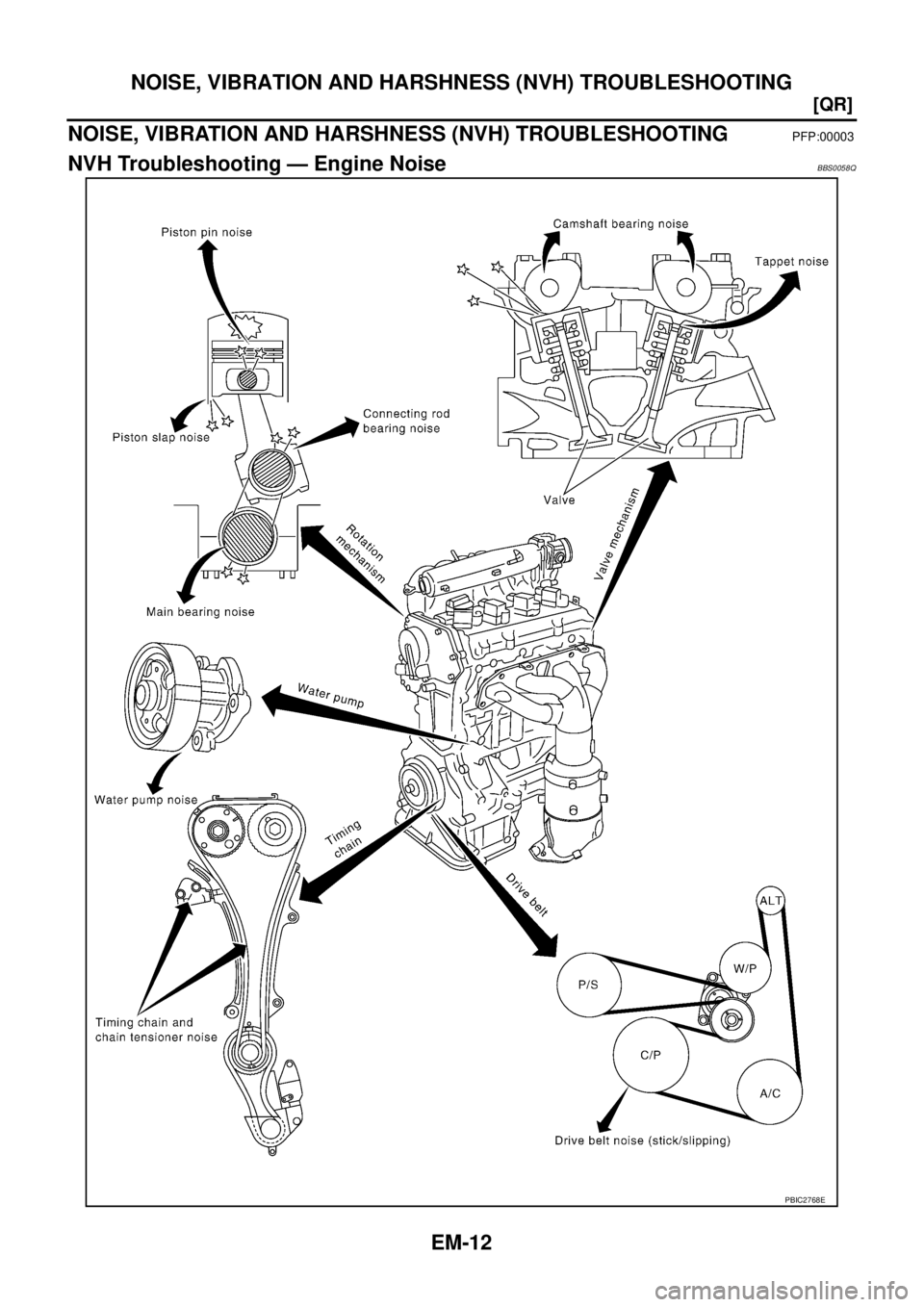

NVH Troubleshooting — Engine NoiseBBS0058Q
