Page 1681 of 3502

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS
EC-399
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

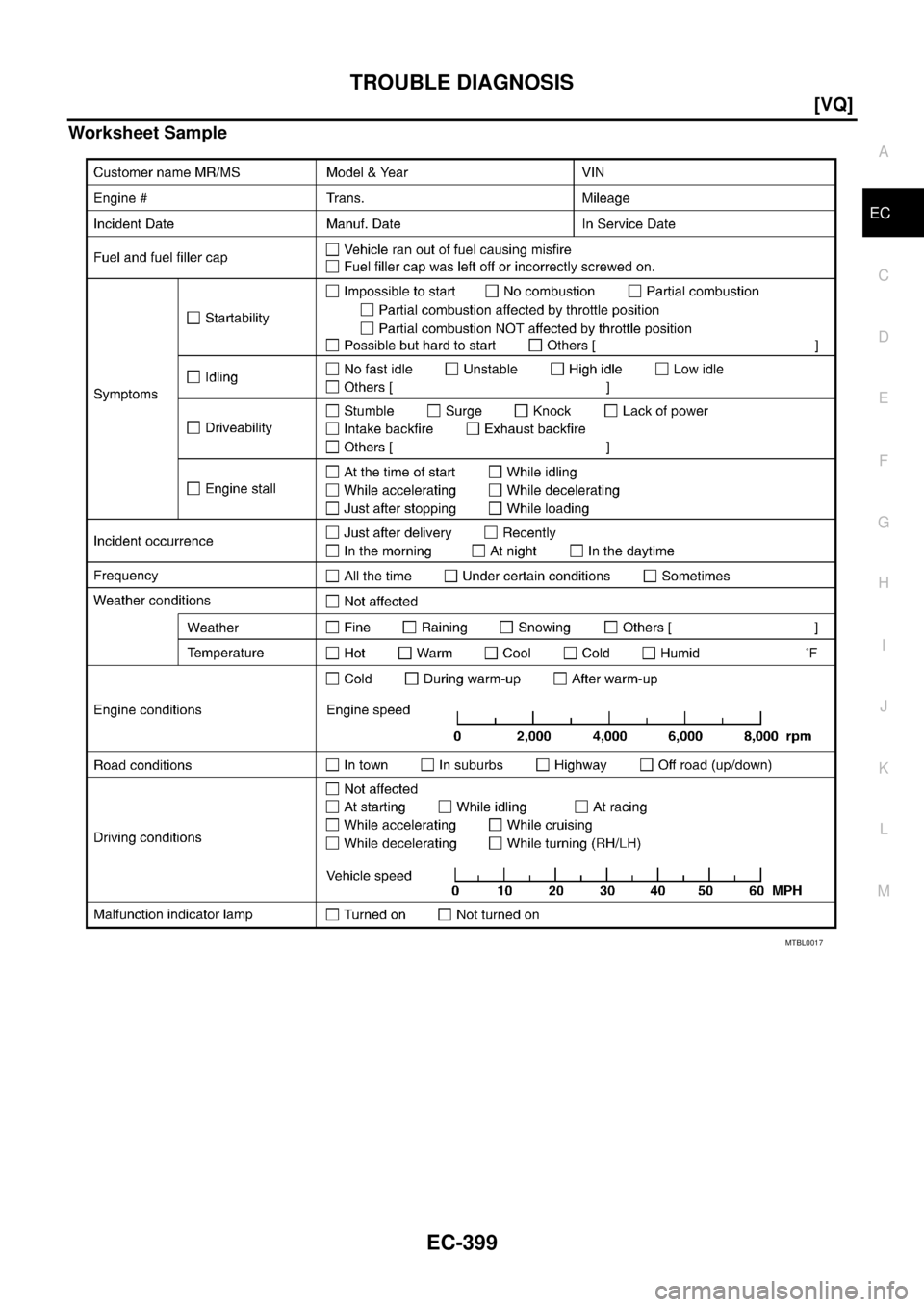

Worksheet Sample
MTBL0017

Page 1682 of 3502

NISSAN TEANA 2003 Service Manual EC-400
[VQ]
TROUBLE DIAGNOSIS

DTC Inspection Priority ChartBBS004Y7
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.
NOTE:
If DTC U1

Page 1683 of 3502

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS
EC-401
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

Fail-Safe ChartBBS004Y8
When the DTC listed below is detected, the ECM enters fail-safe mode and the MI lights up.
When there is an open circ

TROUBLE DIAGNOSIS
EC-401
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

Fail-Safe ChartBBS004Y8
When the DTC listed below is detected, the ECM enters fail-safe mode and the MI lights up.
When there is an open circuit on MI circuit, the ECM cannot warn the driver by lighting up MI when there
is malfunction on engine control system.
Therefore, when electrical controlled throttle and part of ECM related diagnoses are continuously detected
as NG for 5 trips, ECM warns the driver that engine control system malfunctions and MI circuit is open by
means of operating fail-safe function.
The fail-safe function also operates when above diagnoses except MI circuit are detected and demands
the driver to repair the malfunction.
DTC No. Detected items Engine operating condition in fail-safe mode
P0102
P0103Mass air flow sensor circuit Engine speed will not rise more than 2,400 rpm due to the fuel cut.
P0122
P0123
P0222
P0223
P2135Throttle position sensor The ECM controls the electric throttle control actuator in regulating the throttle opening in
order for the idle position to be within +10 degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal
condition.
So, the acceleration will be poor.
P1121 Electric throttle control
actuator(When electric throttle control actuator does not function properly due to the return spring
malfunction:)
ECM controls the electric throttle actuator by regulating the throttle opening around the
idle position. The engine speed will not rise more than 2,000 rpm.
(When throttle valve opening angle in fail-safe mode is not in specified range:)
ECM controls the electric throttle control actuator by regulating the throttle opening to 20
degrees or less.
(When ECM detects the throttle valve is stuck open:)
While the vehicle is driving, it slows down gradually by fuel cut. After the vehicle stops,
the engine stalls.
The engine can restart in P or N position, and engine speed will not exceed 1,000 rpm or
more.
P1122 Electric throttle control
functionECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P1124
P1126Throttle control motor relay ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P1128 Throttle control motor ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P1229 Sensor power supply ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P1805 Brake switch ECM controls the electric throttle control actuator by regulating the throttle opening to a
small range.
Therefore, acceleration will be poor.
Vehicle condition Driving condition
When engine is idling Normal
When accelerating Poor acceleration
P2122
P2123
P2127
P2128
P2138Accelerator pedal position
sensorThe ECM controls the electric throttle control actuator in regulating the throttle opening in
order for the idle position to be within +10 degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal
condition.
So, the acceleration will be poor.
Engine operating condition in fail-safe mode Engine speed will not rise more than 2,500 rpm due to the fuel cut

Page 1684 of 3502

NISSAN TEANA 2003 Service Manual EC-402
[VQ]
TROUBLE DIAGNOSIS

Symptom Matrix ChartBBS004Y9
SYSTEM — BASIC ENGINE CONTROL SYSTEM
SYMPTOM
Refer-
ence page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT

Page 1685 of 3502

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS
EC-403
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

1 - 6: The numbers refer to the order of inspection.
(continued on next page)
SYSTEM — ENGINE MECHANICAL & OTHER
Intake valve timing control

Page 1686 of 3502

NISSAN TEANA 2003 Service Manual EC-404
[VQ]
TROUBLE DIAGNOSIS

Air Air duct
55555 5EM-131
Air cleanerEM-131
Air leakage from air duct
(Mass air flow sensor — electric
throttle control actuator)
5555EM-131
Electric throttle contr

Page 1687 of 3502

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS
EC-405
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

1 - 6: The numbers refer to the order of inspection.Cooling Radiator/Hose/Radiator filler cap
55555 55 45CO-37
Thermostat 5CO-50
Water pumpCO-

Page 1688 of 3502

NISSAN TEANA 2003 Service Manual EC-406
[VQ]
TROUBLE DIAGNOSIS

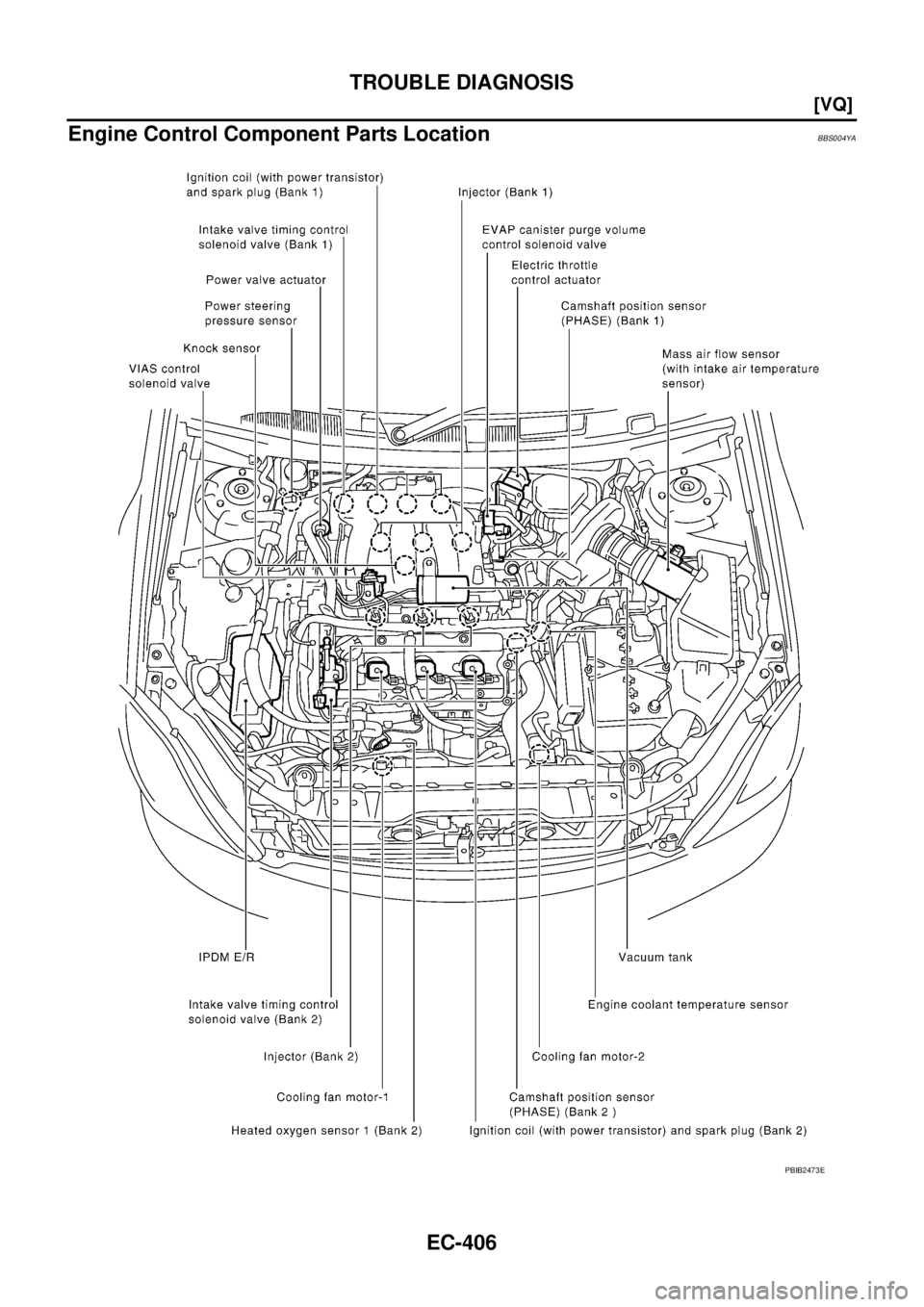

Engine Control Component Parts LocationBBS004YA
PBIB2473E
