NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-209
D
E
F
G
H
I
J
K
L
MA
B
AT

2. CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Check volta

Page 218 of 3502

NISSAN TEANA 2003 Service Manual AT-210
TROUBLE DIAGNOSIS FOR SYMPTOMS

6. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 2 2 5 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:

AT-210
TROUBLE DIAGNOSIS FOR SYMPTOMS

6. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 2 2 5 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Shift valve A
–Overrun clutch solenoid valve
3. Disassemble A/T. Refer to AT- 2 5 5 , "
Disassembly" .
4. Check the following items:
–Overrun clutch assembly. Refer to AT- 3 0 7 , "Forward and Overrun Clutches" .
–Low & reverse brake assembly. Refer to AT- 3 1 5 , "Low & Reverse Brake" .
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7. SYMPTOM CHECK
Check again. Refer to AT- 5 2 , "
Cruise Test — Part 3" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 8.
8. CHECK TCM
1. Check TCM input/output signals. Refer to AT- 6 4 , "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
TCM Self-diagnosis Does Not ActivateBCS0014V
SYMPTOM:
A/T CHECK indicator lamp does not come on in TCM self-diagnostic procedure even if the lamp circuit
is good.
DESCRIPTION
PNP switch
PNP switch includes a transmission range switch. The transmission range switch detects the selector
lever position and sends a signal to the TCM.
3rd position switch
3rd position switch detects the 3rd position and sends a signal via CAN communication to the TCM.
Closed throttle position signal and wide-open throttle position signal.
ECM judges throttle opening based on a signal from accelerator pedal position (APP) sensor, and sends
the signal via CAN communication to TCM.
Stop lamp switch
Stop lamp switch detects the switch position (ON or OFF) and sends a signal via CAN communication to
the TCM.
DIAGNOSTIC PROCEDURE
NOTE:
The diagnostic procedure includes inspection for the park/neutral position (PNP) stitch, 3rd position switch,
stop lamp switch, closed throttle position signal and wide open throttle position signal circuit. Refer to AT- 1 6 1 ,
"PNP, 3RD POSITION SWITCH AND CLOSED THROTTLE, WIDE OPEN THROTTLE POSITION SIGNAL"
and AT- 1 6 7 , "BRAKE SIGNAL CIRCUIT" .

Page 219 of 3502

NISSAN TEANA 2003 Service Manual TRANSMISSION CONTROL MODULE
AT-211
D
E
F
G
H
I
J
K
L
MA
B
AT

TRANSMISSION CONTROL MODULEPFP:31036
Removal and InstallationBCS001PR

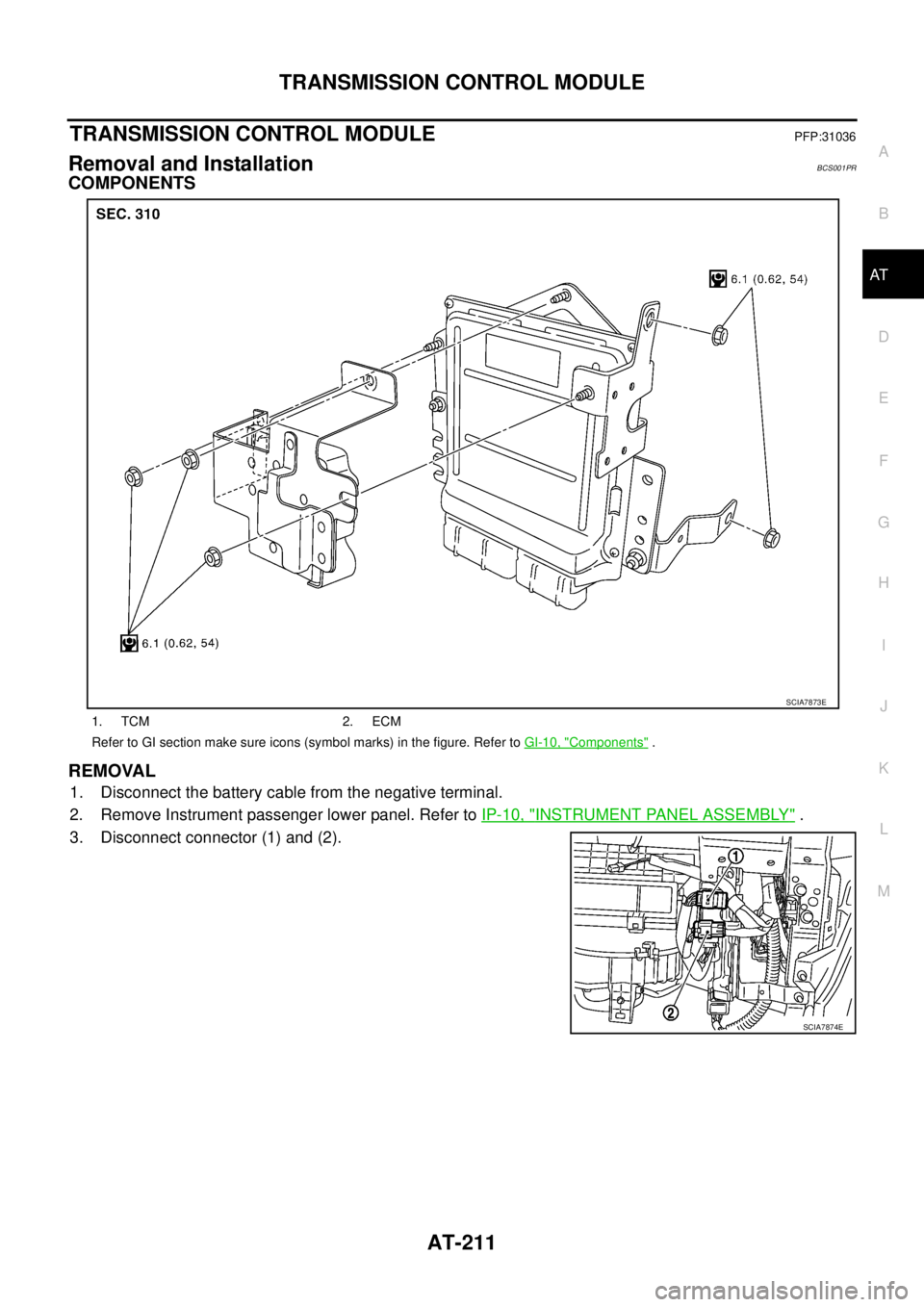

COMPONENTS
REMOVAL
1. Disconnect the battery cable from the negativ

Page 220 of 3502

NISSAN TEANA 2003 Service Manual AT-212
TRANSMISSION CONTROL MODULE

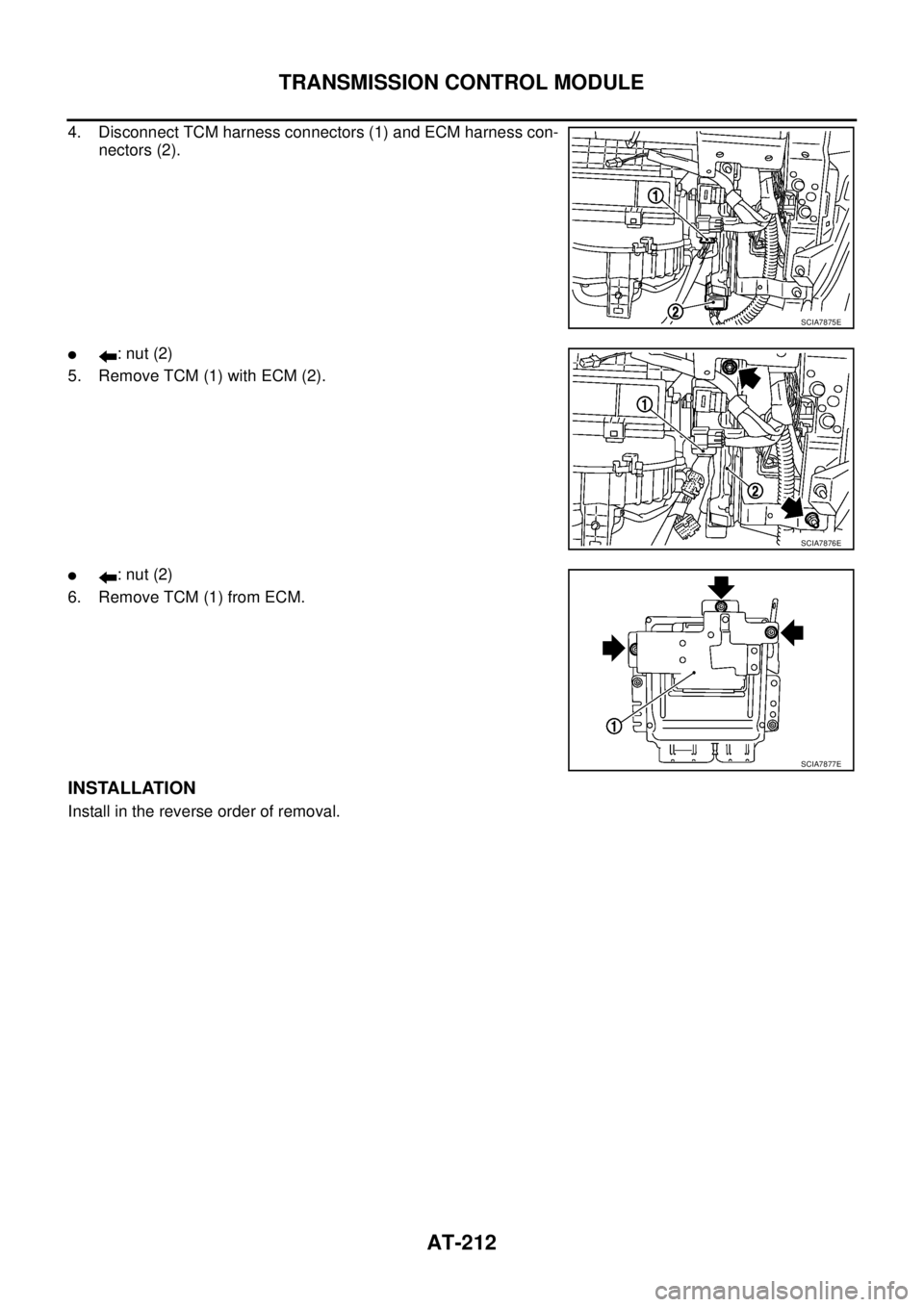

4. Disconnect TCM harness connectors (1) and ECM harness con-
nectors (2).
: nut (2)
5. Remove TCM (1) with ECM (2).
: nut (2)
6. Remove TCM (1) from ECM.
INSTAL

Page 221 of 3502

NISSAN TEANA 2003 Service Manual SHIFT CONTROL SYSTEM
AT-213
D
E
F
G
H
I
J
K
L
MA
B
AT

SHIFT CONTROL SYSTEMPFP:34901
Control Device Removal and InstallationBCS0014W
CONTROL DEVICE COMPONENTS
CONTROL CABLE COMPONENTS
1. Selector lev

Page 222 of 3502

NISSAN TEANA 2003 Service Manual AT-214
SHIFT CONTROL SYSTEM

REMOVAL
1. Remove knob cover below selector lever downward.
2. Pull lock pin out of selector lever knob.
3. Remove selector lever knob.
4. Remove A/T console finisher. Re

Page 223 of 3502

NISSAN TEANA 2003 Service Manual SHIFT CONTROL SYSTEM
AT-215
D
E
F
G
H
I
J
K
L
MA
B
AT

Adjustment of A/T PositionBCS0014X
Move selector lever from “P” position to “1” position. You should be
able to feel the detents in each

SHIFT CONTROL SYSTEM
AT-215
D
E
F
G
H
I
J
K
L
MA
B
AT

Adjustment of A/T PositionBCS0014X
Move selector lever from “P” position to “1” position. You should be
able to feel the detents in each position. If the detents cannot be felt
or if the pointer indicating the position is improperly aligned, the con-
trol cable needs adjustment.
1. Place selector lever in “P” position.
2. Loosen control cable lock nut and place manual shaft in “P”
position.
CAUTION:
Turn wheels more than 1/4 rotations and apply the park
lock.
3. After pushing the control cable with the specified force, move
your hands off the control cable.
4. Connect control cable on manual shaft.
CAUTION:
No application of a force to the manual lever.
5. Tighten control cable lock nut.
6. Move selector lever from “P” to “1” position again. Make sure that selector lever moves smoothly.
7. Apply grease to contacting areas of selector lever and control cable. Install any part removed.

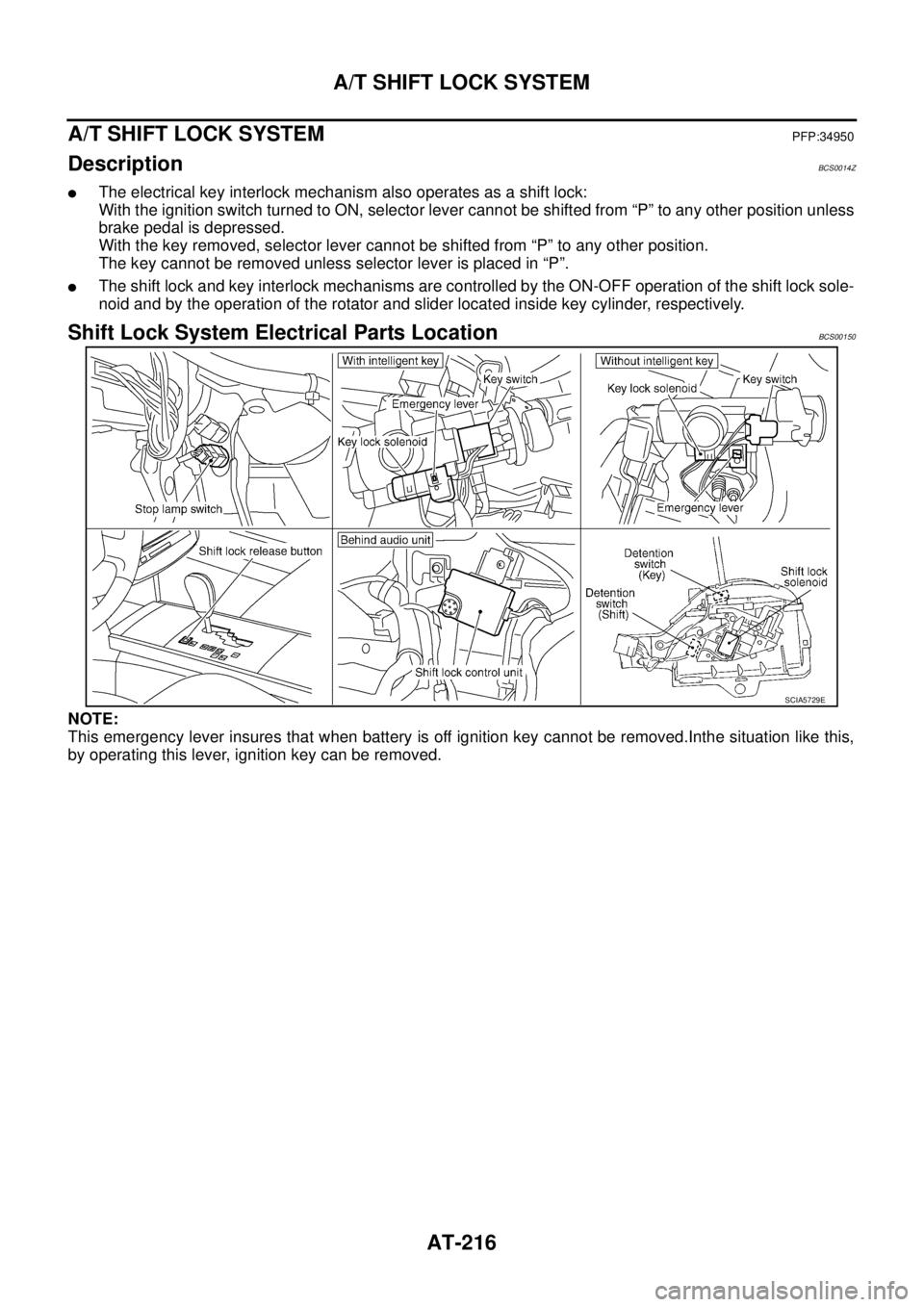

Checking of A/T PositionBCS0014Y
1. Place selector lever in “P” position, and turn ignition switch ON. (Do not start engine.)
2. Make sure selector lever can be shifted to other than “P” position when brake pedal is depressed. Also
make sure selector lever can be shifted from “P” position only when brake pedal is depressed.
3. Move selector lever and check for excessive effort, sticking, noise or rattle.
4. Confirm selector lever stops at each position with the feel of engagement when it is moved through all the
positions. Check whether or not the actual position selector lever is in matches the position shown by the
shift position indicator and transaxle body.
5. The method of operating selector lever to individual positions
correctly should be as shown in the figure.
6. Confirm back-up lamps illuminate only when lever is placed in
“R” position. Confirm back-up lamps do not illuminate when
selector lever is in “P” or “N” position with selector lever pushed
against “R” position.
7. Confirm engine can only be started with selector lever in “P” and
“N” positions.
8. Make sure transaxle is locked completely in “P” position.Specified force: 9.8 N (1.0 kg, 2.2 lb)
SCIA3157E
SCIA5728E
