Page 2889 of 3502

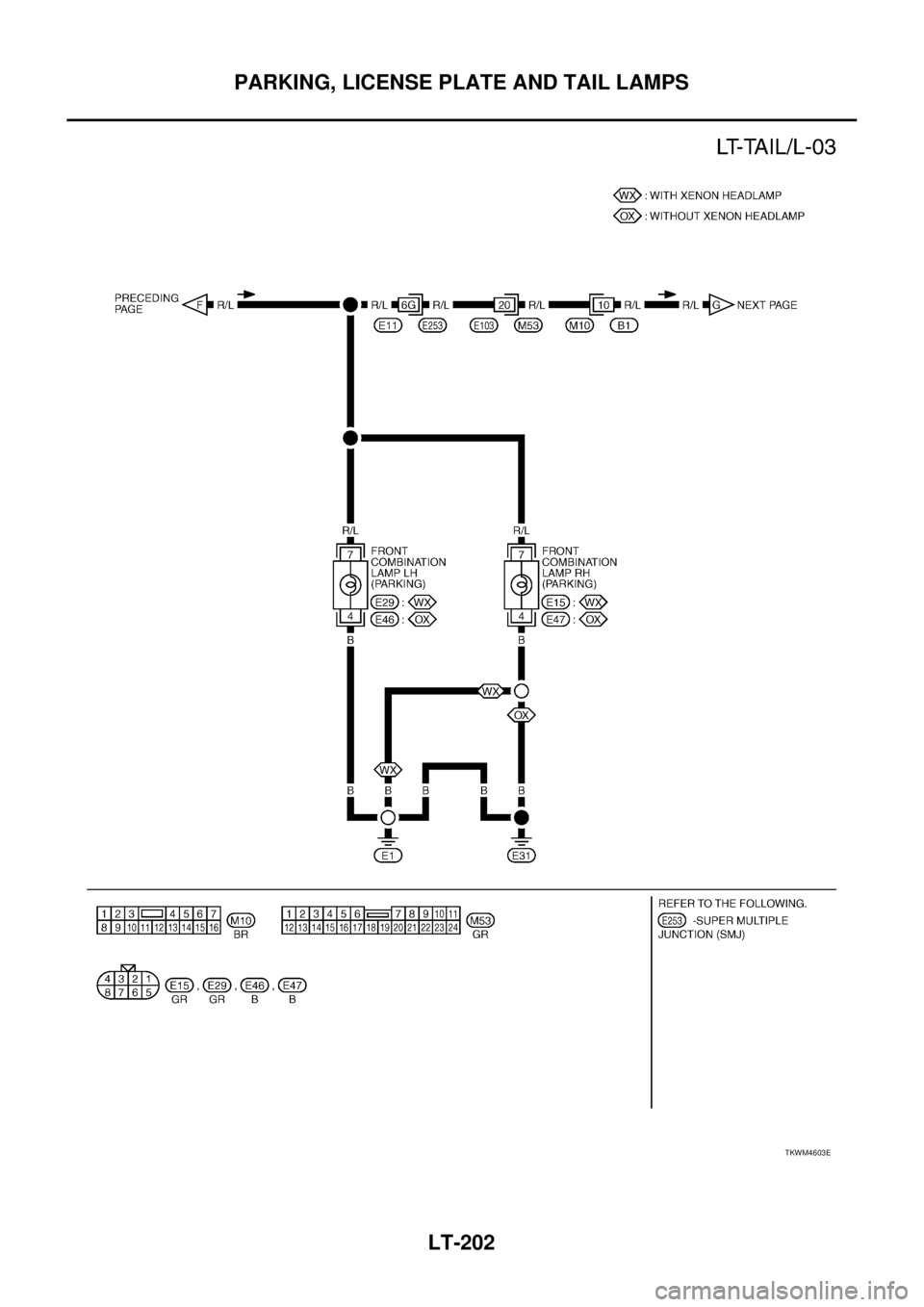

NISSAN TEANA 2003 Service Manual PARKING, LICENSE PLATE AND TAIL LAMPS LT-201 C D E F G H I J L MA B LT TKWM1631E

Page 2890 of 3502

NISSAN TEANA 2003 Service Manual LT-202 PARKING, LICENSE PLATE AND TAIL LAMPS TKWM4603E

Page 2891 of 3502

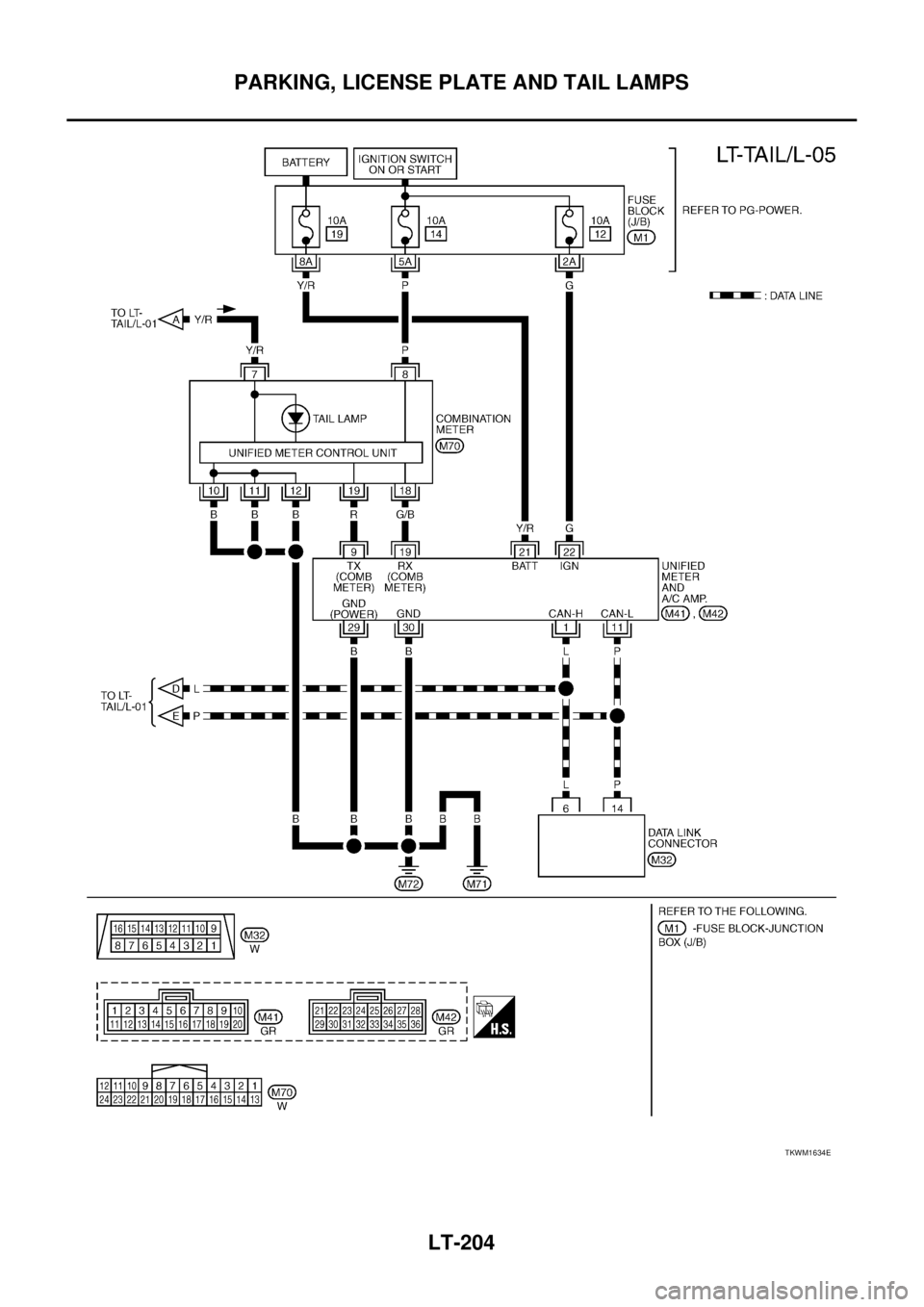

NISSAN TEANA 2003 Service Manual PARKING, LICENSE PLATE AND TAIL LAMPS LT-203 C D E F G H I J L MA B LT TKWM4604E

Page 2892 of 3502

NISSAN TEANA 2003 Service Manual LT-204 PARKING, LICENSE PLATE AND TAIL LAMPS TKWM1634E

Page 2893 of 3502

NISSAN TEANA 2003 Service Manual PARKING, LICENSE PLATE AND TAIL LAMPS LT-205 C D E F G H I J L MA B LT Terminals and Reference Values for BCMBKS001QP CAUTION: Check combination switch system terminal waveform under the loaded con

Page 2894 of 3502

NISSAN TEANA 2003 Service Manual LT-206 PARKING, LICENSE PLATE AND TAIL LAMPS Terminals and Reference Values for IPDM E/RBKS001QQ How to Perform Trouble DiagnosesBKS001QR 1. Confirm the symptom or customer complaint. 2. Understand

Page 2895 of 3502

NISSAN TEANA 2003 Service Manual PARKING, LICENSE PLATE AND TAIL LAMPS LT-207 C D E F G H I J L MA B LT 2. CHECK POWER SUPPLY CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect BCM connector. 3. Check voltage between BCM harness c

Page 2896 of 3502

NISSAN TEANA 2003 Service Manual LT-208 PARKING, LICENSE PLATE AND TAIL LAMPS Parking, License Plate and Tail Lamps Do Not IlluminateBKS001QV 1. PERFORM IPDM E/R ACTIVE TEST With CONSULT-II 1. Select “IPDM E/R” on CONSULT-II, a
