Page 2057 of 3502

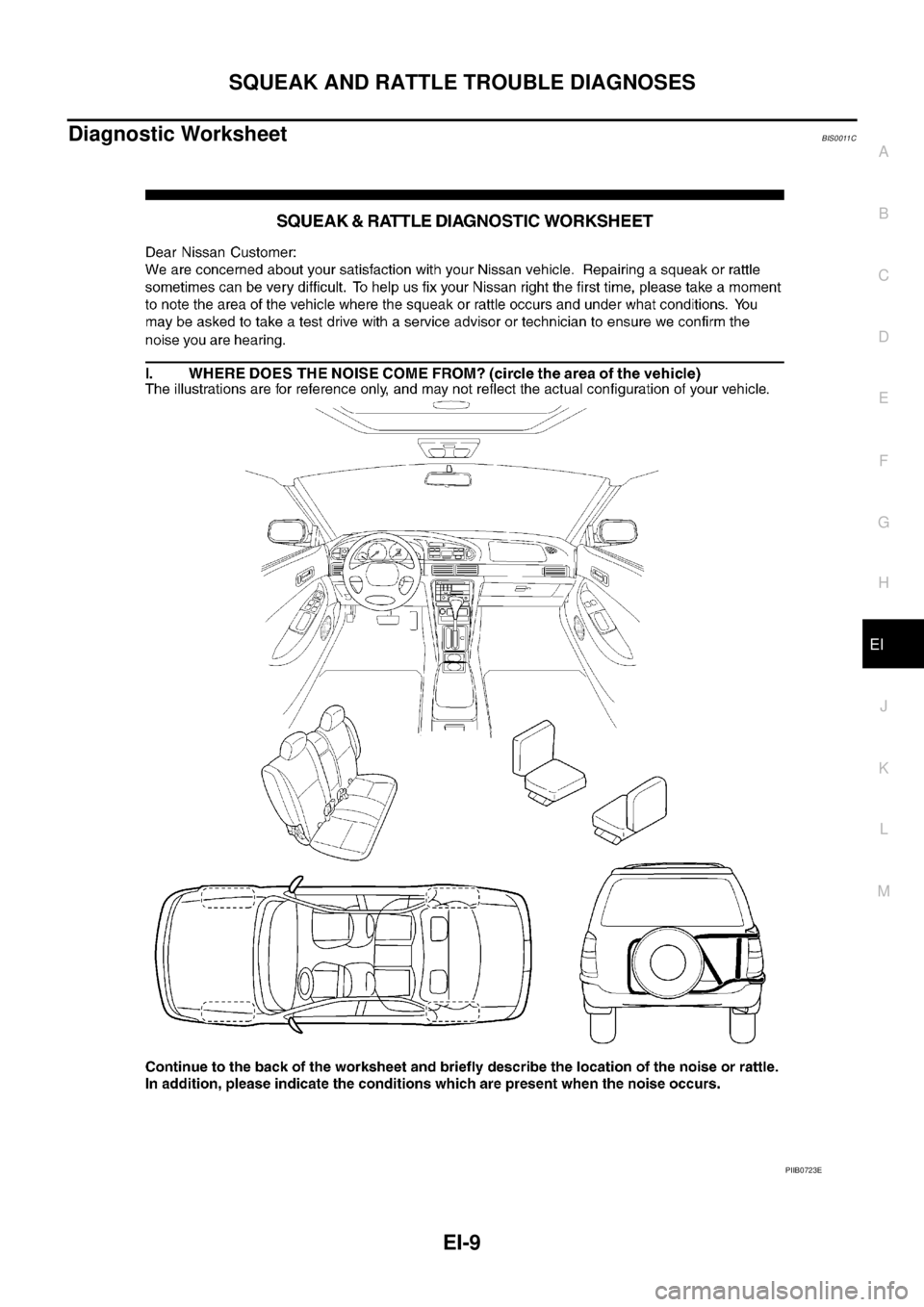

NISSAN TEANA 2003 Service Manual SQUEAK AND RATTLE TROUBLE DIAGNOSES EI-9 C D E F G H J K L MA B EI Diagnostic WorksheetBIS0011C PIIB0723E

Page 2058 of 3502

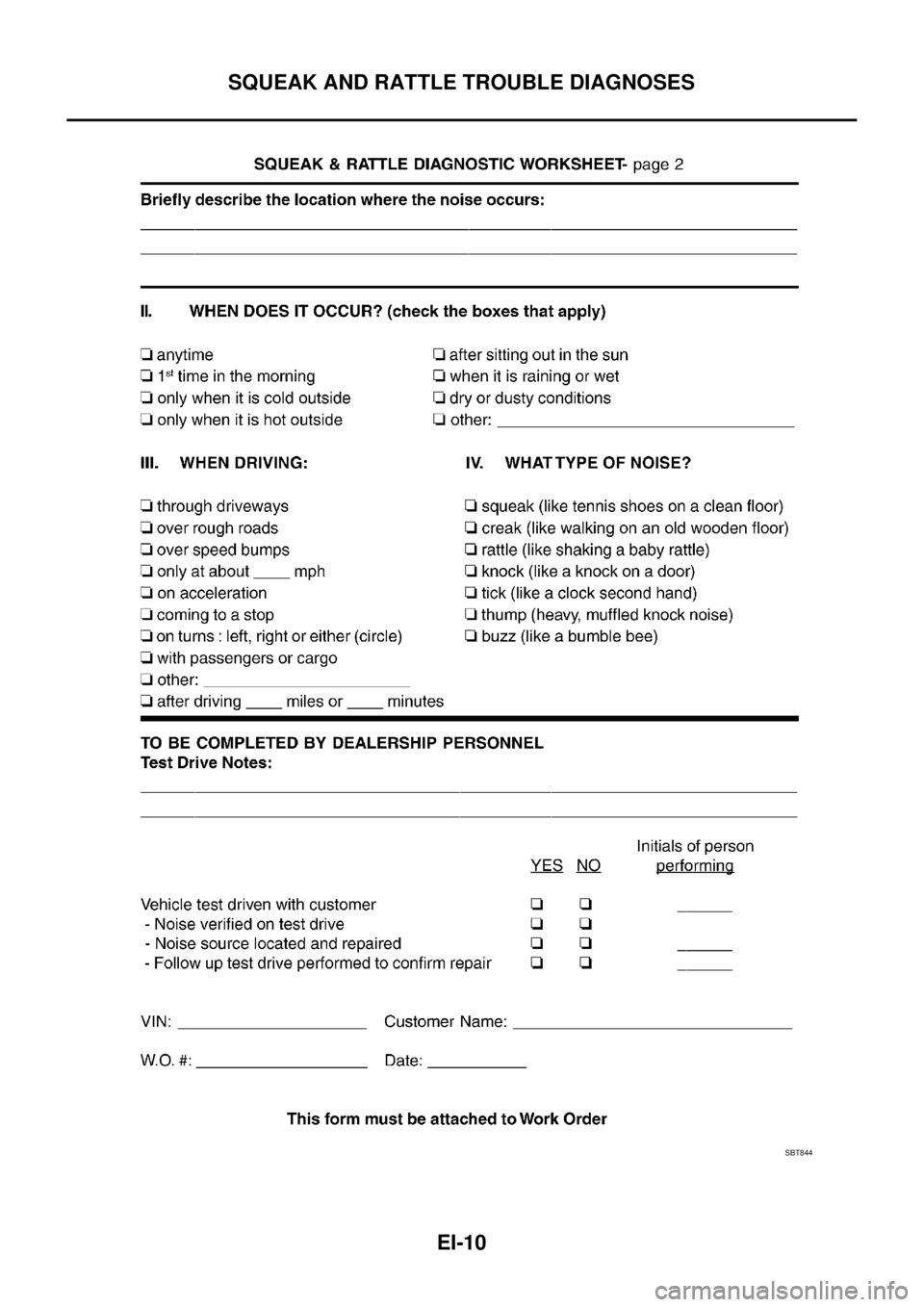

NISSAN TEANA 2003 Service Manual EI-10 SQUEAK AND RATTLE TROUBLE DIAGNOSES SBT844

Page 2059 of 3502

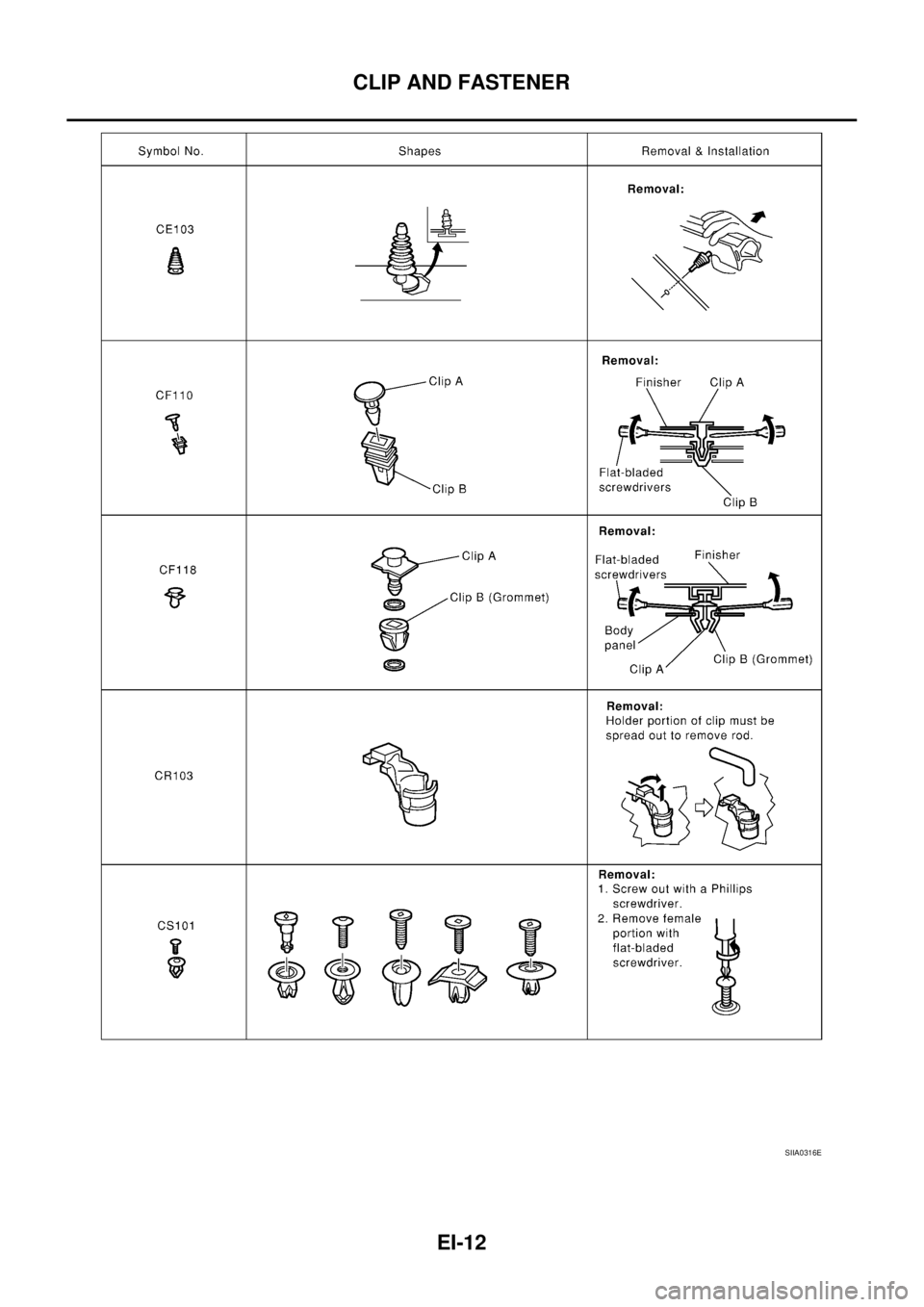

NISSAN TEANA 2003 Service Manual CLIP AND FASTENER EI-11 C D E F G H J K L MA B EI CLIP AND FASTENERPFP:76906 Clip and FastenerBIS0011D SIIA0315E

Page 2060 of 3502

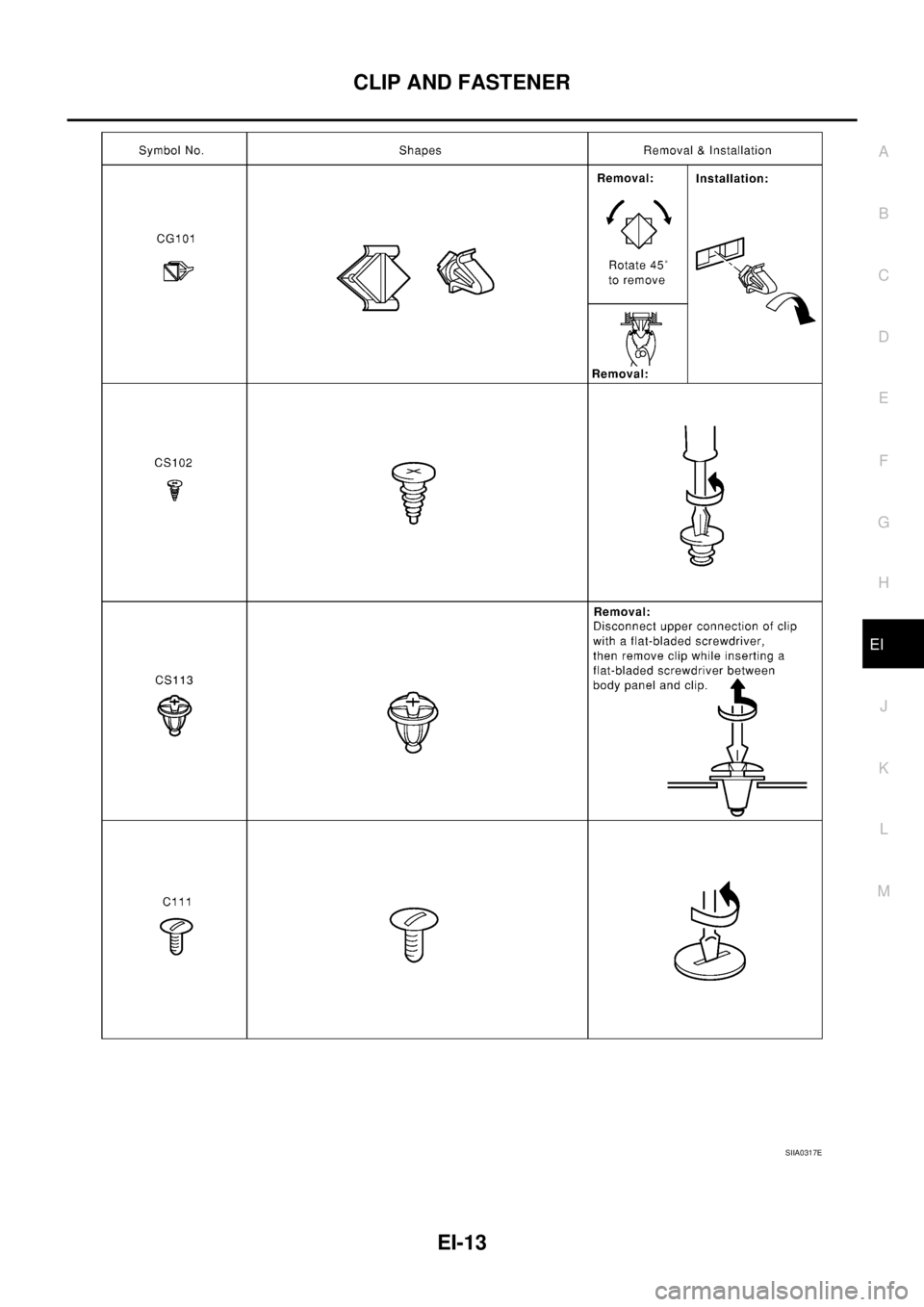

NISSAN TEANA 2003 Service Manual EI-12 CLIP AND FASTENER SIIA0316E

Page 2061 of 3502

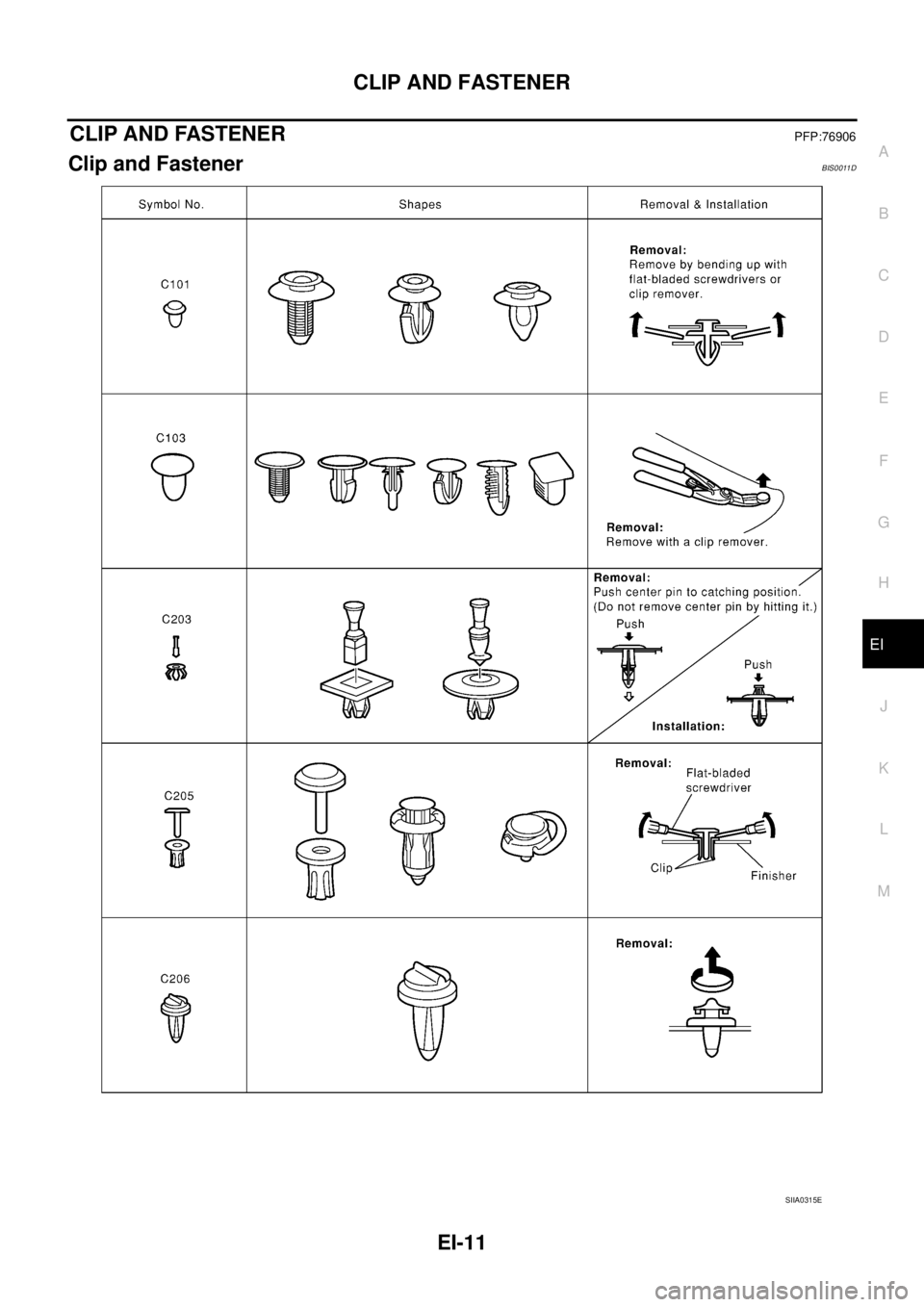

NISSAN TEANA 2003 Service Manual CLIP AND FASTENER EI-13 C D E F G H J K L MA B EI SIIA0317E

Page 2062 of 3502

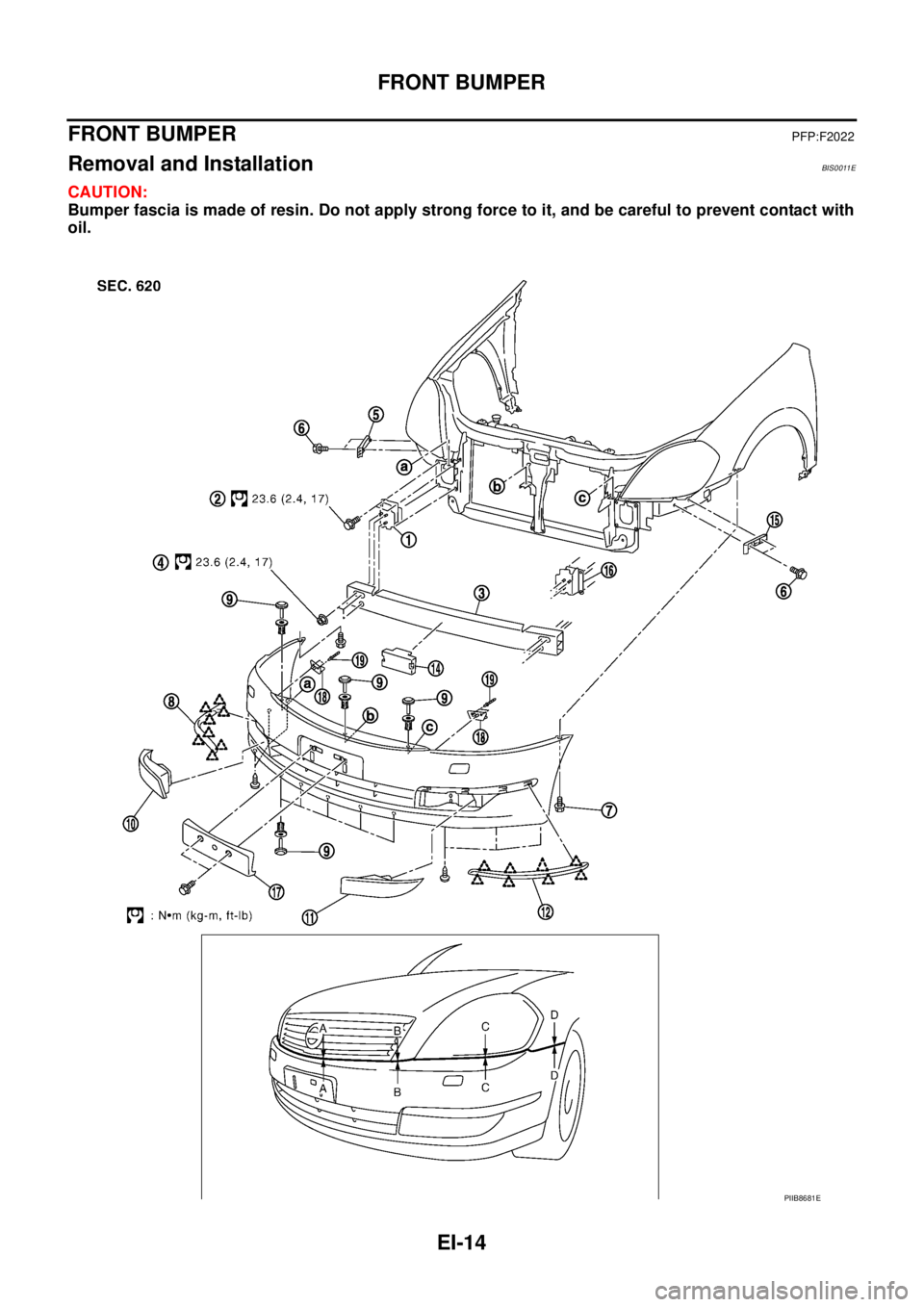

NISSAN TEANA 2003 Service Manual EI-14 FRONT BUMPER FRONT BUMPERPFP:F2022 Removal and InstallationBIS0011E CAUTION: Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with oil. PIIB86

Page 2063 of 3502

NISSAN TEANA 2003 Service Manual FRONT BUMPER EI-15 C D E F G H J K L MA B EI REMOVAL 1. Fully open hood assembly. 2. Remove front side of fender protector (LH/RH). Refer to EI-23, " FENDER PROTECTOR" . 3. Disconnect the headlamp c

Page 2064 of 3502

NISSAN TEANA 2003 Service Manual EI-16 FRONT BUMPER REMOVAL AND INSTALLATION OF FRONT BUMPER MOLDING Removal 1. Remove front bumper fascia. 2. Disengage the joint between front bumper fascia and front bumper molding, and then remov
