Page 1065 of 3502

NISSAN TEANA 2003 Service Manual DTC P0615 START SIGNAL CIRCUIT CVT-59 D E F G H I J K L MA B CVT 4. CHECK TCM 1. Check TCM input/output signal. Refer to CVT-40, " TCM Input/Output Signal Reference Values" . 2. If NG, re-check TCM

Page 1066 of 3502

NISSAN TEANA 2003 Service Manual CVT-60 DTC P0703 STOP LAMP SWITCH CIRCUIT DTC P0703 STOP LAMP SWITCH CIRCUITPFP:25320 DescriptionBCS001H5 ON, OFF status of the stop lamp switch is sent via the CAN communication from the unified me

Page 1067 of 3502

NISSAN TEANA 2003 Service Manual DTC P0703 STOP LAMP SWITCH CIRCUIT CVT-61 D E F G H I J K L MA B CVT Diagnostic ProcedureBCS001HA 1. CHECK CAN COMMUNICATION LINE Perform the self-diagnosis check. Refer to CVT-47, " SELF-DIAGNOSTIC

Page 1068 of 3502

NISSAN TEANA 2003 Service Manual CVT-62 DTC P0705 PARK/NEUTRAL POSITION SWITCH DTC P0705 PARK/NEUTRAL POSITION SWITCHPFP:32006 DescriptionBCS001HB The PNP switch includes 4 transmission position switches. TCM judges the selector

Page 1069 of 3502

NISSAN TEANA 2003 Service Manual DTC P0705 PARK/NEUTRAL POSITION SWITCH CVT-63 D E F G H I J K L MA B CVT WITH CONSULT-II 1. Turn ignition switch ON. (Do not start engine.) 2. Select “DATA MONITOR” mode for “TRANSMISSION”

Page 1070 of 3502

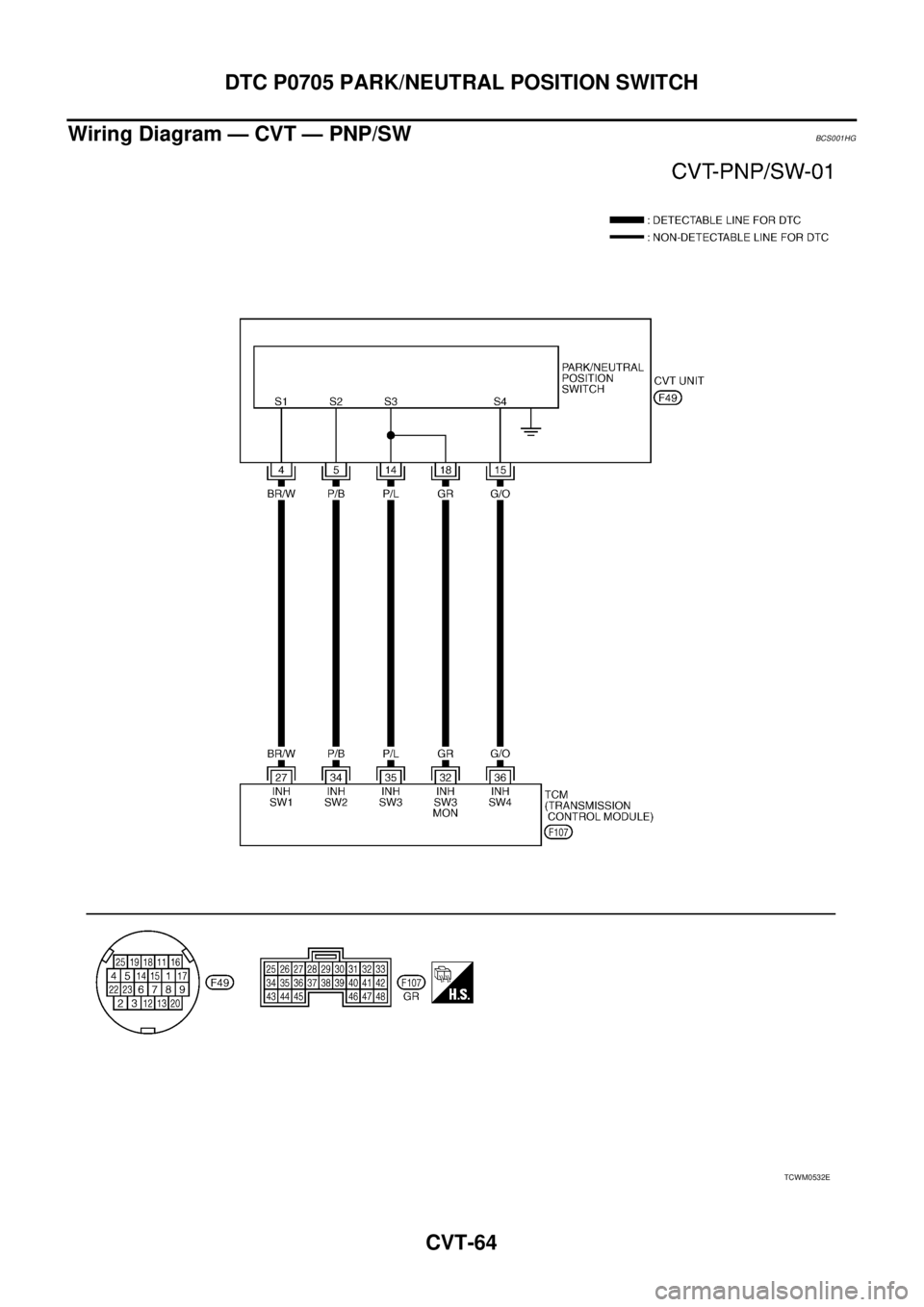

NISSAN TEANA 2003 Service Manual CVT-64 DTC P0705 PARK/NEUTRAL POSITION SWITCH Wiring Diagram — CVT — PNP/SWBCS001HG TCWM0532E

Page 1071 of 3502

NISSAN TEANA 2003 Service Manual DTC P0705 PARK/NEUTRAL POSITION SWITCH CVT-65 D E F G H I J K L MA B CVT TCM terminal data are reference values, measured between each terminal and ground. Terminal Wire color Item Condition Data (A

Page 1072 of 3502

NISSAN TEANA 2003 Service Manual CVT-66 DTC P0705 PARK/NEUTRAL POSITION SWITCH Diagnostic ProcedureBCS001HH 1. CHECK PNP SW CIRCUIT With CONSULT-II 1. Turn ignition switch ON. (Do not start engine.) 2. Select “ECU INPUT SIGNALS
