Page 1737 of 3502
![NISSAN TEANA 2003 Service Manual POWER SUPPLY AND GROUND CIRCUIT
EC-455
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC
12. CHECK ECM POWER SUPPLY CIRCUIT-VI
1. Disconnect ECM harness connector.
2. Disconnect IPDM E/R harness connector E9.
3. Check NISSAN TEANA 2003 Service Manual POWER SUPPLY AND GROUND CIRCUIT
EC-455
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC
12. CHECK ECM POWER SUPPLY CIRCUIT-VI
1. Disconnect ECM harness connector.
2. Disconnect IPDM E/R harness connector E9.
3. Check](/manual-img/5/57392/w960_57392-1736.png)
POWER SUPPLY AND GROUND CIRCUIT
EC-455
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC
12. CHECK ECM POWER SUPPLY CIRCUIT-VI
1. Disconnect ECM harness connector.
2. Disconnect IPDM E/R harness connector E9.
3. Check harness continuity between ECM terminal 111 and IPDM E/R terminal 46.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 14.
NG >> GO TO 13.
13. DETECT MALFUNCTIONING PART
Check the following.
Harness or connectors E11, E253
Harness or connectors E103, M53
Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
14. CHECK 15A FUSE
1. Disconnect 15A fuse from IPDM E/R.
2. Check 15A fuse.
OK or NG
OK >> GO TO 18.
NG >> Replace 15A fuse.
15. CHECK GROUND CONNECTIONS
Loosen and retighten two ground screws on the body.
Refer to EC-457, "
Ground Inspection" .
OK or NG
OK >> GO TO 16.
NG >> Repair or replace ground connections.Continuity should exist.
PBIB2160E
Page 1738 of 3502
EC-456
[VQ]
POWER SUPPLY AND GROUND CIRCUIT
16. CHECK ECM GROUND CIRCUIT FOR OPEN AND SHORT-II
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminals 1, 115, 116 and ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 18.
NG >> GO TO 17.
17. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors F103, M52
Harness for open or short between ECM and ground
>> Repair open circuit or short to power in harness or connectors.
18. CHECK INTERMITTENT INCIDENT
Refer to EC-450, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace IPDM E/R. Refer to PG-17, "IPDM E/R (INTELLIGENT POWER DISTRIBUTION MOD-
ULE ENGINE ROOM)" .
NG >> Repair open circuit or short to ground or short to power in harness or connectors.Continuity should exist.
Page 1739 of 3502
![NISSAN TEANA 2003 Service Manual POWER SUPPLY AND GROUND CIRCUIT
EC-457
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC
Ground Inspection BBS004YQ
Ground connections are very important to the proper operation of electrical and electronic circuits. NISSAN TEANA 2003 Service Manual POWER SUPPLY AND GROUND CIRCUIT
EC-457
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC
Ground Inspection BBS004YQ
Ground connections are very important to the proper operation of electrical and electronic circuits.](/manual-img/5/57392/w960_57392-1738.png)
POWER SUPPLY AND GROUND CIRCUIT
EC-457
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

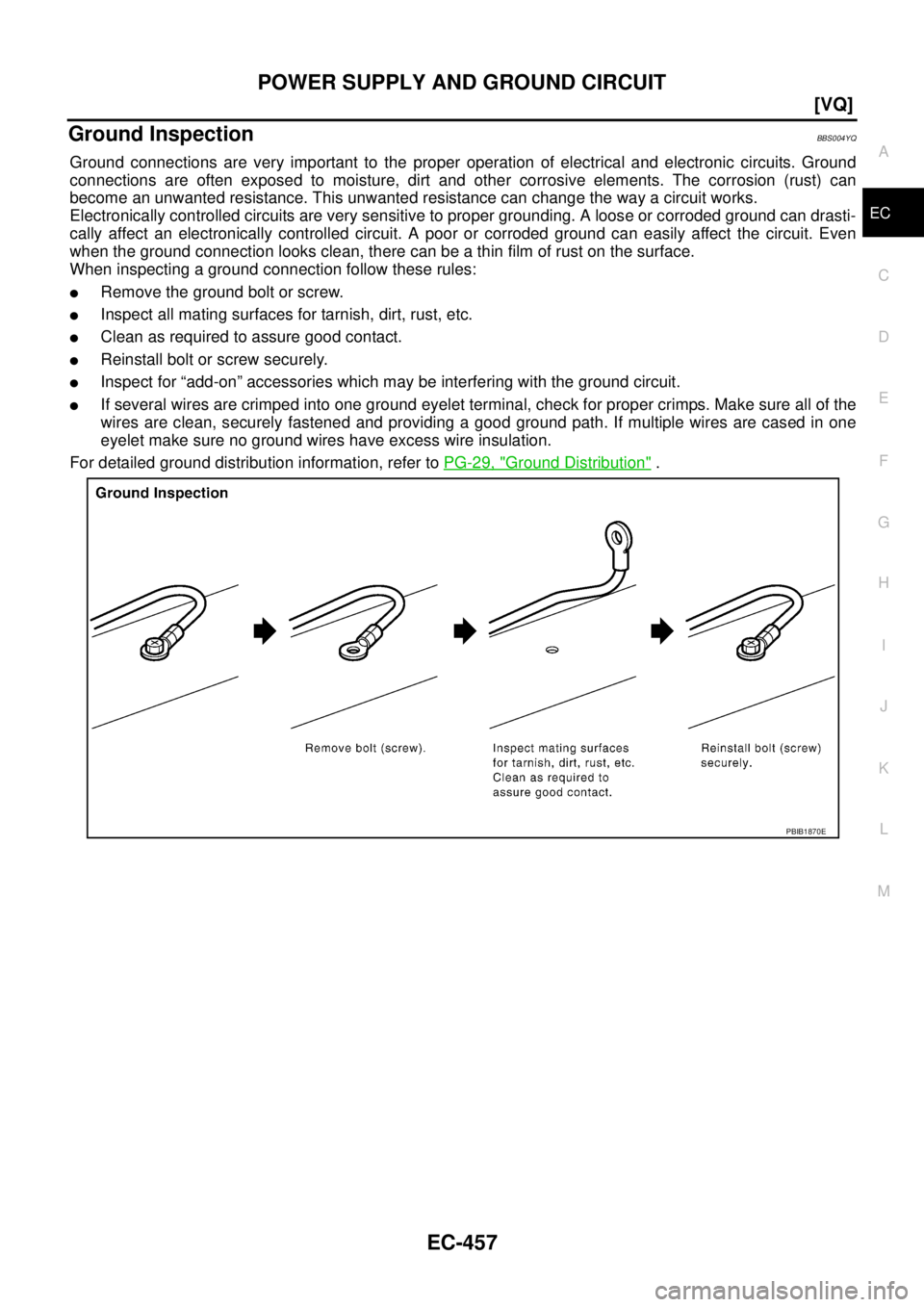

Ground Inspection BBS004YQ
Ground connections are very important to the proper operation of electrical and electronic circuits. Ground
connections are often exposed to moisture, dirt and other corrosive elements. The corrosion (rust) can
become an unwanted resistance. This unwanted resistance can change the way a circuit works.
Electronically controlled circuits are very sensitive to proper grounding. A loose or corroded ground can drasti-
cally affect an electronically controlled circuit. A poor or corroded ground can easily affect the circuit. Even
when the ground connection looks clean, there can be a thin film of rust on the surface.
When inspecting a ground connection follow these rules:
Remove the ground bolt or screw.
Inspect all mating surfaces for tarnish, dirt, rust, etc.
Clean as required to assure good contact.
Reinstall bolt or screw securely.
Inspect for “add-on” accessories which may be interfering with the ground circuit.
If several wires are crimped into one ground eyelet terminal, check for proper crimps. Make sure all of the
wires are clean, securely fastened and providing a good ground path. If multiple wires are cased in one
eyelet make sure no ground wires have excess wire insulation.
For detailed ground distribution information, refer to PG-29, "
Ground Distribution" .
PBIB1870E
Page 1740 of 3502
![NISSAN TEANA 2003 Service Manual EC-458
[VQ]
DTC U1000, U1001 CAN COMMUNICATION LINE
DTC U1000, U1001 CAN COMMUNICATION LINEPFP:23710
DescriptionBBS004YR
CAN (Controller Area Network) is a serial communication line for real time ap NISSAN TEANA 2003 Service Manual EC-458
[VQ]
DTC U1000, U1001 CAN COMMUNICATION LINE
DTC U1000, U1001 CAN COMMUNICATION LINEPFP:23710
DescriptionBBS004YR
CAN (Controller Area Network) is a serial communication line for real time ap](/manual-img/5/57392/w960_57392-1739.png)
EC-458
[VQ]
DTC U1000, U1001 CAN COMMUNICATION LINE
DTC U1000, U1001 CAN COMMUNICATION LINEPFP:23710
DescriptionBBS004YR
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
On Board Diagnosis LogicBBS004YS
The MI will not light up for these diagnoses.
DTC Confirmation ProcedureBBS004YT
1. Turn ignition switch ON and wait at least 3 seconds.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. If 1st trip DTC is detected, go to EC-460, "
Diagnostic Procedure" .
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
U1000
1000
CAN communication
line
When ECM is not transmitting or receiving
CAN communication signal of OBD (emission-
related diagnosis) for 2 seconds or more.
When ECM is not transmitting or receiving
CAN communication signal other than OBD
(emission-related diagnosis) for 2 seconds or
more.
Harness or connectors
(CAN communication line is open or
shorted) U1001
1001
Page 1741 of 3502
DTC U1000, U1001 CAN COMMUNICATION LINE
EC-459
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC
Wiring DiagramBBS004YU
TBWM0607E
Page 1742 of 3502
EC-460
[VQ]
DTC U1000, U1001 CAN COMMUNICATION LINE
Diagnostic ProcedureBBS004YV
Go to LAN-49, "CAN System Specification Chart" .
Page 1743 of 3502
![NISSAN TEANA 2003 Service Manual DTC P0011, P0021 IVT CONTROL
EC-461
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0011, P0021 IVT CONTROLPFP:23796
DescriptionBBS004YW
SYSTEM DESCRIPTION
*: This signal is sent to the ECM through CAN communic NISSAN TEANA 2003 Service Manual DTC P0011, P0021 IVT CONTROL
EC-461
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0011, P0021 IVT CONTROLPFP:23796
DescriptionBBS004YW
SYSTEM DESCRIPTION
*: This signal is sent to the ECM through CAN communic](/manual-img/5/57392/w960_57392-1742.png)
DTC P0011, P0021 IVT CONTROL
EC-461
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0011, P0021 IVT CONTROLPFP:23796
DescriptionBBS004YW
SYSTEM DESCRIPTION
*: This signal is sent to the ECM through CAN communication line.
This mechanism hydraulically controls cam phases continuously with the fixed operating angle of the intake
valve.
The ECM receives signals such as crankshaft position, camshaft position, engine speed, and engine coolant
temperature. Then, the ECM sends ON/OFF pulse duty signals to the intake valve timing control solenoid
valve depending on driving status. This makes it possible to control the shut/open timing of the intake valve to
increase engine torque in low/mid speed range and output in high-speed range.
CONSULT-II Reference Value in Data Monitor ModeBBS004YX
Specification data are reference values.
Sensor Input signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Engine speed and piston position
Intake valve
timing controlIntake valve timing control
solenoid valve Camshaft position sensor (PHASE)
Engine coolant temperature sensor Engine coolant temperature
Wheel sensor Vehicle speed*
PBIB1389E
MONITOR ITEM CONDITION SPECIFICATION
INT/V TIM (B1)
INT/V TIM (B2)
Engine: After warming up
Shift lever: P or N
Air conditioner switch: OFF
No loadIdle−5° - 5°CA
When revving engine up to 2,000 rpm
quicklyApprox. 0° - 30°CA
INT/V SOL (B1)
INT/V SOL (B2)
Engine: After warming up
Shift lever: P or N
Air conditioner switch: OFF
No loadIdle 0% - 2%
When revving engine up to 2,000 rpm
quicklyApprox. 0% - 50%
Page 1744 of 3502
![NISSAN TEANA 2003 Service Manual EC-462
[VQ]
DTC P0011, P0021 IVT CONTROL
On Board Diagnosis LogicBBS004YY
The MI will not light up for these diagnoses.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode NISSAN TEANA 2003 Service Manual EC-462
[VQ]
DTC P0011, P0021 IVT CONTROL
On Board Diagnosis LogicBBS004YY
The MI will not light up for these diagnoses.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode](/manual-img/5/57392/w960_57392-1743.png)
EC-462
[VQ]
DTC P0011, P0021 IVT CONTROL
On Board Diagnosis LogicBBS004YY
The MI will not light up for these diagnoses.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode.
DTC Confirmation ProcedureBBS004YZ
CAUTION:
Always drive at a safe speed.
NOTE:
If D TC P 00 11 or P0 02 1 i s di spl ay ed w i t h D TC P1111 or P 11 36 , f ir s t pe r f or m t r o ubl e di agn os is f o r
D TC P1111 o r P113 6. R ef e r t o EC-545, "
DTC P1111, P1136 IVT CONTROL SOLENOID VALVE" .
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait
at least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10V and 16V at
idle.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.
2. Start engine and warm it up to the normal operating tempera-
ture.
3. Maintain the following conditions for at least 6 consecutive sec-
onds.
Hold the accelerator pedal as steady as possible.
4. Let engine idle for 10 seconds.
5. If the 1st trip DTC is detected, go to EC-464, "
Diagnostic Procedure" .
If the 1st trip DTC is not detected, go to next step.
6. Maintain the following conditions for at least 20 consecutive seconds.
DTC No.Trouble diagnosis
nameDetecting condition Possible cause
P0011
0011
(Bank 1)
Intake valve timing
control performanceThere is a gap between angle of target and
phase-control angle degree.
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)
Intake valve control solenoid valve
Accumulation of debris to the signal pick-up
portion of the camshaft
Timing chain installation
Foreign matter caught in the oil groove for
intake valve timing control P0021
0021
(Bank 2)
Detected items Engine operating condition in fail-safe mode
Intake valve timing control The signal is not energized to the solenoid valve and the valve control does not function.
ENG SPEED 1,200 - 2,000 rpm (A constant rotation is maintained.)
COOLANT TEMPS More than 60°C (140°F)
B/FUEL SCHDL More than 3.38 msec
Selector lever P or N position
ENG SPEED 1,700 - 3,175 rpm (A constant rotation is maintained.)
COOLANT TEMPS 70 - 105°C (158 - 221°F)
PBIB0164E
