NISSAN TEANA 2003 Service Manual INTEGRATED COLOR DISPLAY SYSTEM AV-113 C D E F G H I J L MA B AV Removal and Installation of Rear View CameraBKS0028I REMOVAL 1. Remove trunk lid finisher (upper). Refer to EI-33, "TRUNK LID FINISHE

Page 642 of 3502

NISSAN TEANA 2003 Service Manual AV-114 INTEGRATED COLOR DISPLAY SYSTEM

Page 643 of 3502

NISSAN TEANA 2003 Service Manual BCS-1 BODY CONTROL SYSTEM K ELECTRICAL CONTENTS C D E F G H I J L M SECTION BCS A B BCS BODY CONTROL SYSTEM PRECAUTIONS .......................................................... 2 Precautions for

Page 644 of 3502

NISSAN TEANA 2003 Service Manual BCS-2 PRECAUTIONS PRECAUTIONSPFP:00001 Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT BELT PRE-TENSIONER” BKS001UF The Supplemental Restraint System such as “AIR

Page 645 of 3502

NISSAN TEANA 2003 Service Manual BCM (BODY CONTROL MODULE) BCS-3 C D E F G H I J L MA B BCS BCM (BODY CONTROL MODULE)PFP:284B2 System DescriptionBKS002EV BCM (Body Control Module) controls the operation of various electrical units

Page 646 of 3502

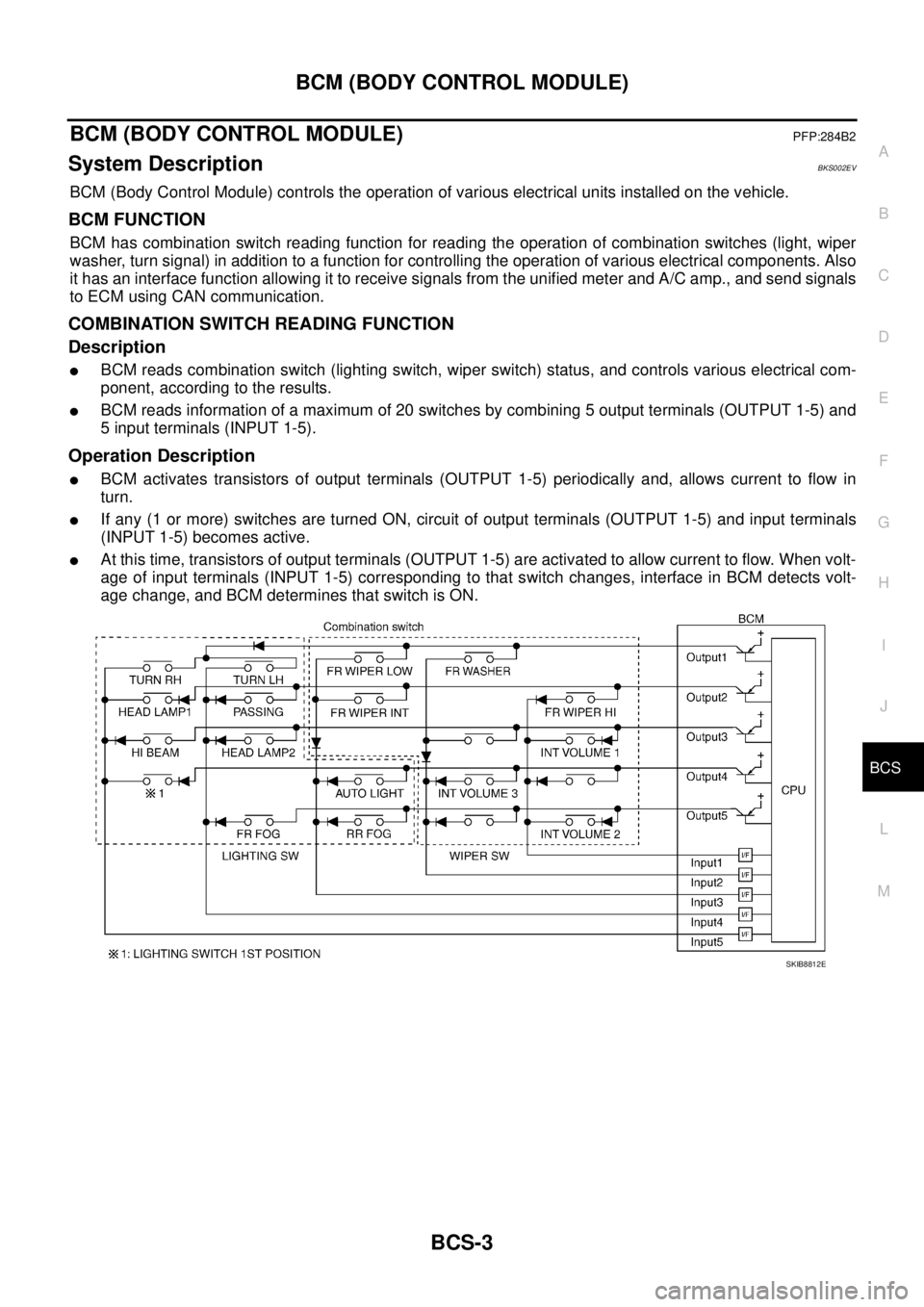

NISSAN TEANA 2003 Service Manual BCS-4 BCM (BODY CONTROL MODULE) BCM - Operation Table of Combination Switches BCM reads operation status of combination switch using combinations shown in table below. NOTE: Headlamp system has a du

Page 647 of 3502

NISSAN TEANA 2003 Service Manual BCM (BODY CONTROL MODULE) BCS-5 C D E F G H I J L MA B BCS Sample Operation When lighting switch 1ST position is turned ON, contact in combination switch turns ON. At this time if OUTPUT 4 transist

Page 648 of 3502

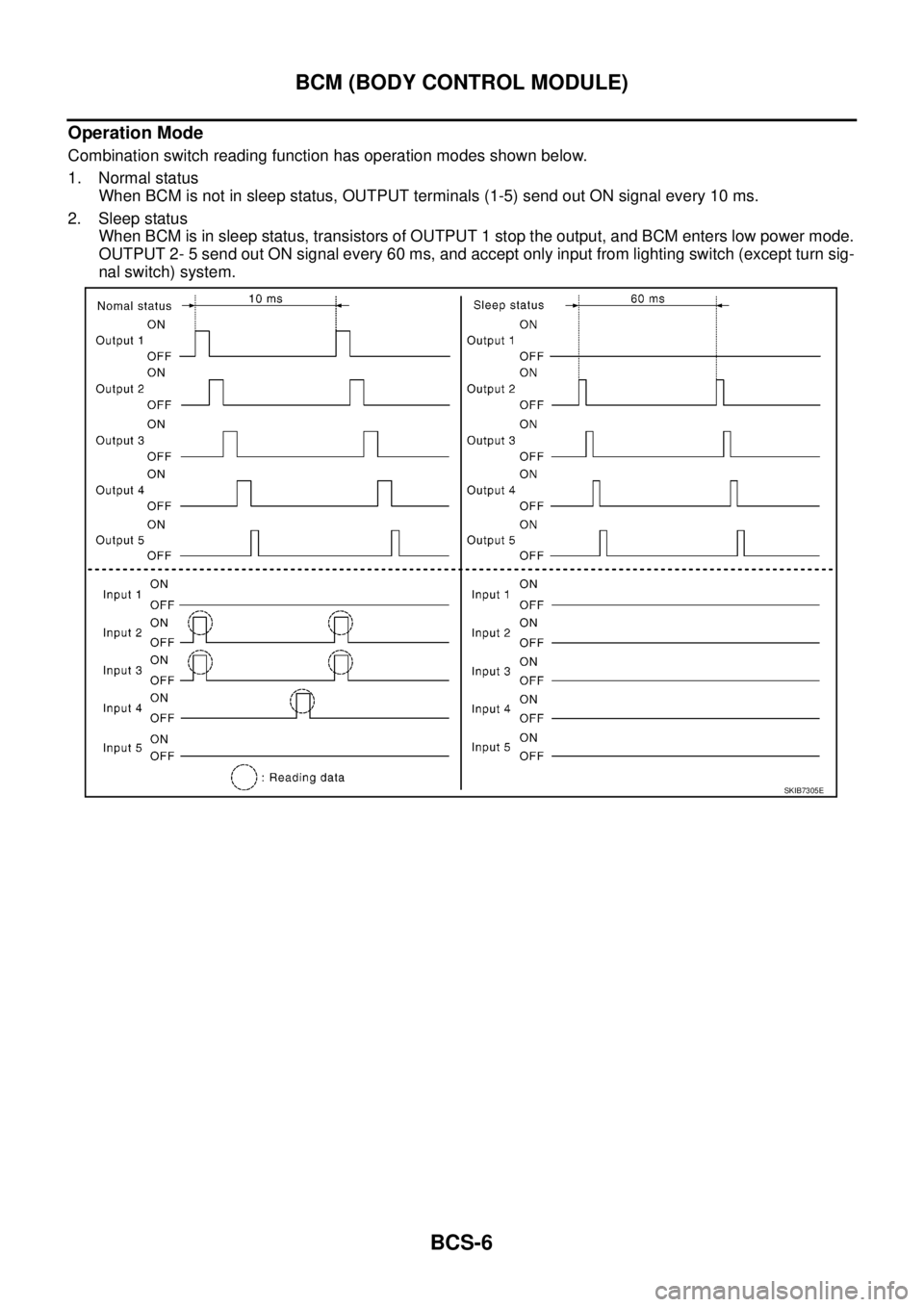

NISSAN TEANA 2003 Service Manual BCS-6 BCM (BODY CONTROL MODULE) Operation Mode Combination switch reading function has operation modes shown below. 1. Normal status When BCM is not in sleep status, OUTPUT terminals (1-5) send out
