Page 1025 of 3502

NISSAN TEANA 2003 Service Manual CVT SYSTEM
CVT-19
D
E
F
G
H
I
J
K
L
MA
B
CVT

CAN CommunicationBCS001G3
SYSTEM DESCRIPTION
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle

Page 1026 of 3502

NISSAN TEANA 2003 Service Manual CVT-20
CVT SYSTEM

Line Pressure and Secondary Pressure ControlBCS001G5
When an input torque signal equivalent to the engine drive force is sent from the ECM to the TCM, the
TCM controls the line pr

Page 1027 of 3502

NISSAN TEANA 2003 Service Manual CVT SYSTEM
CVT-21
D
E
F
G
H
I
J
K
L
MA
B
CVT

NOTE:
The gear ratio is set for every position separately.
“D” POSITION
Shifting over all the ranges of gear ratios from the lowest to the high-
est.

Page 1028 of 3502

NISSAN TEANA 2003 Service Manual CVT-22
CVT SYSTEM

TORQUE CONVERTER CLUTCH AND SELECT CONTROL VALVE CONTROL
Lock-up and Select Control System Diagram
Lock-up Released
In the lock-up released state, the torque converter clutch con

Page 1029 of 3502

NISSAN TEANA 2003 Service Manual CVT SYSTEM
CVT-23
D
E
F
G
H
I
J
K
L
MA
B
CVT

Control ValveBCS001G8
FUNCTION OF CONTROL VALVE
Name Function
Torque converter regulator valve Optimizes the supply pressure for the torque converter dep

Page 1030 of 3502

NISSAN TEANA 2003 Service Manual CVT-24
TROUBLE DIAGNOSIS

TROUBLE DIAGNOSISPFP:00004
DTC Inspection Priority ChartBCS001GE
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority

CVT-24
TROUBLE DIAGNOSIS

TROUBLE DIAGNOSISPFP:00004
DTC Inspection Priority ChartBCS001GE
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.
NOTE:
If DTC “U1000 CAN COMM CIRCUIT” is displayed with other DTCs, first perform the trouble diagnosis
for “DTC U1000 CAN COMMUNICATION LINE”. Refer to CVT-53
.
Fail-safeBCS001GF
The TCM has an electrical fail-safe mode. This mode makes it possible to operate even if there is an error in a
main electronic control input/output signal circuit.
FAIL-SAFE FUNCTION
If any malfunction occurs in a sensor or solenoid, this function controls the CVT to make driving possible.
Output Speed Sensor (Secondary Speed Sensor)
The shift pattern is changed in accordance with throttle position when an unexpected signal is sent from the
output speed sensor (secondary speed sensor) to the TCM. The manual mode position and second position is
inhibited, and the transaxle is put in “D”.
Input Speed Sensor (Primary Speed Sensor)
The shift pattern is changed in accordance with throttle position and secondary speed (vehicle speed) when
an unexpected signal is sent from the input speed sensor (primary speed sensor) to the TCM. The manual
mode position and second position is inhibited, and the transaxle is put in “D”.
PNP Switch
If an unexpected signal is sent from the PNP switch to the TCM, the transaxle is put in “D”.
Manual Mode Switch
If an unexpected signal is sent from the manual mode switch to the TCM, the transaxle is put in “D”.
CVT Fluid Temperature Sensor
If an unexpected signal is sent from the CVT fluid temperature sensor to the TCM, the gear ratio in use before
receiving the unexpected signal is maintained or the gear ratio is controlled to keep engine speed under 5,000
rpm.
Transmission Fluid Pressure Sensor A (Secondary Pressure Sensor)
If an unexpected signal is sent from the transmission fluid pressure sensor A (secondary pressure sensor)
to the TCM, the secondary pressure feedback control is stopped and the offset value obtained before the
non-standard condition occurs is used to control line pressure.
If transmission fluid pressure sensor A (secondary pressure sensor) error signal is input to TCM, second-
ary pressure feedback control stops, but line pressure is controlled normally.
Pressure Control Solenoid A (Line Pressure Solenoid)
If an unexpected signal is sent from the solenoid to the TCM, the pressure control solenoid A (line pressure
solenoid) is turned OFF to achieve the maximum fluid pressure.
Pressure Control Solenoid B (Secondary Pressure Solenoid)
If an unexpected signal is sent from the solenoid to the TCM, the pressure control solenoid B (secondary pres-
sure solenoid) is turned OFF to achieve the maximum fluid pressure.
Torque Converter Clutch Solenoid
If an unexpected signal is sent from the solenoid to the TCM, the torque converter clutch solenoid is turned
OFF to cancel the lock-up.
Priority Detected items (DTC)
1 U1000 CAN communication line
2 Except above

Page 1031 of 3502

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS
CVT-25
D
E
F
G
H
I
J
K
L
MA
B
CVT

Step Motor
If an unexpected signal is sent from the step motor to the TCM, the step motor coil phases “A” through “D” are
all turned OFF t

TROUBLE DIAGNOSIS
CVT-25
D
E
F
G
H
I
J
K
L
MA
B
CVT

Step Motor
If an unexpected signal is sent from the step motor to the TCM, the step motor coil phases “A” through “D” are
all turned OFF to hold the gear ratio used right before the non-standard condition occurred.
CVT Lock-up Select Solenoid
If an unexpected signal is sent from the solenoid to the TCM, the CVT lock-up select solenoid is turned OFF to
cancel the lock-up.
TCM Power Supply (Memory Back-up)
Transaxle assembly is protected by limiting the engine torque when the memory back-up power supply (for
controlling) from the battery is not supplied to TCM. Normal statues is restored when turning the ignition switch
OFF to ON after the normal power supply.
How to Perform Trouble Diagnosis for Quick and Accurate RepairBCS001GG
INTRODUCTION
The TCM receives a signal from the vehicle speed sensor, PNP
switch and provides shift control or lock-up control via CVT solenoid
valves.
Input and output signals must always be correct and stable in the
operation of the CVT system. The CVT system must be in good
operating condition and be free of valve seizure, solenoid valve mal-
function, etc.
It is much more difficult to diagnose an error that occurs intermit-
tently rather than continuously. Most intermittent errors are caused
by poor electric connections or improper wiring. In this case, careful
checking of suspected circuits may help prevent the replacement of
good parts.
A visual check only may not find the cause of the errors. A road test
with CONSULT-II or a circuit tester connected should be performed.
Follow the CVT-26, "
WORK FLOW" .
Before undertaking actual checks, take a few minutes to talk with a
customer who approaches with a driveability complaint. The cus-
tomer can supply good information about such errors, especially
intermittent ones. Find out what symptoms are present and under
what conditions they occur. A “DIAGNOSTIC WORKSHEET” as
shown on the example (Refer to CVT-27
) should be used.
Start your diagnosis by looking for “conventional” errors first. This will
help troubleshoot driveability errors on an electronically controlled
engine vehicle.
Also check related Service bulletins.
SAT631IB
SAT632I
SEF234G

Page 1032 of 3502

NISSAN TEANA 2003 Service Manual CVT-26
TROUBLE DIAGNOSIS

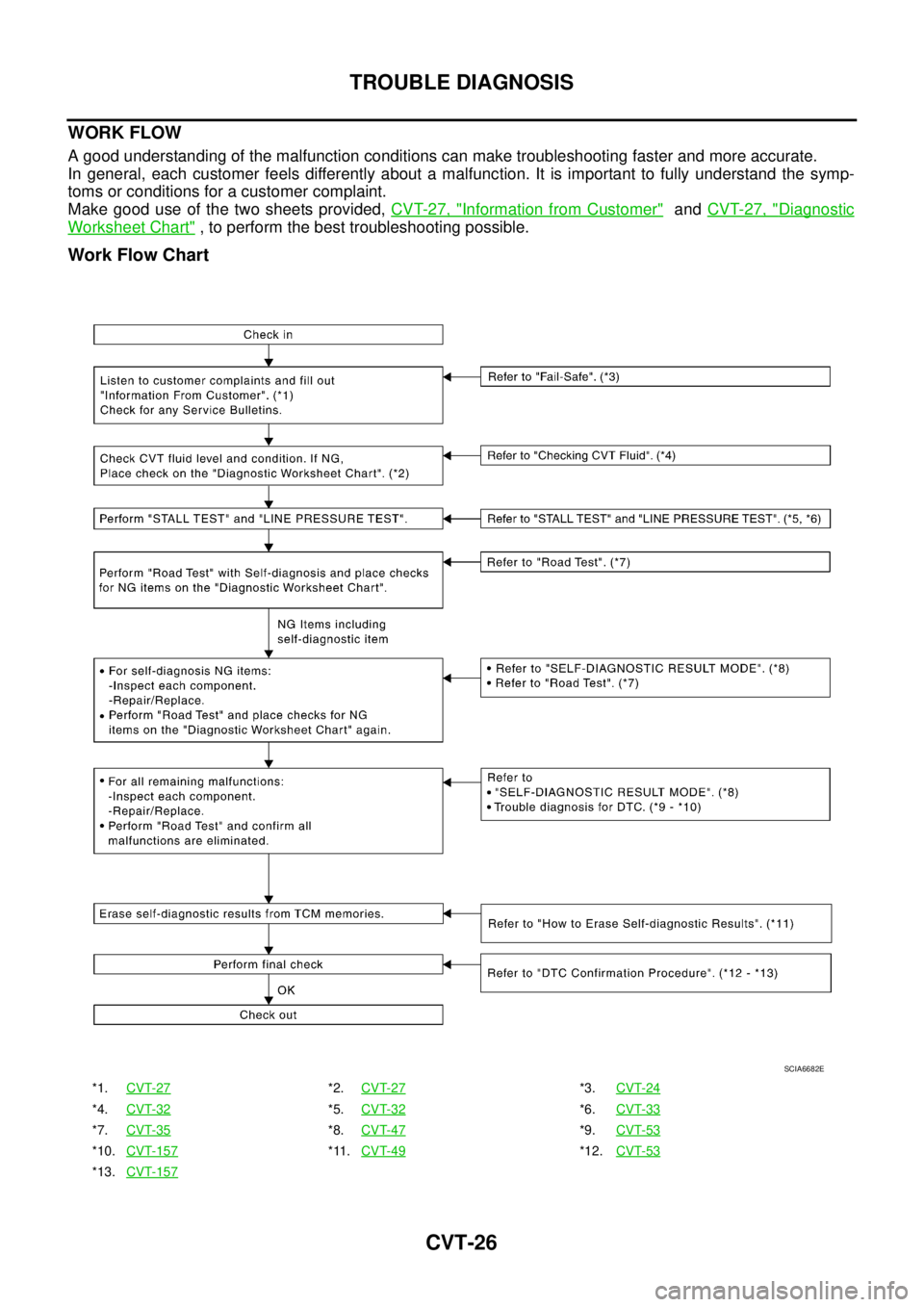

WORK FLOW
A good understanding of the malfunction conditions can make troubleshooting faster and more accurate.
In general, each customer feels differently about a malfuncti
