Page 1425 of 3502

NISSAN TEANA 2003 Service Manual DTC P0132 HO2S1 EC-143 [QR] C D E F G H I J K L MA EC DTC P0132 HO2S1PFP:22690 Component DescriptionBBS005DL The heated oxygen sensor 1 is placed into the exhaust manifold. It detects the amount of

Page 1426 of 3502

NISSAN TEANA 2003 Service Manual EC-144 [QR] DTC P0132 HO2S1 DTC Confirmation ProcedureBBS005DO NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before

Page 1427 of 3502

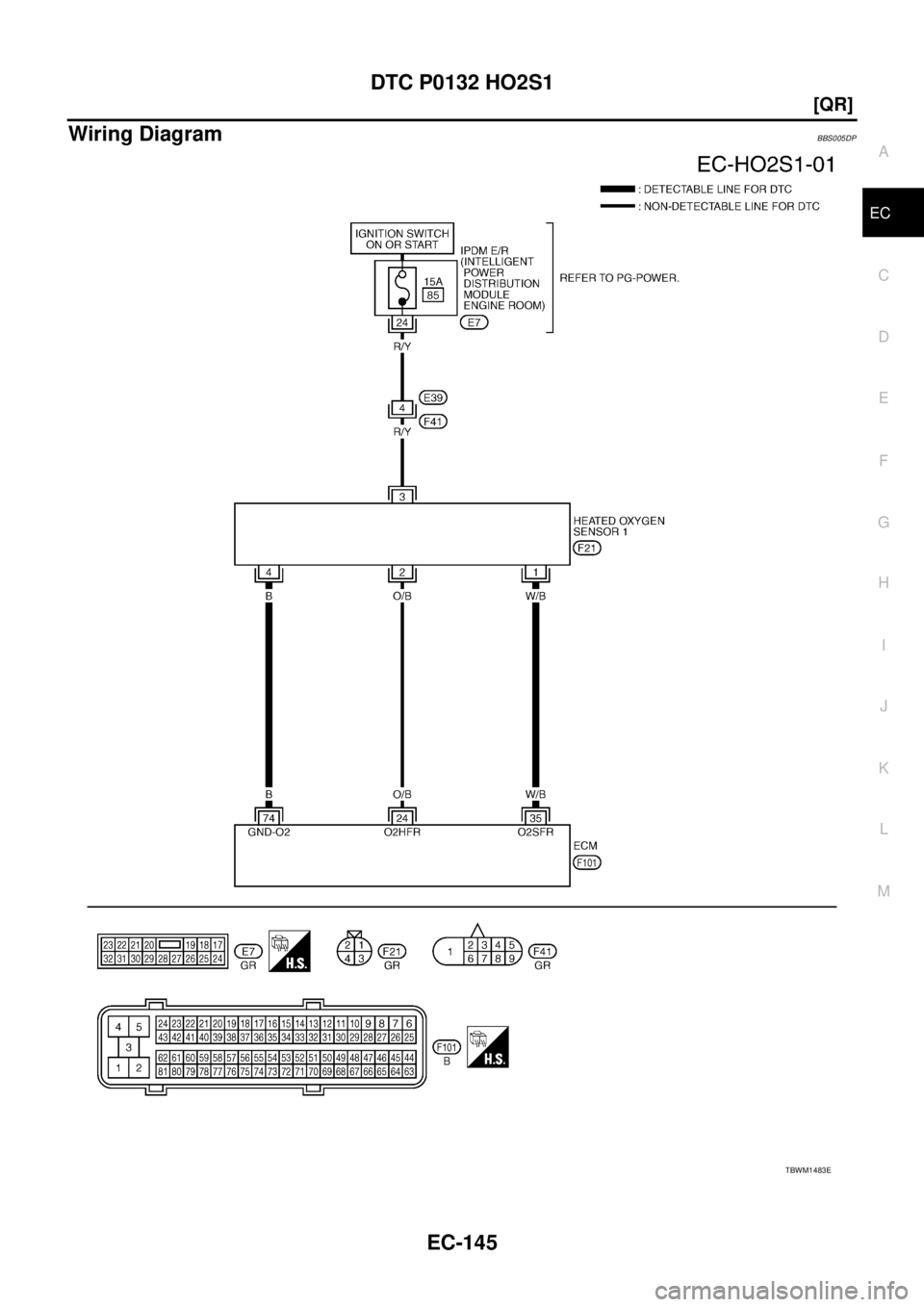

NISSAN TEANA 2003 Service Manual DTC P0132 HO2S1 EC-145 [QR] C D E F G H I J K L MA EC Wiring DiagramBBS005DP TBWM1483E

Page 1428 of 3502

NISSAN TEANA 2003 Service Manual EC-146 [QR] DTC P0132 HO2S1 Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II. CAUTION: Do not use ECM ground terminal

Page 1429 of 3502

NISSAN TEANA 2003 Service Manual DTC P0132 HO2S1 EC-147 [QR] C D E F G H I J K L MA EC 2. RETIGHTEN HEATED OXYGEN SENSOR 1 Loosen and retighten heated oxygen sensor 1. >> GO TO 3. 3. CHECK HO2S1 GROUND CIRCUIT FOR OPEN AND SHORT 1.

Page 1430 of 3502

NISSAN TEANA 2003 Service Manual EC-148 [QR] DTC P0132 HO2S1 6. CHECK HEATED OXYGEN SENSOR 1 Refer to EC-148, " Component Inspection" . OK or NG OK >> GO TO 7. NG >> Replace heated oxygen sensor 1. 7. CHECK INTERMITTENT INCIDENT Re

Page 1431 of 3502

NISSAN TEANA 2003 Service Manual DTC P0132 HO2S1 EC-149 [QR] C D E F G H I J K L MA EC Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread Cleaner and approved anti-seize lubricant. Withou

Page 1432 of 3502

NISSAN TEANA 2003 Service Manual EC-150 [QR] DTC P0134 HO2S1 DTC P0134 HO2S1PFP:22690 Component DescriptionBBS005DT The heated oxygen sensor 1 is placed into the exhaust manifold. It detects the amount of oxygen in the exhaust gas
