NISSAN TEANA 2003 Service Manual PREPARATION
EM-125
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM

Valve guide drift Removing and installing valve guide
Intake and Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.
Valve guide reamer (1)

Page 2234 of 3502

NISSAN TEANA 2003 Service Manual EM-126
[VQ]

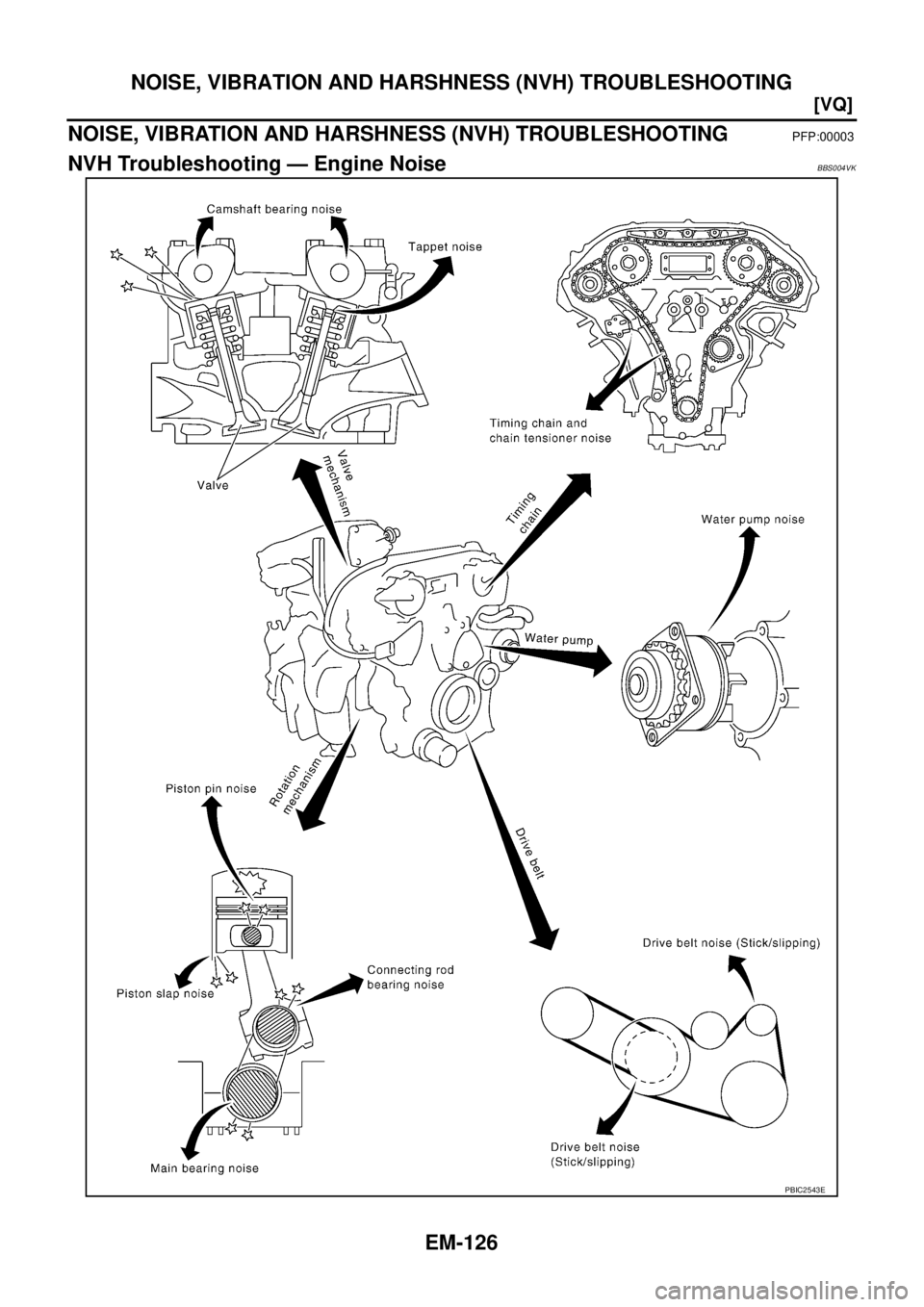

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTINGPFP:00003
NVH Troubleshooting — Engine NoiseBBS004VK
PBIC2543E

Page 2235 of 3502

NISSAN TEANA 2003 Service Manual NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
EM-127
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM

Use the Chart Below to Help You Find the Cause of the Symptom.BBS004VL
1. Locate the area where noise occur

Page 2236 of 3502

NISSAN TEANA 2003 Service Manual EM-128
[VQ]
DRIVE BELTS

DRIVE BELTSPFP:02117
Checking Drive BeltsBBS004VM
WARNING:
Be sure to perform the following when engine is stopped.
1. Inspect belts for cracks, fraying, wear and oil. If nec

EM-128
[VQ]
DRIVE BELTS

DRIVE BELTSPFP:02117
Checking Drive BeltsBBS004VM
WARNING:
Be sure to perform the following when engine is stopped.
1. Inspect belts for cracks, fraying, wear and oil. If necessary, replace.
2. Inspect drive belt deflection at a point on the belt midway
between pulleys.
Inspection should be done only when engine is cold, or over
30 minutes after engine is stopped.
When measuring deflection, apply 98 N (10 kg, 22 lb) at the
marked point.
Adjust if belt deflection exceeds the limit.
CAUTION:
When checking belt deflection immediately after installa-
tion, first adjust it to the specified value. Then, after turning
crankshaft two turns or more, re-adjust to the specified
value to avoid variation in deflection between pulleys.
Release the tension by loosing lock nut and turning adjust-
ing bolt when adjusting the belt. Tighten once the lock nut
at 4.9 N·m (0.50 Kg-m, 43 in-lb). Then, adjust the belt ten-
sion by loosing lock nut between 45° and 90°.
Belt Deflection
Tension AdjustmentBBS004VN
CAUTION:
When belt is replaced with a new one, adjust it to value for “New belt” to accommodate for insuffi-
cient adaptability with pulley grooves.
When deflection of belt being used exceeds “Limit”, adjust it to value for “After adjustment”.
When checking belt deflection immediately after installation, first adjust it to the specified value.
Then, after turning crankshaft two turns or more, re-adjust to the specified value to avoid variation
in deflection between pulleys.
When installing belt, make sure that it is correctly engaged with pulley groove.
PBIC2449E
PBIC1162E
Deflection adjustment Unit: mm (in)
Used belt
New belt
Limit After adjustment
Alternator and A/C compressor
belt7 (0.28)4.2 - 4.6
(0.17 - 0.18)3.7 - 4.1
(0.15 - 0.16)
Power steering oil pump belt 11 (0.43)7.3 - 8.0
(0.29 - 0.30)6.5 - 7.2
(0.26 - 0.28)
Applied pushing force 98 N (10 Kg, 22 lb)
PortionBelt tightening method for adjustment
Alternator and A/C compressor belt Adjusting bolt on idler pulley
Power steering oil pump belt Adjusting bolt on power steering oil pump

Page 2237 of 3502

NISSAN TEANA 2003 Service Manual DRIVE BELTS
EM-129
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM

Release the tension by loosing lock nut and turning adjusting nut when adjusting the belt. Tighten
once the lock nut at 4.9 N·m (0.50 Kg-m, 43 in-

Page 2238 of 3502

NISSAN TEANA 2003 Service Manual EM-130
[VQ]
DRIVE BELTS

CAUTION:
Make sure belt is correctly engaged with the pulley groove.
Make sure that for engine oil, working fluid and engine coolant do not adhere to belt and each
pulley g

Page 2239 of 3502

NISSAN TEANA 2003 Service Manual AIR CLEANER AND AIR DUCT
EM-131
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM

AIR CLEANER AND AIR DUCTPFP:16500
Removal and InstallationBBS004VP
REMOVAL
1. Remove air duct (inlet).
2. Disconnect harness connector

Page 2240 of 3502

NISSAN TEANA 2003 Service Manual EM-132
[VQ]
AIR CLEANER AND AIR DUCT

INSPECTION AFTER REMOVAL
Inspect air duct assembly for crack or tear.
If anything found, replace air duct assembly.
INSTALLATION
Note the following, and install
