Page 3241 of 3502

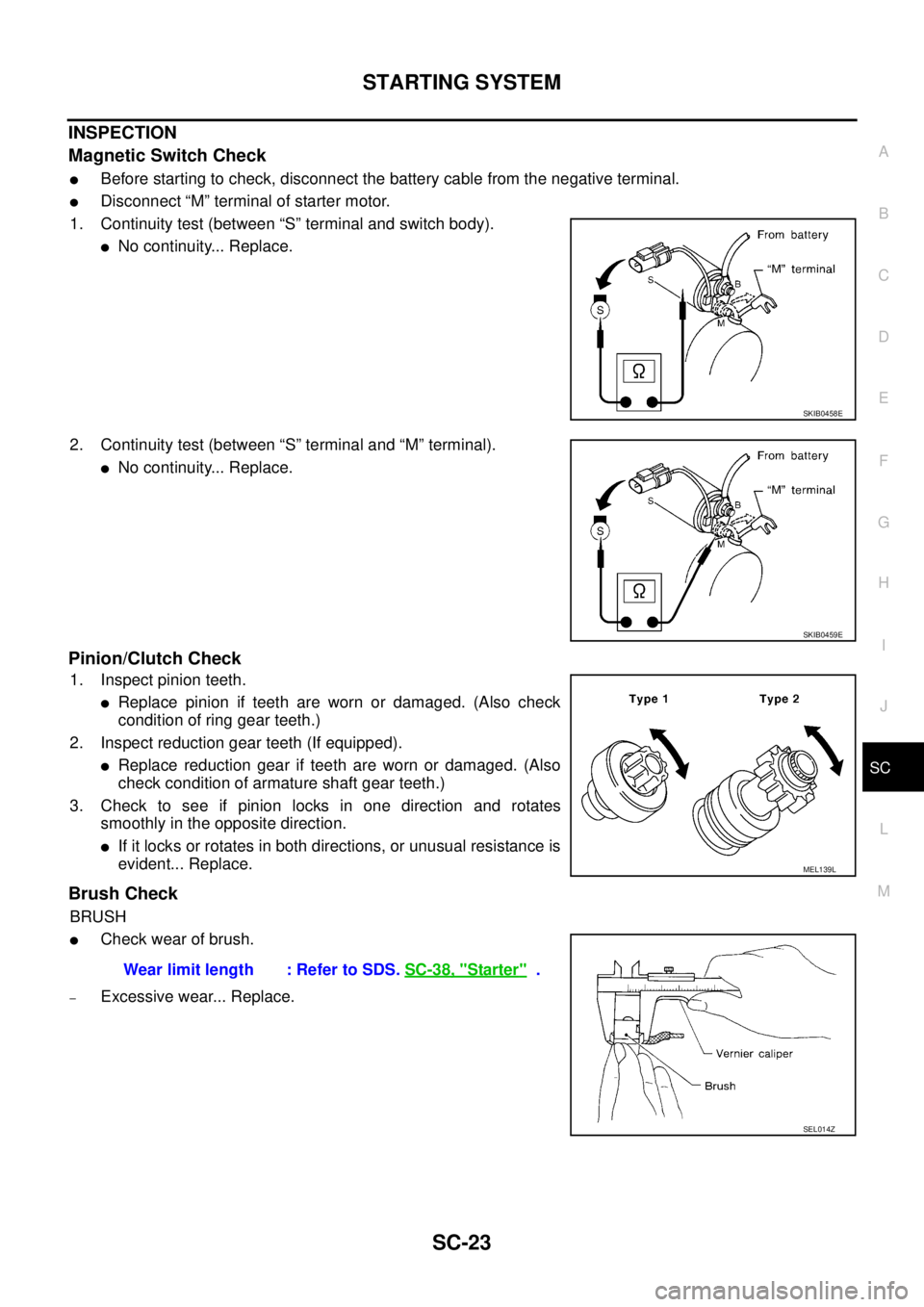

NISSAN TEANA 2003 Service Manual STARTING SYSTEM SC-23 C D E F G H I J L MA B SC INSPECTION Magnetic Switch Check Before starting to check, disconnect the battery cable from the negative terminal. Disconnect “M” terminal of s

Page 3242 of 3502

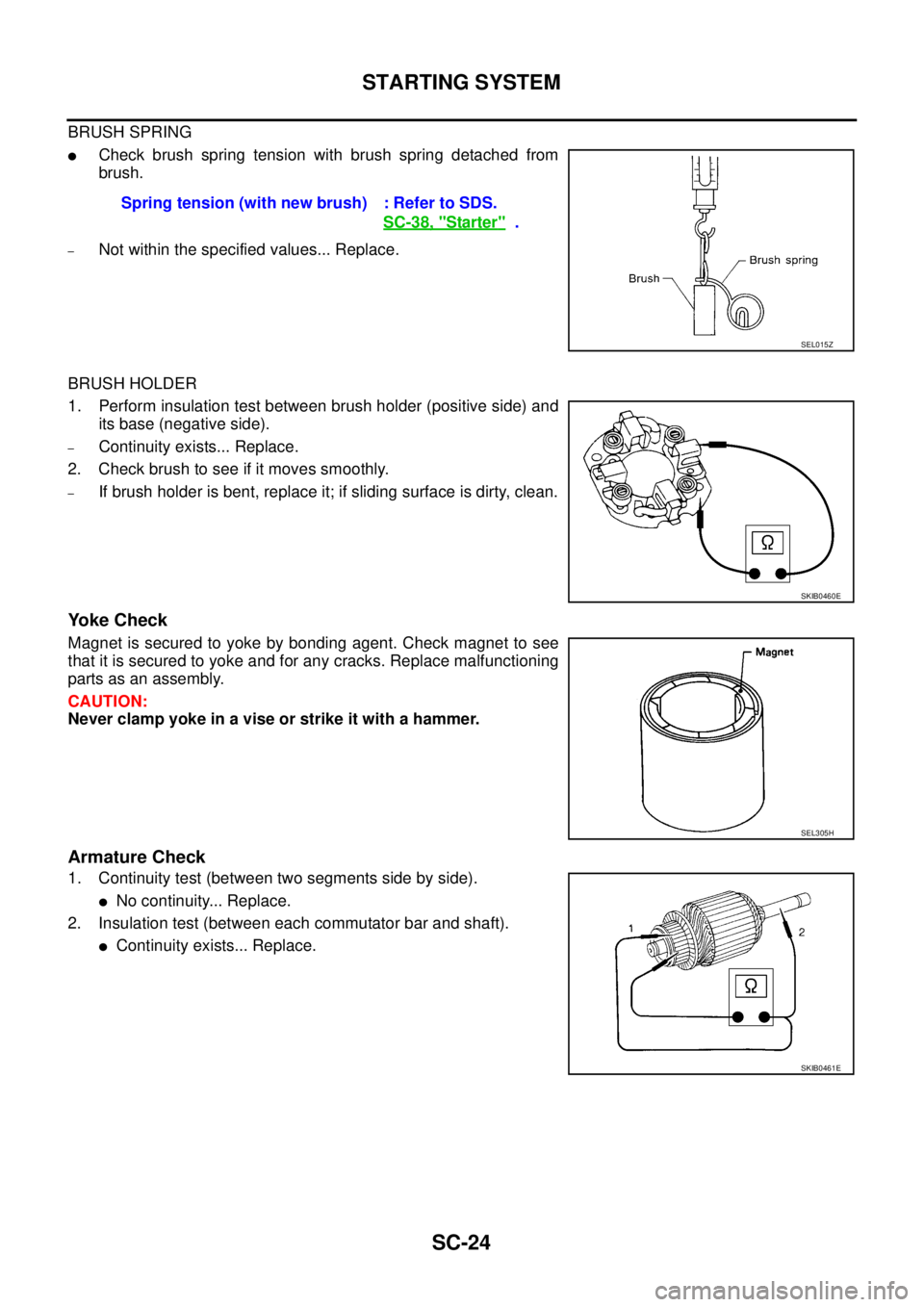

NISSAN TEANA 2003 Service Manual SC-24 STARTING SYSTEM BRUSH SPRING Check brush spring tension with brush spring detached from brush. –Not within the specified values... Replace. BRUSH HOLDER 1. Perform insulation test between b

Page 3243 of 3502

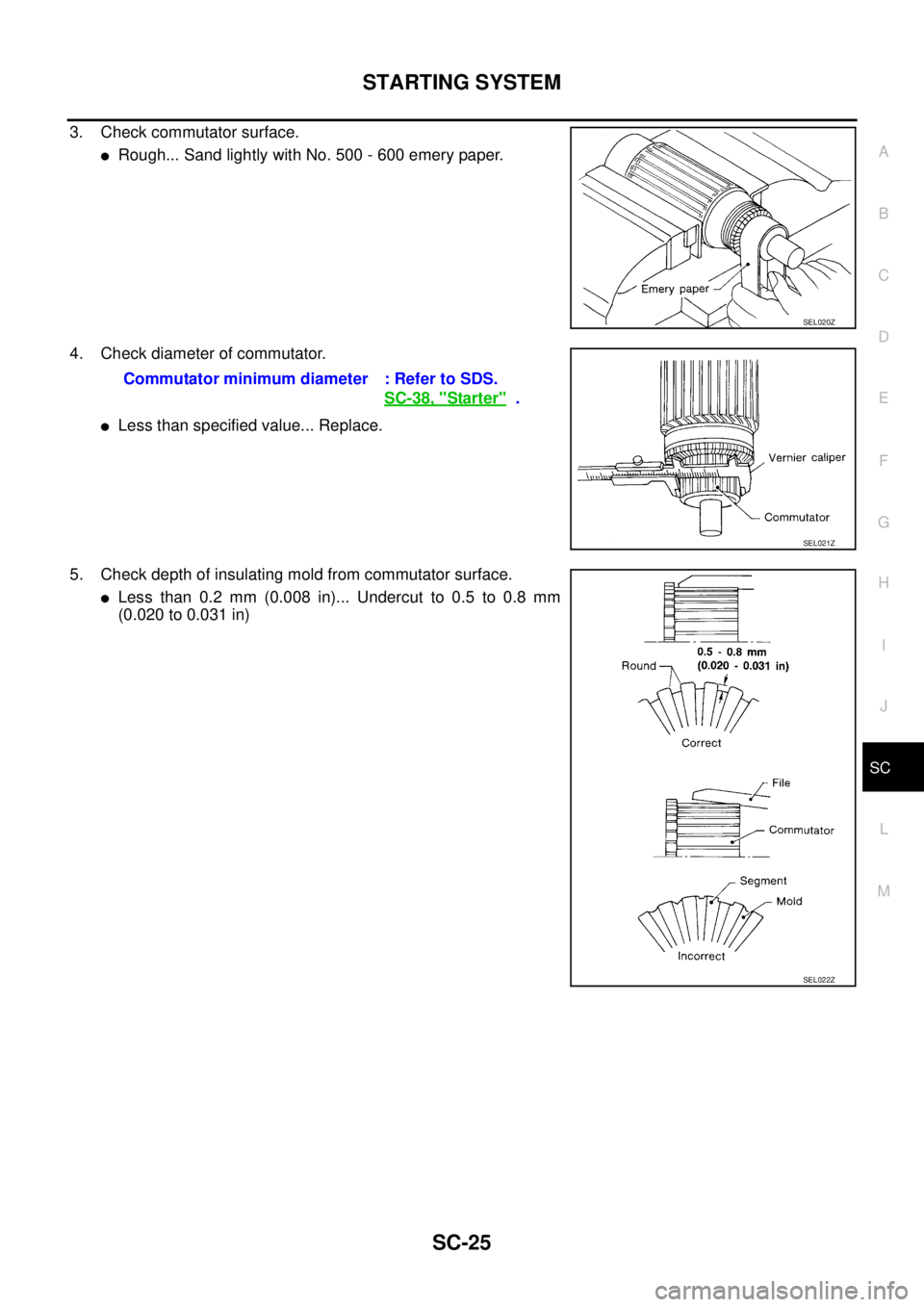

NISSAN TEANA 2003 Service Manual STARTING SYSTEM SC-25 C D E F G H I J L MA B SC 3. Check commutator surface. Rough... Sand lightly with No. 500 - 600 emery paper. 4. Check diameter of commutator. Less than specified value... Rep

Page 3244 of 3502

NISSAN TEANA 2003 Service Manual SC-26 STARTING SYSTEM ASSEMBLY Apply high-temperature grease to lubricate the bearing, gears and frictional surface when assembling the starter. Carefully observe the following instructions. Pinion

Page 3245 of 3502

NISSAN TEANA 2003 Service Manual CHARGING SYSTEM SC-27 C D E F G H I J L MA B SC CHARGING SYSTEMPFP:23100 System DescriptionBKS001MJ The alternator provides DC voltage to operate the vehicles electrical system and to keep the batt

Page 3246 of 3502

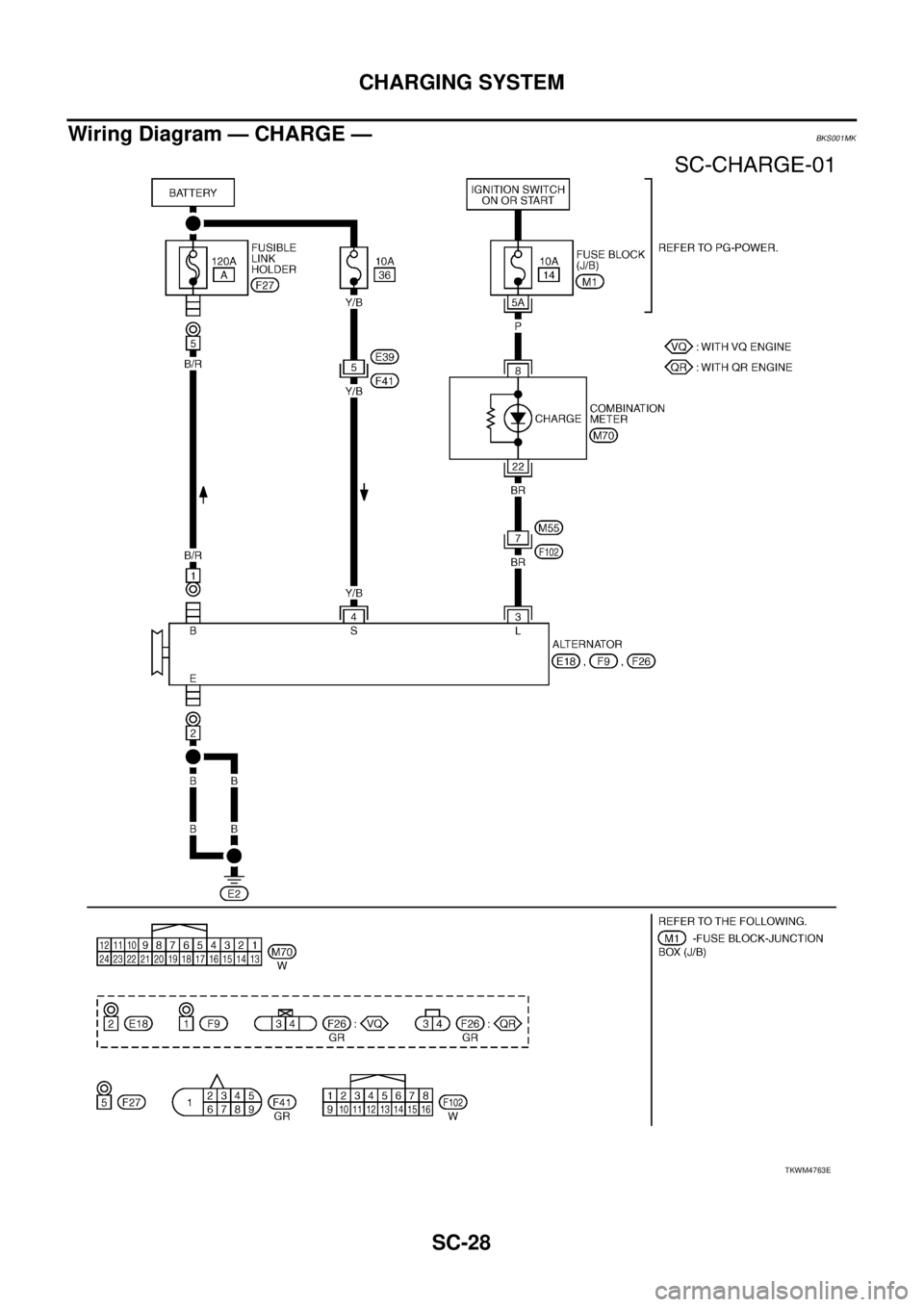

NISSAN TEANA 2003 Service Manual SC-28 CHARGING SYSTEM Wiring Diagram — CHARGE —BKS001MK TKWM4763E

Page 3247 of 3502

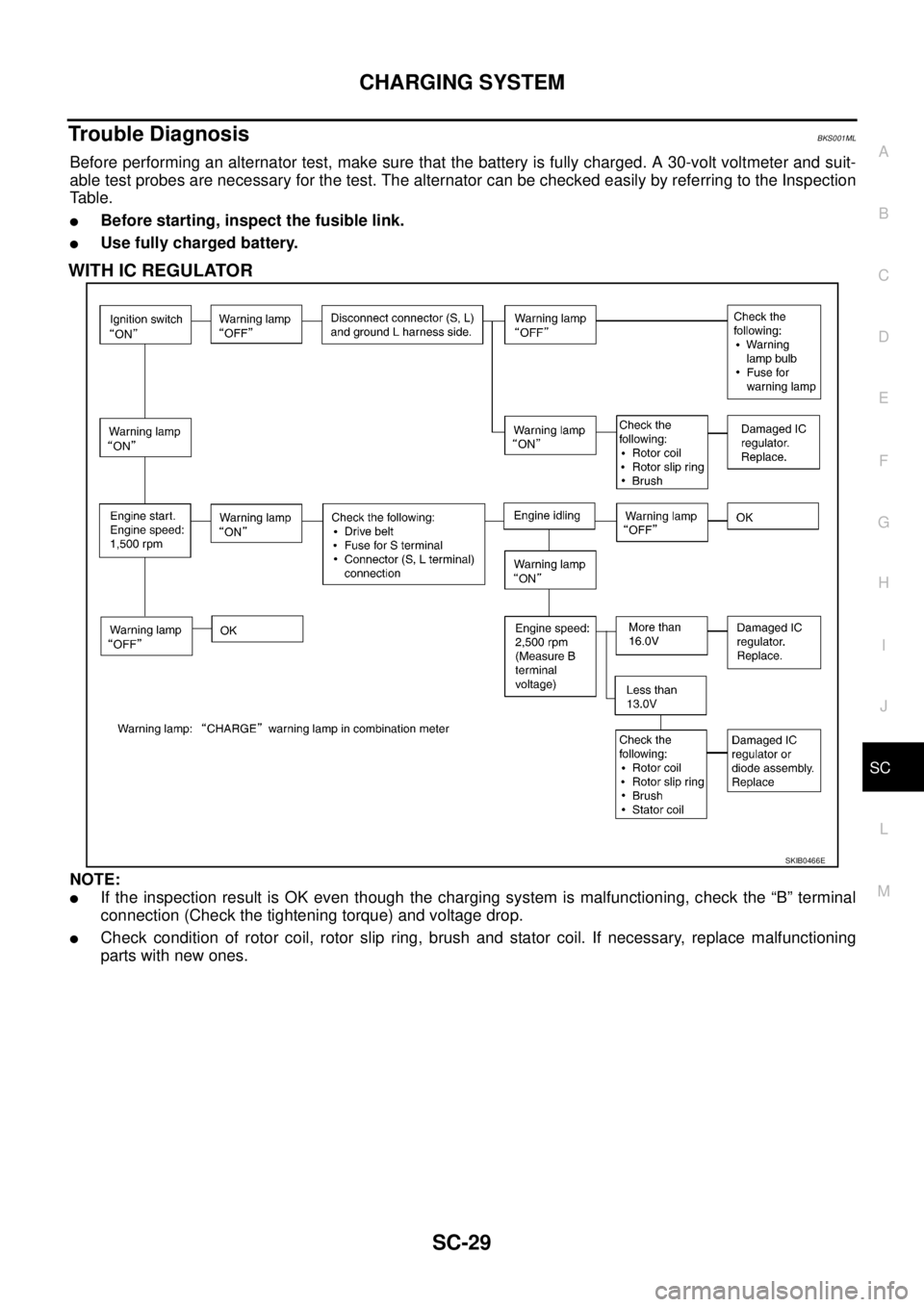

NISSAN TEANA 2003 Service Manual CHARGING SYSTEM SC-29 C D E F G H I J L MA B SC Trouble DiagnosisBKS001ML Before performing an alternator test, make sure that the battery is fully charged. A 30-volt voltmeter and suit- able test p

Page 3248 of 3502

NISSAN TEANA 2003 Service Manual SC-30 CHARGING SYSTEM Removal and InstallationBKS0027E VQ23DE AND VQ35DE MODELS Removal 1. Disconnect negative battery cable. 2. Remove engine undercover, using power tools. 3. Remove radiator. Refe
