Page 2137 of 3502

NISSAN TEANA 2003 Service Manual OIL PAN AND OIL STRAINER EM-29 [QR] C D E F G H I J K L MA EM a. Use scraper to remove old liquid gasket from mating surfaces. Also remove old liquid gasket from mating surface of oil pan (upper).

Page 2138 of 3502

NISSAN TEANA 2003 Service Manual EM-30 [QR] OIL PAN AND OIL STRAINER INSPECTION AFTER INSTALLATION 1. Check engine oil level and adjust engine oil. Refer to LU-7, "ENGINE OIL" . 2. Start engine, and make sure there is no leaks of

Page 2139 of 3502

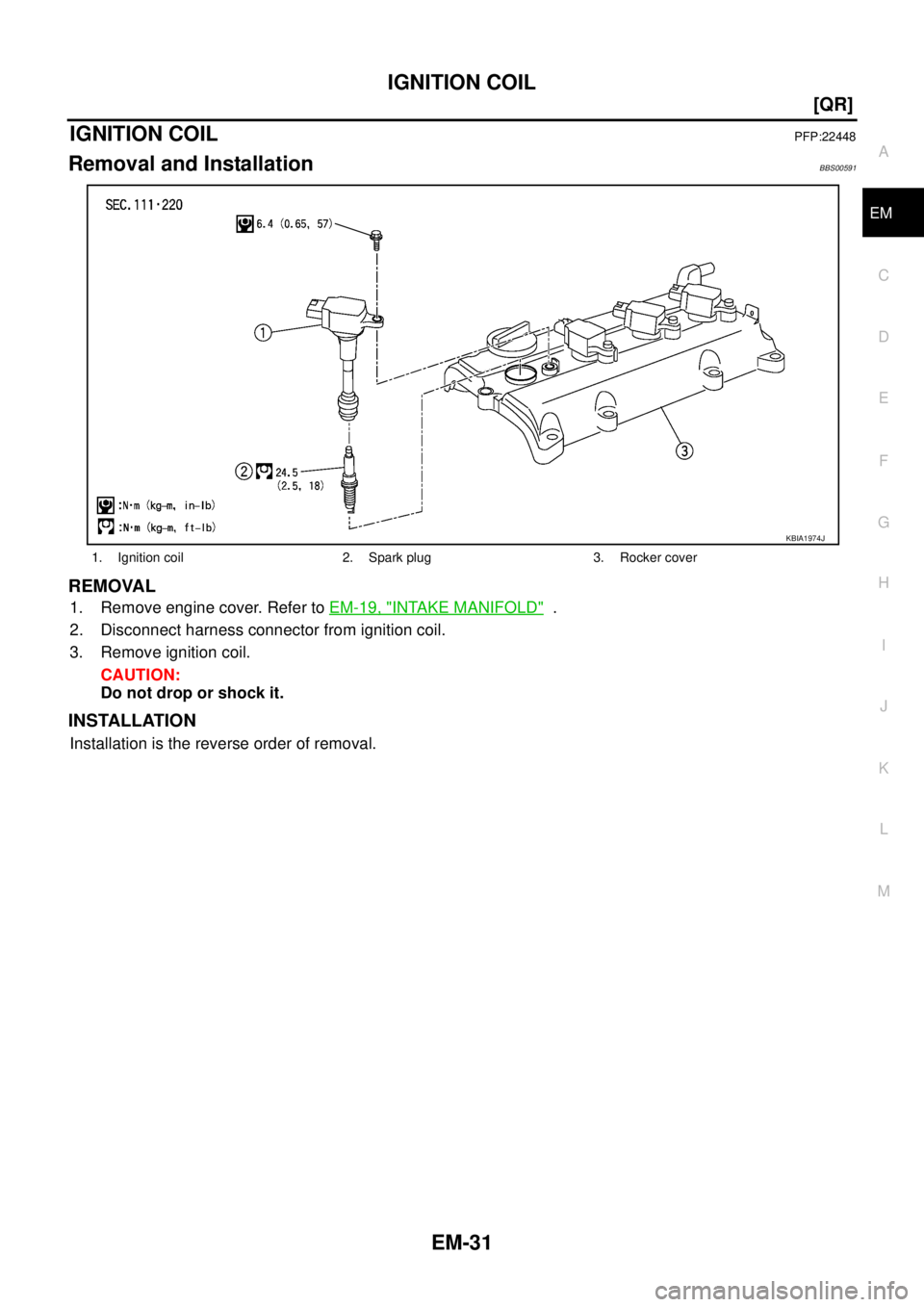

NISSAN TEANA 2003 Service Manual IGNITION COIL EM-31 [QR] C D E F G H I J K L MA EM IGNITION COILPFP:22448 Removal and InstallationBBS00591 REMOVAL 1. Remove engine cover. Refer to EM-19, "INTAKE MANIFOLD" . 2. Disconnect harness

Page 2140 of 3502

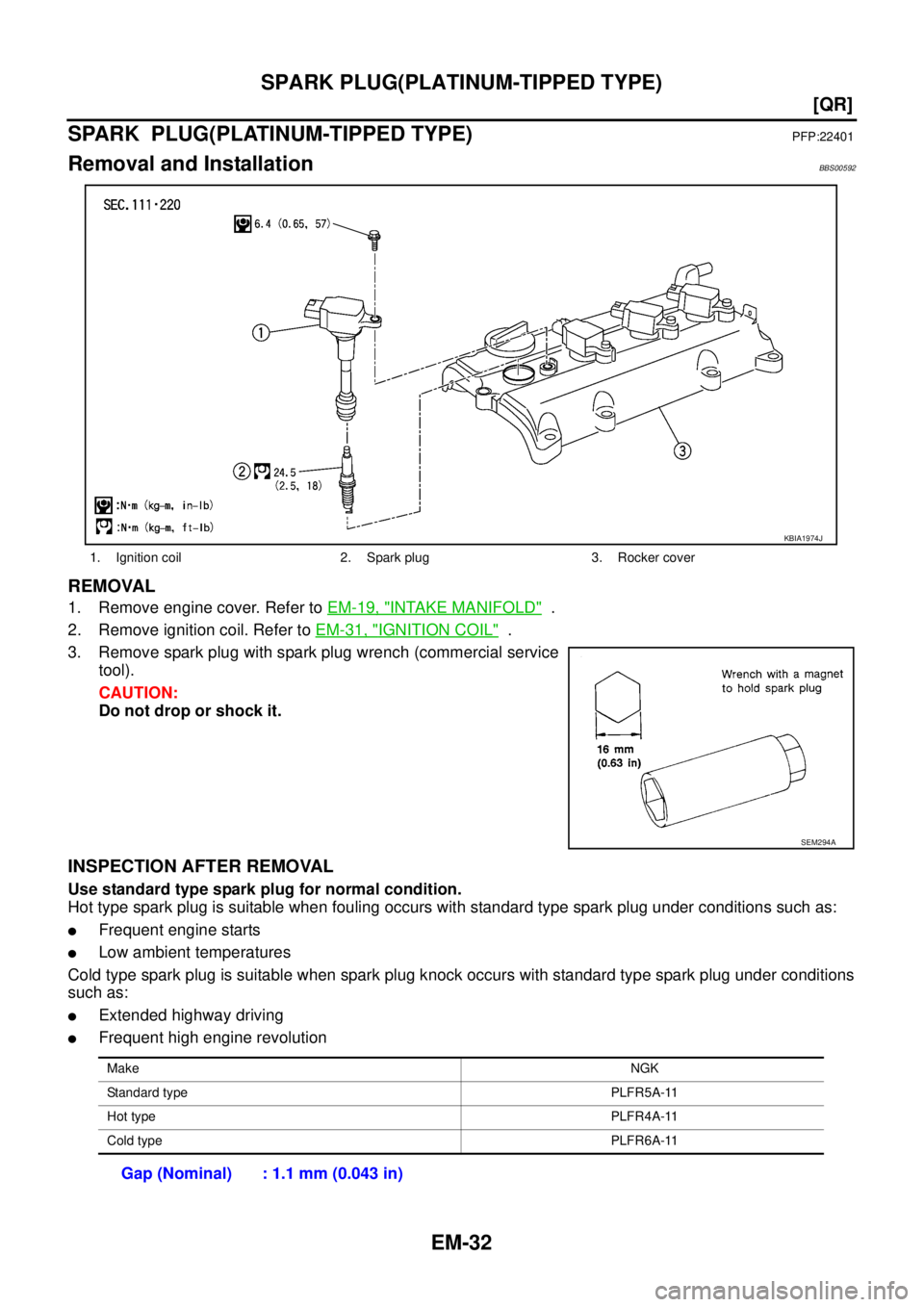

NISSAN TEANA 2003 Service Manual EM-32 [QR] SPARK PLUG(PLATINUM-TIPPED TYPE) SPARK PLUG(PLATINUM-TIPPED TYPE)PFP:22401 Removal and InstallationBBS00592 REMOVAL 1. Remove engine cover. Refer to EM-19, "INTAKE MANIFOLD" . 2. Remove

Page 2141 of 3502

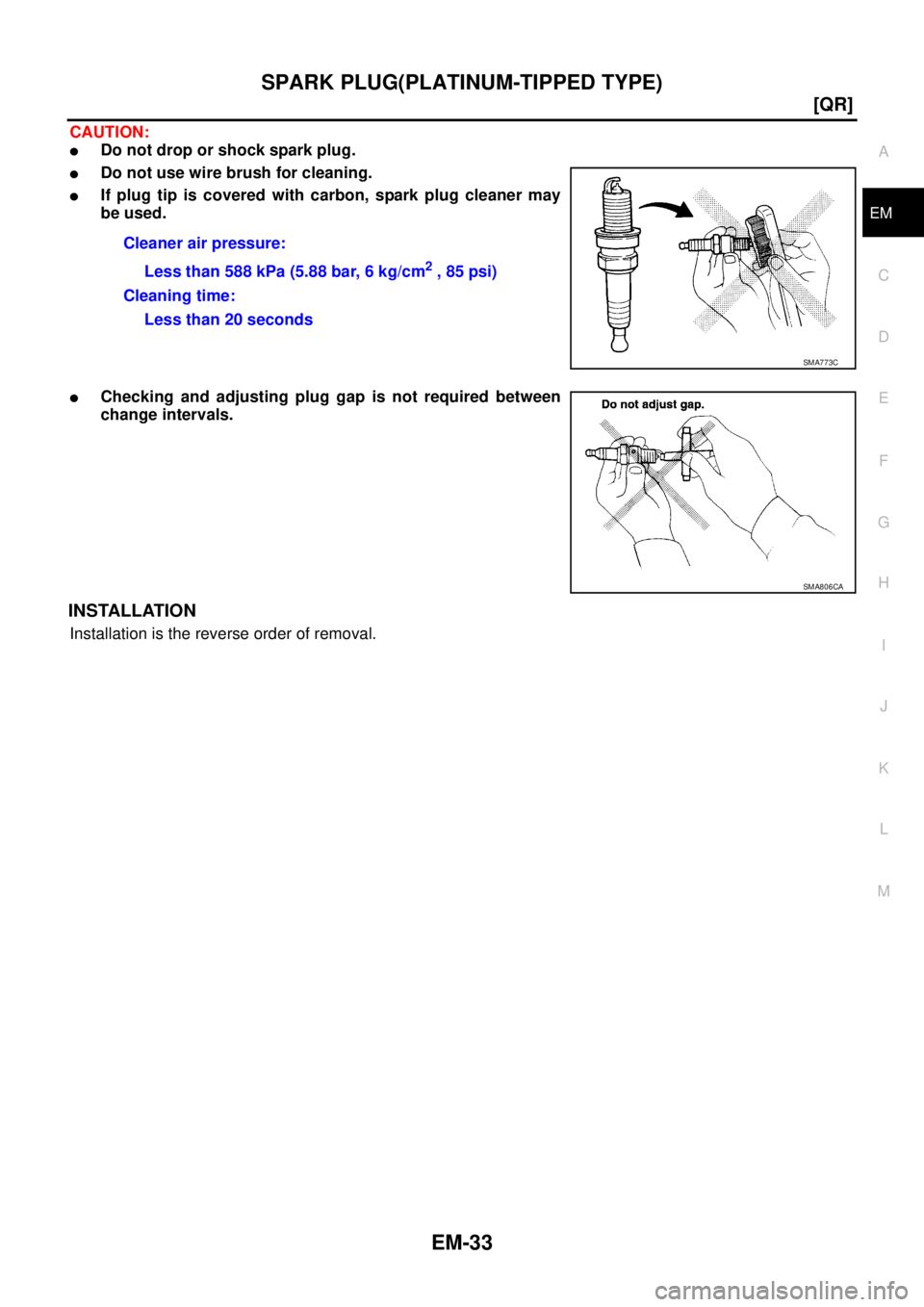

NISSAN TEANA 2003 Service Manual SPARK PLUG(PLATINUM-TIPPED TYPE) EM-33 [QR] C D E F G H I J K L MA EM CAUTION: Do not drop or shock spark plug. Do not use wire brush for cleaning. If plug tip is covered with carbon, spark plug

Page 2142 of 3502

NISSAN TEANA 2003 Service Manual EM-34 [QR] FUEL INJECTOR AND FUEL TUBE FUEL INJECTOR AND FUEL TUBEPFP:16600 Removal and InstallationBBS00593 CAUTION: Do not remove or disassemble parts unless instructed as shown in the figure. REM

Page 2143 of 3502

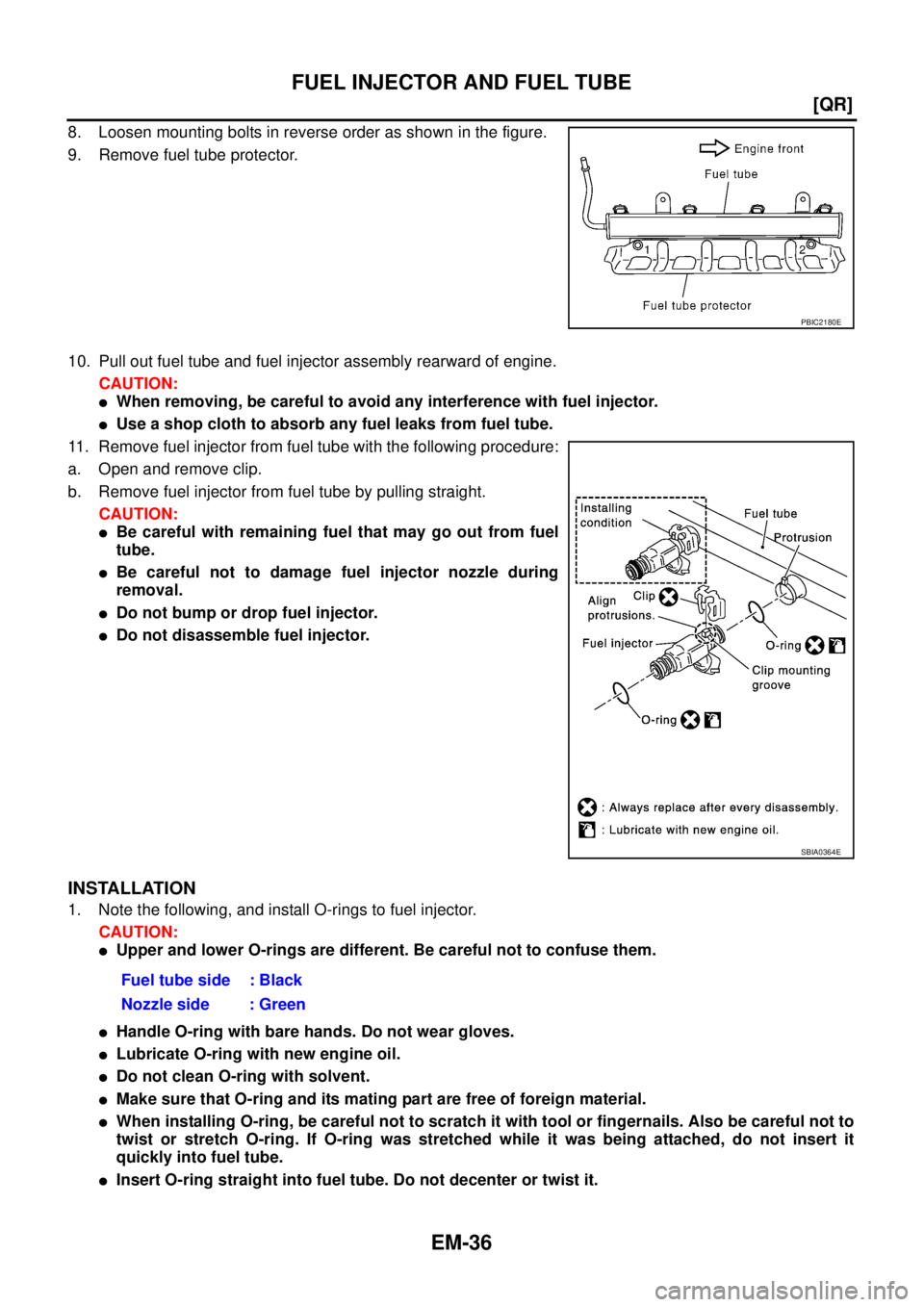

NISSAN TEANA 2003 Service Manual FUEL INJECTOR AND FUEL TUBE EM-35 [QR] C D E F G H I J K L MA EM a. Remove quick connector cap (engine side). b. With the sleeve side of quick connector release facing quick connector, install quick

Page 2144 of 3502

NISSAN TEANA 2003 Service Manual EM-36 [QR] FUEL INJECTOR AND FUEL TUBE 8. Loosen mounting bolts in reverse order as shown in the figure. 9. Remove fuel tube protector. 10. Pull out fuel tube and fuel injector assembly rearward of
