FRONT DOOR LOCK
BL-127
C
D
E
F
G
H
J
K
L
MA
B
BL
OUTSIDE HANDLE
Removal
1. Remove handle cover screws.
2. Remove handle cover, and then remove door antenna. (Vehicles with intelligent key systems only)
Installation
Install in the reverse order of removal.
1. Outside handle 2. Screw 3. Handle cover
4. Door request switch 5. Pawl 6. Door antenna
PIIB0285E
Page 786 of 3502
BL-128

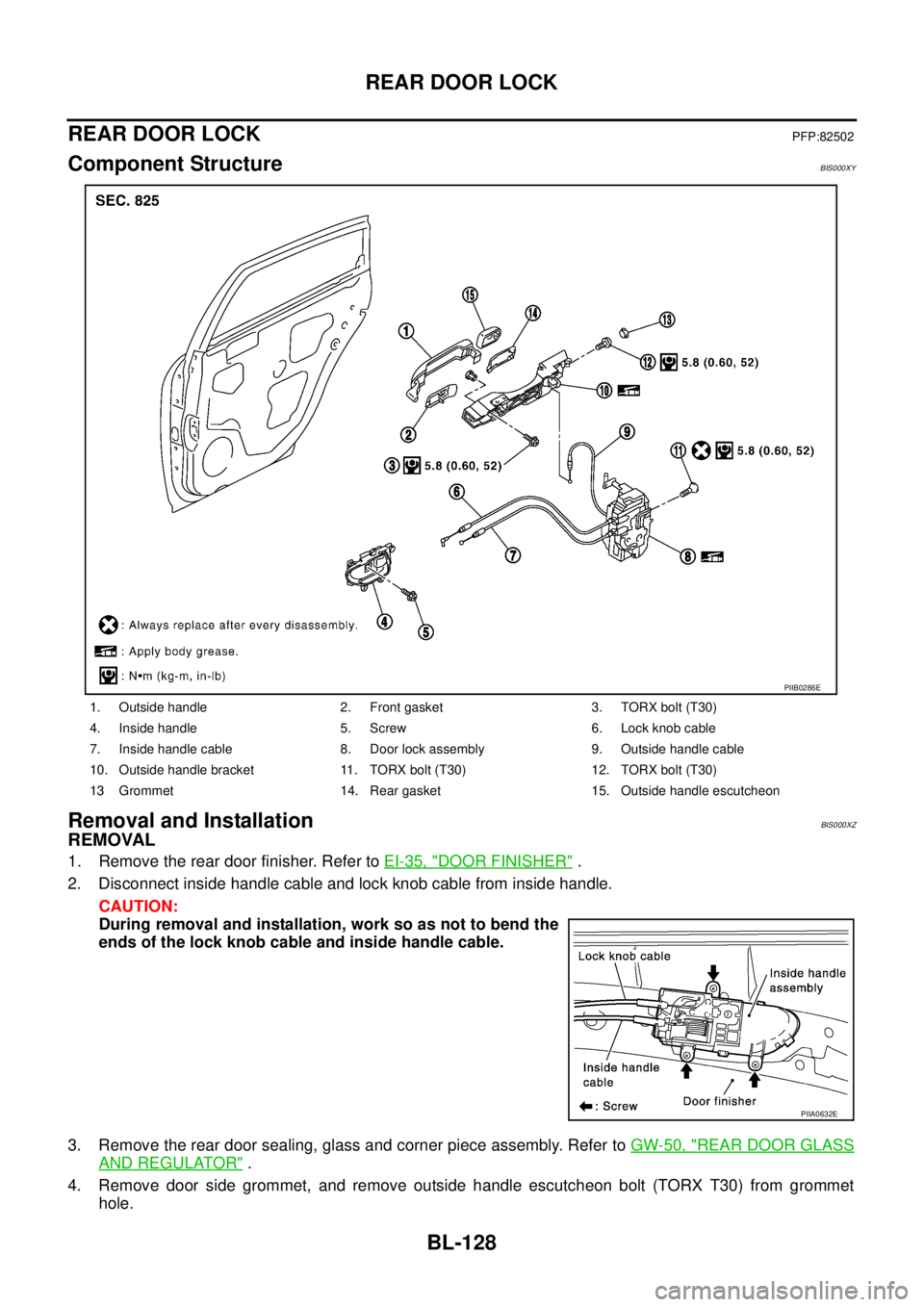

REAR DOOR LOCK
REAR DOOR LOCKPFP:82502
Component StructureBIS000XY
Removal and InstallationBIS000XZ
REMOVAL
1. Remove the rear door finisher. Refer to EI-35, "DOOR FINISHER" .
2. Disconnect inside handle cable and lock knob cable from inside handle.
CAUTION:
During removal and installation, work so as not to bend the
ends of the lock knob cable and inside handle cable.
3. Remove the rear door sealing, glass and corner piece assembly. Refer to GW-50, "
REAR DOOR GLASS
AND REGULATOR" .
4. Remove door side grommet, and remove outside handle escutcheon bolt (TORX T30) from grommet
hole.
1. Outside handle 2. Front gasket 3. TORX bolt (T30)
4. Inside handle 5. Screw 6. Lock knob cable
7. Inside handle cable 8. Door lock assembly 9. Outside handle cable
10. Outside handle bracket 11. TORX bolt (T30) 12. TORX bolt (T30)
13 Grommet 14. Rear gasket 15. Outside handle escutcheon
PIIB0286E
PIIA0632E
Page 787 of 3502
REAR DOOR LOCK
BL-129
C
D
E
F
G
H
J
K
L
MA
B
BL

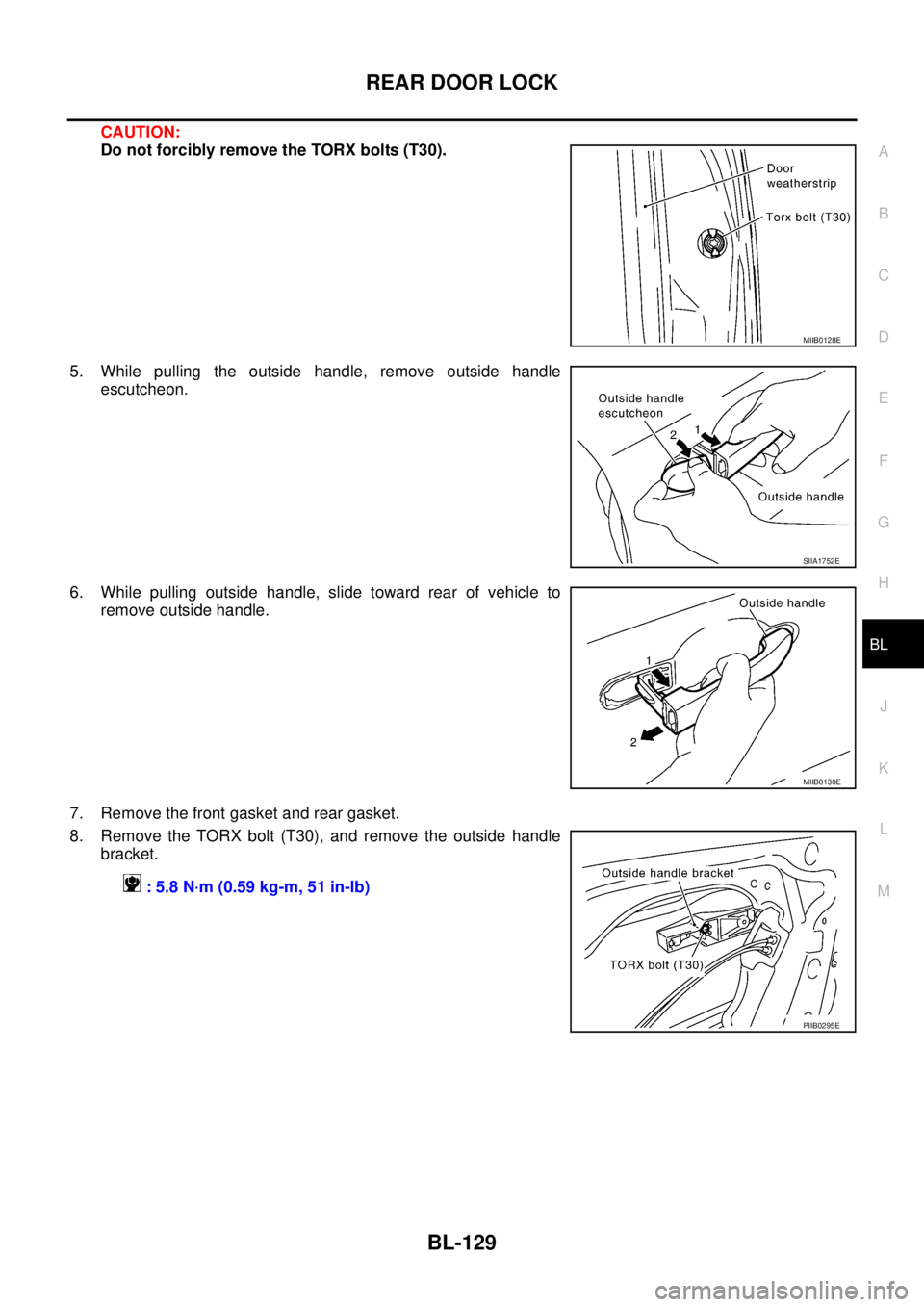

CAUTION:
Do not forcibly remove the TORX bolts (T30).
5. While pulling the outside handle, remove outside handle
escutcheon.
6. While pulling outside handle, slide toward rear of vehicle to
remove outside handle.
7. Remove the front gasket and rear gasket.
8. Remove the TORX bolt (T30), and remove the outside handle
bracket.
MIIB0128E
SIIA1752E
MIIB0130E
: 5.8 N·m (0.59 kg-m, 51 in-lb)
PIIB0295E
Page 788 of 3502
BL-130
REAR DOOR LOCK
9. While pulling outside handle, slide toward front of vehicle to
remove outside handle bracket.
10. Reach to separate outside handle cable connection.
11. Remove the TORX bolts (T30) of door lock assembly.
12. Disconnect the door lock actuator connector and remove door lock assembly.
INSTALLATION
Note the following, and install in the reverse order of removal.
CAUTION:
To install each rod, be sure to rotate the rod holder until a click is felt.
Before installing door lock assembly, apply Anti-Corrosion Wax M-97 Super or equivalent onto
mounting seat on the body.
Place the outside handle bracket cable on the rear of door lock assembly before installing.
PIIB0580E
MIIB0134E
MIIB0132E
Page 789 of 3502
TRUNK LID
BL-131
C
D
E
F
G
H
J
K
L
MA
B
BL

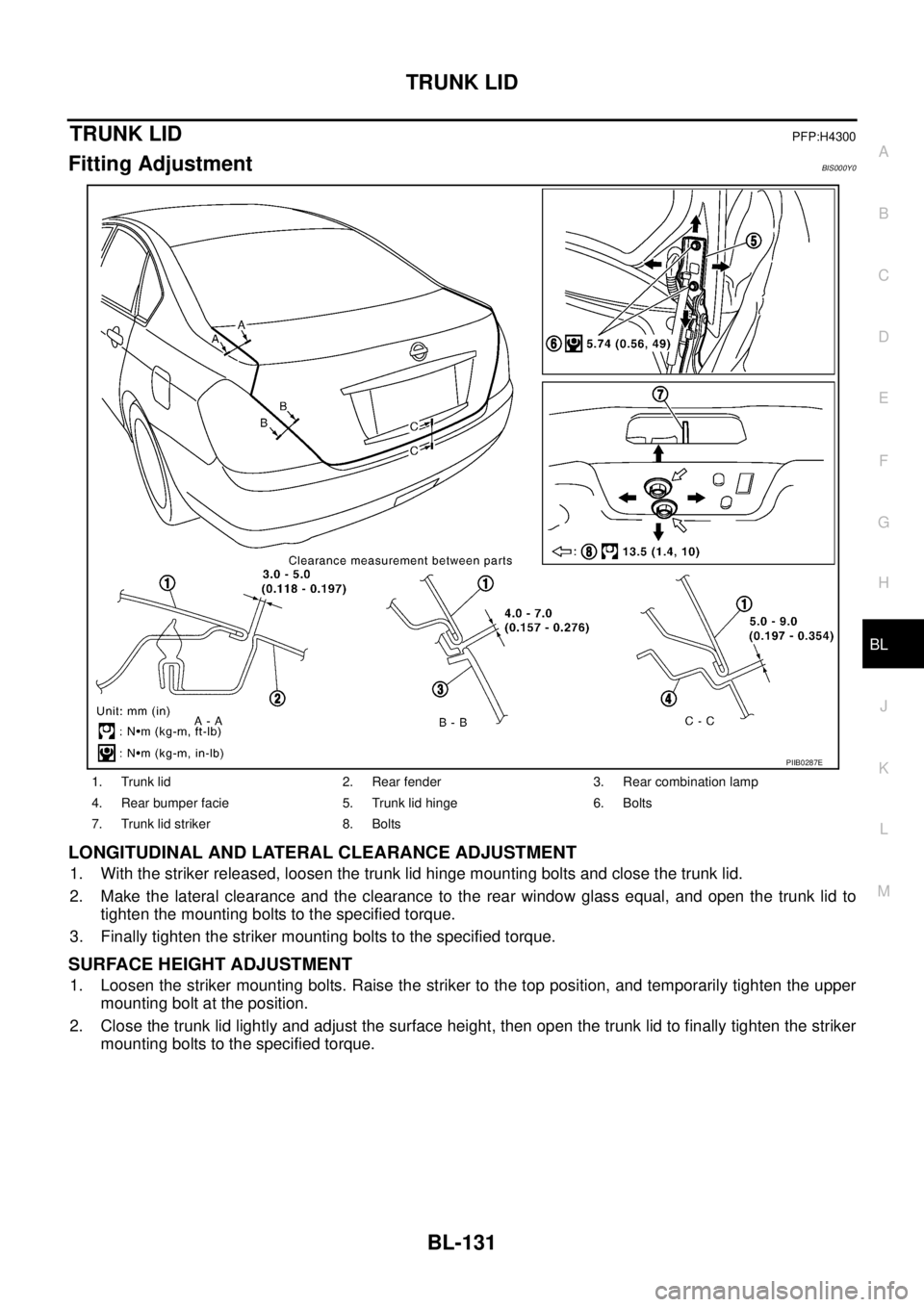

TRUNK LIDPFP:H4300
Fitting AdjustmentBIS000Y0
LONGITUDINAL AND LATERAL CLEARANCE ADJUSTMENT
1. With the striker released, loosen the trunk lid hinge mounting bolts and close the trunk lid.
2. Make the lateral clearance and the clearance to the rear window glass equal, and open the trunk lid to
tighten the mounting bolts to the specified torque.
3. Finally tighten the striker mounting bolts to the specified torque.
SURFACE HEIGHT ADJUSTMENT
1. Loosen the striker mounting bolts. Raise the striker to the top position, and temporarily tighten the upper
mounting bolt at the position.
2. Close the trunk lid lightly and adjust the surface height, then open the trunk lid to finally tighten the striker
mounting bolts to the specified torque.
1. Trunk lid 2. Rear fender 3. Rear combination lamp
4. Rear bumper facie 5. Trunk lid hinge 6. Bolts
7. Trunk lid striker 8. Bolts
PIIB0287E
Page 790 of 3502
BL-132
TRUNK LID

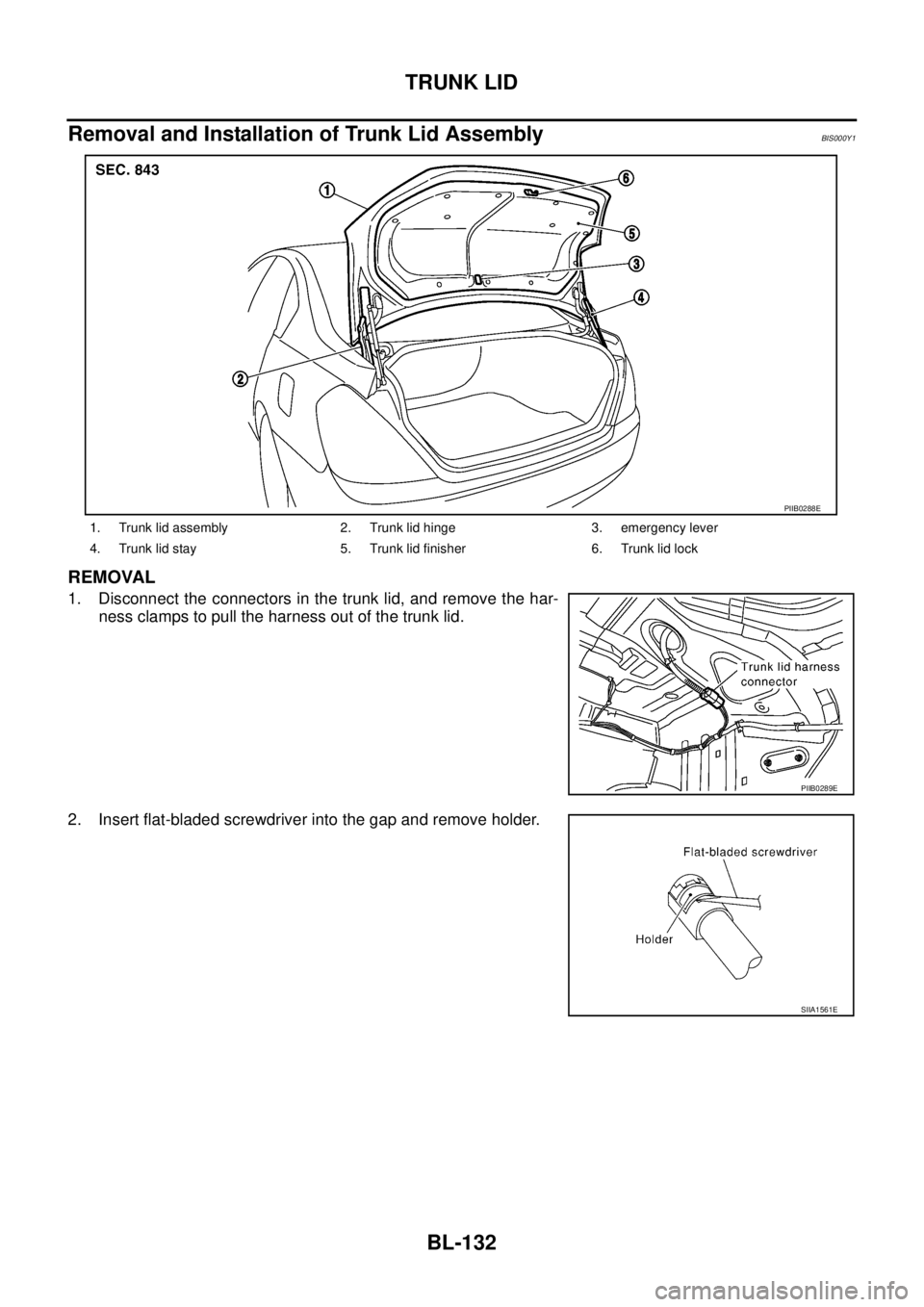

Removal and Installation of Trunk Lid AssemblyBIS000Y1
REMOVAL
1. Disconnect the connectors in the trunk lid, and remove the har-
ness clamps to pull the harness out of the trunk lid.
2. Insert flat-bladed screwdriver into the gap and remove holder.
1. Trunk lid assembly 2. Trunk lid hinge 3. emergency lever
4. Trunk lid stay 5. Trunk lid finisher 6. Trunk lid lock
PIIB0288E
PIIB0289E
SIIA1561E
Page 791 of 3502

TRUNK LID
BL-133
C
D
E
F
G
H
J
K
L
MA
B
BL
3. Remove trunk lid stay.
WARNING:
Body injury may occur if no supporting rod is holding the
trunk lid open when removing the damper stay.
4. Remove the trunk lid hinge mounting bolts, and remove the
trunk lid assembly.
CAUTION:
Operate with two workers, because of its heavy weight.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
After installing, apply touch-up paint (the body color) onto the head of the hinge mounting bolts.
After installing, check the trunk lid adjustment. Refer to BL-131, "Fitting Adjustment" .
Trunk Lid Stay Removal and InstallationBIS000Y2
REMOVAL
1. Insert flat-bladed screwdriver into the gap and remove holder.
2. Remove trunk lid stay on the trunk lid.
3. Remove the stud bolts, and trunk lid stay.
WARNING:
Body injury may occur if no supporting rod is holding the trunk
lid open when removing the damper stay.
INSTALLATION
1. Install in the reverse order of removal.
2. After installing, check the operation.
PIIB0290E
SIIA1561E
PIIB0290E
Page 792 of 3502

BL-134
TRUNK LID

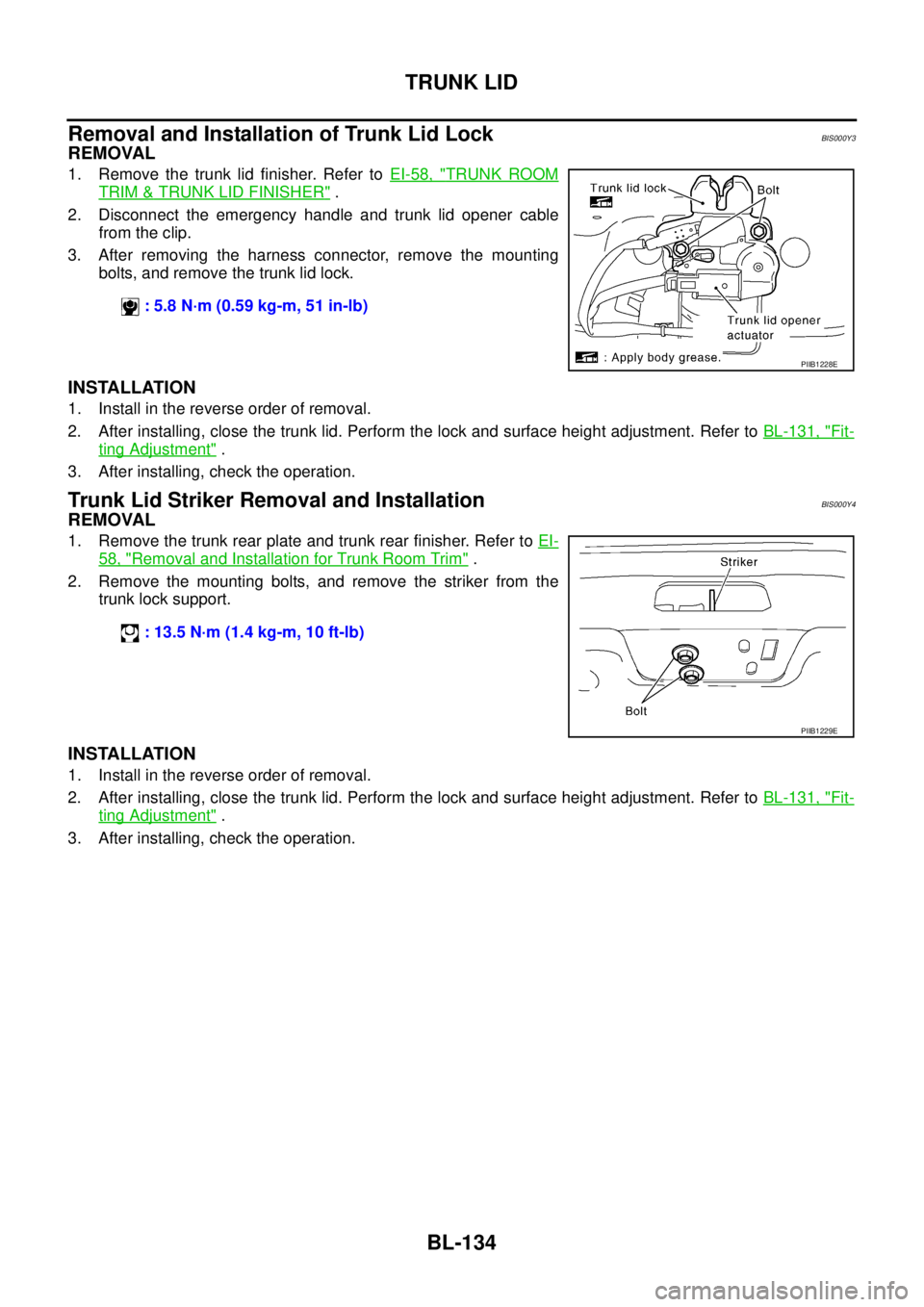

Removal and Installation of Trunk Lid Lock BIS000Y3
REMOVAL
1. Remove the trunk lid finisher. Refer to EI-58, "TRUNK ROOM
TRIM & TRUNK LID FINISHER" .
2. Disconnect the emergency handle and trunk lid opener cable
from the clip.
3. After removing the harness connector, remove the mounting
bolts, and remove the trunk lid lock.
INSTALLATION
1. Install in the reverse order of removal.
2. After installing, close the trunk lid. Perform the lock and surface height adjustment. Refer to BL-131, "
Fit-
ting Adjustment" .
3. After installing, check the operation.
Trunk Lid Striker Removal and InstallationBIS000Y4
REMOVAL
1. Remove the trunk rear plate and trunk rear finisher. Refer to EI-
58, "Removal and Installation for Trunk Room Trim" .
2. Remove the mounting bolts, and remove the striker from the
trunk lock support.
INSTALLATION
1. Install in the reverse order of removal.
2. After installing, close the trunk lid. Perform the lock and surface height adjustment. Refer to BL-131, "
Fit-
ting Adjustment" .
3. After installing, check the operation. : 5.8 N·m (0.59 kg-m, 51 in-lb)
PIIB1228E
: 13.5 N·m (1.4 kg-m, 10 ft-lb)
