Page 313 of 3502

NISSAN TEANA 2003 Service Manual REPAIR FOR COMPONENT PARTS AT-305 D E F G H I J K L MA B AT Do not align snap ring gap with spring retainer stopper. 5. Install drive plates (3), driven plates (4) and retaining plate (2). Refer

Page 314 of 3502

NISSAN TEANA 2003 Service Manual AT-306 REPAIR FOR COMPONENT PARTS 9. Install seal rings to input shaft assembly (high clutch drum). CAUTION: Roll paper around seal rings to prevent seal rings from spreading. SCIA4890E SAT198D

Page 315 of 3502

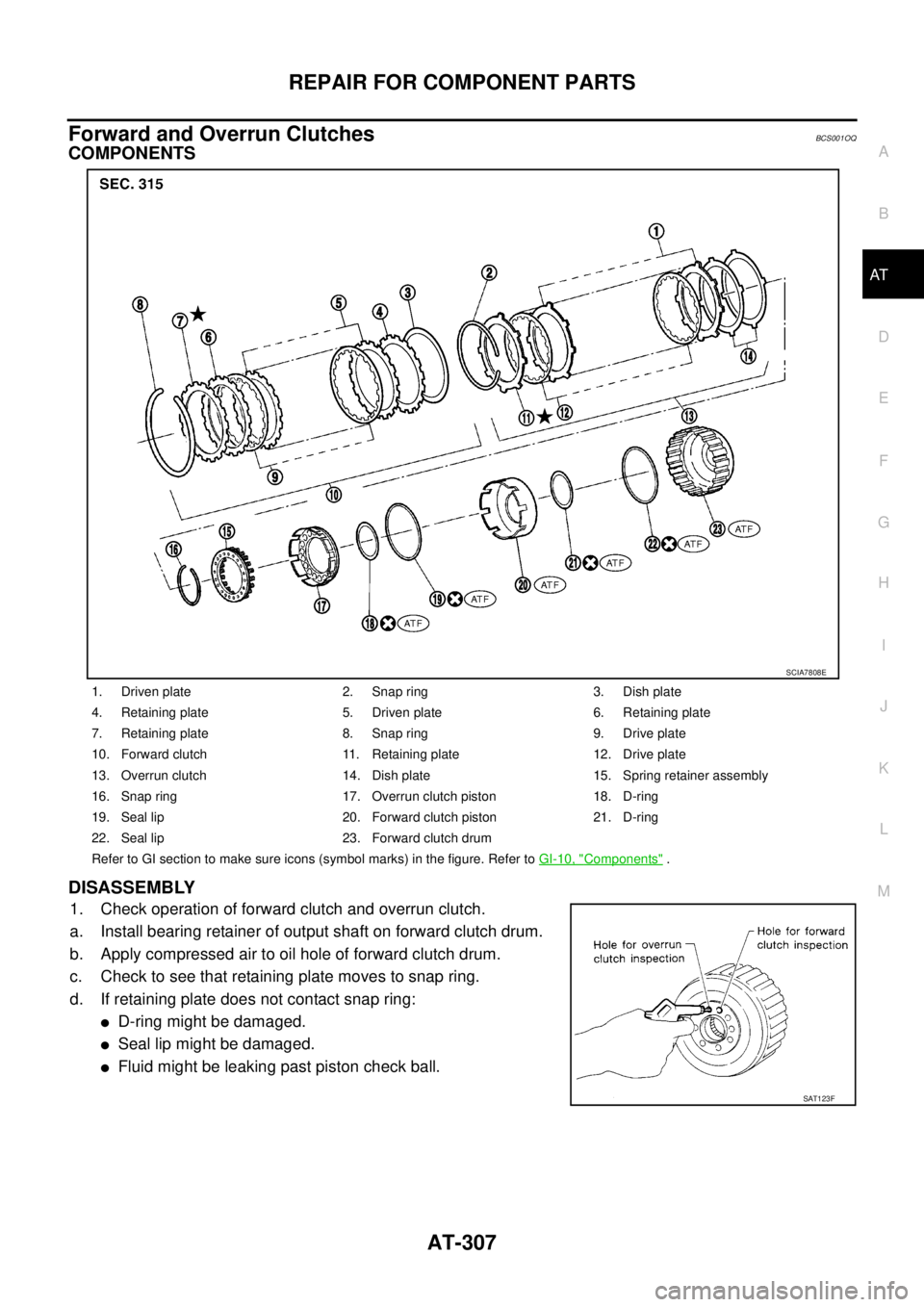

NISSAN TEANA 2003 Service Manual REPAIR FOR COMPONENT PARTS AT-307 D E F G H I J K L MA B AT Forward and Overrun ClutchesBCS001OQ COMPONENTS DISASSEMBLY 1. Check operation of forward clutch and overrun clutch. a. Install bearing re

Page 316 of 3502

NISSAN TEANA 2003 Service Manual AT-308 REPAIR FOR COMPONENT PARTS 2. Remove snap ring for forward clutch with flat-bladed screw- driver. 3. Remove drive plates, driven plates, retaining plates and dish plate for forward clutch. 4.

Page 317 of 3502

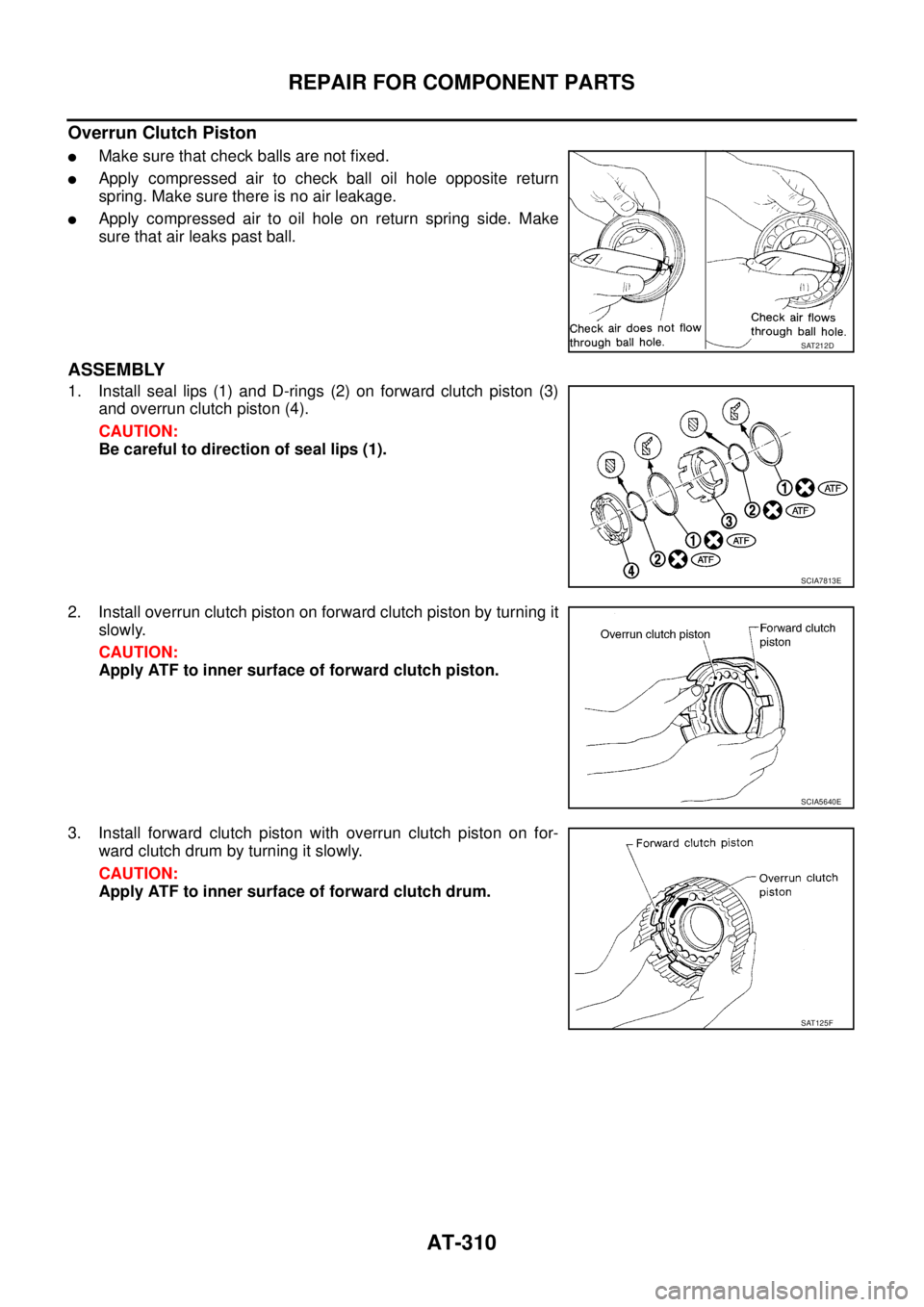

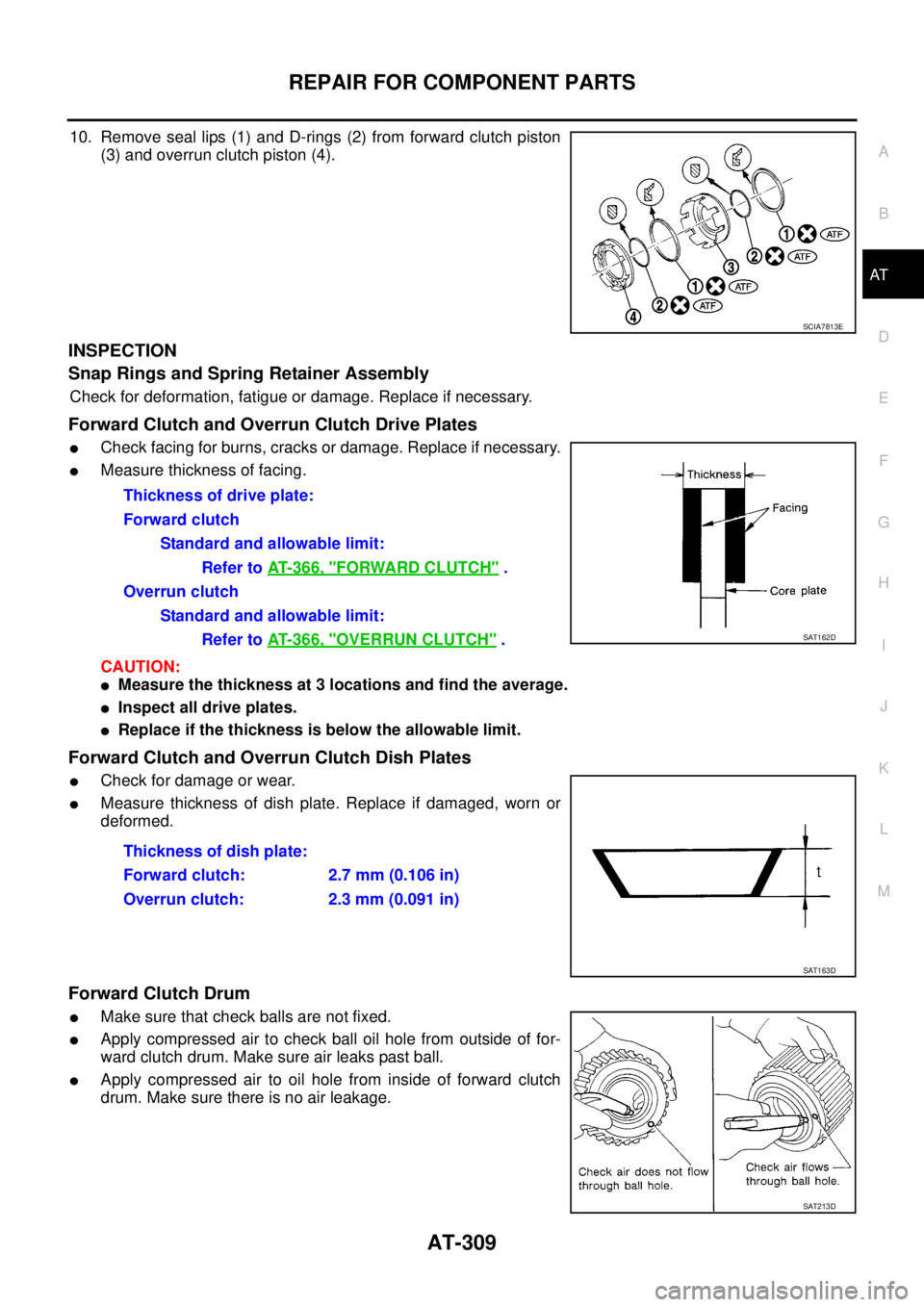

NISSAN TEANA 2003 Service Manual REPAIR FOR COMPONENT PARTS AT-309 D E F G H I J K L MA B AT 10. Remove seal lips (1) and D-rings (2) from forward clutch piston (3) and overrun clutch piston (4). INSPECTION Snap Rings and Spring Re

Page 318 of 3502

NISSAN TEANA 2003 Service Manual AT-310 REPAIR FOR COMPONENT PARTS Overrun Clutch Piston Make sure that check balls are not fixed. Apply compressed air to check ball oil hole opposite return spring. Make sure there is no air leak

Page 319 of 3502

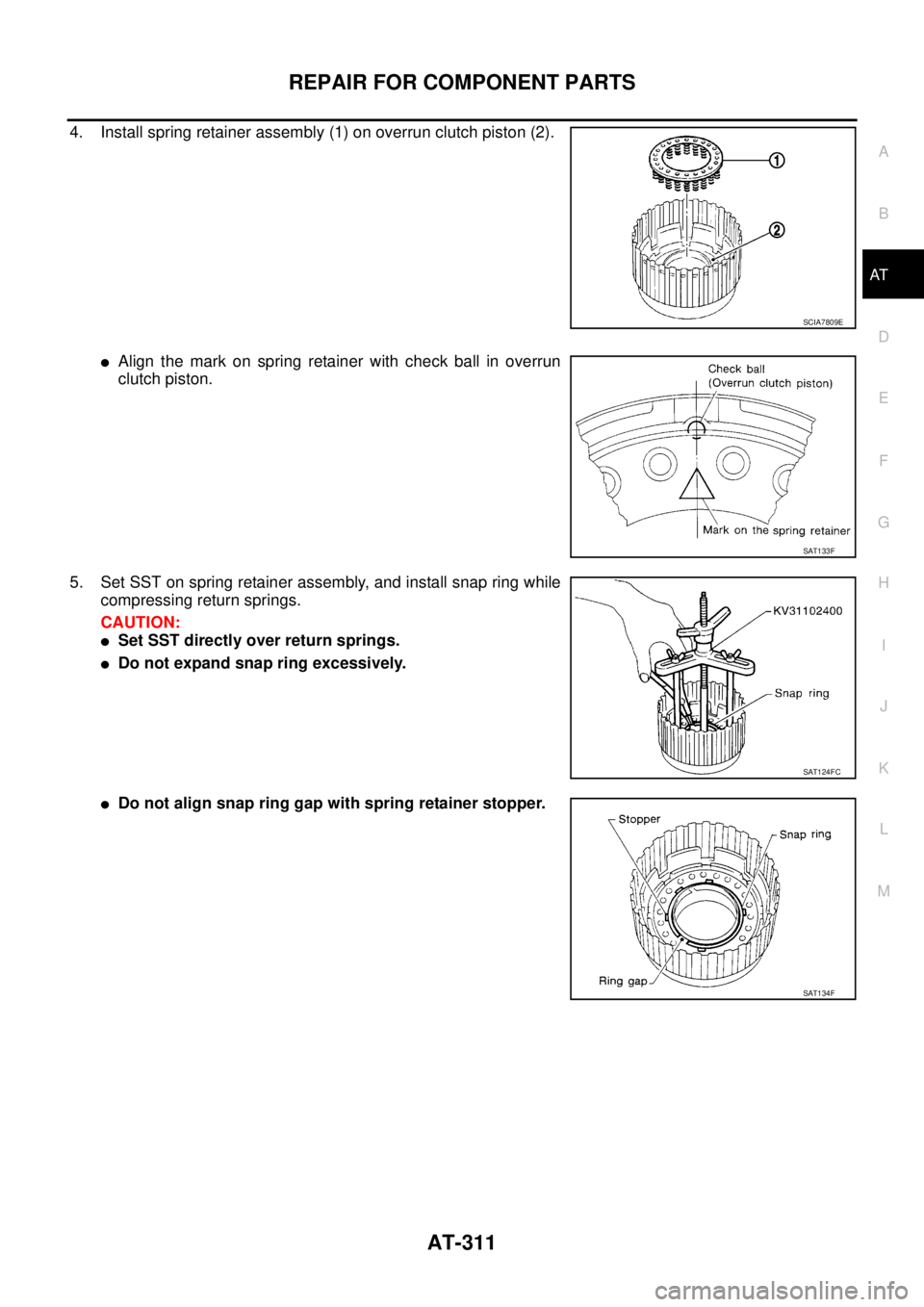

NISSAN TEANA 2003 Service Manual REPAIR FOR COMPONENT PARTS AT-311 D E F G H I J K L MA B AT 4. Install spring retainer assembly (1) on overrun clutch piston (2). Align the mark on spring retainer with check ball in overrun clutch

Page 320 of 3502

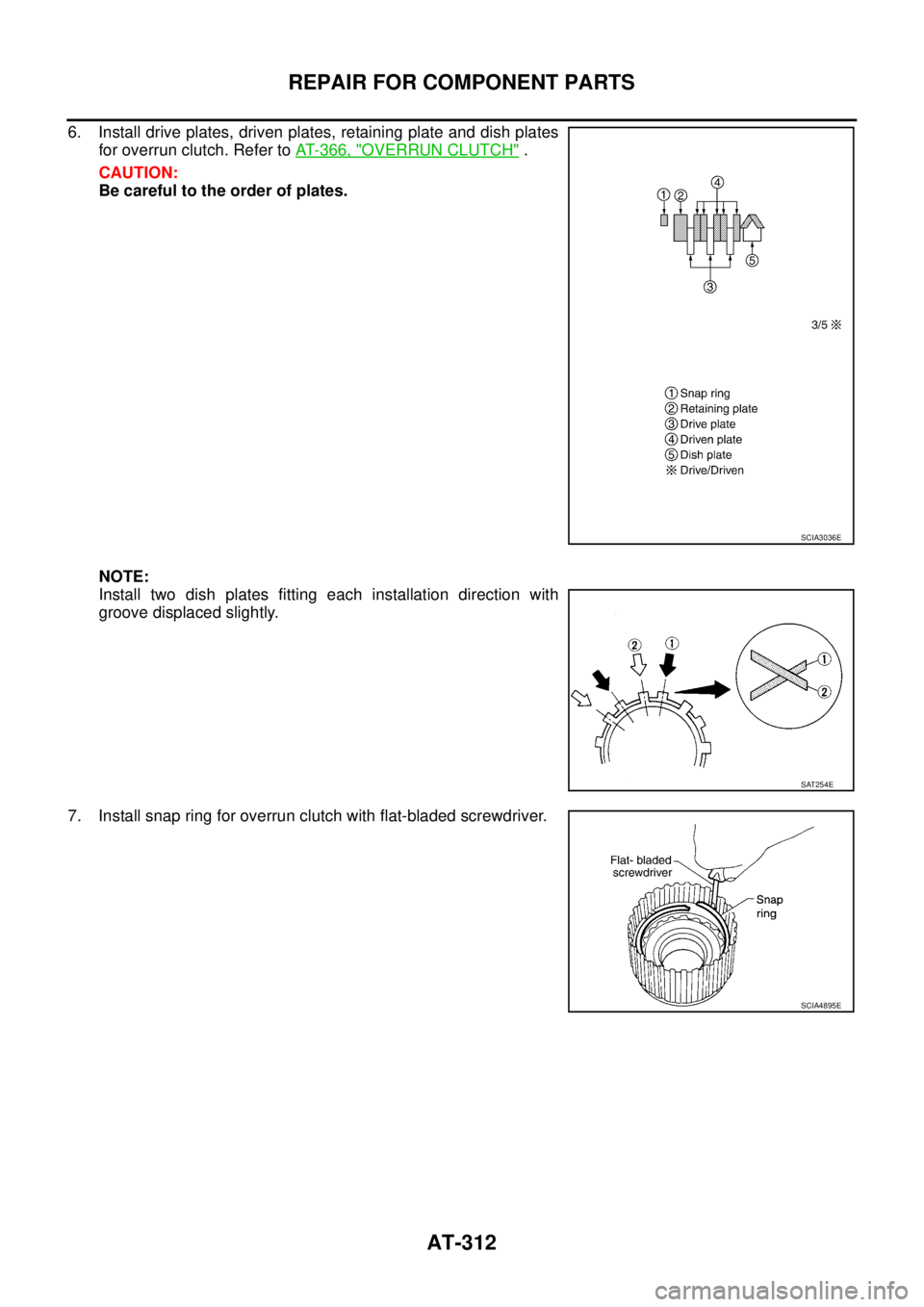

NISSAN TEANA 2003 Service Manual AT-312 REPAIR FOR COMPONENT PARTS 6. Install drive plates, driven plates, retaining plate and dish plates for overrun clutch. Refer to AT- 3 6 6 , " OVERRUN CLUTCH" . CAUTION: Be careful to the ord
