Page 585 of 3502

INTEGRATED DISPLAY SYSTEM
AV-57
C
D
E
F
G
H
I
J
L
MA
B
AV
Symptom ChartBKS0022B
Symptom Check item
All images are not displayed.
Display unit power supply and ground circuit
Display unit
Screen does not switch to nighttime mode after the
lighting switch is turned ON.
Display unit Illumination signal circuit
Display unit
TRIP and FUEL ECON screen do not appear.
Display unit ignition signal circuit
Display unit
Trip odometer (DIST) indication is malfunction-
ing.
Average vehicle speed (AVG) indication is mal-
functioning.
Vehicle speed signal circuit between unified meter and A/C amp. and display
unit
Display unit
Unified meter and A/C amp.
Average fuel consumption (AVG) indication is mal-
functioning.
Vehicle speed signal circuit between unified meter and A/C amp. and display
unit
CAN communication signal circuit
NOTE:
Diagnosis Procedure
Connect CONSULT-II. Select “METER A/C AMP”, and then, select “SELF-
DIAG RESULTS”. Check that “CAN COMM CIRC [U1000]” is indicated as the
diagnosis result. The communication with the unified meter and A/C amp. is
normal if not indicated. Repair the root cause if indicated. Refer to DI-32, "
DTC
[U1000] CAN Communication Circuit" .
Display unit
Unified meter and A/C amp.
Distance to empty (DTE) indication is malfunction-
ing.
CAN communication signal circuit
NOTE:
Diagnosis Procedure
Connect CONSULT-II. Select “METER A/C AMP”, and then, select “SELF-
DIAG RESULTS”. Check that “CAN COMM CIRC [U1000]” is indicated as the
diagnosis result. The communication with the unified meter and A/C amp. is
normal if not indicated. Repair the root cause if indicated. Refer to DI-32, "
DTC
[U1000] CAN Communication Circuit" .
Display unit
Unified meter and A/C amp.
Unable to operate system with A/C and AV switch. Refer to AV- 5 8 , "
Unable to Operate System with A/C and AV Switch"
Page 586 of 3502

AV-58
INTEGRATED DISPLAY SYSTEM
Unable to Operate System with A/C and AV SwitchBKS0022J
1. CHECK CONDITION
1. Turn ignition switch ON.
2. Check if an image is displayed on the screen.
Is an image displayed on the screen?
YES >> GO TO 2.
NO >> Repair malfunctioning part. Refer to AV- 5 7 , "
Symptom Chart" .
2. SELF-DIAGNOSIS OF A/C AND AV SWITCH
Start self-diagnosis of A/C and AV switch, and check the self-diagnosis result. Refer to AV- 5 4 , "
A/C and AV
Switch Self-Diagnosis Function" .
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. CHECK A/C AND AV SWITCH POWER SUPPLY AND GROUND CIRCUIT
1. Check voltage between A/C and AV switch harness connector
terminal and ground.
2. Turn ignition switch OFF.
3. Disconnect A/C and AV switch connector.
4. Check continuity between A/C and AV switch harness connector
M40 terminal 13 and ground.
OK or NG
OK >> Replace A/C and AV switch.
NG >> Repair harness or connector.
Terminals
OFF ACC ON (+)
(–)
Connector Terminal
M40 7 Ground 0 VBattery
voltageBattery
voltage
13 – Ground : Continuity should exist.
SKIB8804E
SKIB8805E
Page 587 of 3502
INTEGRATED DISPLAY SYSTEM
AV-59
C
D
E
F
G
H
I
J
L
MA
B
AV
4. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect display unit and A/C and AV switch connectors.
3. Check continuity between display unit harness connector (A)
M47 terminals 11, 13 and A/C and AV switch harness connector
(B) M40 terminals 12, 11.
4. Check continuity between display unit harness connector (A)
M47 terminals 11, 13 and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK A/C AND AV SWITCH AND DISPLAY UNIT
1. Replace A/C and AV switch or display unit.
2. Make sure system can be operated by A/C and AV switch.
OK or NG
OK >> INSPECTION END
NG >> Replace the other unit.11 – 12 : Continuity should exist.
13 – 11 : Continuity should exist.
11, 13 – Ground : Continuity should not exist.
SKIB8806E
Page 588 of 3502
AV-60
INTEGRATED DISPLAY SYSTEM
Removal and Installation of Display UnitBKS0022K
REMOVAL
1. Remove cluster lid D. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove screws (4), and remove display unit.
3. Remove screws (4) and nylon washers (4), and then remove
display finisher.
4. Remove screws (4), and remove bracket.
INSTALLATION
Installation is the reverse order of removal.
Removal and Installation of A/C and AV SwitchBKS0022L
REMOVAL
Remove A/C and AV switch integral with audio unit. Refer to AV- 1 5 , "Removal and Installation of Audio Unit" .
INSTALLATION
Installation is the reverse order of removal.
SKIA6307E
SKIA6779E
Page 589 of 3502

INTEGRATED COLOR DISPLAY SYSTEM
AV-61
C
D
E
F
G
H
I
J
L
MA
B
AV
INTEGRATED COLOR DISPLAY SYSTEMPFP:28090
System DescriptionBKS0027J
For system operation information, refer to Owner's Manual.
INTEGRATED COLOR DISPLAY SYSTEM
Each control unit that comprises the system is connected with a communication circuit. It transmits/
receives data signals including request signals and response signals, and controls the system.
The display control unit transmits/receives data signals to/from each control unit with CAN communica-
tion. It performs an arithmetical operation on fuel information values by using data obtained from the con-
trol units, and then displays the calculated values on the screen.
The display control unit receives vehicle speed signals that are transmitted from the unified meter and A/
C amp., performs an arithmetical operation on drive information values, and then displays the calculated
values on the screen.
The images displayed on the monitor screen contain display control unit-generated RGB images, and rear
view images transmitted from the rear view camera control unit.
The display control unit controls image switching and image quality adjustments by communications with
the display.
REAR VIEW MONITOR
A rear view monitor was set to vehicle, which can check rearward on screen when backing up the vehicle.
For easier recognition of the vehicle width and the distance to the objects, the guide lines of distances and
rear are combined with the rear view image.
Image quality of the rear view image and of the RGB image can be adjusted separately.
SKIB8807E
Page 590 of 3502

AV-62
INTEGRATED COLOR DISPLAY SYSTEM
Component DescriptionBKS0027K
DISPLAY CONTROL UNIT
Display control unit draws a status of the audio system and air
conditioner system, a TRIP screen, a FUEL ECONOMY screen,
etc., and transmits the image signals to the display screen.
It receives operation signals of audio system and air conditioner
system from A/C and AV switch, and transmits the operation sig-
nal of audio system to the audio unit through the communication
line and transmits the operation signal of air conditioner system
to the unified meter and A/C amp. through CAN communication.
Display signal from audio unit is transmitted to display control
unit through the communication line, and then the operating
state of the audio system is displayed in the screen.
Display signal from unified meter and A/C amp. is transmitted to
display control unit through the CAN communication, and then the operating state of the air conditioner
system is displayed in the screen.
DISPLAY
Images on the display include RGB image and rear view image
displayed when setting the select lever to R range.
Display control unit controls images on the display.
A/C AND AV SWITCH
A/C and AV switch, an integrated combination of audio system
and air conditioner system switches, are adopted.
Operation signal of audio system is transmitted to the audio unit
through display control unit with the communication line.
Operation signal of air conditioner system is transmitted to uni-
fied meter and A/C amp. through display control unit with CAN
communication.
REAR VIEW CAMERA
Rear view camera transmits rear view image signals to the dis-
play screen through the rear view camera control unit, when
reverse signal is input.
The rear view image is a mirror image reversed left and right
that is the same as seeing rear side with a room mirror.
SKIB0800E
SKIB8808E
SKIB8808E
SKIB0802E
Page 591 of 3502
INTEGRATED COLOR DISPLAY SYSTEM
AV-63
C
D
E
F
G
H
I
J
L
MA
B
AV
REAR VIEW CAMERA CONTROL UNIT
Rear view camera control unit supplies power to the rear view
camera, and then transmits the rear view image from the rear
view camera to the display screen when reverse signal is input.
Guiding lines of vehicle width and distance from rear end are
composited and displayed on rear view image.
CAN Communication UnitBKS0027L
Refer to LAN-49, "CAN System Specification Chart" .
Component Parts LocationBKS0027M
SKIB0803E
SKIB8809E
Page 592 of 3502
AV-64
INTEGRATED COLOR DISPLAY SYSTEM

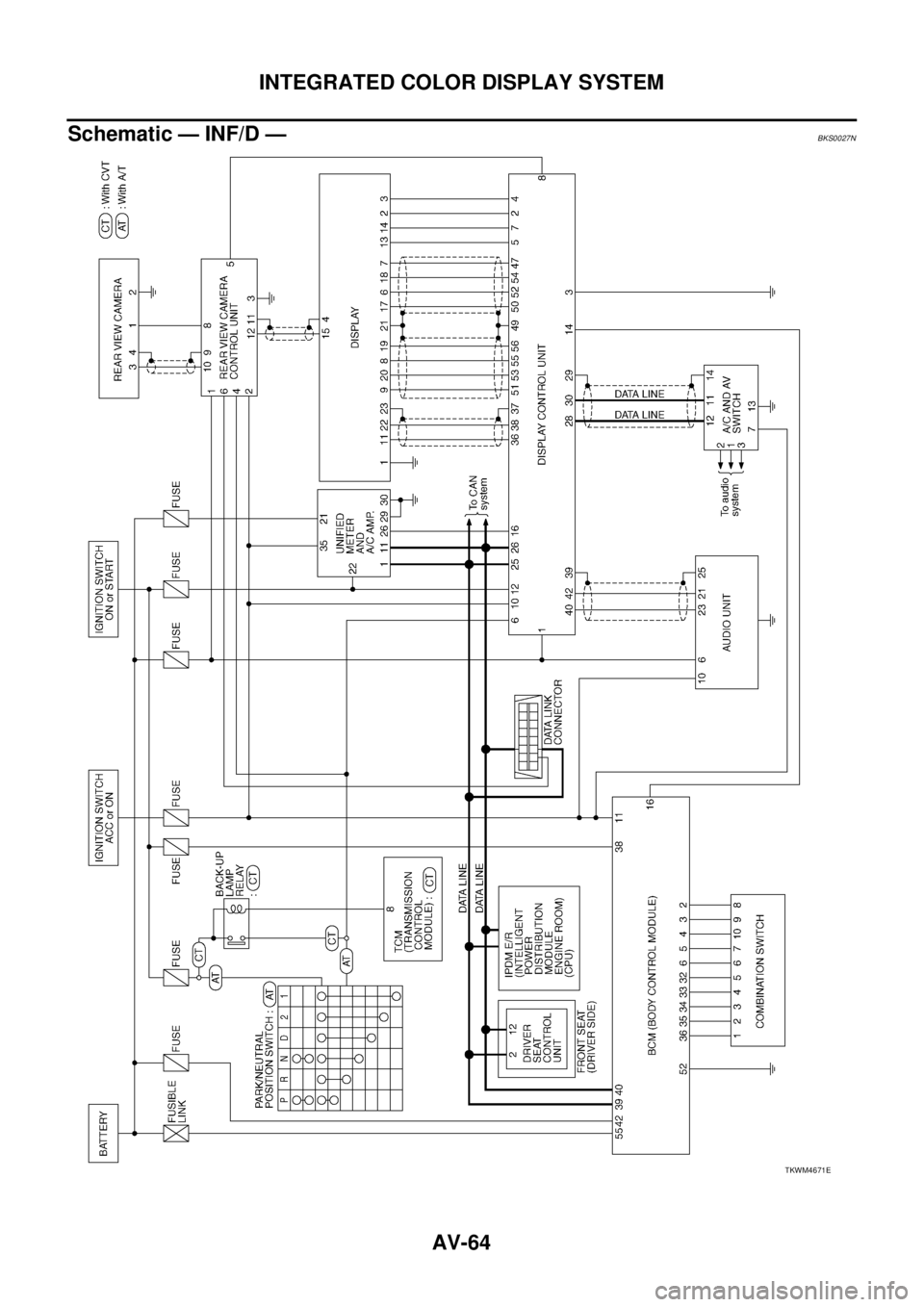

Schematic — INF/D —BKS0027N
TKWM4671E
