Page 1249 of 3502

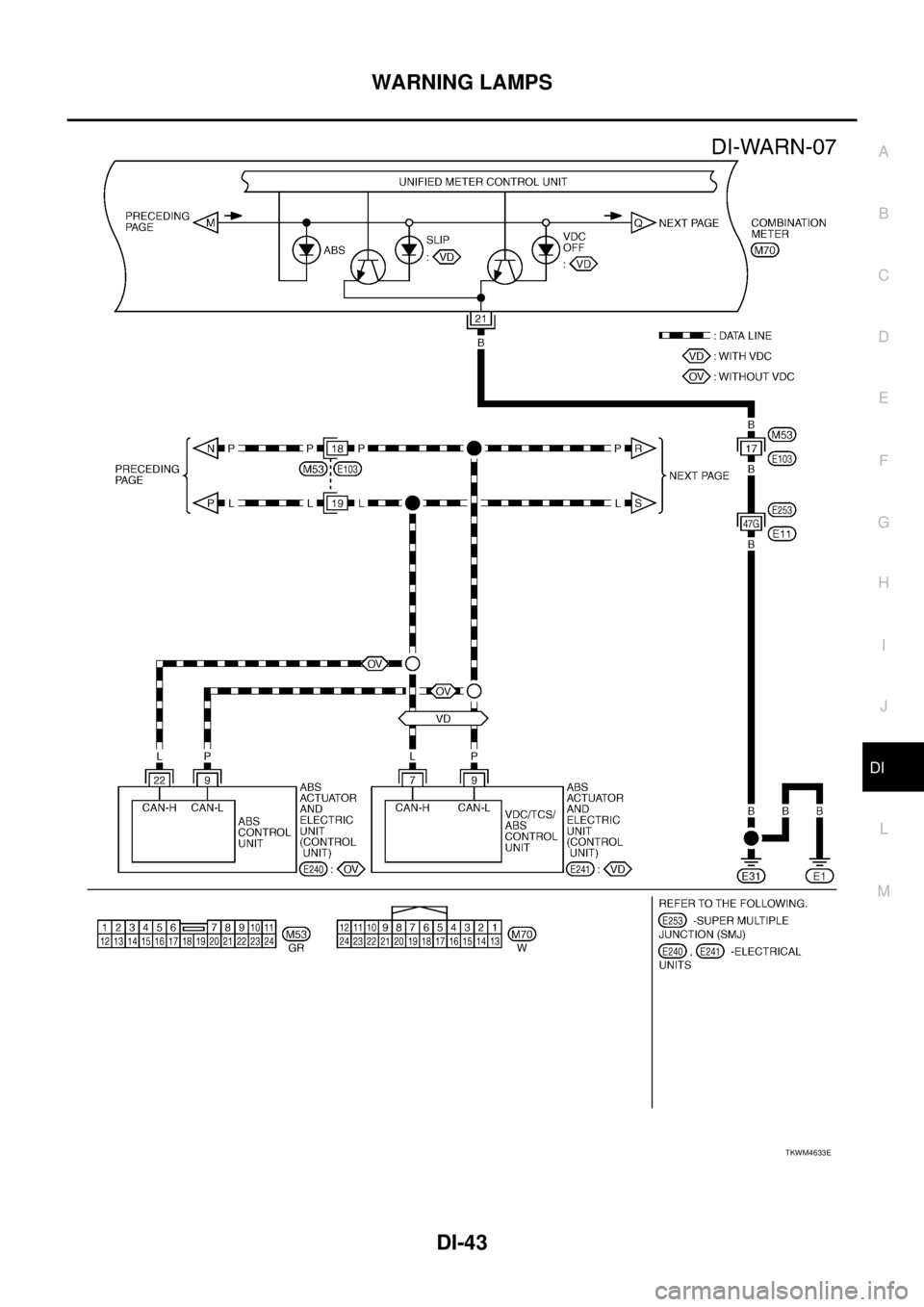

NISSAN TEANA 2003 Service Manual WARNING LAMPS DI-43 C D E F G H I J L MA B DI TKWM4633E

Page 1250 of 3502

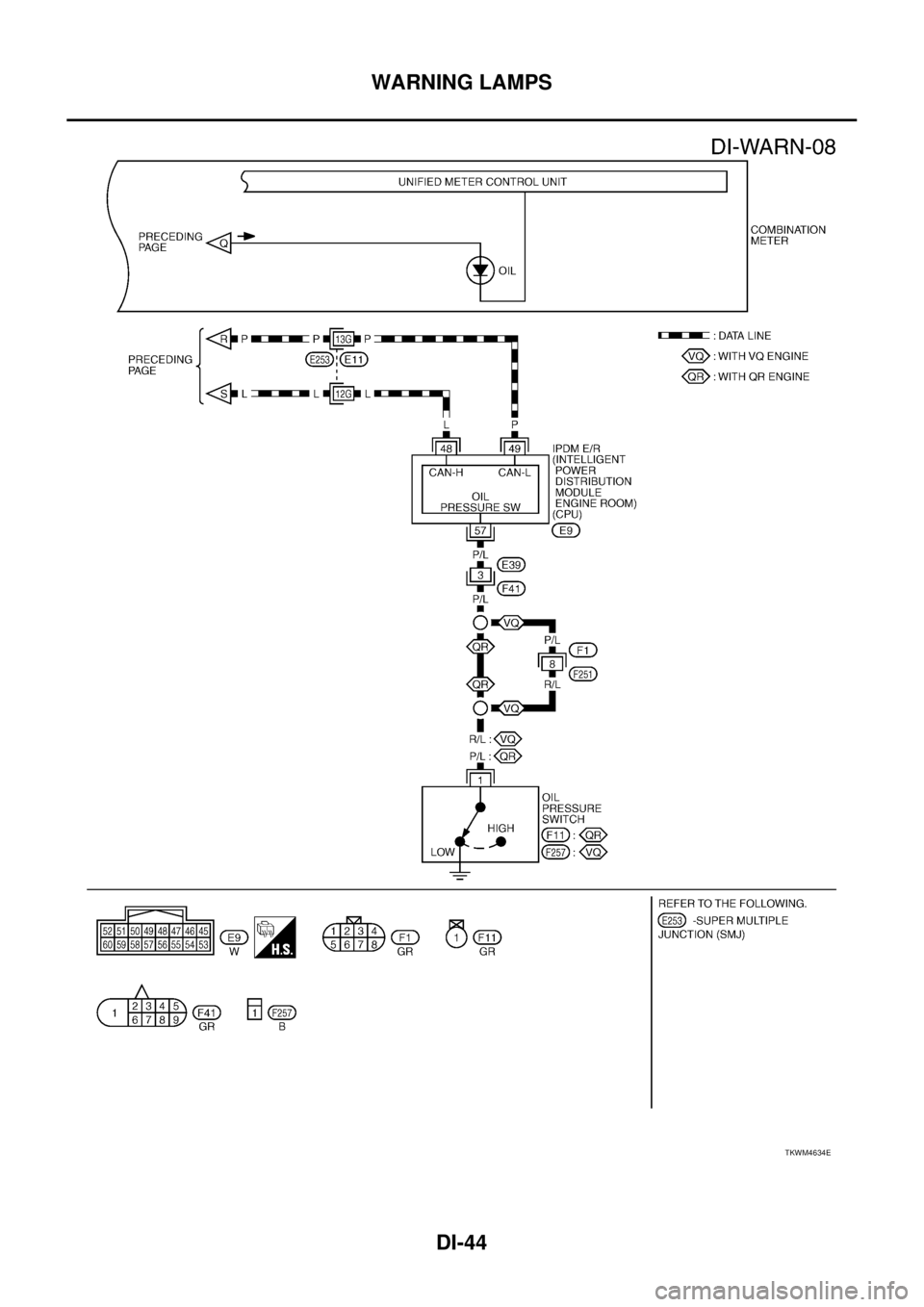

NISSAN TEANA 2003 Service Manual DI-44 WARNING LAMPS TKWM4634E

Page 1251 of 3502

NISSAN TEANA 2003 Service Manual WARNING LAMPS DI-45 C D E F G H I J L MA B DI Oil Pressure Warning Lamp Stays Off (Ignition Switch ON)BKS001SS 1. CHECK IPDM E/R OUTPUT SIGNAL Activate IPDM E/R auto active test. Refer to PG-21, " A

Page 1252 of 3502

NISSAN TEANA 2003 Service Manual DI-46 WARNING LAMPS 5. CHECK OIL PRESSURE SWITCH CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect IPDM E/R connector. 3. Check continuity between IPDM E/R harness connector E9 ter- minal 57 and gr

Page 1253 of 3502

NISSAN TEANA 2003 Service Manual WARNING LAMPS DI-47 C D E F G H I J L MA B DI 3. CHECK IPDM E/R OUTPUT SIGNAL 1. Turn ignition switch OFF. 2. Disconnect oil pressure switch connector. 3. Turn ignition switch ON. 4. Check voltage b

Page 1254 of 3502

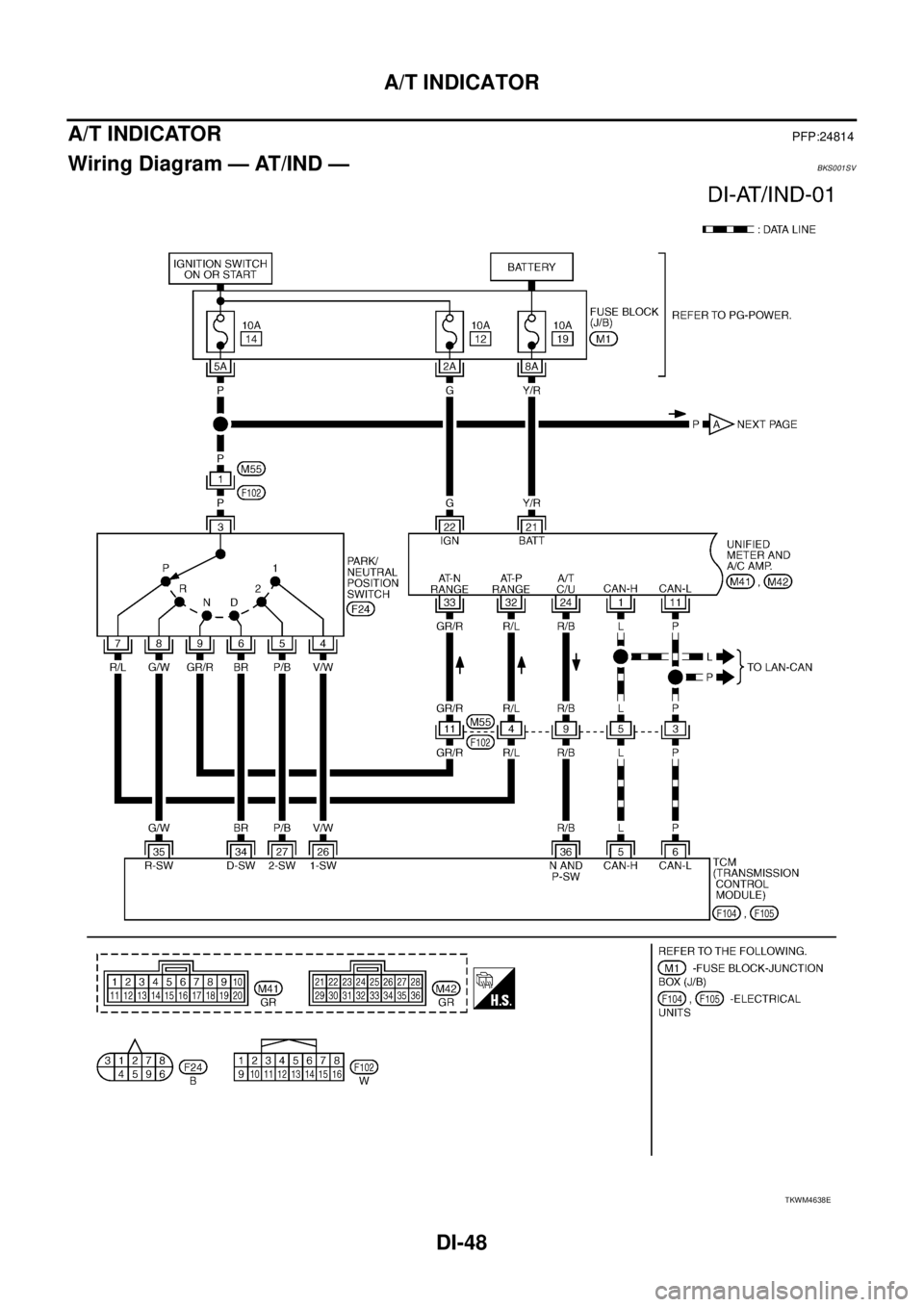

NISSAN TEANA 2003 Service Manual DI-48 A/T INDICATOR A/T INDICATORPFP:24814 Wiring Diagram — AT/IND —BKS001SV TKWM4638E

Page 1255 of 3502

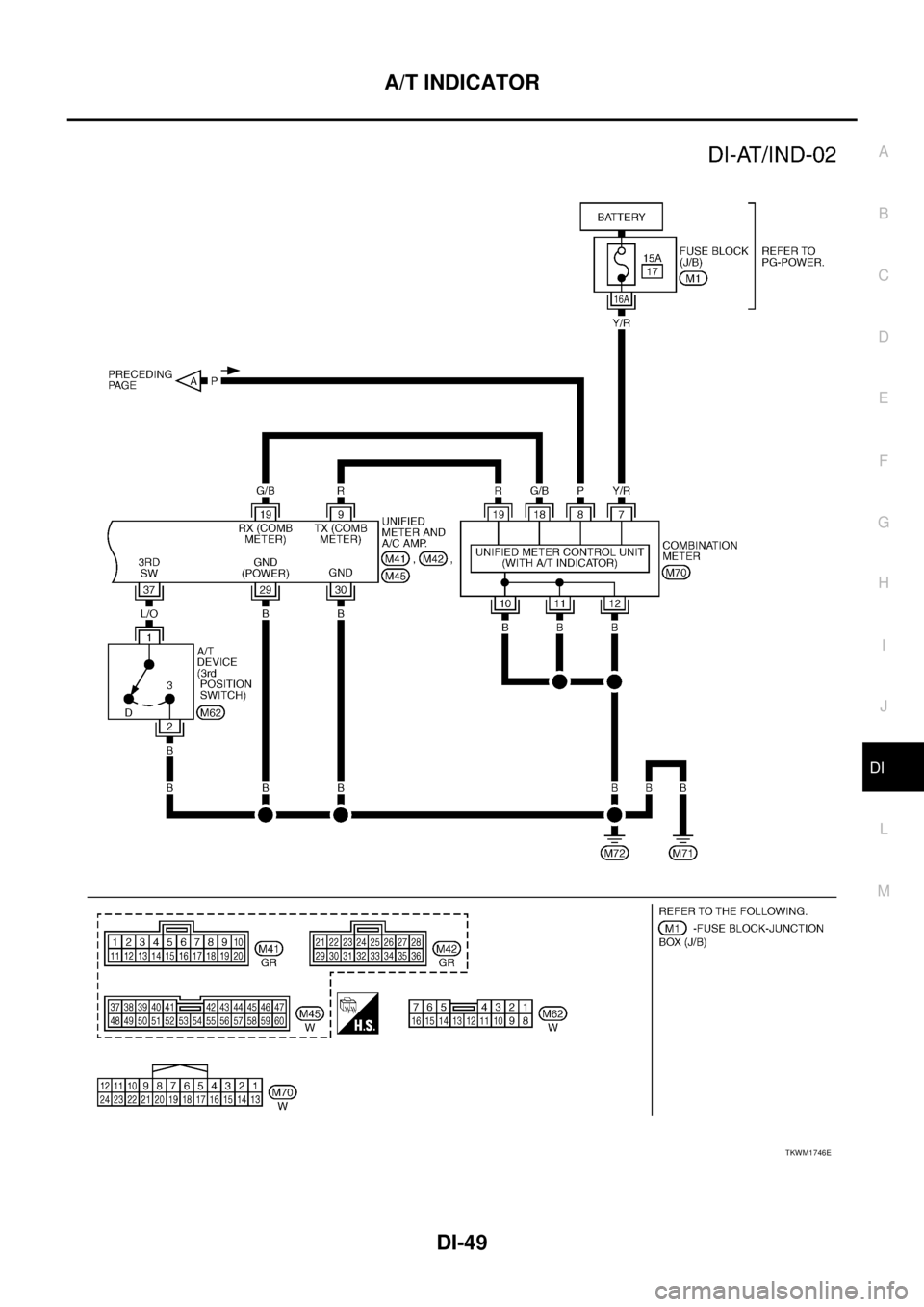

NISSAN TEANA 2003 Service Manual A/T INDICATOR DI-49 C D E F G H I J L MA B DI TKWM1746E

Page 1256 of 3502

NISSAN TEANA 2003 Service Manual DI-50 A/T INDICATOR A/T Indicator Is MalfunctionBKS001SW 1. CHECK SELF-DIAGNOSIS OF COMBINATION METER Perform combination meter self-diagnosis. Refer to DI-13, " OPERA- TION PROCEDURE" Are all segme
