NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS
ATC-47
C
D
E
F
G
H
I
K
L
MA
B
AT C

FUNCTION CONFIRMATION PROCEDURE
1. SET IN SELF-DIAGNOSIS MODE
1. Turn ignition switch ON.
2. Set in self-diagnosis mode as follows. Within 10 sec

Page 426 of 3502

NISSAN TEANA 2003 Service Manual ATC-48
TROUBLE DIAGNOSIS

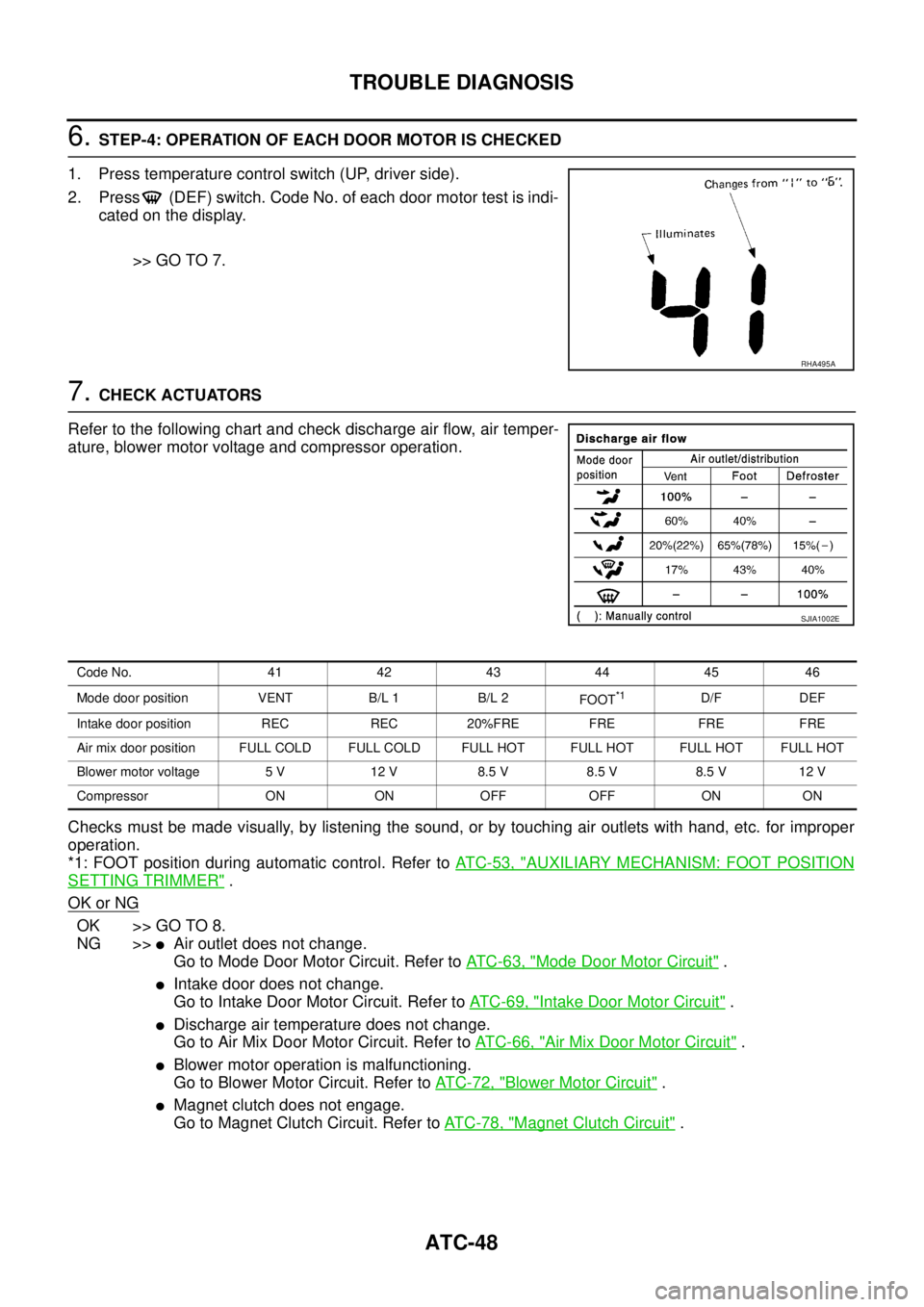

6. STEP-4: OPERATION OF EACH DOOR MOTOR IS CHECKED
1. Press temperature control switch (UP, driver side).
2. Press (DEF) switch. Code No. of each door motor test is indi-
c

Page 427 of 3502

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS
ATC-49
C
D
E
F
G
H
I
K
L
MA
B
AT C

8. STEP-5: TEMPERATURE OF EACH SENSOR IS CHECKED
1. Press temperature control switch (UP, driver side).
2. Code No. 51 appears on the display.
>>

Page 428 of 3502

NISSAN TEANA 2003 Service Manual ATC-50
TROUBLE DIAGNOSIS

12. CHECK CAN COMMUNICATION ERROR
1. Press intake switch.
2. CAN communication error between the unified meter and A/C
amp. and the display unit or display control unit can

Page 429 of 3502

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS
ATC-51
C
D
E
F
G
H
I
K
L
MA
B
AT C

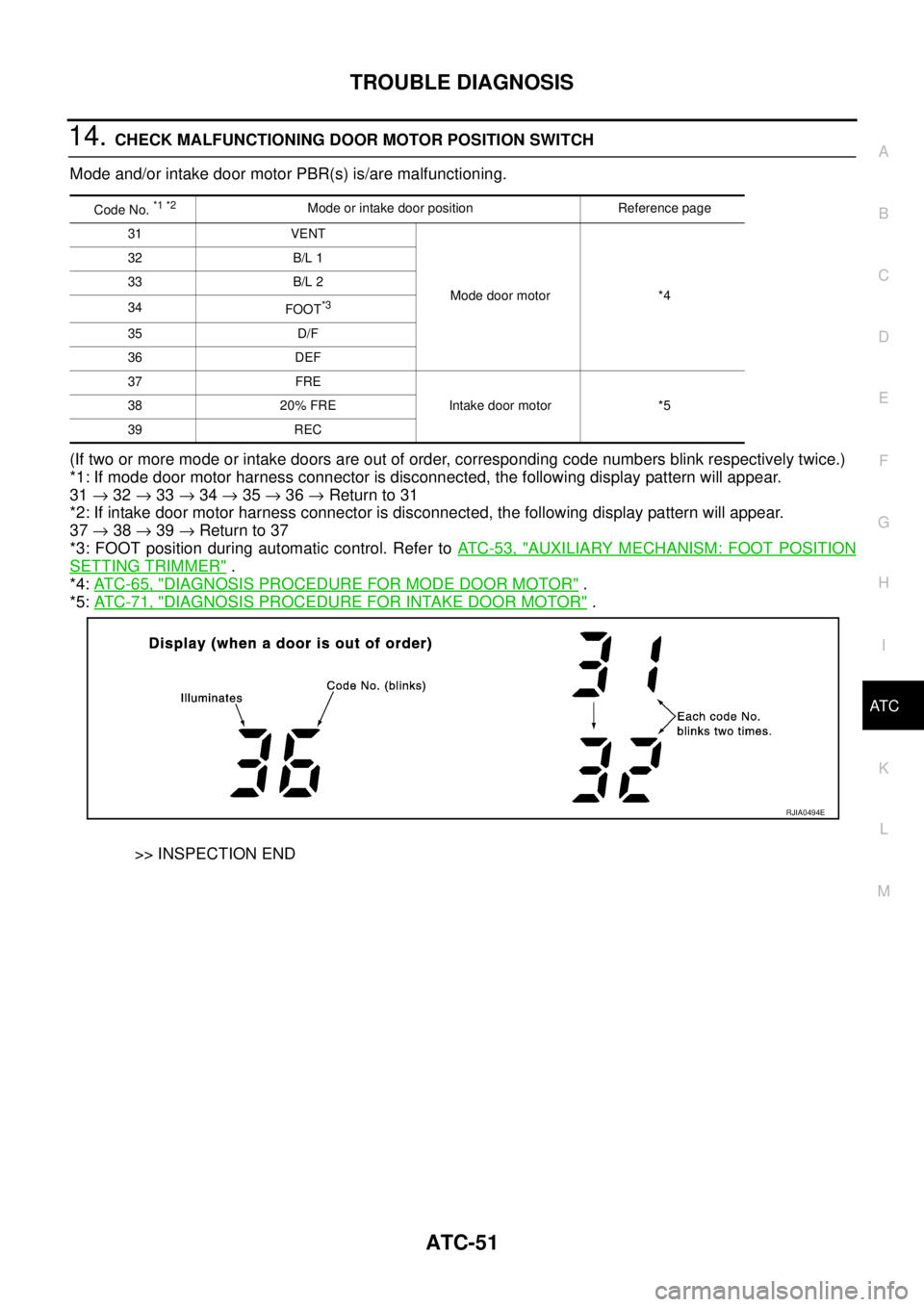

14. CHECK MALFUNCTIONING DOOR MOTOR POSITION SWITCH
Mode and/or intake door motor PBR(s) is/are malfunctioning.
(If two or more mode or intake do

Page 430 of 3502

NISSAN TEANA 2003 Service Manual ATC-52
TROUBLE DIAGNOSIS

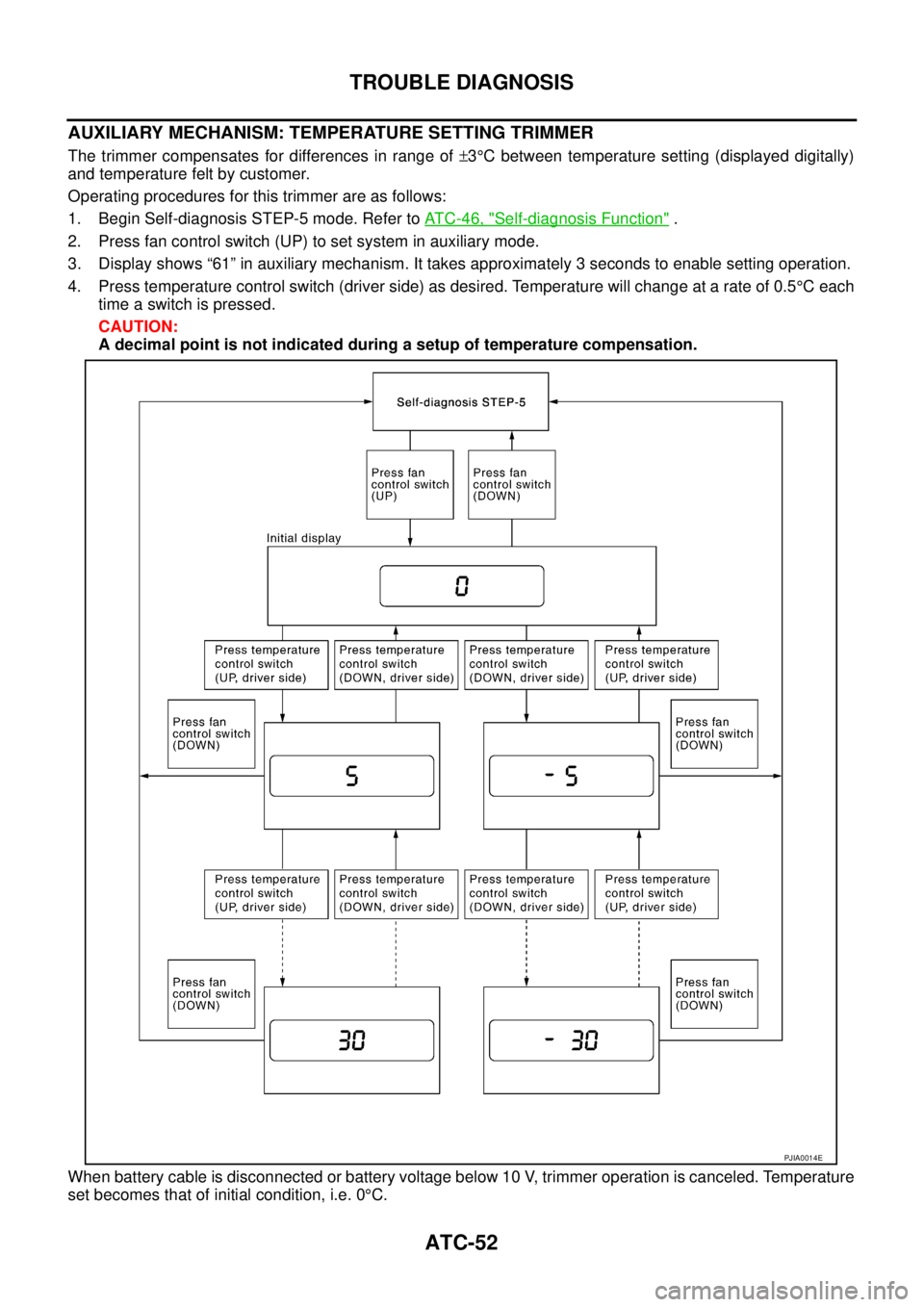

AUXILIARY MECHANISM: TEMPERATURE SETTING TRIMMER
The trimmer compensates for differences in range of ±3°C between temperature setting (displayed digitally)
and temperature

Page 431 of 3502

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS
ATC-53
C
D
E
F
G
H
I
K
L
MA
B
AT C

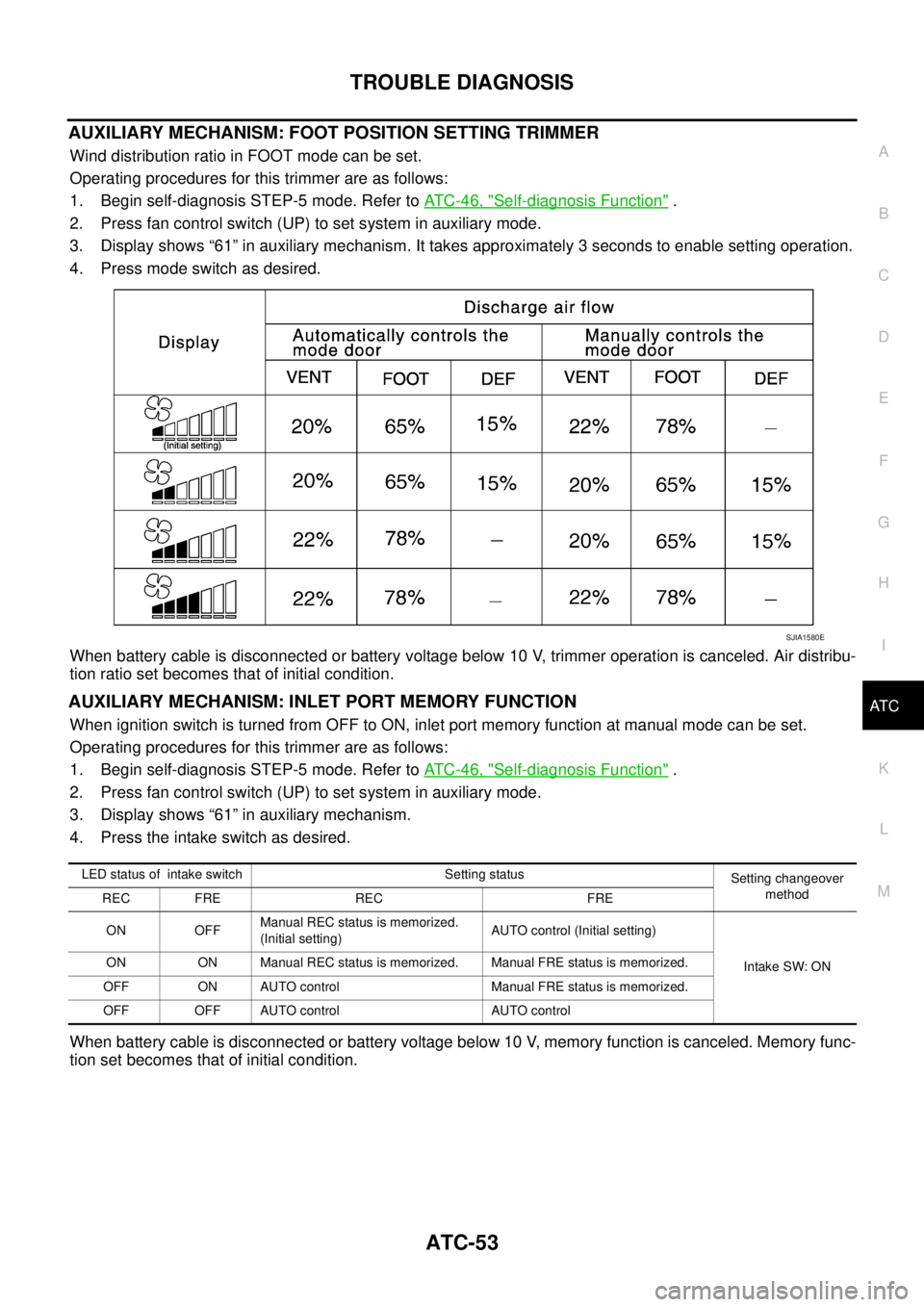

AUXILIARY MECHANISM: FOOT POSITION SETTING TRIMMER
Wind distribution ratio in FOOT mode can be set.
Operating procedures for this trimmer are as

Page 432 of 3502

NISSAN TEANA 2003 Service Manual ATC-54
TROUBLE DIAGNOSIS

Operational CheckBJS000FY
The purpose of the operational check is to confirm that the system operates properly.
CHECKING MEMORY FUNCTION
1. Press temperature control switch

ATC-54
TROUBLE DIAGNOSIS

Operational CheckBJS000FY
The purpose of the operational check is to confirm that the system operates properly.
CHECKING MEMORY FUNCTION
1. Press temperature control switch (UP, driver side) until 32°C is displayed.
2. Press fan control switch (DOWN) at least 2 seconds.
3. Turn ignition switch OFF.
4. Turn ignition switch ON.
5. Press AUTO switch.
6. Confirm that the set temperature remains at previous temperature.
7. Press fan control switch (DOWN) at least 2 seconds.
If NG, go to trouble diagnosis procedure for AT C - 9 5 , "
Memory Function" .
If OK, continue the check.
CHECKING BLOWER
1. Press fan control switch (UP). Blower should operate on low speed. The fan symbol should have one
blade lit.
2. Press fan control switch (UP) again, and continue checking blower speed and fan symbol until all speeds
are checked.
3. Leave blower on max. speed.
If NG, go to trouble diagnosis procedure for AT C - 7 2 , "
Blower Motor Circuit" .
If OK, continue the check.
CHECKING DISCHARGE AIR
1. Press MODE switch and DEF switch.
2. Each position indicator should change shape.
3. Confirm that discharge air comes out according to the air distri-
bution table. Refer to AT C - 3 1 , "
Discharge Air Flow" .
If NG, go to trouble diagnosis procedure for AT C - 6 3 , "
Mode Door
Motor Circuit" .
If OK, continue the check.
NOTE:
Confirm that the compressor clutch is engaged (sound or visual
inspection) and intake door position is at FRESH when the DEF is
selected.
CHECKING INTAKE AIR
1. Press intake switch. Recirculation indicator should illuminate.
2. Press intake switch again. Fresh indicator should illuminate.
3. Listen for intake door position change (Slight change of blower sound can be heard.).
If NG, go to trouble diagnosis procedure for AT C - 6 9 , "
Intake Door Motor Circuit" .
If OK, continue the check.
NOTE:
Confirm that the compressor clutch is engaged (sound or visual inspection) and intake door position is at
FRESH when the DEF is selected.
CHECKING TEMPERATURE DECREASE
1. Press temperature control switch (DOWN, driver side) until 18°C is displayed.
2. Check for cold air at discharge air outlets.
If NG, go to trouble diagnosis procedure for AT C - 8 4 , "
Insufficient Cooling" .
If OK, continue the check.Conditions : Engine running at normal operating temperature
SJIA1002E
