7. CHECK POWER WINDOW MAIN SWITCH OUTPUT SIGNAL
1. Connect power window main switch connector.
2. Turn ignition switch ON.
3. Check voltage between power window main switch connector
and ground when operating passenger side switch in power win-
dow main switch.
OK or NG
OK >> Check condition of harness and connector.
NG >> Replace power window main switch.
Check Rear Power Window Motor RH Circuit BIS000ZJ

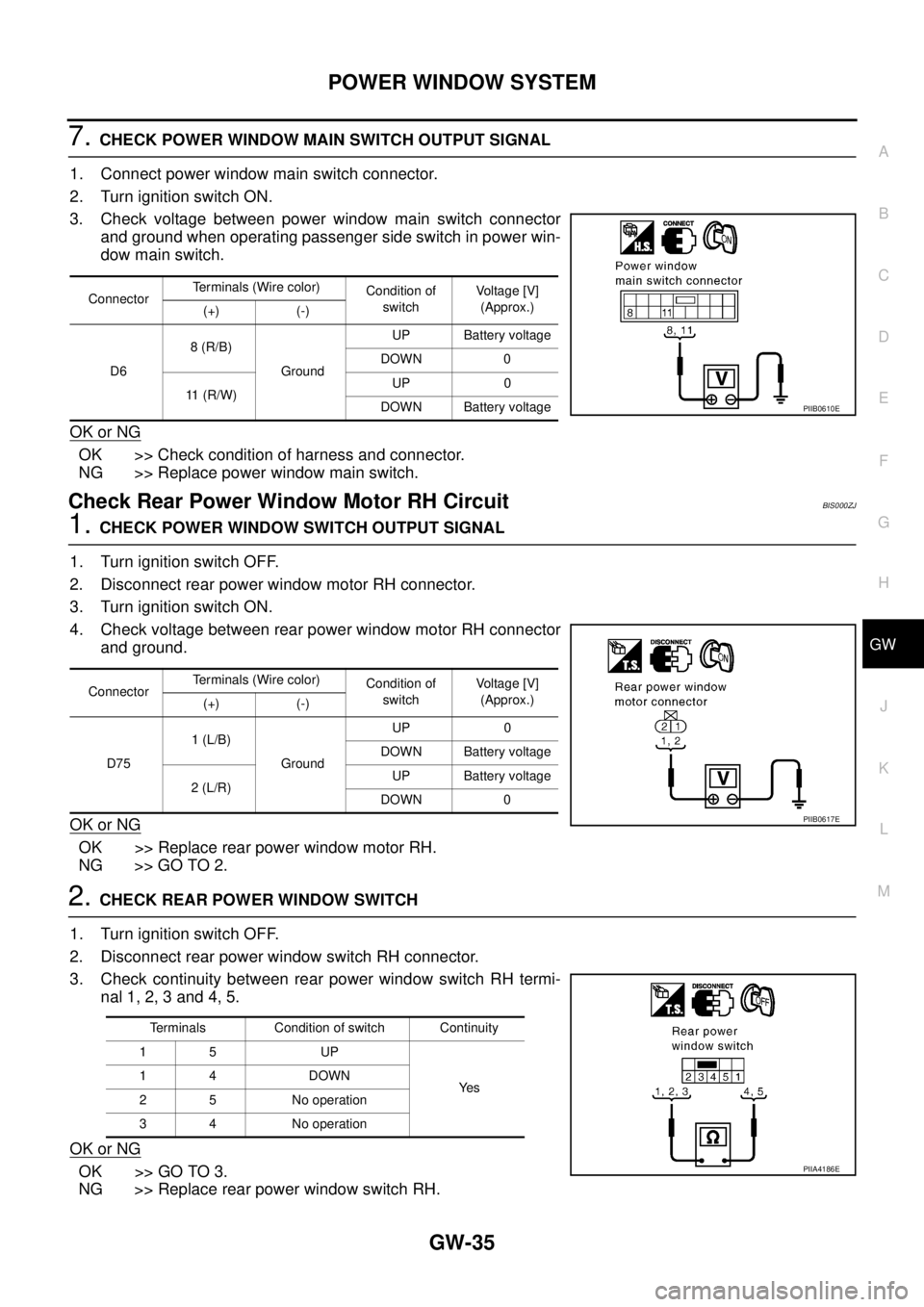

1. CHECK POWER WINDOW SWITCH OUTPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect rear power window motor RH connector.
3. Turn ignition switch ON.
4. Check voltage between rear power window motor RH connector
and ground.
OK or NG
OK >> Replace rear power window motor RH.
NG >> GO TO 2.
2. CHECK REAR POWER WINDOW SWITCH
1. Turn ignition switch OFF.
2. Disconnect rear power window switch RH connector.
3. Check continuity between rear power window switch RH termi-
nal 1, 2, 3 and 4, 5.
OK or NG
OK >> GO TO 3.
NG >> Replace rear power window switch RH.
ConnectorTerminals (Wire color)
Condition of
switchVoltage [V]
(Approx.)
(+) (-)
D68 (R/B)
GroundUP Battery voltage
DOWN 0
11 (R/W)UP 0
DOWN Battery voltage
PIIB0610E
ConnectorTerminals (Wire color)
Condition of
switchVoltage [V]
(Approx.)
(+) (-)
D751 (L/B)
GroundUP 0
DOWN Battery voltage
2 (L/R)UP Battery voltage
DOWN 0
PIIB0617E
Terminals Condition of switch Continuity
15 UP
Ye s 14 DOWN
2 5 No operation
3 4 No operation
PIIA4186E
Page 2530 of 3502

GW-36
POWER WINDOW SYSTEM
3. CHECK HARNESS CONTINUITY 1
1. Check continuity between rear power window switch RH con-
nector D74 terminal 4, 5 and rear power window motor RH con-
nector D75 terminal 1, 2.
2. Check continuity between rear power window switch RH con-
nector D74 terminal 4, 5 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK REAR POWER WINDOW SWITCH POWER SUPPLY
1. Turn ignition switch ON.
2. Check voltage between rear power window switch RH connector
D74 terminal 1 and ground.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. CHECK HARNESS CONTINUITY 2
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check continuity between BCM connector M4 terminal 53 and
rear power window switch RH connector D74 terminal 1.
4. Check continuity between BCM connector M4 terminal 53 and
ground.
OK or NG
OK >> Check condition of harness and connector.

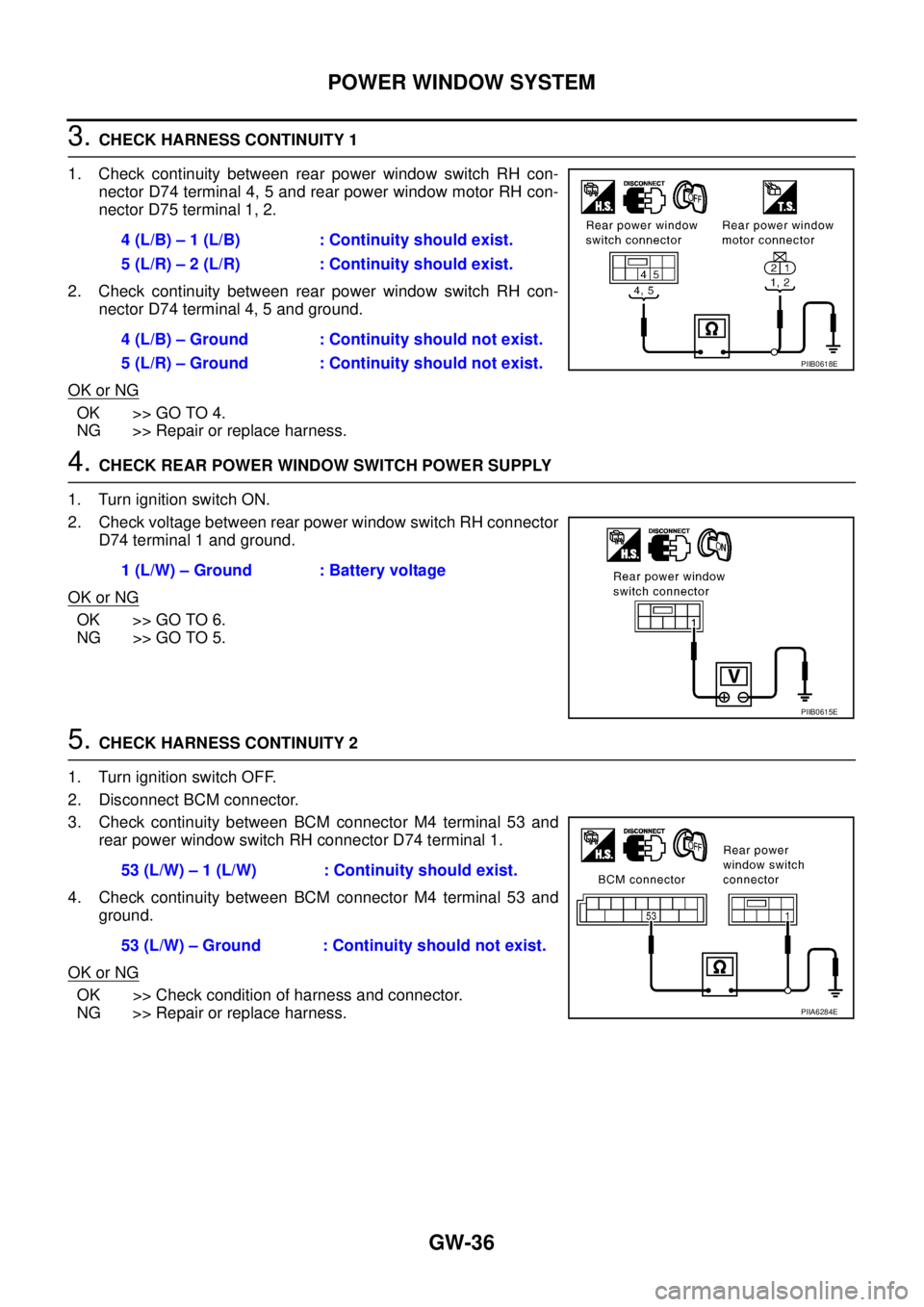

NG >> Repair or replace harness.4 (L/B) – 1 (L/B) : Continuity should exist.
5 (L/R) – 2 (L/R) : Continuity should exist.
4 (L/B) – Ground : Continuity should not exist.
5 (L/R) – Ground : Continuity should not exist.
PIIB0618E
1 (L/W) – Ground : Battery voltage
PIIB0615E
53 (L/W) – 1 (L/W) : Continuity should exist.
53 (L/W) – Ground : Continuity should not exist.
PIIA6284E
Page 2531 of 3502

POWER WINDOW SYSTEM
GW-37
C
D
E
F
G
H
J
K
L
MA
B
GW

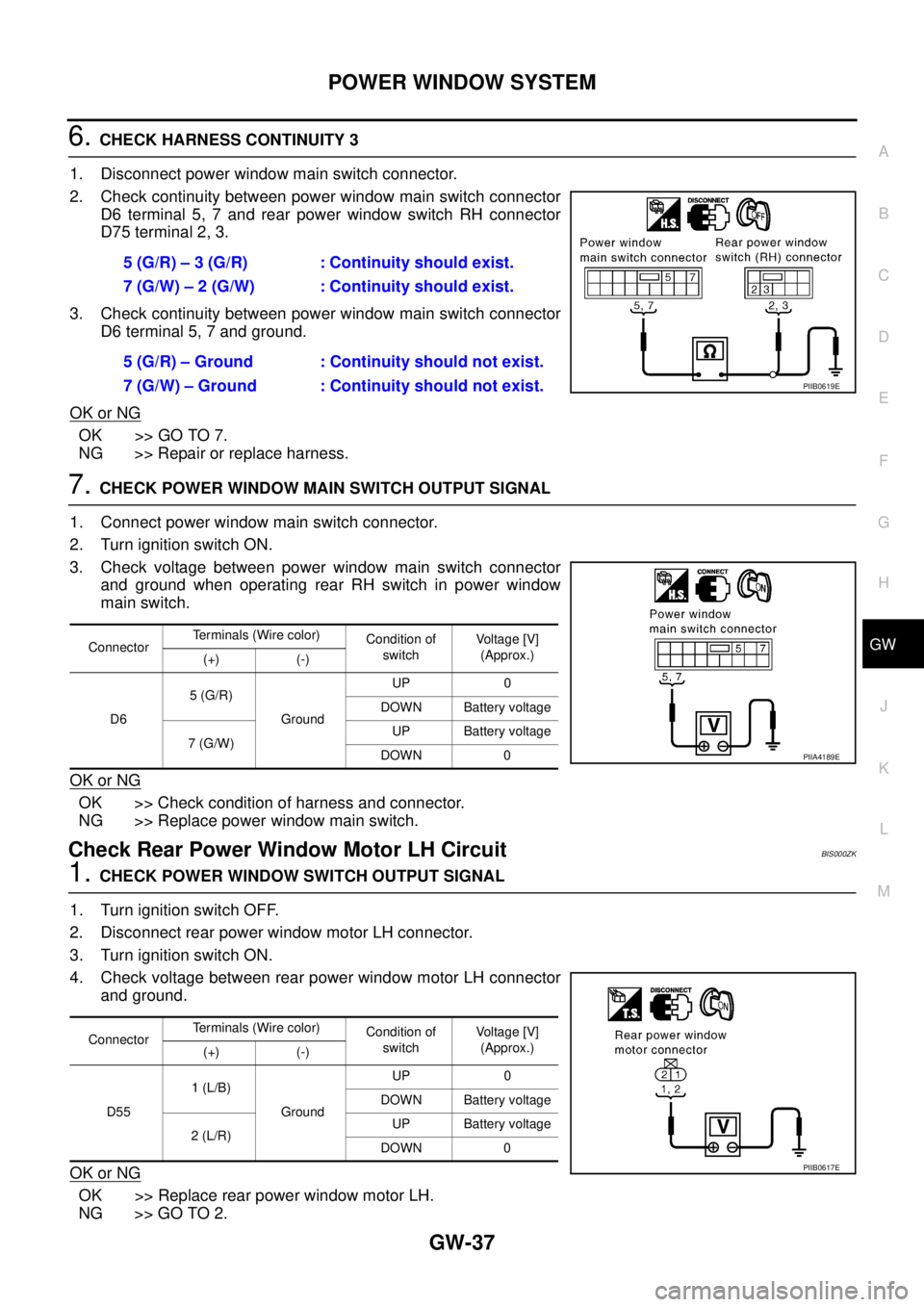

6. CHECK HARNESS CONTINUITY 3
1. Disconnect power window main switch connector.
2. Check continuity between power window main switch connector
D6 terminal 5, 7 and rear power window switch RH connector
D75 terminal 2, 3.
3. Check continuity between power window main switch connector
D6 terminal 5, 7 and ground.
OK or NG
OK >> GO TO 7.
NG >> Repair or replace harness.
7. CHECK POWER WINDOW MAIN SWITCH OUTPUT SIGNAL
1. Connect power window main switch connector.
2. Turn ignition switch ON.
3. Check voltage between power window main switch connector
and ground when operating rear RH switch in power window
main switch.
OK or NG
OK >> Check condition of harness and connector.
NG >> Replace power window main switch.
Check Rear Power Window Motor LH Circuit BIS000ZK
1. CHECK POWER WINDOW SWITCH OUTPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect rear power window motor LH connector.
3. Turn ignition switch ON.
4. Check voltage between rear power window motor LH connector
and ground.
OK or NG
OK >> Replace rear power window motor LH.
NG >> GO TO 2.5 (G/R) – 3 (G/R) : Continuity should exist.
7 (G/W) – 2 (G/W) : Continuity should exist.
5 (G/R) – Ground : Continuity should not exist.
7 (G/W) – Ground : Continuity should not exist.
PIIB0619E
ConnectorTerminals (Wire color)
Condition of
switchVoltage [V]
(Approx.)
(+) (-)
D65 (G/R)
GroundUP 0
DOWN Battery voltage
7 (G/W)UP Battery voltage
DOWN 0
PIIA4189E
ConnectorTerminals (Wire color)
Condition of
switchVoltage [V]
(Approx.)
(+) (-)
D551 (L/B)
GroundUP 0
DOWN Battery voltage
2 (L/R)UP Battery voltage
DOWN 0
PIIB0617E
Page 2532 of 3502

GW-38
POWER WINDOW SYSTEM

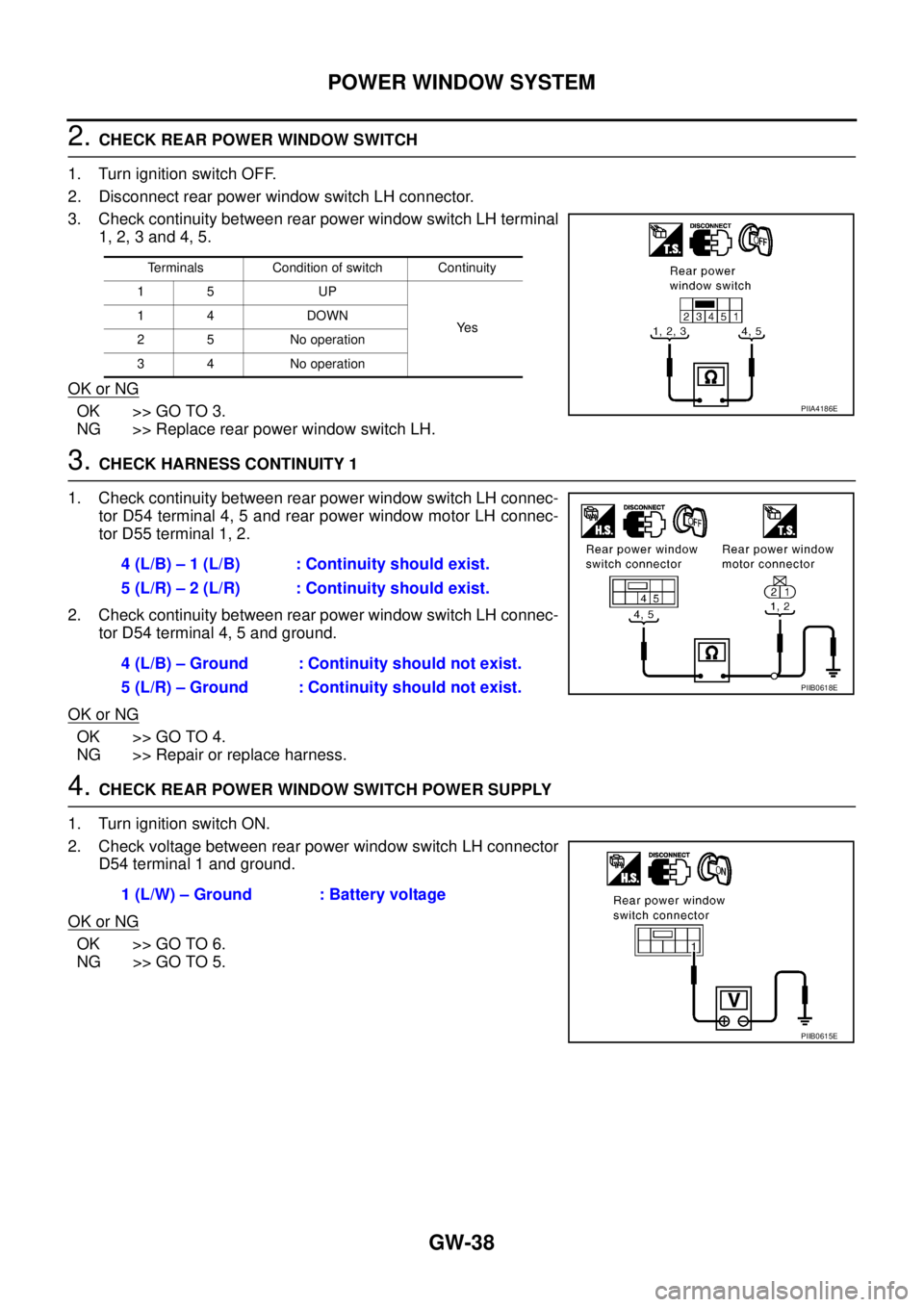

2. CHECK REAR POWER WINDOW SWITCH
1. Turn ignition switch OFF.
2. Disconnect rear power window switch LH connector.
3. Check continuity between rear power window switch LH terminal
1, 2, 3 and 4, 5.
OK or NG
OK >> GO TO 3.
NG >> Replace rear power window switch LH.
3. CHECK HARNESS CONTINUITY 1
1. Check continuity between rear power window switch LH connec-
tor D54 terminal 4, 5 and rear power window motor LH connec-
tor D55 terminal 1, 2.
2. Check continuity between rear power window switch LH connec-
tor D54 terminal 4, 5 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK REAR POWER WINDOW SWITCH POWER SUPPLY
1. Turn ignition switch ON.
2. Check voltage between rear power window switch LH connector
D54 terminal 1 and ground.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
Terminals Condition of switch Continuity
15 UP
Ye s 14 DOWN
2 5 No operation
3 4 No operation
PIIA4186E
4 (L/B) – 1 (L/B) : Continuity should exist.
5 (L/R) – 2 (L/R) : Continuity should exist.
4 (L/B) – Ground : Continuity should not exist.
5 (L/R) – Ground : Continuity should not exist.
PIIB0618E
1 (L/W) – Ground : Battery voltage
PIIB0615E
Page 2533 of 3502

POWER WINDOW SYSTEM
GW-39
C
D
E
F
G
H
J
K
L
MA
B
GW

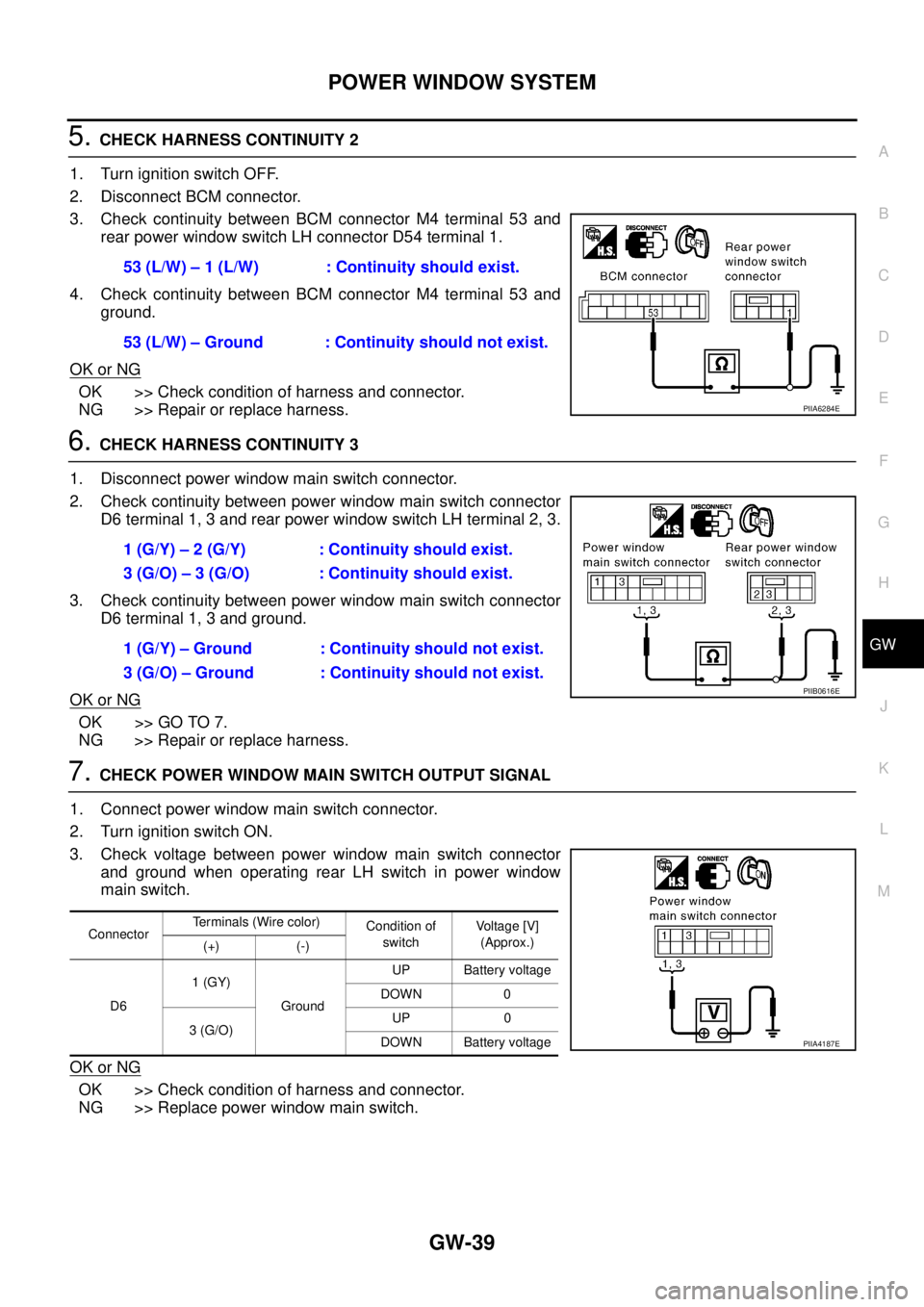

5. CHECK HARNESS CONTINUITY 2
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check continuity between BCM connector M4 terminal 53 and
rear power window switch LH connector D54 terminal 1.
4. Check continuity between BCM connector M4 terminal 53 and
ground.
OK or NG
OK >> Check condition of harness and connector.
NG >> Repair or replace harness.
6. CHECK HARNESS CONTINUITY 3
1. Disconnect power window main switch connector.
2. Check continuity between power window main switch connector
D6 terminal 1, 3 and rear power window switch LH terminal 2, 3.
3. Check continuity between power window main switch connector
D6 terminal 1, 3 and ground.
OK or NG
OK >> GO TO 7.
NG >> Repair or replace harness.
7. CHECK POWER WINDOW MAIN SWITCH OUTPUT SIGNAL
1. Connect power window main switch connector.
2. Turn ignition switch ON.
3. Check voltage between power window main switch connector
and ground when operating rear LH switch in power window
main switch.
OK or NG
OK >> Check condition of harness and connector.
NG >> Replace power window main switch.53 (L/W) – 1 (L/W) : Continuity should exist.
53 (L/W) – Ground : Continuity should not exist.
PIIA6284E
1 (G/Y) – 2 (G/Y) : Continuity should exist.
3 (G/O) – 3 (G/O) : Continuity should exist.
1 (G/Y) – Ground : Continuity should not exist.
3 (G/O) – Ground : Continuity should not exist.
PIIB0616E
ConnectorTerminals (Wire color)
Condition of
switchVoltage [V]
(Approx.)
(+) (-)
D61 (GY)
GroundUP Battery voltage
DOWN 0
3 (G/O)UP 0
DOWN Battery voltage
PIIA4187E
Page 2534 of 3502

GW-40
POWER WINDOW SYSTEM
Check Limit Switch Circuit (Driver Side)BIS000ZL

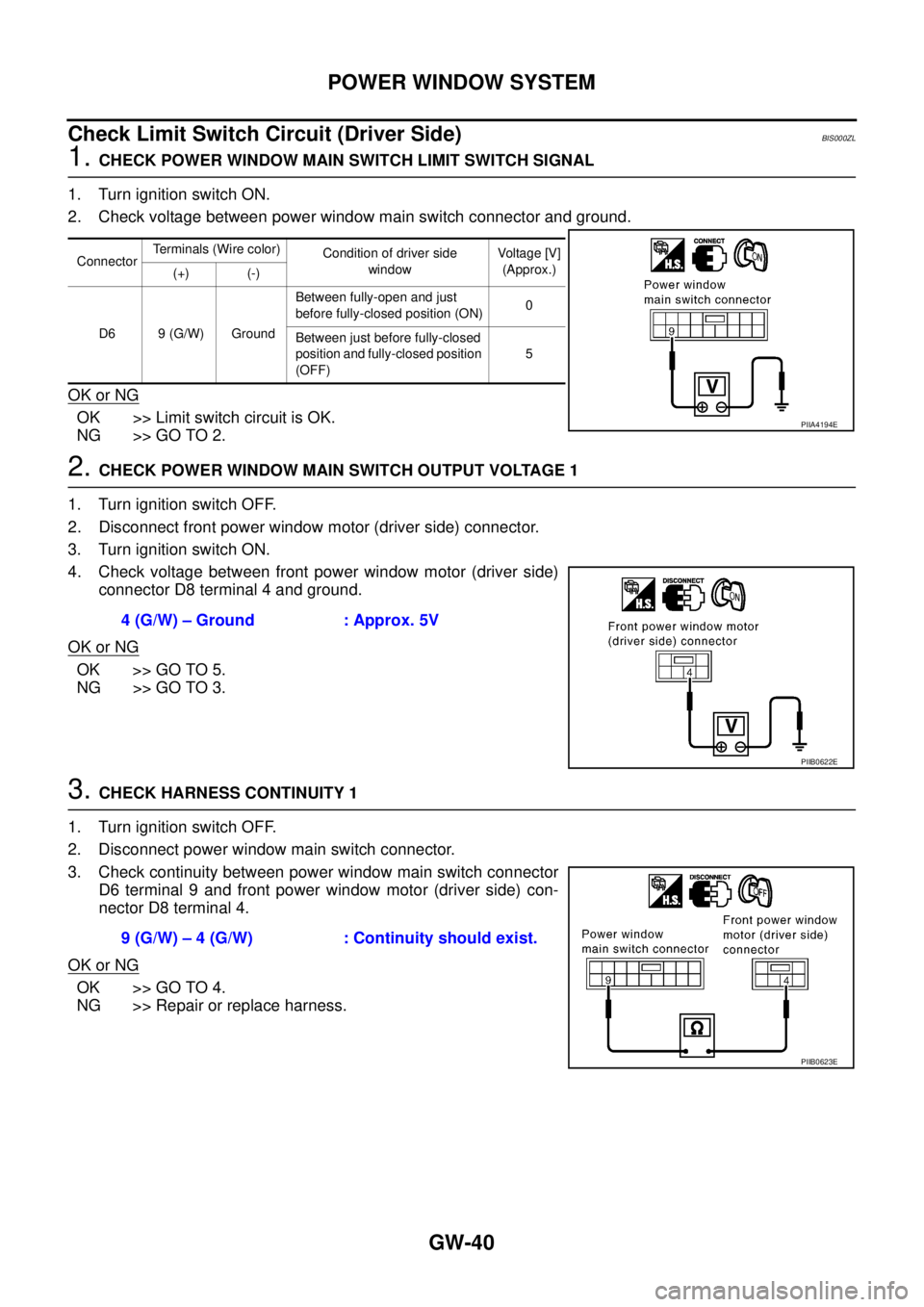

1. CHECK POWER WINDOW MAIN SWITCH LIMIT SWITCH SIGNAL
1. Turn ignition switch ON.
2. Check voltage between power window main switch connector and ground.
OK or NG
OK >> Limit switch circuit is OK.
NG >> GO TO 2.
2. CHECK POWER WINDOW MAIN SWITCH OUTPUT VOLTAGE 1
1. Turn ignition switch OFF.
2. Disconnect front power window motor (driver side) connector.
3. Turn ignition switch ON.
4. Check voltage between front power window motor (driver side)
connector D8 terminal 4 and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
3. CHECK HARNESS CONTINUITY 1
1. Turn ignition switch OFF.
2. Disconnect power window main switch connector.
3. Check continuity between power window main switch connector
D6 terminal 9 and front power window motor (driver side) con-
nector D8 terminal 4.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
ConnectorTerminals (Wire color)
Condition of driver side
windowVoltage [V]
(Approx.)
(+) (-)
D6 9 (G/W) GroundBetween fully-open and just
before fully-closed position (ON)0
Between just before fully-closed
position and fully-closed position
(OFF)5
PIIA4194E
4 (G/W) – Ground : Approx. 5V
PIIB0622E
9 (G/W) – 4 (G/W) : Continuity should exist.
PIIB0623E
Page 2535 of 3502

POWER WINDOW SYSTEM
GW-41
C
D
E
F
G
H
J
K
L
MA
B
GW
4. CHECK POWER WINDOW MAIN SWITCH OUTPUT VOLTAGE 2
1. Turn ignition switch ON.
2. Check voltage between power window main switch connector
D6 terminal 9 and ground.
OK or NG
OK >> Check condition of harness and connector.
NG >> Replace power window main switch.
5. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect front power window motor (driver side) connector.
3. Check continuity between front power window motor (driver
side) connector D8 terminal 3 and ground.
OK or NG
OK >> Replace front power window motor (driver side).
NG >> GO TO 6.
6. CHECK HARNESS CONTINUITY 2
1. Disconnect power window main switch connector.
2. Check continuity between power window main switch connector
D6 terminal 2 and front power window motor (driver side) con-
nector D8 terminal 3.
OK or NG
OK >> Replace power window main switch.

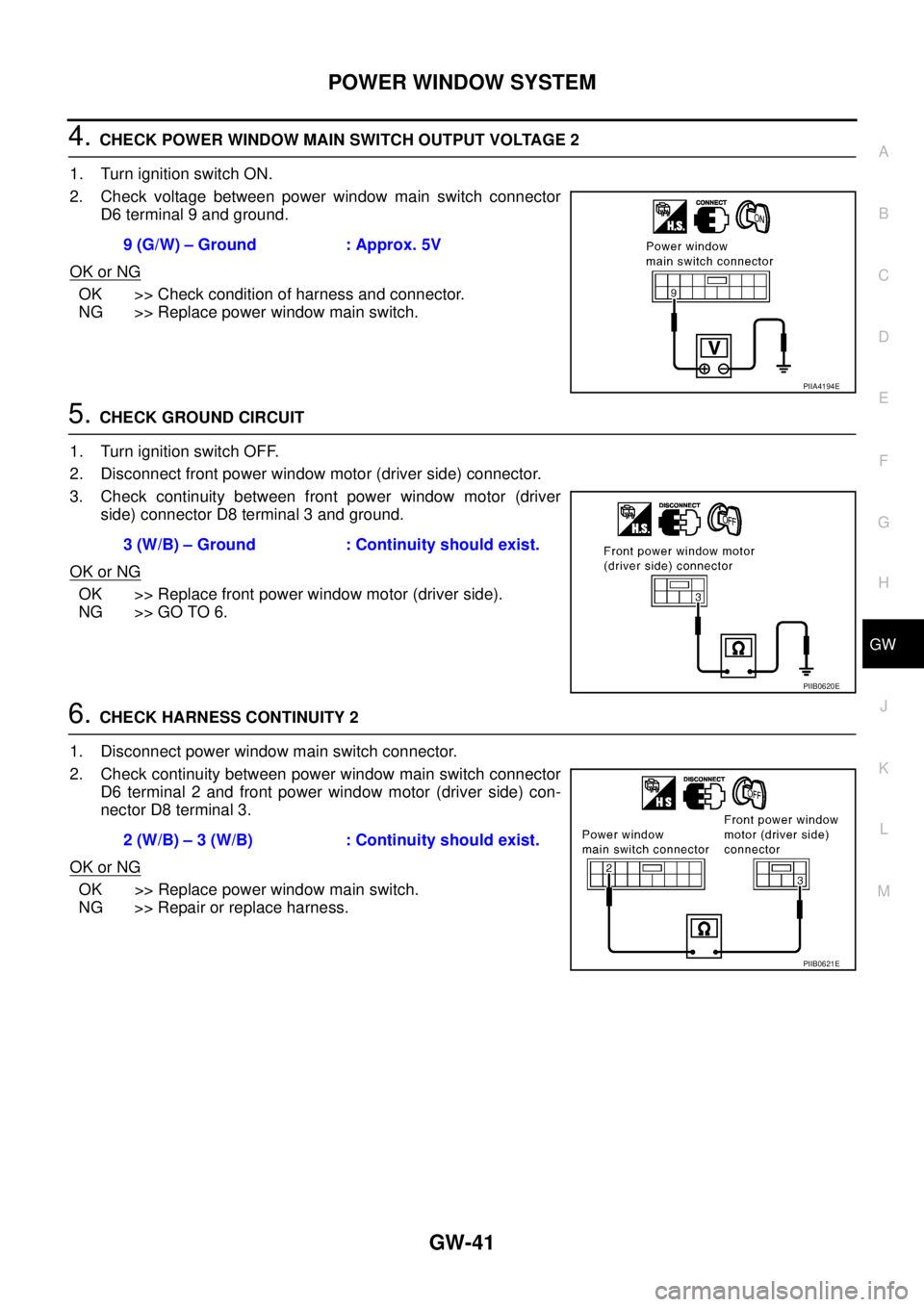

NG >> Repair or replace harness.9 (G/W) – Ground : Approx. 5V
PIIA4194E
3 (W/B) – Ground : Continuity should exist.
PIIB0620E
2 (W/B) – 3 (W/B) : Continuity should exist.
PIIB0621E
Page 2536 of 3502

GW-42
POWER WINDOW SYSTEM
Check Encoder Circuit (Driver Side) BIS000ZM

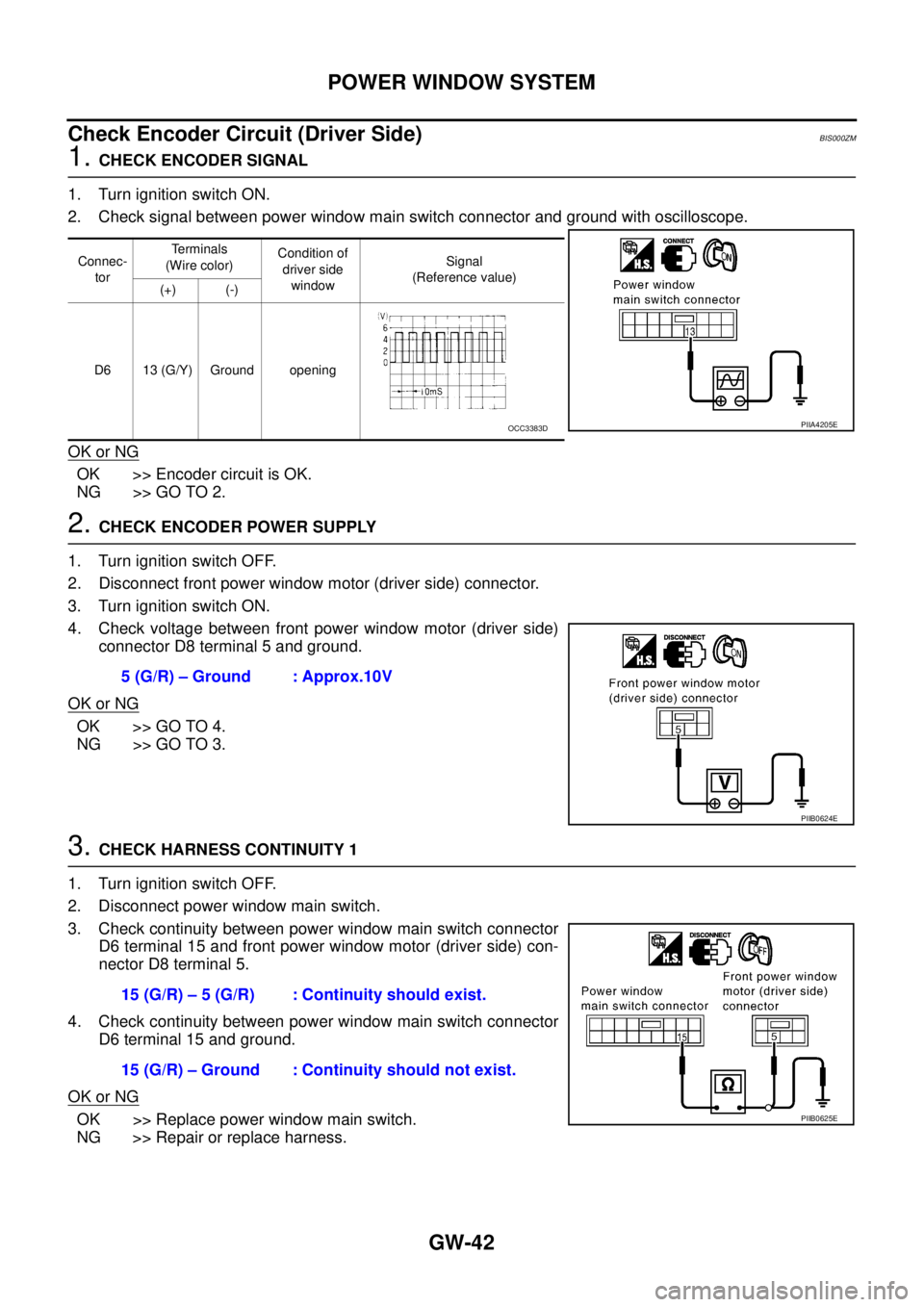

1. CHECK ENCODER SIGNAL
1. Turn ignition switch ON.
2. Check signal between power window main switch connector and ground with oscilloscope.
OK or NG
OK >> Encoder circuit is OK.
NG >> GO TO 2.
2. CHECK ENCODER POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect front power window motor (driver side) connector.
3. Turn ignition switch ON.
4. Check voltage between front power window motor (driver side)
connector D8 terminal 5 and ground.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. CHECK HARNESS CONTINUITY 1
1. Turn ignition switch OFF.
2. Disconnect power window main switch.
3. Check continuity between power window main switch connector
D6 terminal 15 and front power window motor (driver side) con-
nector D8 terminal 5.
4. Check continuity between power window main switch connector
D6 terminal 15 and ground.
OK or NG
OK >> Replace power window main switch.
NG >> Repair or replace harness.
Connec-
torTerminals
(Wire color)Condition of
driver side
windowSignal
(Reference value)
(+) (-)
D6 13 (G/Y) Ground opening
PIIA4205EOCC3383D
5 (G/R) – Ground : Approx.10V
PIIB0624E
15 (G/R) – 5 (G/R) : Continuity should exist.
15 (G/R) – Ground : Continuity should not exist.
PIIB0625E
