AT-46
TROUBLE DIAGNOSIS

LINE PRESSURE TEST
Line Pressure Test Ports
Location of line pressure test ports are shown in the figure.

Always replace pressure plugs as they are self-sealing
bolts.
Line Pressure Test Procedure
1. Check ATF and engine oil levels. If necessary, add ATF or
engine oil.
2. Drive vehicle for approx. 10 minutes or until engine oil and ATF
reach operating temperature.
3. Install oil pressure gauge to corresponding line pressure test
port.
4. Set parking brake and block wheels.
SCIA3332E
ATF operating temperature: 50 - 80°C (122 -176°F)
SAT647B
SCIA4845E
SCIA7463E

FRONT DISC BRAKE
BR-27
C
D
E
G
H
I
J
K
L
MA
B
BR


It is not necessary to remove bolts on torque member and brake hose except for disassembly or
replacement of caliper assembly. In this case, suspend cylinder body with wire so as not to stretch
brake hose.

Do not damage piston boot.

If any shim is subject to serious corrosion, replace it with a new one.

Always replace shim and inner shim cover as a set when replacing brake pads.

Keep rotor clean from brake fluid.

Burnish brake contact surface after refinishing or replacing rotors, after replacing pads, or it a soft
pedal occurs at very low mileage. Refer toBR-32, "
BRAKE BURNISHING PROCEDURE" .
Removal and Installation of Brake PadBFS000BZ
REMOVAL
1. Remove tyres from vehicle.
2. Remove lower sliding pin bolt.
3. Suspend cylinder body with wire, and remove pads, pad retain-
ers, shims, and shim cover from torque member.
CAUTION:
When removing pad retainers from torque member, lift pad
retainers in the direction by the arrow (shown in the figure)
so as not to damage it.
INSTALLATION
1. Apply PBC (Poly Butyl Cuprysil) grease or silicone-based
grease to the both sides of inner shim and outer shim, install
inner shim and inner shim cover to inner pad and outer shim to
outer pad.
CAUTION:
Securely install shim cover according to shim mounting
direction.
2. Install pad retainers and pads to torque member.
CAUTION:
Securely assemble pad retainers so that they are not being
lifted up from torque member.
3. Press in piston until pads can be installed, and then install cylin-
der body to torque member.
NOTE:
Using a disc brake piston tool (commercial service tool) to easily
press piston in.
CAUTION:
When replacing pads with new ones, press in piston until
pads can be installed. In this case, carefully monitor brake fluid level in reservoir tank because
brake fluid will return to master cylinder reservoir tank.
4. Install lower sliding pin bolt, and tighten it to the specified torque. Refer to BR-26, "
Components" .
5. Secure disc rotor with wheel nut. Depress brake pedal a few times until it gets a responsive touch.
6. Check front disc brake for drag.
7. Install tyres to vehicle.
SBR556E
PFIA0267E
PFIA0273E

BR-28
FRONT DISC BRAKE

Removal and Installation of Brake Caliper AssemblyBFS000C0
REMOVAL
1. Remove tyres from vehicle.
2. Secure disc rotor using wheel nut.
CAUTION:

Do not drop brake pad.
3. Drain brake fluid. Refer to BR-9, "
Drain and Refill" .
4. Remove union bolt and then disconnect brake hose from caliper
assembly.
5. Remove torque member bolts, and remove brake caliper
assembly.
6. Remove disc rotor.
CAUTION:
Put matching marks on wheel hub assembly and disc rotor,
if it necessary to remove disc rotor.
SFIA2057E
SFIA1410J
SDIA2608E

FRONT DISC BRAKE
BR-29
C
D
E
G
H
I
J
K
L
MA
B
BR

INSTALLATION
CAUTION:

Refill with new brake fluid “DOT 3 or DOT 4”.

Do not reuse drained brake fluid.
1. Install disc rotor.
CAUTION:
Align the matching marks of disc rotor and wheel hub,
which were marked at the time of removal when reusing
disc rotor.
2. Install brake caliper assembly to vehicle, and tighten torque
member mounting bolts to the specified torque. Refer to BR-26,
"Components" .
CAUTION:
Before installing torque member to vehicle, wipe oil and
grease on washer seats on steering knuckle and mounting
surface of torque member.
3. Install brake hose to brake caliper assembly, and tighten union bolts to the specified torque. Refer to BR-
26, "Components" .
CAUTION:

Do not reuse copper washers for union bolts.

Connect brake hose aligning with caliper assembly mounting protrusion.
4. Refill with new brake fluid and bleed air. Refer to BR-10, "
Bleeding Brake System" .
5. Check front disc brake for drag.
6. Install tyres to vehicle.
Disassembly and Assembly of Brake Caliper AssemblyBFS000C1
NOTE:
Do not remove torque member, pads, shims, inner shim cover, and pad retainers when disassembling and
assembling cylinder body.
DISASSEMBLY
1. Remove caliper assembly from Vehicle. Refer to BR-28, "Removal and Installation of Brake Caliper
Assembly" .
2. Remove sliding pin bolts, from cylinder body, and remove pads
shims shim cover and pad retainers from torque member.
CAUTION:

When removing pad retainers from torque member, lift
pad retainer in the direction by the arrow (shown in the
figure) so as not to damage it.

Do not drop pads, shims, inner shim cover and pad
retainers from torque member.
3. Remove sliding pins and sliding pin boots from torque member.
SDIA2608E
SBR556E

BR-34
REAR DISC BRAKE

WARNING:
Clean dust on caliper and brake pads with a vacuum dust collector to minimize the hazard of air borne
particles or other materials.
CAUTION:

While removing cylinder body, do never depress brake pedal because piston will pop out.

It is not necessary to remove bolts on torque member and brake hose except for disassembly or
replacement of caliper assembly. In this case, hang cylinder body with wire so as not to stretch
brake hose.

Do not damage piston boot.

If any shim is subject to serious corrosion, replace it with a new one.

Always replace shims and shim covers as a set when replacing brake pads.

Keep rotor clean from brake fluid.

Burnish brake contact surface after refinishing or replacing rotors, after replacing pads, or if a soft
pedal occurs at very low mileage. Refer to BR-39, "
BRAKE BURNISHING PROCEDURE" .
Removal and Installation of Brake PadBFS000C4
REMOVAL
1. Remove tyres from vehicle.
2. Remove upper sliding pin bolt.
3. Suspend cylinder body with wire, and remove pads, pad retainers and shims, and shim covers from
torque member.
INSTALLATION
1. Apply PBC (Poly Butyl Cuprysil) grease or silicone-based grease to the bosh side of inner shim and outer
shin, install inner shim, inner shim cover to inner pad, and outer shim, outer shim cover to outer pad.

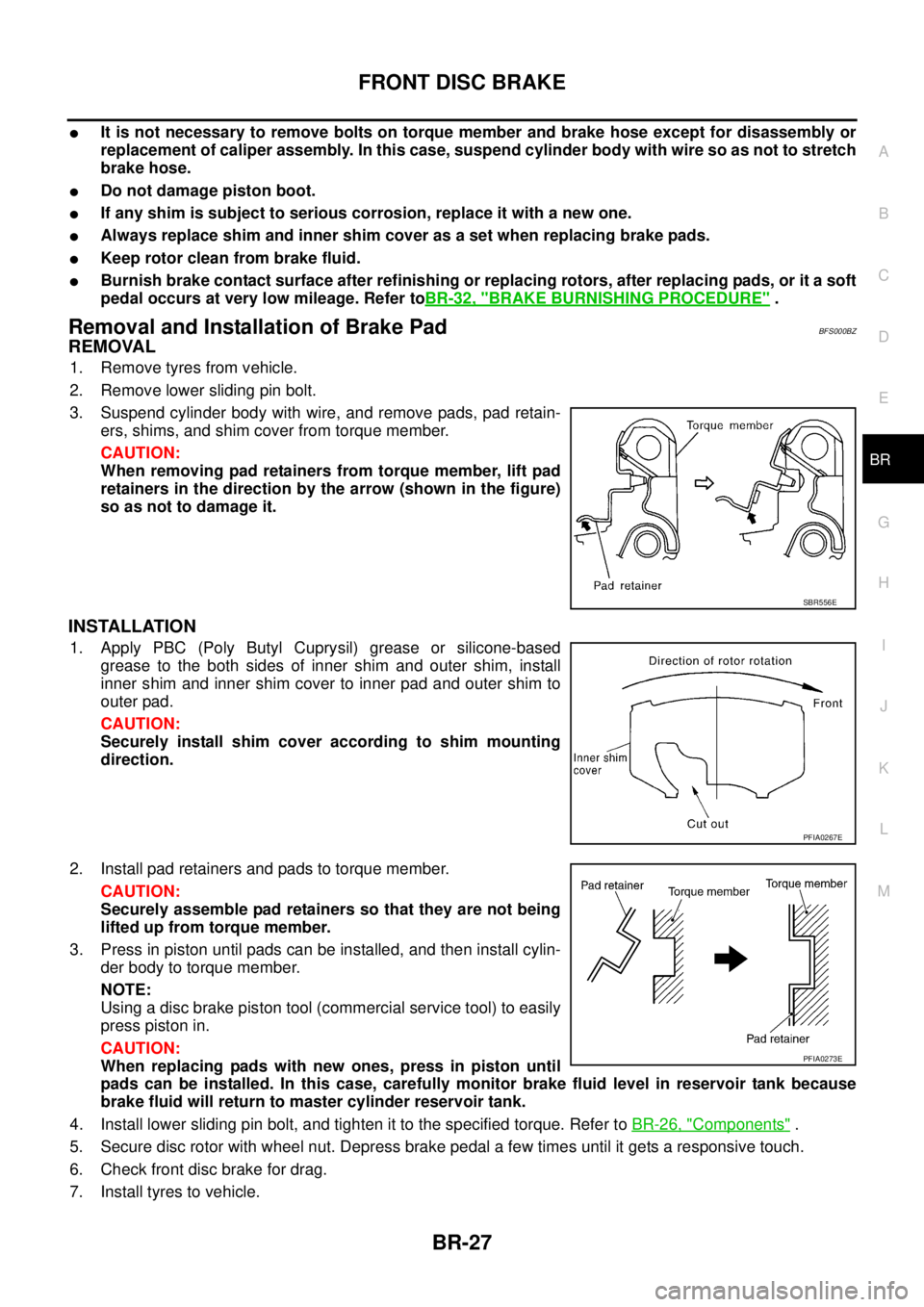

2. Install pad retainers and pads to torque member.
3. Press in piston until pads can be installed, and then install cylin-
der body to torque member.
NOTE:
Using a disc brake piston tool (commercial service tool) to easily
press piston in.
CAUTION:
When replacing pads with new ones, press in piston until
pads can be installed. In this case, carefully monitor brake
fluid level in reservoir tank because brake fluid will return to
master cylinder reservoir tank.
4. Install upper sliding pin bolt and tighten to the specified torque. Refer to BR-33, "
Components" .
5. Secure disc rotor with wheel nut. Depress brake pedal a few times until it gets a responsive touch.
6. Check rear disc brake for drag.
7. Install tyres to vehicle.
Refer to GI-10, "Components" and the followings for the symbols in the figure.
1: Apply rubber grease.
2: Apply PBC (Poly Butyl Cuprysil) grease or silicone-based grease.
3: Apply polyglycol ether based lubricant.
: Apply brake fluid.
PFIA0273E

REAR DISC BRAKE
BR-35
C
D
E
G
H
I
J
K
L
MA
B
BR

Removal and Installation of Brake Caliper AssemblyBFS000C5
REMOVAL
1. Remove tyres from vehicle.
2. Secure disc rotor using wheel nut to wheel hub.
CAUTION:

Do not drop brake pad.

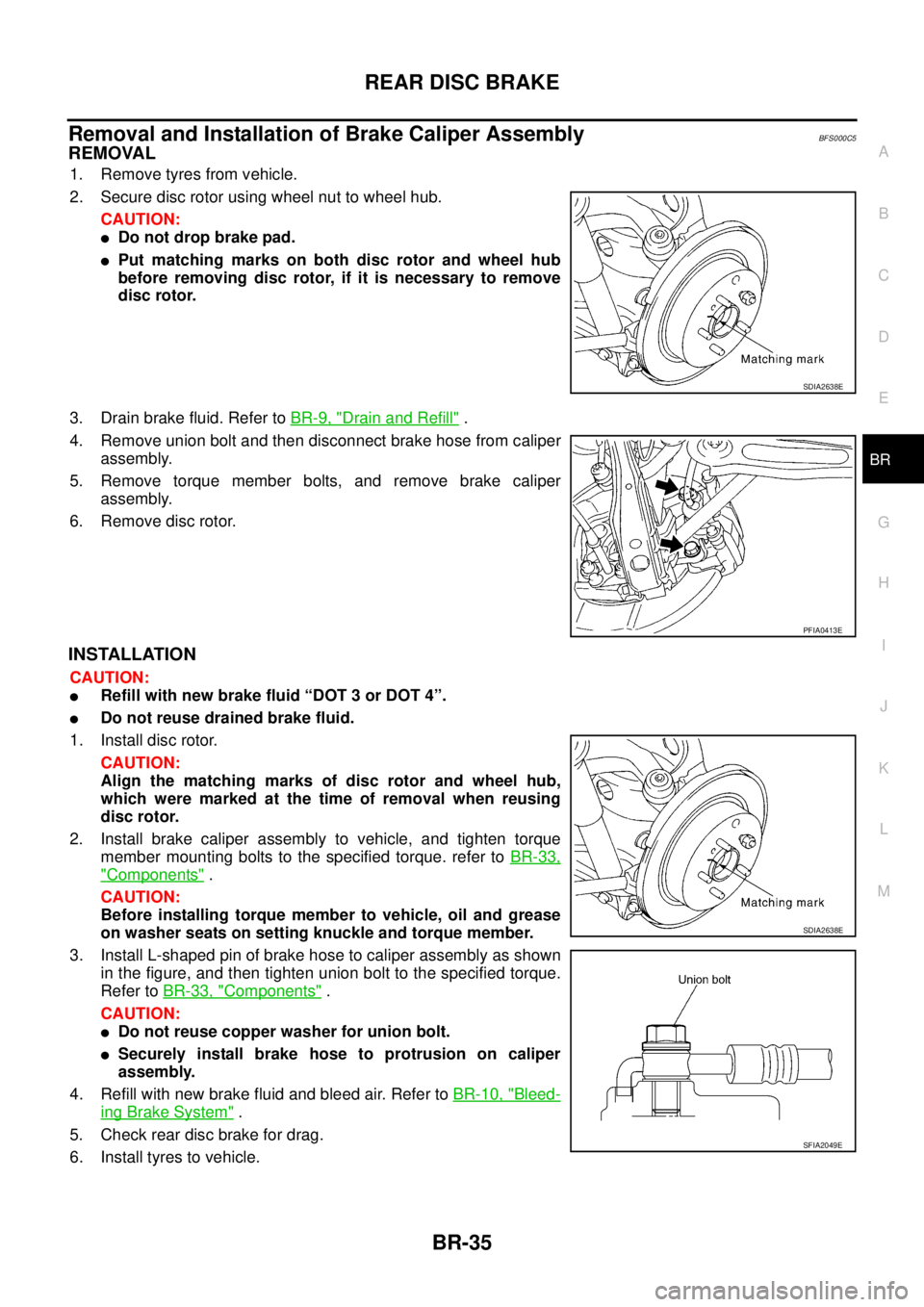

Put matching marks on both disc rotor and wheel hub
before removing disc rotor, if it is necessary to remove
disc rotor.
3. Drain brake fluid. Refer to BR-9, "
Drain and Refill" .
4. Remove union bolt and then disconnect brake hose from caliper
assembly.
5. Remove torque member bolts, and remove brake caliper
assembly.
6. Remove disc rotor.
INSTALLATION
CAUTION:

Refill with new brake fluid “DOT 3 or DOT 4”.

Do not reuse drained brake fluid.
1. Install disc rotor.
CAUTION:
Align the matching marks of disc rotor and wheel hub,
which were marked at the time of removal when reusing
disc rotor.
2. Install brake caliper assembly to vehicle, and tighten torque
member mounting bolts to the specified torque. refer to BR-33,
"Components" .
CAUTION:
Before installing torque member to vehicle, oil and grease
on washer seats on setting knuckle and torque member.
3. Install L-shaped pin of brake hose to caliper assembly as shown
in the figure, and then tighten union bolt to the specified torque.
Refer to BR-33, "
Components" .
CAUTION:

Do not reuse copper washer for union bolt.

Securely install brake hose to protrusion on caliper
assembly.
4. Refill with new brake fluid and bleed air. Refer to BR-10, "
Bleed-
ing Brake System" .
5. Check rear disc brake for drag.
6. Install tyres to vehicle.
SDIA2638E
PFIA0413E
SDIA2638E
SFIA2049E

WHEEL SENSORS
BRC-33
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

WHEEL SENSORSPFP:47910
Removal and InstallationBFS000DH
COMPONENTS
REMOVAL
Be careful of the following:
CAUTION:
When removing the wheel sensor, do not rotate it if possible, and do not forcibly pull the wheel sensor
harness.
INSTALLATION
Note the following, and tighten bolts to the specified torque.

Check the inside of the wheel sensor mounting hole for foreign materials, the rotor surface for iron chips
and other foreign materials. Clean both the wheel sensor mounting hole and the rotor surface before
installation. Replace the wheel sensor if there is any non-standard condition.

Completely push in rubber clamp of strut bracket and body bracket until they lock when installing front
wheel sensor so that the wheel sensor harness will not be twisted. Install grommet groove onto bracket
with yellow line on the harness facing bracket opening (mounting hole). There should be no twists in the
harness when installed.

When installing the rear sensor, securely install the harness mount of the rear suspension member so that
the wheel sensor harness is not twisted. In addition, there should be no twists in the harness when
installed.
SFIA2091E

BRC-86
[VDC/TCS/ABS]
WHEEL SENSORS

WHEEL SENSORSPFP:47910
Removal and InstallationBFS000EQ
COMPONENTS
REMOVAL
Be careful of the following.
CAUTION:
When removing the wheel sensor, do not rotate it if possible, and do not forcibly pull the wheel sensor
harness.
INSTALLATION
Note the following, and tighten bolts to the specified torque.

Check the inside of the wheel sensor mounting hole for foreign materials, the rotor surface for iron chips
and other foreign materials. Clean both the wheel sensor mounting hole and the rotor surface before
installation. Replace the wheel sensor if there is any non-standard condition.

Completely push in rubber clamp of strut bracket and body bracket until they lock when installing front
wheel sensor so that the wheel sensor harness will not be twisted. Install grommet groove onto bracket
with yellow line on the harness facing bracket opening (mounting hole). There should be no twists in the
harness when installed.

When installing the rear sensor, securely install the harness mount of the rear suspension member so that
the wheel sensor harness is not twisted. In addition, there should be no twists in the harness when
installed.
SFIA2091E
