REAR BUMPER

REMOVAL
1. Fully open trunk lid assembly.
2. Remove trunk floor carpet, trunk box assembly, trunk floor spacer (LH/RH), trunk rear garnish, trunk rear
finisher, and trunk wheelhouse finisher. Refer to EI-58, "
TRUNK ROOM TRIM & TRUNK LID FINISHER" .
3. Remove rear combination lamp (LH/RH). Refer to LT- 2 1 6 , "
REAR COMBINATION LAMP" .
4. Remove clips of bumper fascia lower side.
5. Remove screws of bumper fascia left/right side.
6. Remove bumper fascia left/right bolt from trunk room inside.
7. Remove clip and bumper clamp from bumper fascia upper side, and then pull out bumper fascia toward
rear of vehicle.
8. Disconnect rear fog lamp harness connector after pulling out, and then remove bumper fascia.
CAUTION:
When removing bumper fascia, 2 workers are required so as to prevent it from dropping.
9. Remove the following parts after removing bumper fascia.

Bumper side bracket (LH/RH).

Rear bumper molding (LH/RH).
10. Remove bumper energy absorber.
11. Remove bumper reinforcement mounting nuts and bumper reinforcement.
12. Unscrew bumper stay mounting bolts, and remove bumper stay (LH/RH).
INSTALLATION
Install in the reverse order of removal.
NOTE:
1. Bumper stay (LH) 2. Bolt 3. Clip (C103)
4. Bolt 5. Nut 6. Clip (C205)
7. Screw 8. Bumper side bracket (LH) 9. Bumper fascia
10. Rear bumper molding 11. Rear bumper molding (LH) 12. Bumper side bracket (RH)
13. Bumper reinforcement 14. Bumper stay (RH) 15. Bumper lower bracket (RH)
16. Bumper lower bracket (LH) 17. Bumper clamp 18. Rear bumper protector
19. Bumper energy absorber Pawl
Portion Clearance
Rear bumper – Rear fender A – A 0.0 – 0.7 mm (0.000 – 0.028 in)
Rear bumper – Rear combination lamp B – B 0.2 – 3.8 mm (0.008 – 0.150 in)
Rear bumper – Trunk lid C – C 5.0 – 9.0 mm (0.197 – 0.354 in)

PRECAUTIONS
EM-5
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

[QR]PRECAUTIONSPFP:00001
Precautions Necessary for Steering Wheel Rotation After Battery DisconnectBBS005KH
NOTE:

This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT
SYSTEM).

Remove and install all control units after disconnecting both battery cables with the ignition knob in the
″LOCK″ position.

Always use CONSULT-II to perform self-diagnosis as a part of each function inspection after finishing
work. If DTC is detected, perform trouble diagnosis according to self-diagnostic results.
For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-
anism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.
OPERATION PROCEDURE
1. Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.
2. Use the Intelligent Key or mechanical key to turn the ignition switch to the ″ACC″ position. At this time, the
steering lock will be released.
3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.
4. Perform the necessary repair operation.
5. When the repair work is completed, return the ignition switch to the ″LOCK″ position before connecting
the battery cables. (At this time, the steering lock mechanism will engage.)
6. Perform a self-diagnosis check of all control units using CONSULT-II.
Precautions for Drain Engine CoolantBBS005KI
Drain engine coolant when engine is cooled.
Precautions for Disconnecting Fuel PipingBBS005KJ

Before starting work, make sure no fire or spark producing items are in the work area.

Release fuel pressure before disassembly.

After disconnecting pipes, plug openings to stop fuel leakage.
Precautions for Removal and DisassemblyBBS005KK

When instructed to use special service tools, use the specified tools. Always be careful to work safely,
avoid forceful or uninstructed operations.

Exercise maximum care to avoid damage to mating or sliding surfaces.

Cover openings of engine system with tape or the equivalent, if necessary, to seal out foreign materials.

Mark and arrange disassembly parts in an organized way for easy troubleshooting and re-assembly.

When loosening nuts and bolts, as a basic rule, start with the one furthest outside, then the one diagonally
opposite, and so on. If the order of loosening is specified, do exactly as specified.
Precautions for Inspection, Repair and ReplacementBBS005KL
Before repairing or replacing, thoroughly inspect parts. Inspect new replacement parts in the same way, and
replace if necessary.
Precautions for Assembly and InstallationBBS005KM

Use torque wrench to tighten bolts or nuts to specification.

EM-54
[QR]
TIMING CHAIN

REMOVAL
1. Remove the following parts.

RH front road wheel and tire

Undercover and splash guard (RH)

PCV hose; Refer to EM-19, "INTAKE MANIFOLD" .

Ignition coil; Refer to EM-31, "IGNITION COIL" .

Rocker cover; Refer to EM-39, "ROCKER COVER" .

Reservoir tank of radiator; Refer to CO-13, "RADIATOR" .

Drive belt; Refer to EM-14, "DRIVE BELTS" .

Alternator; Refer to SC-27, "CHARGING SYSTEM" .

Drive belt auto-tensioner; Refer to EM-15, "Removal and Installation of Drive Belt Auto-Tensioner" .

Exhaust front tube; Refer to EX-2, "EXHAUST SYSTEM" .
2. Drain engine oil. Refer to LU-9, "
Changing Engine Oil" .
CAUTION:
Perform this step when engine is cold.
3. Remove A/C compressor with piping connected. Temporarily secure A/C compressor to vehicle side with
a rope to avoid putting a load on them. Refer to ATC-134, "
Removal and Installation of Compressor" .
4. Remove power steering oil pump with piping connected, and secure it to vehicle side temporarily. Refer to
PS-39, "
HYDRAULIC LINE" .
5. Securely support bottom of transaxle with suitable transmission jack.
6. Remove RH engine mounting insulator. Refer to EM-77, "
ENGINE ASSEMBLY" .
7. Remove oil pans (upper and lower), and oil strainer. Refer to EM-26, "
OIL PAN AND OIL STRAINER" .
8. To support engine, temporarily tighten removed front and rear engine mounting through-bolts for removing
oil pans (upper and lower). Refer to EM-77, "
ENGINE ASSEMBLY" .
9. Remove intake valve timing control cover with the following procedure:
a. Disconnect intake valve timing control solenoid valve harness connector.
b. Disconnect ground cables and remove harness clip.
c. Remove intake valve timing control solenoid valve, if necessary.
d. Loosen bolts in reverse order as shown in the figure.
e . U s e s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 ] o r e q u i v a l e n t t o o l t o c u t l i q -
uid gasket for removal.
CAUTION:
Be careful not to damage the mating surfaces.
10. Pull chain guide between camshaft sprockets out through front cover.
11. Set No. 1 cylinder at TDC on its compression stroke with the following procedure:
a. Rotate crankshaft pulley clockwise and align TDC mark to timing
indicator on front cover.
KBIA0085E
KBIA0190E

ENGINE ASSEMBLY
EM-77
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

ENGINE ASSEMBLYPFP:10001
Removal and InstallationBBS0059F
WARNING:

Situate vehicle on a flat and solid surface.

Place chocks at front and back of rear wheels.

For engines not equipped with engine slingers, attach proper slingers and bolts described in
PARTS CATALOG.
CAUTION:

Always be careful to work safely, avoid forceful or uninstructed operations.

Do not start working until exhaust system and engine coolant are cool enough.

If items or work required are not covered by the engine section, refer to the applicable sections.

Always use the support point specified for lifting.

Use either 2-pole lift type or separate type lift as best you can. If board-on type is used for
unavoidable reasons, support at the rear axle jacking point with transmission jack or similar tool
before starting work, in preparation for the backward shift of center of gravity.

For supporting points for lifting and jacking point at rear axle, refer to GI-37, "Garage Jack and
Safety Stand and 2-Pole Lift" .

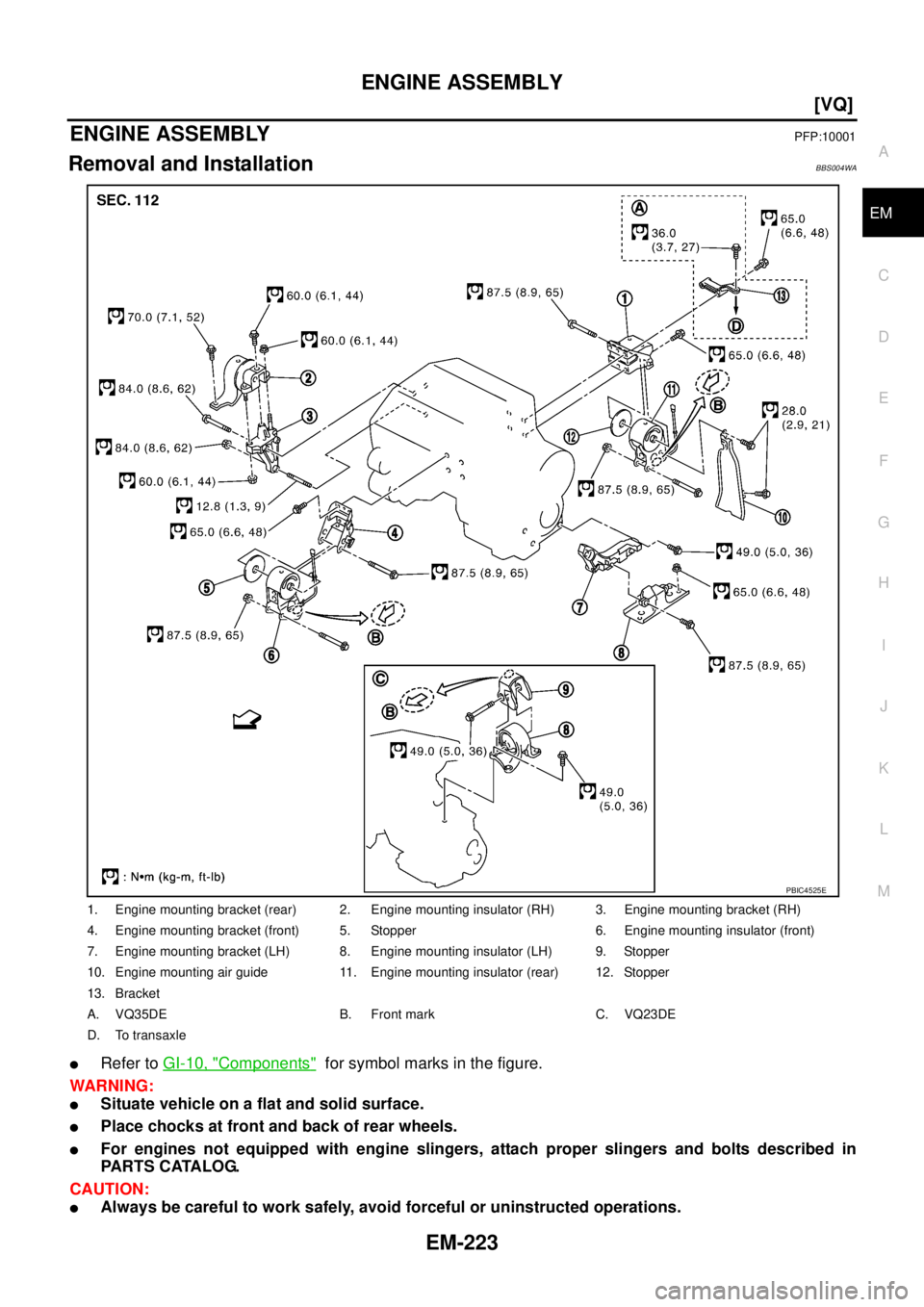

1. Stopper 2. LH engine mounting insulator 3. RH engine mounting bracket
4. RH engine mounting insulator 5. Front engine mounting bracket 6. Stopper
7. Front engine mounting insulator 8. Rear engine mounting bracket 9. Rear engine mounting insulator
10. Stopper
PBIC2421E

EM-78
[QR]
ENGINE ASSEMBLY

REMOVAL
Outline
Remove engine and transaxle assembly with front suspension member from vehicle downward. Separate
front suspension member, and then separate engine and transaxle.
Preparation
1. Release fuel pressure. Refer to EC-49, "FUEL PRESSURE RELEASE" .
2. Drain engine coolant from radiator. Refer to CO-10, "
Changing Engine Coolant" .
CAUTION:

Perform this step when engine is cold.

Do not spill engine coolant on drive belt.
3. Remove the following parts.

Hood assembly; Refer to BL-13, "HOOD" .

Undercover and splash guards (RH and LH)

Front road wheels and tires

Battery, battery tray and battery tray bracket; Refer to SC-4, "BATTERY" .

Drive belt; Refer to EM-14, "DRIVE BELTS" .

Air duct (inlet); Refer to EM-17, "AIR CLEANER AND AIR DUCT" .

Air cleaner case (upper) with mass air flow sensor and air duct assembly; Refer to EM-17, "AIR
CLEANER AND AIR DUCT" .

Alternator and alternator bracket; Refer to SC-27, "CHARGING SYSTEM" .

Radiator and radiator cooling fan assembly, reservoir tank of radiator and system hoses; Refer to CO-
13, "RADIATOR" .
4. Disconnect engine room harness connector from ECM side and set it aside for easier work.
5. Disconnect all vacuum hoses and air hoses connected to vehicle side at engine side.
Engine Room LH
1. Disconnect heater hose, and install plug it to prevent engine coolant from draining. Refer to CO-24,
"THERMOSTAT AND WATER CONTROL VALVE" .
2. Disconnect fuel feed hose, and plug it to prevent fuel from draining. Refer to EM-34, "
FUEL INJECTOR
AND FUEL TUBE" .
3. Disconnect control cable from transaxle. Refer to AT- 2 1 3 , "
SHIFT CONTROL SYSTEM" .
4. Disconnect B terminal harness of starter motor. Refer to SC-14, "
STARTING SYSTEM" .
Engine Room RH
1. Remove IPDM E/R and bracket. Refer to PG-17, "IPDM E/R (INTELLIGENT POWER DISTRIBUTION
MODULE ENGINE ROOM)" .
2. Remove A/C compressor with piping connected from engine. Temporarily secure it on vehicle side with a
rope to avoid putting load on it. Refer to ATC-134, "
Removal and Installation of Compressor" .
3. Remove reservoir tank of power steering oil pump. Temporarily secure it on engine side with a rope. Refer
to PS-39, "
HYDRAULIC LINE" .
Vehicle Underbody
1. Remove RH and LH front drive shafts. Refer to FAX-8, "FRONT DRIVE SHAFT" .
2. Remove exhaust front tube. Refer to EX-2, "
EXHAUST SYSTEM" .
3. Remove rear plate cover from oil pan (upper). Then remove bolts fixing drive plate to torque converter.
Refer to EM-26, "
OIL PAN AND OIL STRAINER" and AT- 2 4 1 , "TRANSAXLE ASSEMBLY" .
4. Remove transaxle joint bolts which pierce at oil pan (upper) lower rear side. Refer to AT- 2 4 1 , "
TRAN-
SAXLE ASSEMBLY" .
5. Disconnect connecting rod for front stabilizer. Refer to FSU-5, "
FRONT SUSPENSION ASSEMBLY" .
6. Remove steering lower joint from steering gear. Refer to PS-12, "
STEERING COLUMN" .
7. Remove power steering fluid piping from front suspension member. Refer to PS-39, "
HYDRAULIC LINE"
.
8. Disconnect power steering fluid piping at a point between vehicle and engine, and install plug it to prevent
power steering fluid. Refer to PS-39, "
HYDRAULIC LINE" .

PRECAUTIONS
EM-119
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM

[VQ]PRECAUTIONSPFP:00001
Precautions Necessary for Steering Wheel Rotation After Battery DisconnectBBS007TP
NOTE:

This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT
SYSTEM).

Remove and install all control units after disconnecting both battery cables with the ignition knob in the
″LOCK″ position.

Always use CONSULT-II to perform self-diagnosis as a part of each function inspection after finishing
work. If DTC is detected, perform trouble diagnosis according to self-diagnostic results.
For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-
anism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.
OPERATION PROCEDURE
1. Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.
2. Use the Intelligent Key or mechanical key to turn the ignition switch to the ″ACC″ position. At this time, the
steering lock will be released.
3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.
4. Perform the necessary repair operation.
5. When the repair work is completed, return the ignition switch to the ″LOCK″ position before connecting
the battery cables. (At this time, the steering lock mechanism will engage.)
6. Perform a self-diagnosis check of all control units using CONSULT-II.
Precautions for Drain Engine CoolantBBS007TQ
Drain engine coolant when engine is cooled.
Precautions for Disconnecting Fuel PipingBBS007TR

Before starting work, make sure no fire or spark producing items are in the work area.

Release fuel pressure before disconnecting and disassembly.

After disconnecting pipes, plug openings to stop fuel leakage.
Precautions for Removal and DisassemblyBBS007TS

When instructed to use special service tools, use specified tools. Always be careful to work safely, avoid
forceful or uninstructed operations.

Exercise maximum care to avoid damage to mating or sliding surfaces.

Cover openings of engine system with tape or equivalent, if necessary, to seal out foreign materials.

Mark and arrange disassembly parts in an organized way for easy troubleshooting and re-assembly.

When loosening bolts and nuts, as a basic rule, start with the one furthest outside, then the one diagonally
opposite, and so on. If the order of loosening is specified, do exactly as specified.
Precautions for Inspection, Repair and ReplacementBBS007TT
Before repairing or replacing, thoroughly inspect parts. Inspect new replacement parts in the same way, and
replace if necessary.
Precautions for Assembly and InstallationBBS007TU

Use torque wrench to tighten nuts and bolts to specification.

ENGINE ASSEMBLY
EM-223
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM

ENGINE ASSEMBLYPFP:10001
Removal and InstallationBBS004WA

Refer to GI-10, "Components" for symbol marks in the figure.
WARNING:

Situate vehicle on a flat and solid surface.

Place chocks at front and back of rear wheels.

For engines not equipped with engine slingers, attach proper slingers and bolts described in
PARTS CATALOG.
CAUTION:

Always be careful to work safely, avoid forceful or uninstructed operations.
1. Engine mounting bracket (rear) 2. Engine mounting insulator (RH) 3. Engine mounting bracket (RH)
4. Engine mounting bracket (front) 5. Stopper 6. Engine mounting insulator (front)
7. Engine mounting bracket (LH) 8. Engine mounting insulator (LH) 9. Stopper
10. Engine mounting air guide 11. Engine mounting insulator (rear) 12. Stopper
13. Bracket
A. VQ35DE B. Front mark C. VQ23DE
D. To transaxle
PBIC4525E

EM-224
[VQ]
ENGINE ASSEMBLY


Do not start working until exhaust system and engine coolant are cool enough.

If items or work required are not covered by the engine section, refer to the applicable sections.

Always use the support point specified for lifting.

Use either 2-pole lift type or separate type lift as best you can. If board-on type is used for
unavoidable reasons, support at the rear axle jacking point with transmission jack or similar tool
before starting work, in preparation for the backward shift of center of gravity.

For supporting points for lifting and jacking point at rear axle, refer to GI-37, "Garage Jack and
Safety Stand and 2-Pole Lift" .
REMOVAL
Outline
At first, remove engine and transaxle assembly with front suspension member from vehicle downward. Sepa-
rate front suspension member, and then separate engine from transaxle.
Preparation
1. Release fuel pressure. Refer to EC-392, "FUEL PRESSURE RELEASE" .
2. Drain engine coolant from radiator. Refer to CO-34, "
Changing Engine Coolant" .
CAUTION:

Perform this step when engine is cold.

Do not spill engine coolant on drive belts.
3. Remove the following parts:

Engine cover; Refer to EM-133, "INTAKE MANIFOLD COLLECTOR" .

Hood assembly; Refer to BL-13, "HOOD" .

Front road wheels and tires.

Undercover and splash guards (RH and LH).

Air duct (inlet), air cleaner case (upper) with mass air flow sensor and air duct assembly; Refer to EM-
131, "AIR CLEANER AND AIR DUCT" .

Battery, battery tray and battery tray bracket; Refer to SC-4, "BATTERY" .

Drive belts; Refer to EM-128, "DRIVE BELTS" .

Radiator, reservoir of radiator; Refer to CO-37, "RADIATOR" .

Front wiper arm; Refer to WW-4, "FRONT WIPER AND WASHER SYSTEM" .

Cowl top cover. Refer to EI-21, "COWL TOP" .
4. Disconnect engine room harness at the ECM side.
CAUTION:
To keep clean harness connector and avoid damage and foreign materials, cover them completely
with plastic bags or something similar.
Engine Room
1. Disconnect heater hoses. Refer to CO-52, "WATER OUTLET AND WATER PIPING" .

Install plug to avoid leakage of engine coolant.
2. Remove EVAP hose. Refer to EM-133, "
INTAKE MANIFOLD COLLECTOR" .
3. Disconnect fuel feed hose (with fuel damper) quick connector at centralized under-floor piping side. Refer
to EM-155, "
FUEL INJECTOR AND FUEL TUBE" .

Install plug to avoid leakage of fuel.
4. Disconnect shift control cable at transaxle side. Refer to AT- 2 1 3 , "
SHIFT CONTROL SYSTEM" .
5. Disconnect brake booster vacuum hose at engine side. Refer to EM-133, "
INTAKE MANIFOLD COLLEC-
TOR" .
6. Remove IPDM E/R mounting bolt and IPDM E/R bracket mounting bolts, and move it to aside. Refer to
PG-17, "
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)" .
7. Remove alternator. Refer to SC-27, "
CHARGING SYSTEM" .
8. Remove A/C compressor with piping connected, and temporarily secure it to aside. Refer to ATC-133,
"Components" .
9. Disconnect suction hoses of power steering oil pump at reservoir tank side.

Install plug to avoid leakage of power steering fluid.
