Page 2537 of 3502

POWER WINDOW SYSTEM
GW-43
C
D
E
F
G
H
J
K
L
MA
B
GW

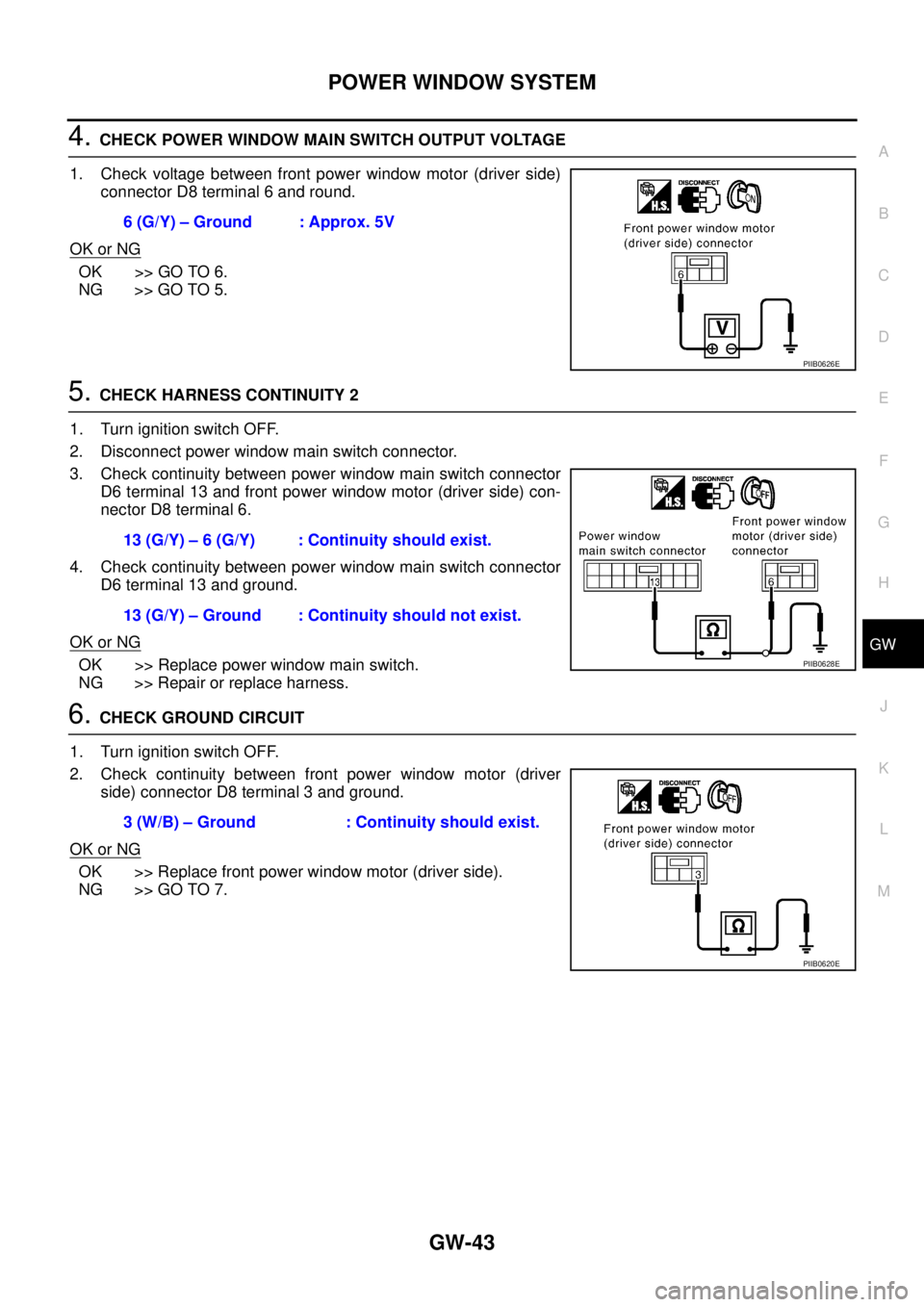

4. CHECK POWER WINDOW MAIN SWITCH OUTPUT VOLTAGE
1. Check voltage between front power window motor (driver side)
connector D8 terminal 6 and round.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. CHECK HARNESS CONTINUITY 2
1. Turn ignition switch OFF.
2. Disconnect power window main switch connector.
3. Check continuity between power window main switch connector
D6 terminal 13 and front power window motor (driver side) con-
nector D8 terminal 6.
4. Check continuity between power window main switch connector
D6 terminal 13 and ground.
OK or NG
OK >> Replace power window main switch.
NG >> Repair or replace harness.
6. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between front power window motor (driver
side) connector D8 terminal 3 and ground.
OK or NG
OK >> Replace front power window motor (driver side).
NG >> GO TO 7.6 (G/Y) – Ground : Approx. 5V
PIIB0626E
13 (G/Y) – 6 (G/Y) : Continuity should exist.
13 (G/Y) – Ground : Continuity should not exist.
PIIB0628E
3 (W/B) – Ground : Continuity should exist.
PIIB0620E
Page 2538 of 3502
GW-44
POWER WINDOW SYSTEM
7. CHECK HARNESS CONTINUITY 3
1. Disconnect power window main switch connector.
2. Check continuity between power window main switch connector
D6 terminal 2 and front power window motor (driver side) con-
nector D8 terminal 3.
OK or NG
OK >> Replace power window main switch.
NG >> Repair or replace harness.
Check Door Switch BIS000ZN
1. CHECK DOOR SWITCH INPUT SIGNAL
With CONSULT-II
Check “DOOR SW-DR ” in “DATA MONITOR” mode with CONSULT-II.
Without CONSULT-II
Check voltage between BCM connector M5 terminal 62 and ground.
OK or NG
OK >> Door switch circuit is OK.
NG >> GO TO 2.2 (W/B) – 3 (W/B) : Continuity should exist.
PIIB0627E
Monitor item Condition of driver side door
DOOR SW-DROPEN : ON
CLOSE : OFF
PIIB0629E
ConnectorTerminals (Wire color) Condition of
driver side
doorVoltage [V]
(Approx.)
(+) (–)
M5 62 (SB) GroundOPEN 0
CLOSE Battery voltage
PIIB0630E
Page 2539 of 3502

POWER WINDOW SYSTEM
GW-45
C
D
E
F
G
H
J
K
L
MA
B
GW

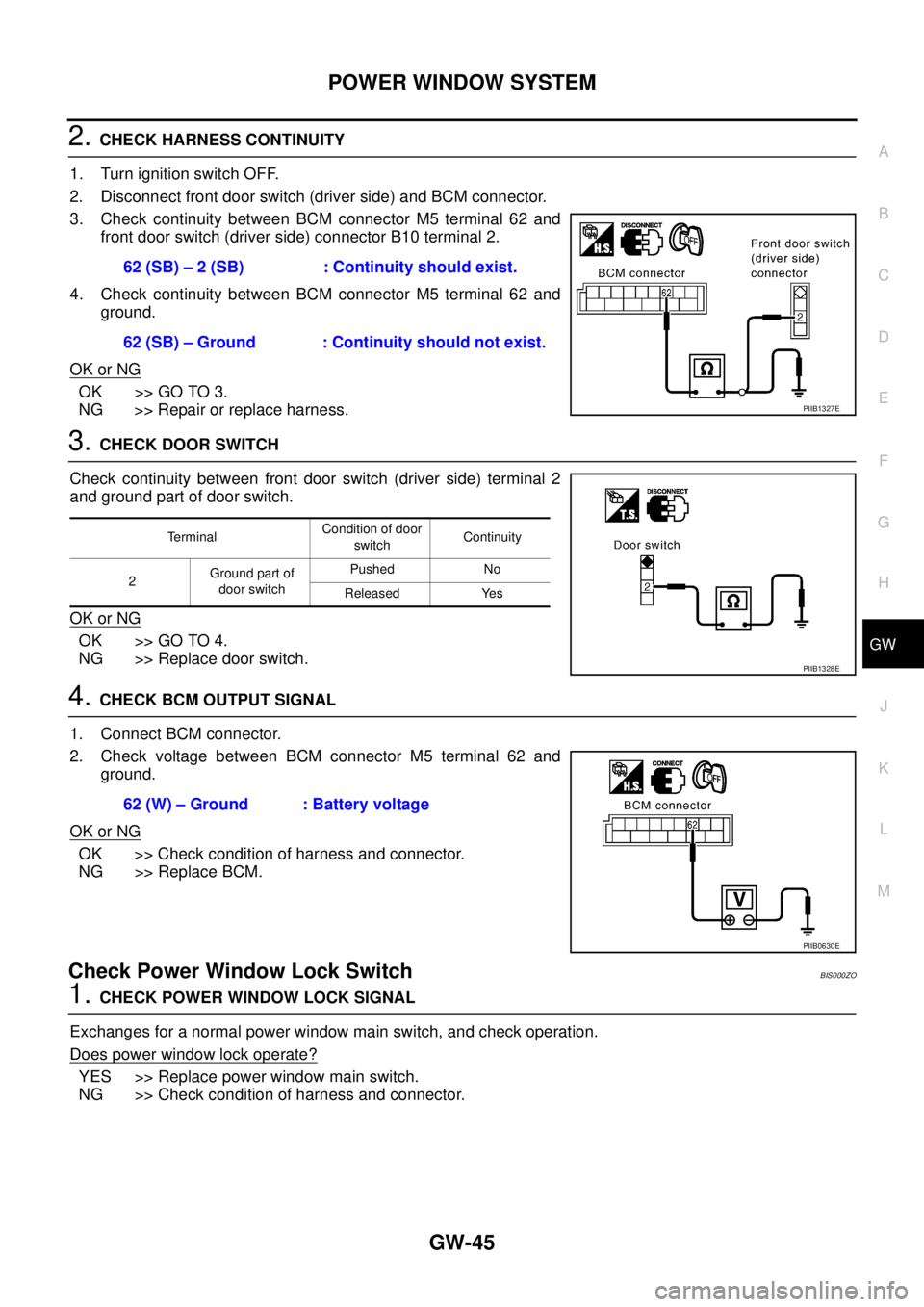

2. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect front door switch (driver side) and BCM connector.
3. Check continuity between BCM connector M5 terminal 62 and
front door switch (driver side) connector B10 terminal 2.
4. Check continuity between BCM connector M5 terminal 62 and
ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. CHECK DOOR SWITCH
Check continuity between front door switch (driver side) terminal 2
and ground part of door switch.
OK or NG
OK >> GO TO 4.
NG >> Replace door switch.
4. CHECK BCM OUTPUT SIGNAL
1. Connect BCM connector.
2. Check voltage between BCM connector M5 terminal 62 and
ground.
OK or NG
OK >> Check condition of harness and connector.
NG >> Replace BCM.
Check Power Window Lock Switch BIS000ZO
1. CHECK POWER WINDOW LOCK SIGNAL
Exchanges for a normal power window main switch, and check operation.
Does power window lock operate?
YES >> Replace power window main switch.
NG >> Check condition of harness and connector.62 (SB) – 2 (SB) : Continuity should exist.
62 (SB) – Ground : Continuity should not exist.
PIIB1327E
TerminalCondition of door
switchContinuity
2Ground part of
door switchPushed No
Released Yes
PIIB1328E
62 (W) – Ground : Battery voltage
PIIB0630E
Page 2540 of 3502
GW-46
FRONT DOOR GLASS AND REGULATOR
FRONT DOOR GLASS AND REGULATORPFP:80300
Removal and InstallationBIS000ZP
DOOR GLASS
Removal
1. Remove the front door finisher. Refer to EI-35, "DOOR FINISHER" .
2. Operate the power window main switch to raise/lower the door
window until the glass mounting bolts can be seen.
3. Remove the glass mounting bolts.

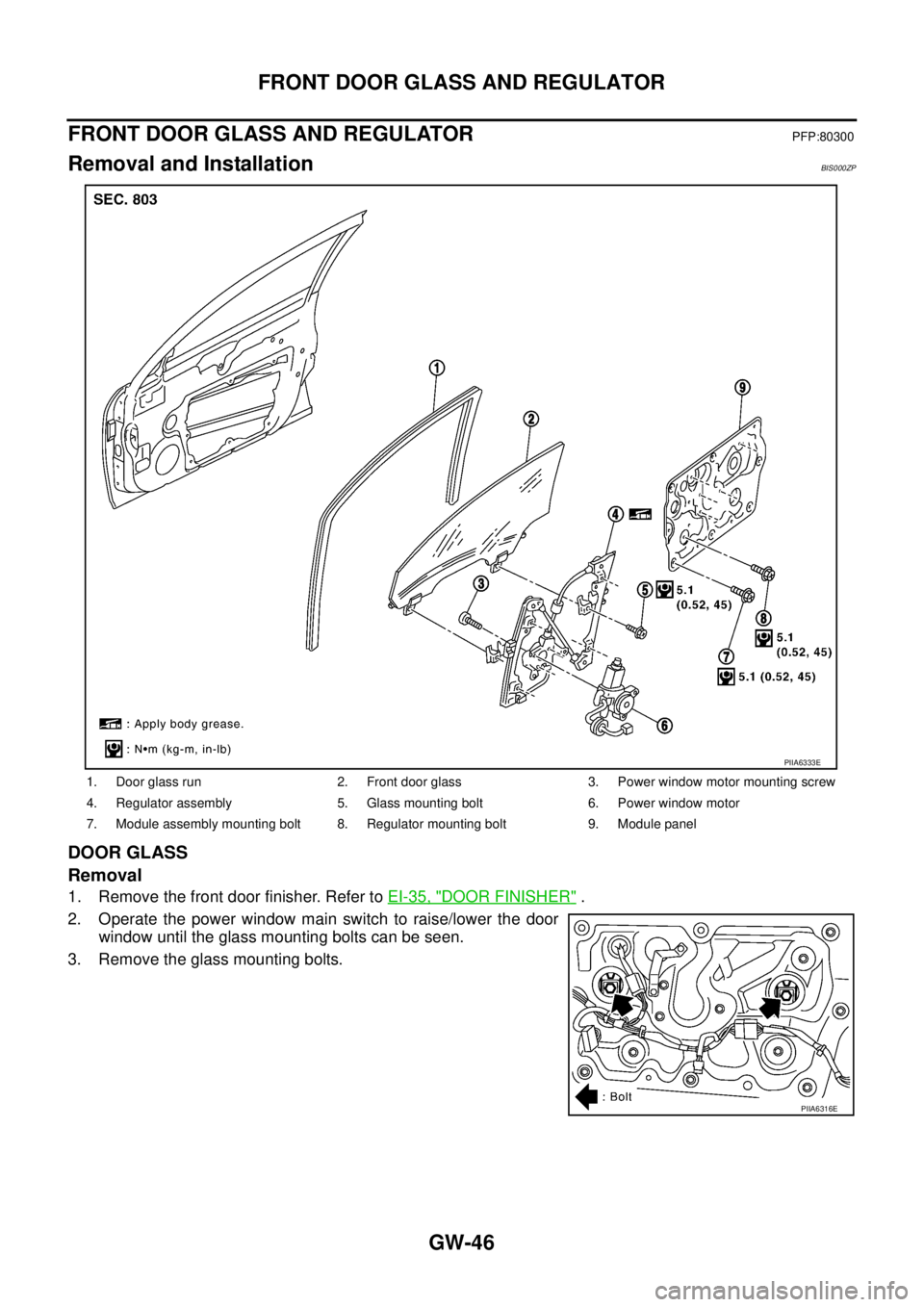

1. Door glass run 2. Front door glass 3. Power window motor mounting screw
4. Regulator assembly 5. Glass mounting bolt 6. Power window motor
7. Module assembly mounting bolt 8. Regulator mounting bolt 9. Module panel
PIIA6333E
PIIA6316E
Page 2541 of 3502
FRONT DOOR GLASS AND REGULATOR
GW-47
C
D
E
F
G
H
J
K
L
MA
B
GW

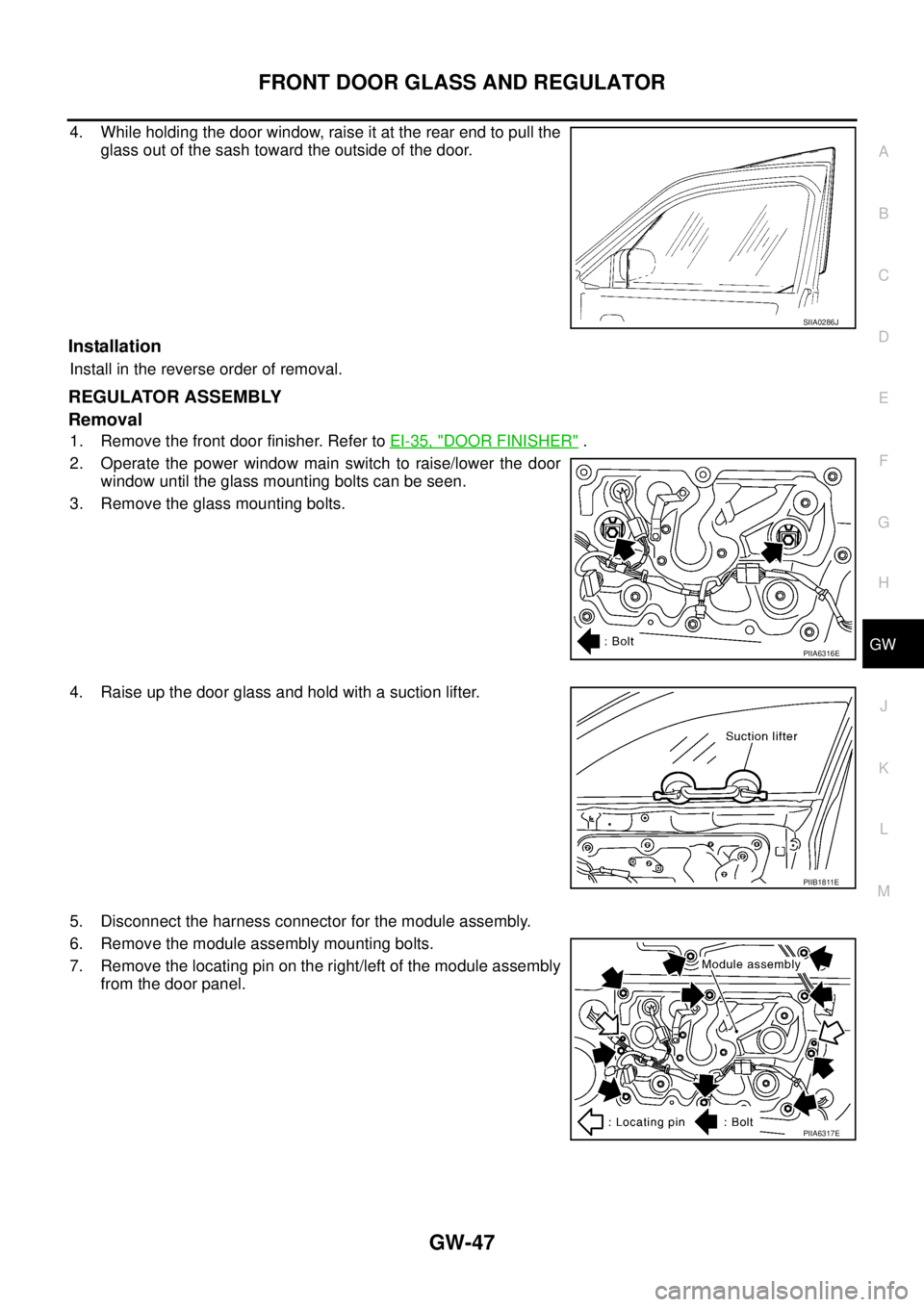

4. While holding the door window, raise it at the rear end to pull the
glass out of the sash toward the outside of the door.
Installation
Install in the reverse order of removal.
REGULATOR ASSEMBLY
Removal
1. Remove the front door finisher. Refer to EI-35, "DOOR FINISHER" .
2. Operate the power window main switch to raise/lower the door
window until the glass mounting bolts can be seen.
3. Remove the glass mounting bolts.
4. Raise up the door glass and hold with a suction lifter.
5. Disconnect the harness connector for the module assembly.
6. Remove the module assembly mounting bolts.
7. Remove the locating pin on the right/left of the module assembly
from the door panel.
SIIA0286J
PIIA6316E
PIIB1811E
PIIA6317E
Page 2542 of 3502
GW-48
FRONT DOOR GLASS AND REGULATOR

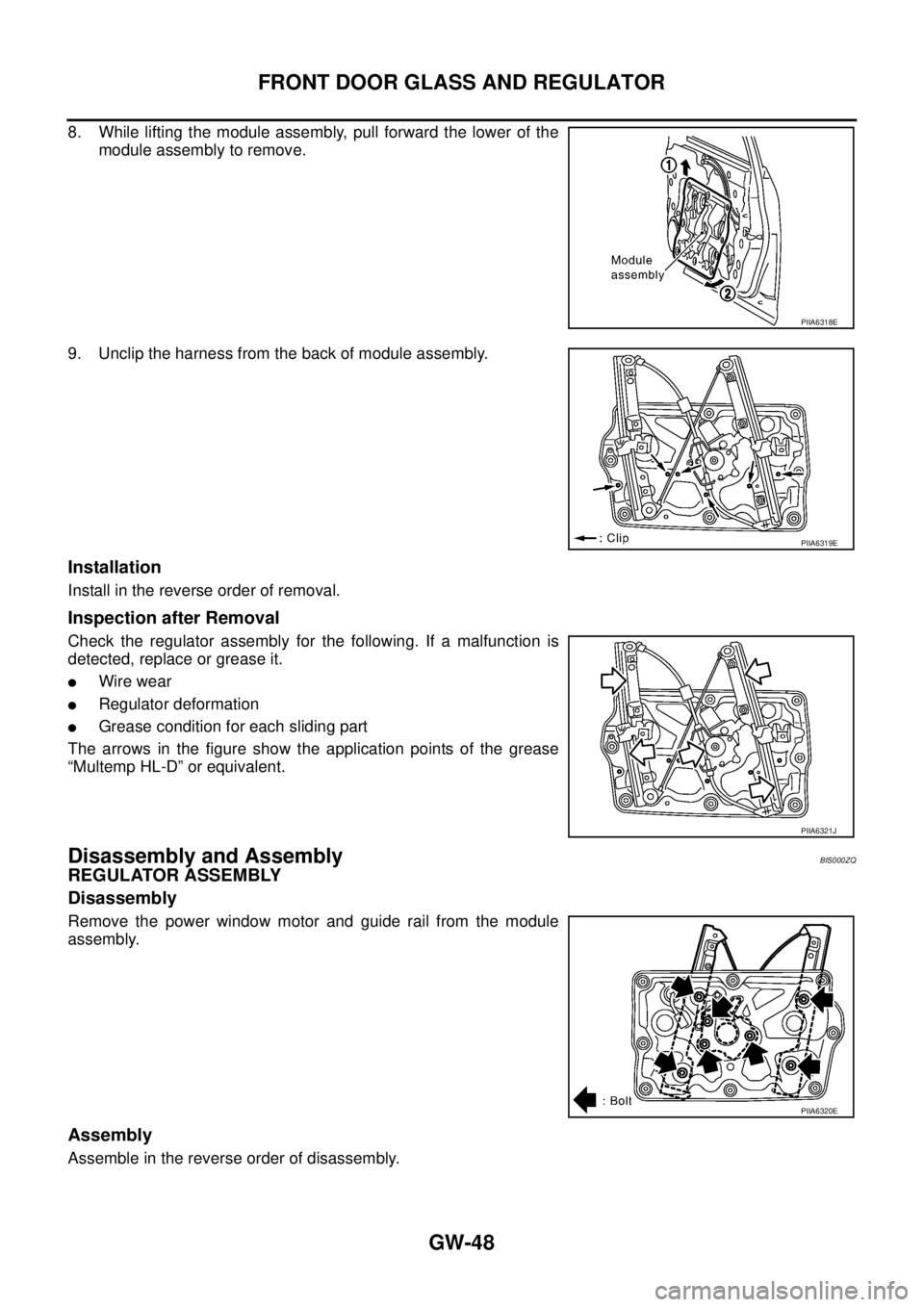

8. While lifting the module assembly, pull forward the lower of the
module assembly to remove.
9. Unclip the harness from the back of module assembly.
Installation
Install in the reverse order of removal.
Inspection after Removal
Check the regulator assembly for the following. If a malfunction is
detected, replace or grease it.
Wire wear
Regulator deformation
Grease condition for each sliding part
The arrows in the figure show the application points of the grease
“Multemp HL-D” or equivalent.
Disassembly and AssemblyBIS000ZQ
REGULATOR ASSEMBLY
Disassembly
Remove the power window motor and guide rail from the module
assembly.
Assembly
Assemble in the reverse order of disassembly.
PIIA6318E
PIIA6319E
PIIA6321J
PIIA6320E
Page 2543 of 3502

FRONT DOOR GLASS AND REGULATOR
GW-49
C
D
E
F
G
H
J
K
L
MA
B
GW
Inspection after InstallationBIS000ZR
SETTING OF LIMIT SWITCH (DRIVER SIDE)
If any of the following work has been done, set the limit switch (integrated in the motor).
Removal and installation of the regulator assembly.
Removal and installation of the motor from the regulator.
Operate the regulators as a unit.
Installation of the new glass.
Installation of the new glass run.
Resetting
After removing the module assembly from the door panel, follow the steps below.
1. Remove the regulator assembly from the module assembly.
2. Remove the power window motor from the regulator assembly.
3. Connect the door harness to the power window motor, and rotate the motor unite for more than 5 turns in
glass raising direction.
4. Install the power window motor to the regulator.
5. Install the regulator assembly to the module.
6. Install the module assembly to the door panel, and install the door glass.
7. Raise the glass to the top position.
CAUTION:
Do not operate the glass automatically to raise the glass to the top.
FITTING INSPECTION
Make sure the glass is securely fit into the glass run groove.
Lower the glass slightly [approx. 10 to 20 mm (0.39 to 0.79 in)] and make sure the clearance to the sash is
parallel. If the clearance between the glass and sash is not parallel, loosen the regulator mounting bolts,
guide rail mounting bolts, and glass and guide rail mounting bolts to correct the glass position.
Page 2544 of 3502
GW-50
REAR DOOR GLASS AND REGULATOR
REAR DOOR GLASS AND REGULATORPFP:82300
Removal and InstallationBIS000ZS
DOOR GLASS
Removal
1. Remove the rear door finisher. Refer to EI-35, "DOOR FINISHER" .
2. Remove the rear door speaker harness connector.
3. Remove the sealing screen.
NOTE:
If the sealing screen is reused, cut the butyl-tape so that a part of butyl-tape remains on the sealing
screen.
1. Rear door sash 2. Rear door sash mounting bolt 3. Door glass run
4. Rear door glass 5. Power window motor mounting screw 6. Power window motor
7. Glass mounting bolt 8. Regulator mounting bolt 9. Regulator assembly
10. Rear door sash mounting nut 11. Clip 12. Sealing screen
PIIA6334E
