Page 2633 of 3502

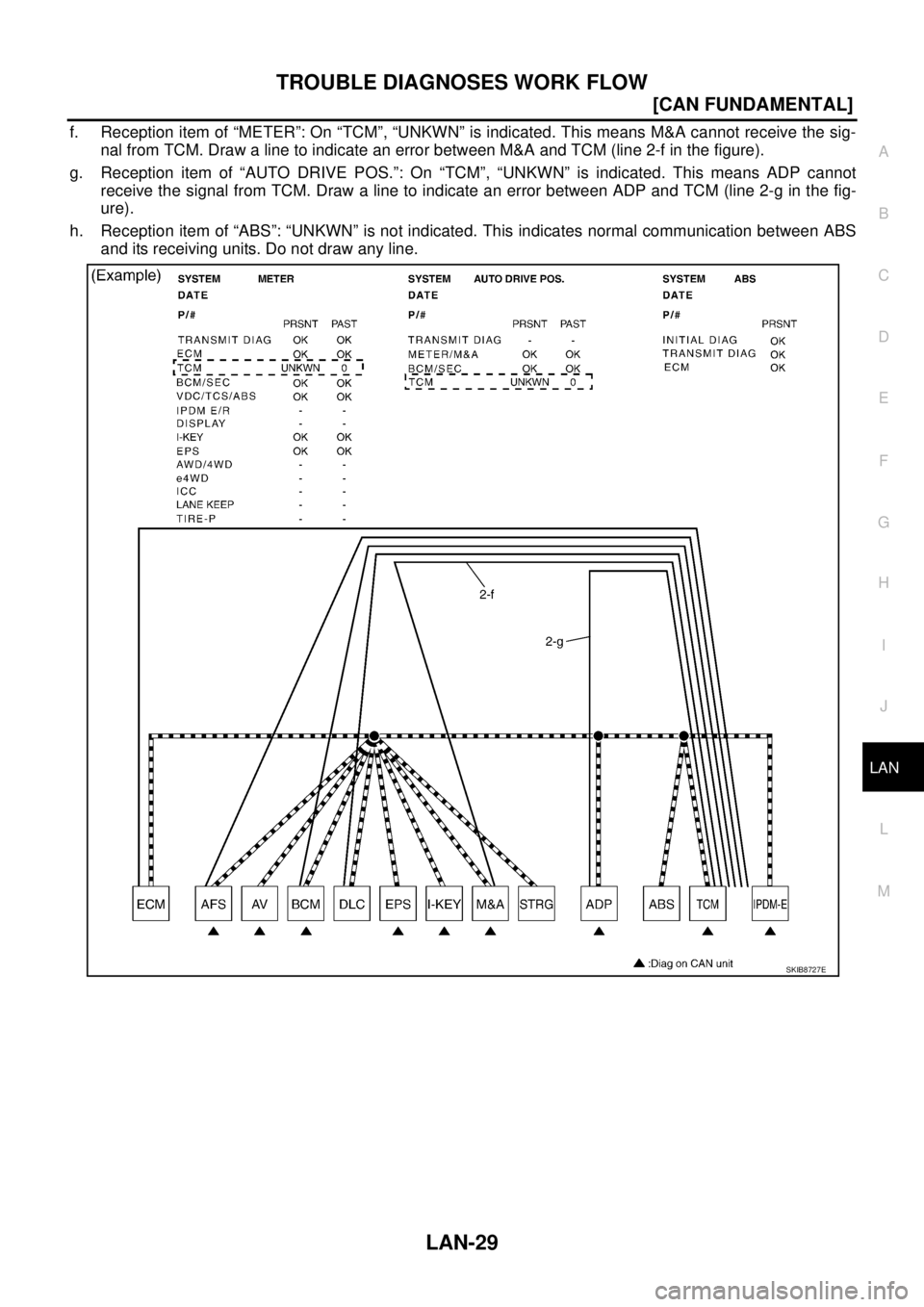

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSES WORK FLOW LAN-29 [CAN FUNDAMENTAL] C D E F G H I J L MA B LAN f. Reception item of “METER”: On “TCM”, “UNKWN” is indicated. This means M&A cannot receive the sig- nal f

Page 2634 of 3502

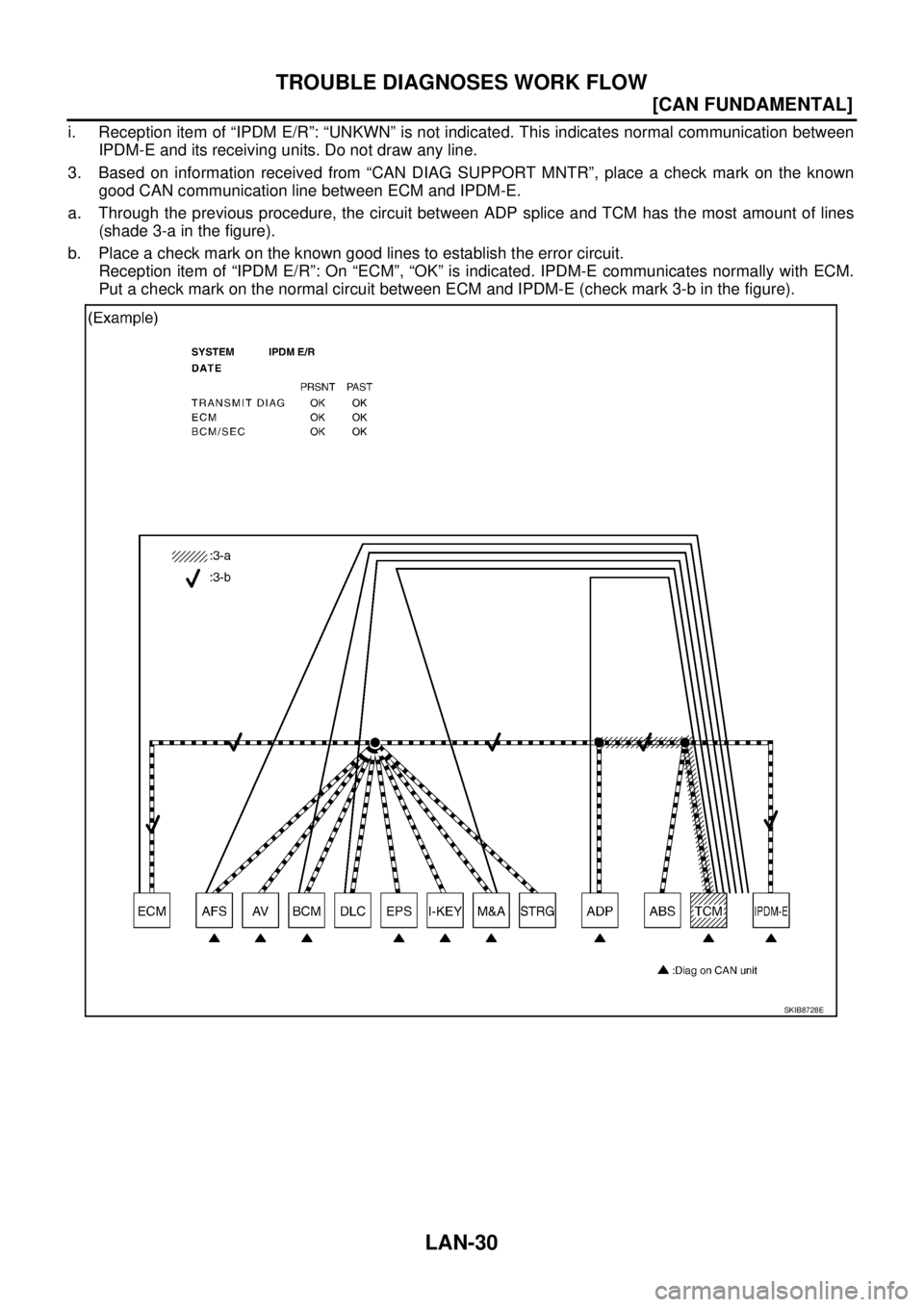

NISSAN TEANA 2003 Service Manual LAN-30 [CAN FUNDAMENTAL] TROUBLE DIAGNOSES WORK FLOW i. Reception item of “IPDM E/R”: “UNKWN” is not indicated. This indicates normal communication between IPDM-E and its receiving units. Do

Page 2635 of 3502

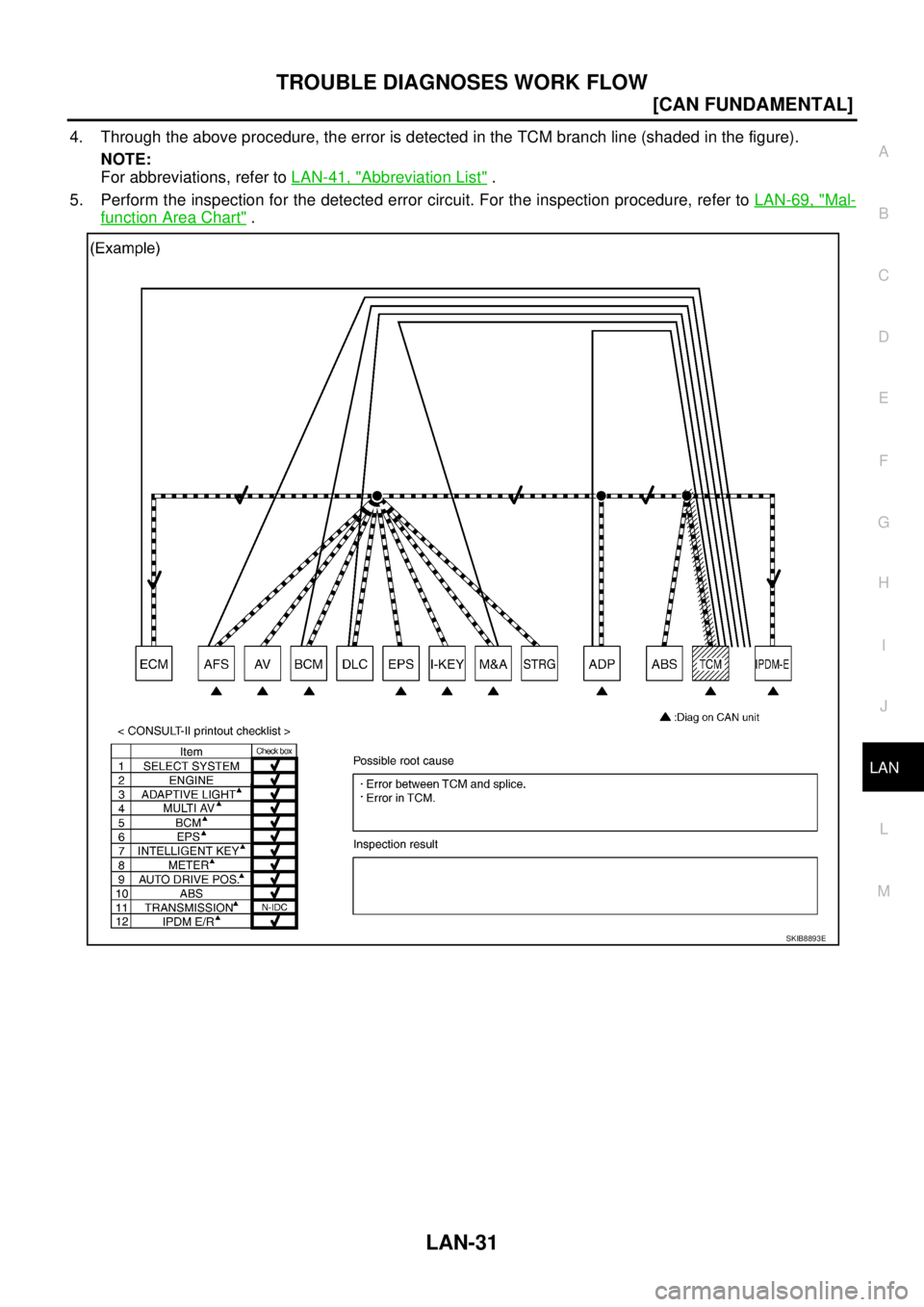

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSES WORK FLOW LAN-31 [CAN FUNDAMENTAL] C D E F G H I J L MA B LAN 4. Through the above procedure, the error is detected in the TCM branch line (shaded in the figure). NOTE: For abbrevi

Page 2636 of 3502

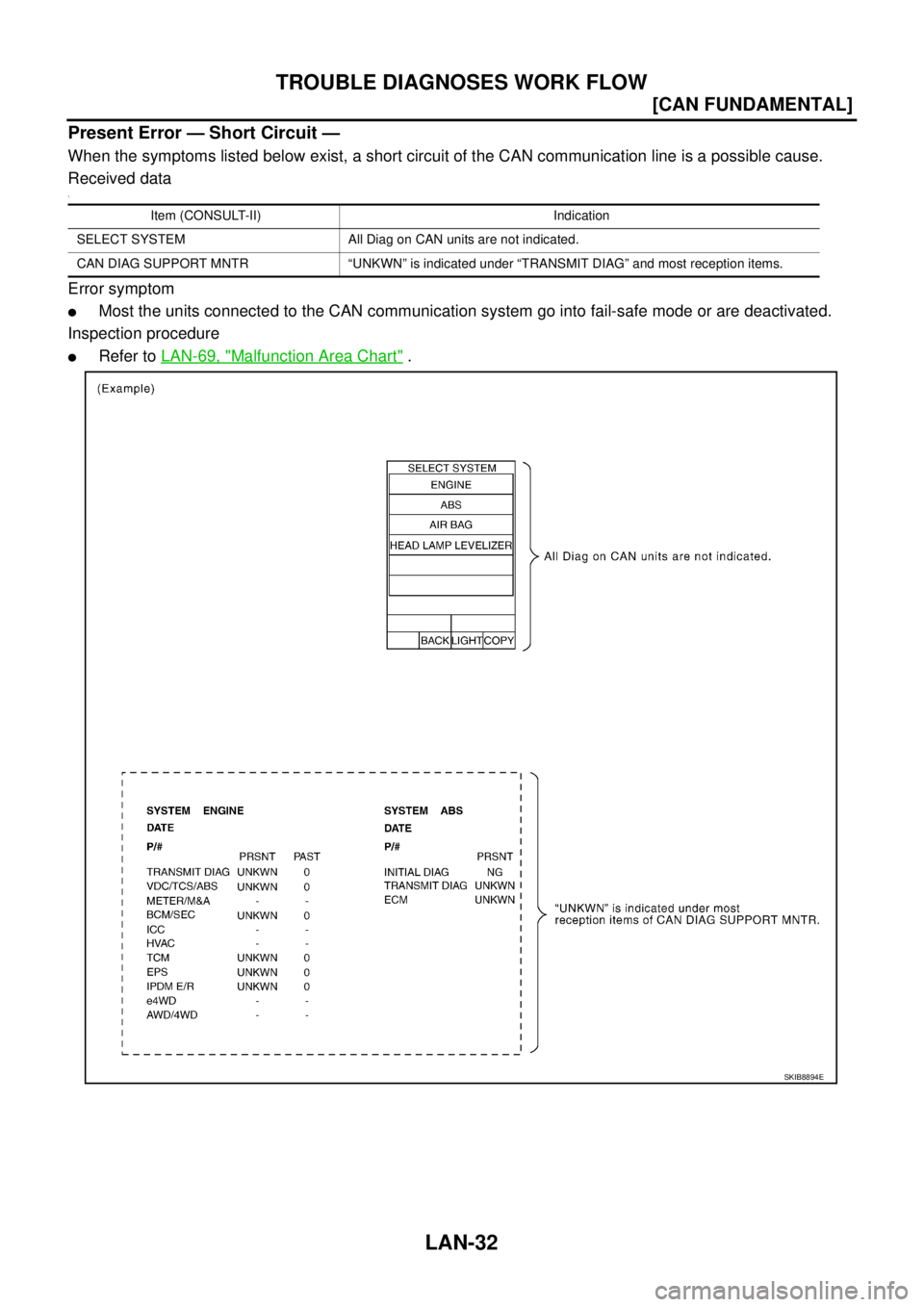

NISSAN TEANA 2003 Service Manual LAN-32 [CAN FUNDAMENTAL] TROUBLE DIAGNOSES WORK FLOW Present Error — Short Circuit — When the symptoms listed below exist, a short circuit of the CAN communication line is a possible cause. Rece

Page 2637 of 3502

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSES WORK FLOW LAN-33 [CAN FUNDAMENTAL] C D E F G H I J L MA B LAN Past Error — Open Circuit — Review CAN communication signal chart based on information received from the interview

Page 2638 of 3502

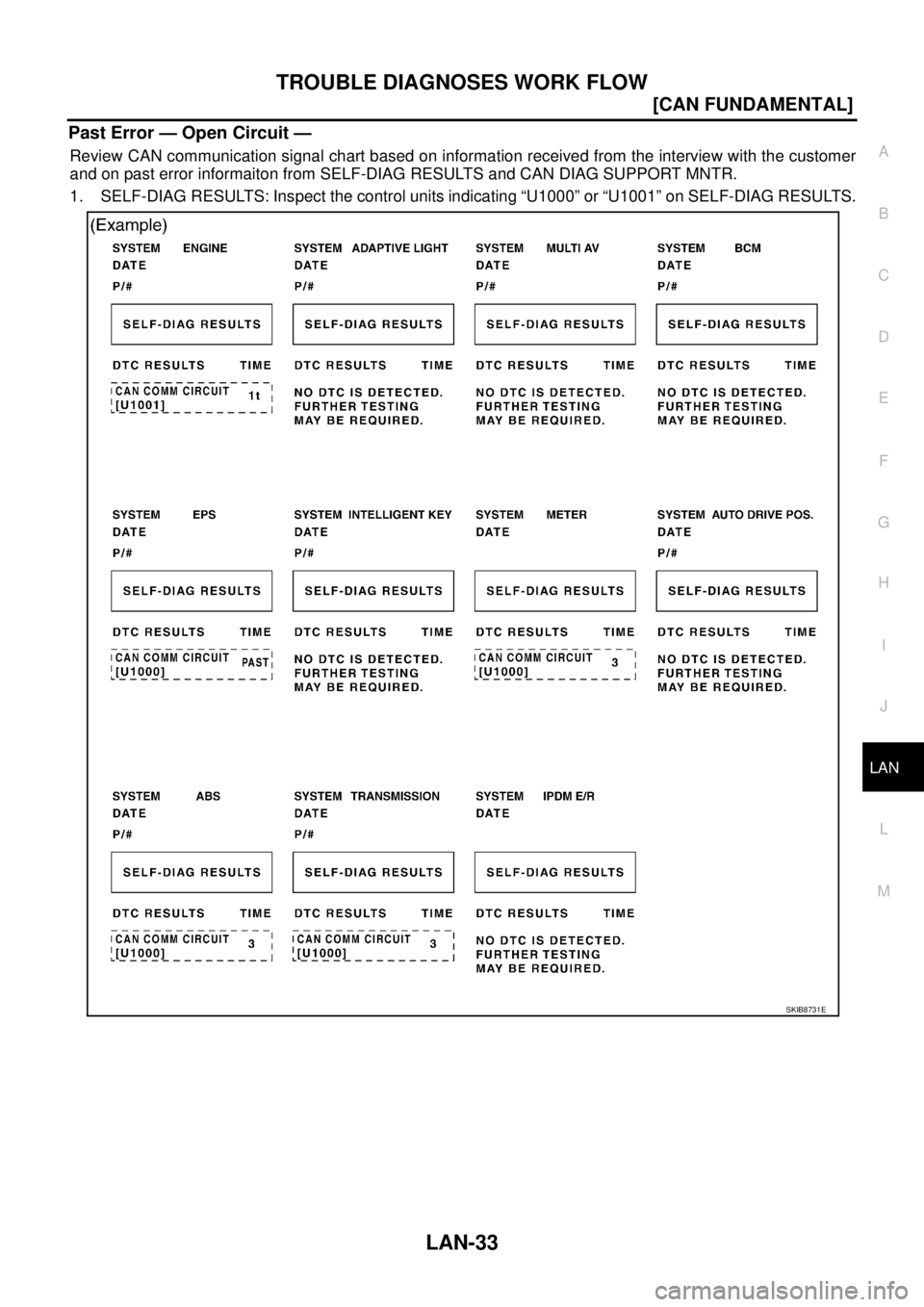

NISSAN TEANA 2003 Service Manual LAN-34 [CAN FUNDAMENTAL] TROUBLE DIAGNOSES WORK FLOW 2. CAN DIAG SUPPORT MNTR (with PAST): Check the CAN DIAG SUPPORT MNTR (with PAST) of units indicating “U1000” or “U1001” on SELF-DIAG RES

Page 2639 of 3502

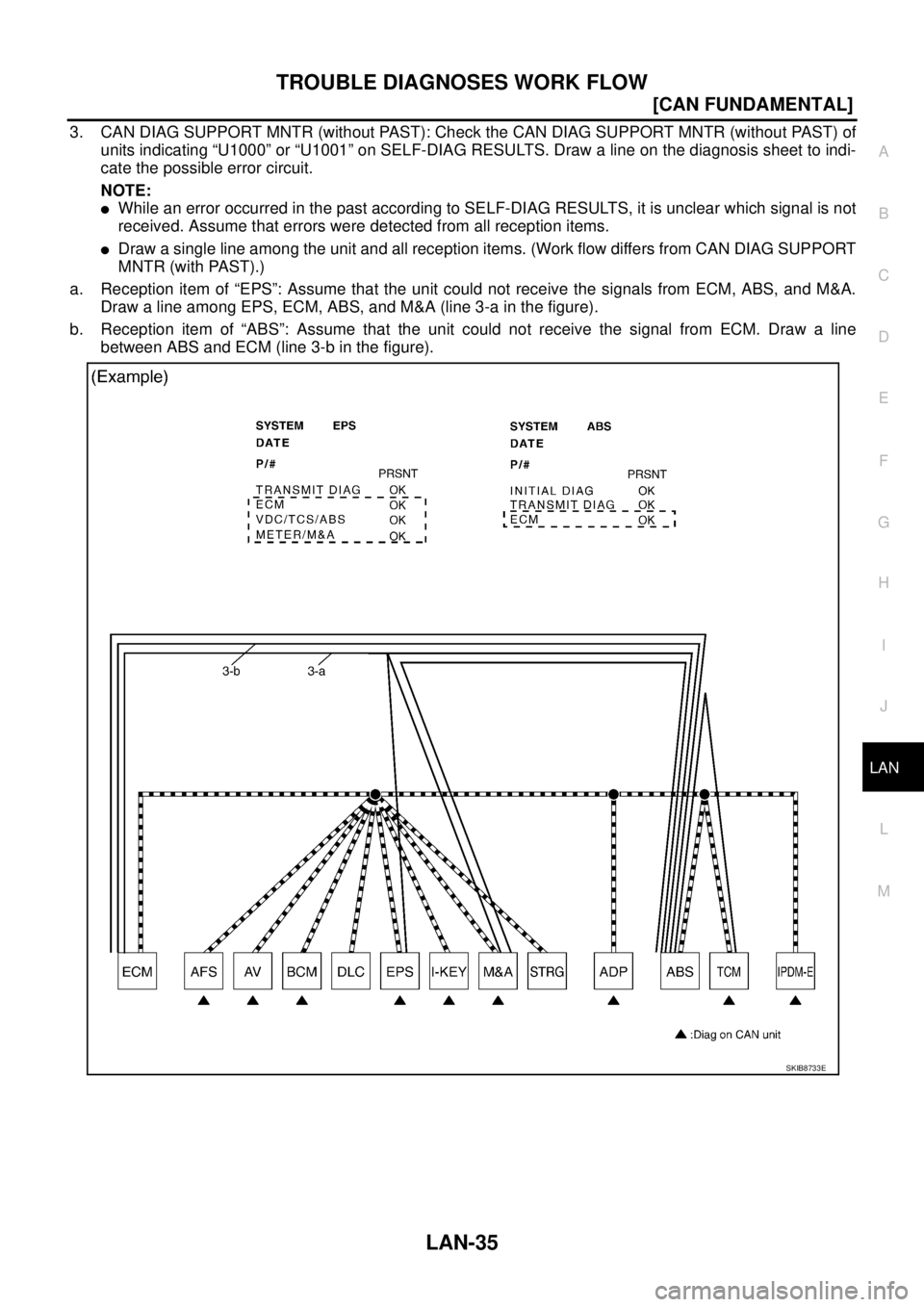

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSES WORK FLOW LAN-35 [CAN FUNDAMENTAL] C D E F G H I J L MA B LAN 3. CAN DIAG SUPPORT MNTR (without PAST): Check the CAN DIAG SUPPORT MNTR (without PAST) of units indicating “U1000

Page 2640 of 3502

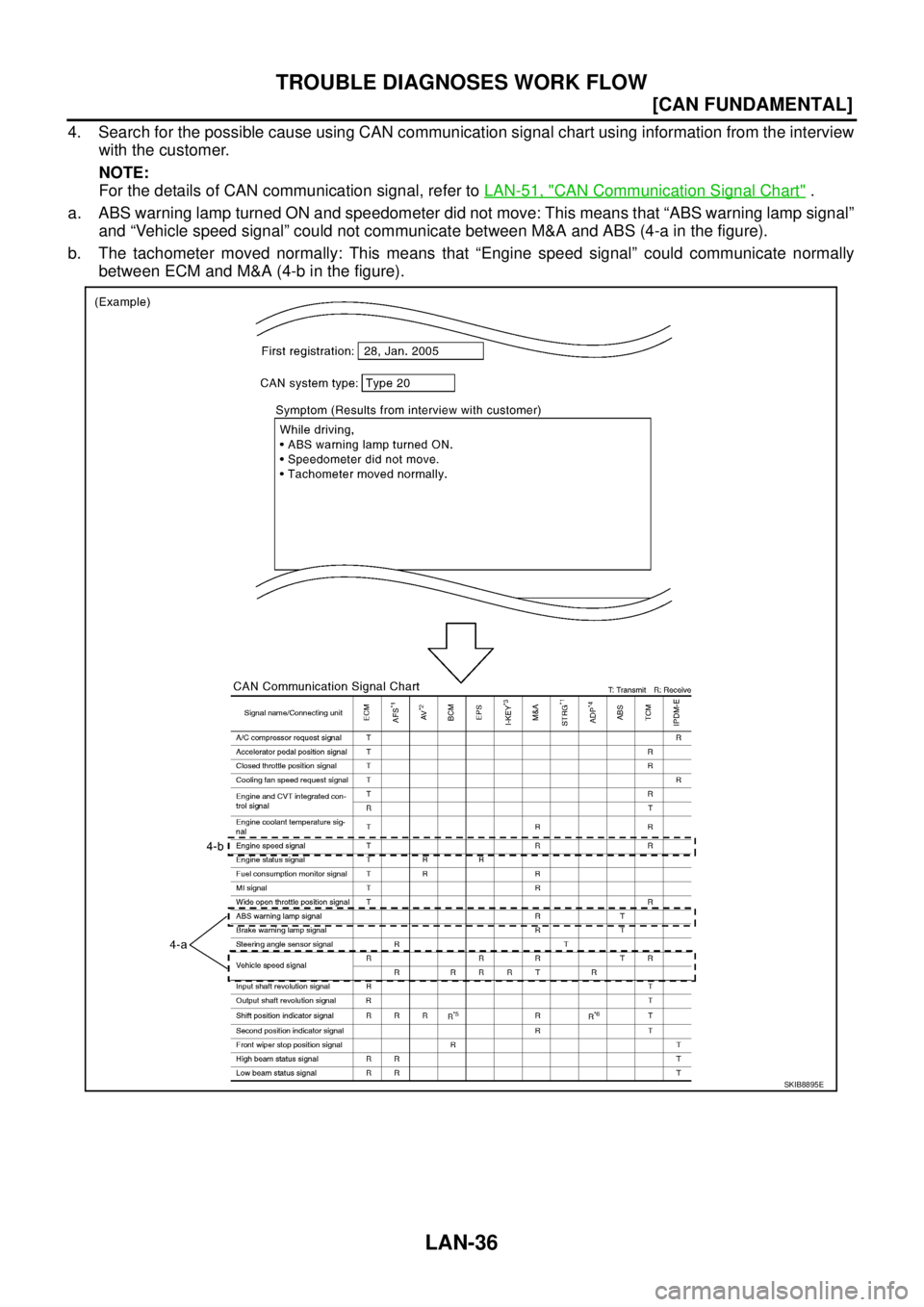

NISSAN TEANA 2003 Service Manual LAN-36 [CAN FUNDAMENTAL] TROUBLE DIAGNOSES WORK FLOW 4. Search for the possible cause using CAN communication signal chart using information from the interview with the customer. NOTE: For the detai
