DTC P1564 ASCD STEERING SWITCH
EC-599
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

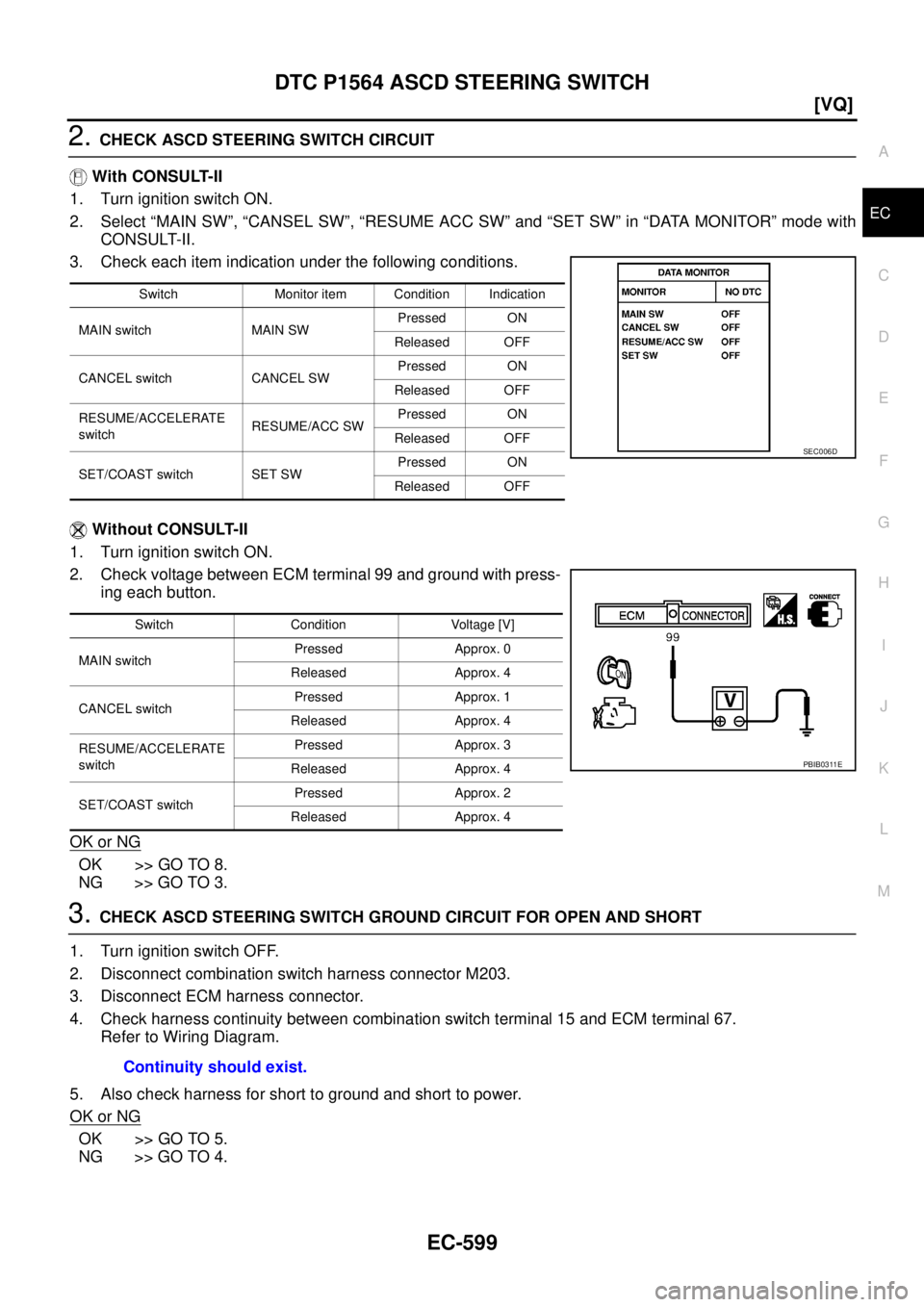

2. CHECK ASCD STEERING SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON.
2. Select “MAIN SW”, “CANSEL SW”, “RESUME ACC SW” and “SET SW” in “DATA MONITOR” mode with
CONSULT-II.
3. Check each item indication under the following conditions.
Without CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 99 and ground with press-
ing each button.
OK or NG
OK >> GO TO 8.
NG >> GO TO 3.
3. CHECK ASCD STEERING SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect combination switch harness connector M203.
3. Disconnect ECM harness connector.
4. Check harness continuity between combination switch terminal 15 and ECM terminal 67.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
Switch Monitor item Condition Indication
MAIN switch MAIN SWPressed ON
Released OFF
CANCEL switch CANCEL SWPressed ON
Released OFF
RESUME/ACCELERATE
switchRESUME/ACC SWPressed ON
Released OFF
SET/COAST switch SET SWPressed ON
Released OFF
SEC006D
Switch Condition Voltage [V]
MAIN switchPressed Approx. 0
Released Approx. 4
CANCEL switchPressed Approx. 1
Released Approx. 4
RESUME/ACCELERATE
switchPressed Approx. 3
Released Approx. 4
SET/COAST switchPressed Approx. 2
Released Approx. 4
PBIB0311E
Continuity should exist.
Page 1882 of 3502
![NISSAN TEANA 2003 Service Manual EC-600
[VQ]
DTC P1564 ASCD STEERING SWITCH
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M55, F102
Combination switch (spiral cable)
Harness for open and short between ECM NISSAN TEANA 2003 Service Manual EC-600
[VQ]
DTC P1564 ASCD STEERING SWITCH
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M55, F102
Combination switch (spiral cable)
Harness for open and short between ECM](/manual-img/5/57392/w960_57392-1881.png)
EC-600
[VQ]
DTC P1564 ASCD STEERING SWITCH
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M55, F102
Combination switch (spiral cable)
Harness for open and short between ECM and combination switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK ASCD STEERING SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between combination switch terminal 14 and ECM terminal 99.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.
Combination switch (spiral cable)
Harness for open and short between ECM and combination switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK ASCD STEERING SWITCH
Refer to EC-601, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace steering wheel.
8. CHECK INTERMITTENT INCIDENT
Refer to EC-450, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
Page 1883 of 3502
DTC P1564 ASCD STEERING SWITCH
EC-601
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC
Component InspectionBBS0053L
ASCD STEERING SWITCH
1. Disconnect combination switch (spiral cable) harness connector M203.
2. Check continuity between combination switch (spiral cable) ter-
minals 14 and 15 with pushing each switch.
If NG, replace ASCD steering switch.
Switch Condition Resistance [Ω]
MAIN switchPressed Approx. 0
Released Approx. 4,000
CANCEL switchPressed Approx. 250
Released Approx. 4,000
RESUME/ACCELERATE
switchPressed Approx. 1,480
Released Approx. 4,000
SET/COAST switchPressed Approx. 660
Released Approx. 4,000
PBIB1621E
Page 1884 of 3502
![NISSAN TEANA 2003 Service Manual EC-602
[VQ]
DTC P1572 ASCD BRAKE SWITCH
DTC P1572 ASCD BRAKE SWITCHPFP:25320
Component DescriptionBBS0053M
When the brake pedal is depressed, ASCD brake switch is turned
OFF and stop lamp switch is NISSAN TEANA 2003 Service Manual EC-602
[VQ]
DTC P1572 ASCD BRAKE SWITCH
DTC P1572 ASCD BRAKE SWITCHPFP:25320
Component DescriptionBBS0053M
When the brake pedal is depressed, ASCD brake switch is turned
OFF and stop lamp switch is](/manual-img/5/57392/w960_57392-1883.png)
EC-602
[VQ]
DTC P1572 ASCD BRAKE SWITCH
DTC P1572 ASCD BRAKE SWITCHPFP:25320
Component DescriptionBBS0053M
When the brake pedal is depressed, ASCD brake switch is turned
OFF and stop lamp switch is turned ON. ECM detects the state of
the brake pedal by this input of two kinds (ON/OFF signal).
Refer to EC-363, "
AUTOMATIC SPEED CONTROL DEVICE
(ASCD)" for the ASCD function.
CONSULT-II Reference Value in Data Monitor ModeBBS0053N
Specification data are reference values.
On Board Diagnosis LogicBBS0053O
This self-diagnosis has the one trip detection logic.
The MI will not light up for this diagnosis.
NOTE:
If DTC P1572 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-538, "
DTC P0605 ECM" .
This self-diagnosis has the one trip detection logic. When malfunction A is detected, DTC is not
stored in ECM memory. And in that case, 1st trip DTC and 1st trip freeze frame data are displayed.
1st trip DTC is erased when ignition switch OFF. And even when malfunction A is detected in two
consecutive trips, DTC is not stored in ECM memory.
PBIB2469E
MONITOR ITEM CONDITION SPECIFICATION
BRAKE SW1
(ASCD brake switch)
Ignition switch: ONBrake pedal: Fully released ON
Brake pedal: Slightly depressed OFF
BRAKE SW2
(Stop lamp switch)
Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
DTC No.Trouble Diagnosis
NameDTC Detecting Condition Possible Cause
P1572
1572ASCD brake switchA)When the vehicle speed is above 30km/h
(19 MPH), ON signals from the stop lamp
switch and the ASCD brake switch are sent
to ECM at the same time.
Harness or connectors
(The stop lamp switch circuit is shorted.)
Harness or connectors
(The ASCD brake switch circuit is shorted.)
Stop lamp switch
ASCD brake switch
Incorrect stop lamp switch installation
Incorrect ASCD brake switch installation
ECM B)ASCD brake switch signal is not sent to
ECM for extremely long time while the vehi-
cle is driving
Page 1885 of 3502
![NISSAN TEANA 2003 Service Manual DTC P1572 ASCD BRAKE SWITCH
EC-603
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC Confirmation ProcedureBBS0053P
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been prev NISSAN TEANA 2003 Service Manual DTC P1572 ASCD BRAKE SWITCH
EC-603
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC Confirmation ProcedureBBS0053P
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been prev](/manual-img/5/57392/w960_57392-1884.png)
DTC P1572 ASCD BRAKE SWITCH
EC-603
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC Confirmation ProcedureBBS0053P
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait
at least 10 seconds before conducting the next test.
Procedure for malfunction B is not described here. It takes extremely long time to complete procedure for
malfunction B. By performing procedure for malfunction A, the incident that causes malfunction B can be
detected.

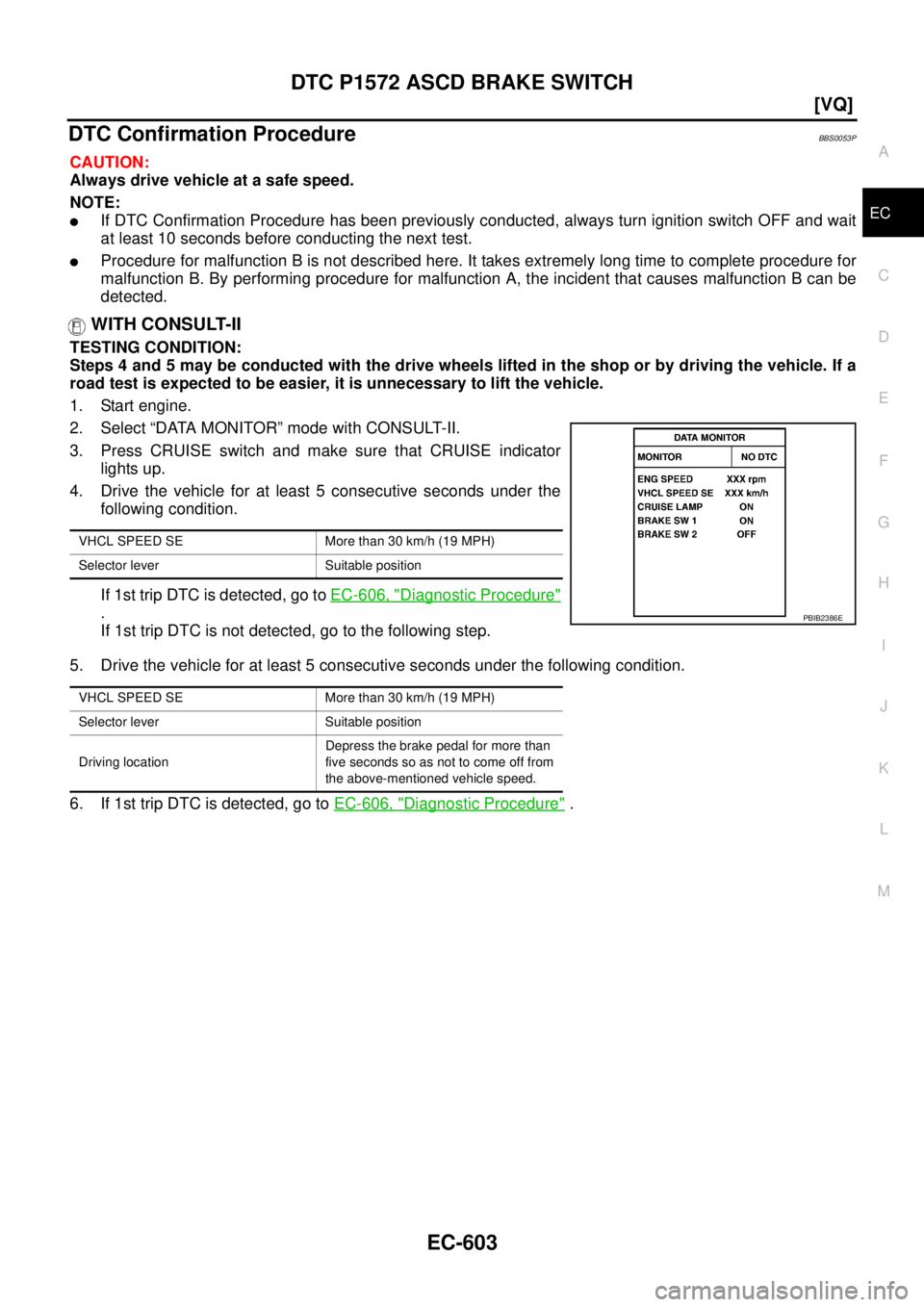

WITH CONSULT-II
TESTING CONDITION:
Steps 4 and 5 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a
road test is expected to be easier, it is unnecessary to lift the vehicle.
1. Start engine.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Press CRUISE switch and make sure that CRUISE indicator
lights up.
4. Drive the vehicle for at least 5 consecutive seconds under the
following condition.
If 1st trip DTC is detected, go to EC-606, "
Diagnostic Procedure"
.
If 1st trip DTC is not detected, go to the following step.
5. Drive the vehicle for at least 5 consecutive seconds under the following condition.
6. If 1st trip DTC is detected, go to EC-606, "
Diagnostic Procedure" .
VHCL SPEED SE More than 30 km/h (19 MPH)
Selector lever Suitable position
PBIB2386E
VHCL SPEED SE More than 30 km/h (19 MPH)
Selector lever Suitable position
Driving locationDepress the brake pedal for more than
five seconds so as not to come off from
the above-mentioned vehicle speed.
Page 1886 of 3502
EC-604
[VQ]
DTC P1572 ASCD BRAKE SWITCH
Overall Function CheckBBS0053Q
Use this procedure to check the overall function of the ASCD brake switch circuit. During this check, a 1st trip
DTC might not be confirmed.
WITHOUT CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 108 (ASCD brake switch
signal) and ground under the following conditions.
3. If NG, go to EC-606, "
Diagnostic Procedure" .
If OK, go to next step.
4. Check voltage between ECM terminal 101 (Stop lamp switch
signal) and ground under the following conditions.
5. If NG, go to EC-606, "
Diagnostic Procedure" .
CONDITION VOLTAGE
Brake pedal: Slightly depressed Approximately 0V
Brake pedal: Fully released Battery voltage
MBIB0061E
CONDITION VOLTAGE
Brake pedal: Fully released Approximately 0V
Brake pedal: Slightly depressed Battery voltage
PBIB1677E
Page 1887 of 3502
DTC P1572 ASCD BRAKE SWITCH
EC-605
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

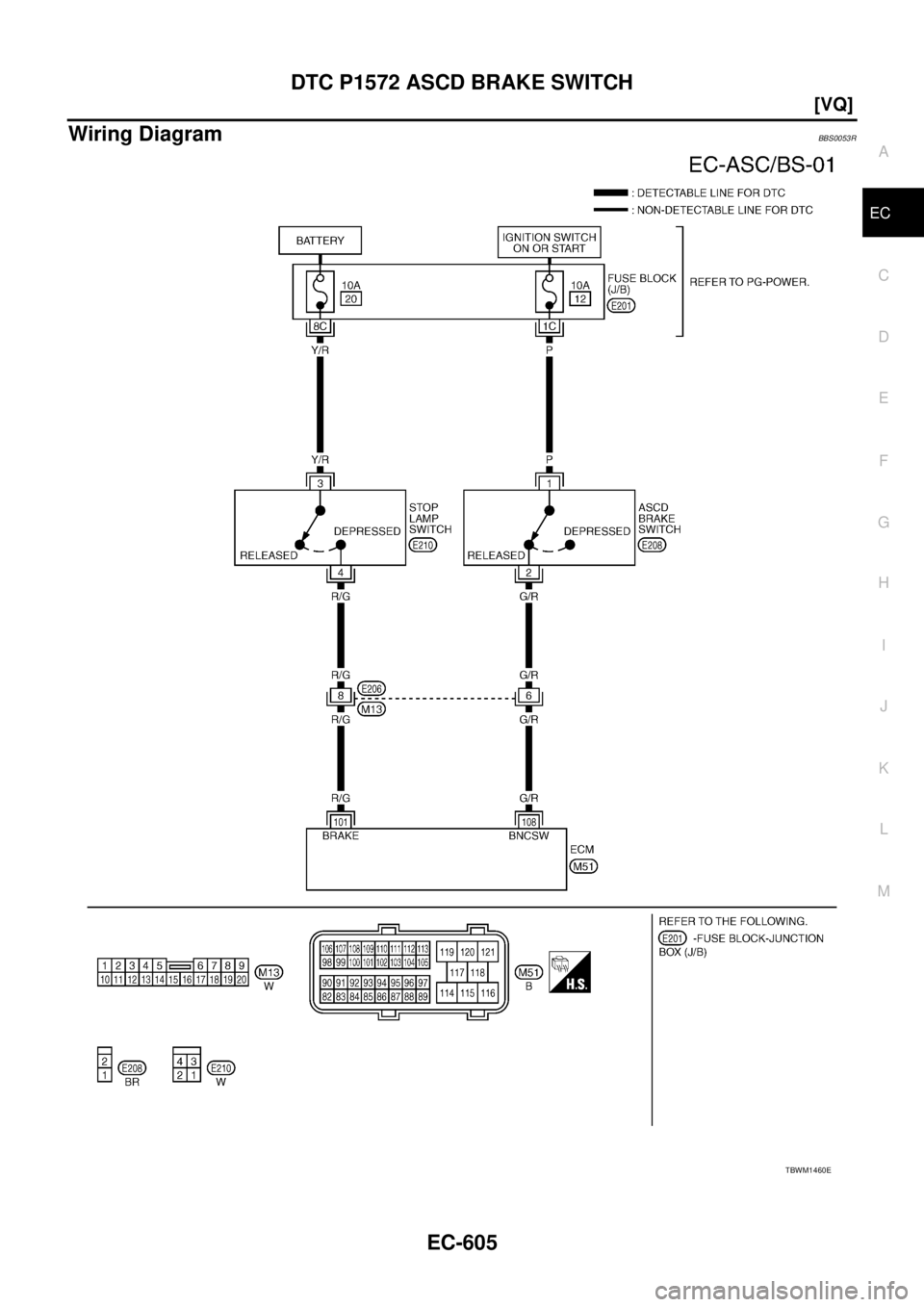

Wiring Diagram BBS0053R
TBWM1460E
Page 1888 of 3502
![NISSAN TEANA 2003 Service Manual EC-606
[VQ]
DTC P1572 ASCD BRAKE SWITCH
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/outpu NISSAN TEANA 2003 Service Manual EC-606
[VQ]
DTC P1572 ASCD BRAKE SWITCH
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/outpu](/manual-img/5/57392/w960_57392-1887.png)
EC-606
[VQ]
DTC P1572 ASCD BRAKE SWITCH
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureBBS0053S
1. CHECK OVERALL FUNCTION-I
With CONSULT-II
1. Turn ignition switch ON.
2. Select “BRAKE SW1” in “DATA MONITOR” mode with CON-
SULT-II.
3. Check “BRAKE SW1” indication under the following conditions.
Without CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 108 and ground under the
following conditions.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
101 R/G Stop lamp switch[Ignition switch: OFF]
Brake pedal: Fully releasedApproximately 0V
[Ignition switch: OFF]
Brake pedal: Slightly depressedBATTERY VOLTAGE
(11 - 14V)
108 G/R ASCD brake switch[Ignition switch: ON]
Brake pedal: Slightly depressedApproximately 0V
[Ignition switch: ON]
Brake pedal: Fully releasedBATTERY VOLTAGE
(11 - 14V)
CONDITION INDICATION
Brake pedal: Slightly depressed OFF
Brake pedal: Fully released ON
SEC011D
CONDITION VOLTAGE
Brake pedal: Slightly depressed Approximately 0V
Brake pedal: Fully released Battery voltage
MBIB0061E
