Page 809 of 3502

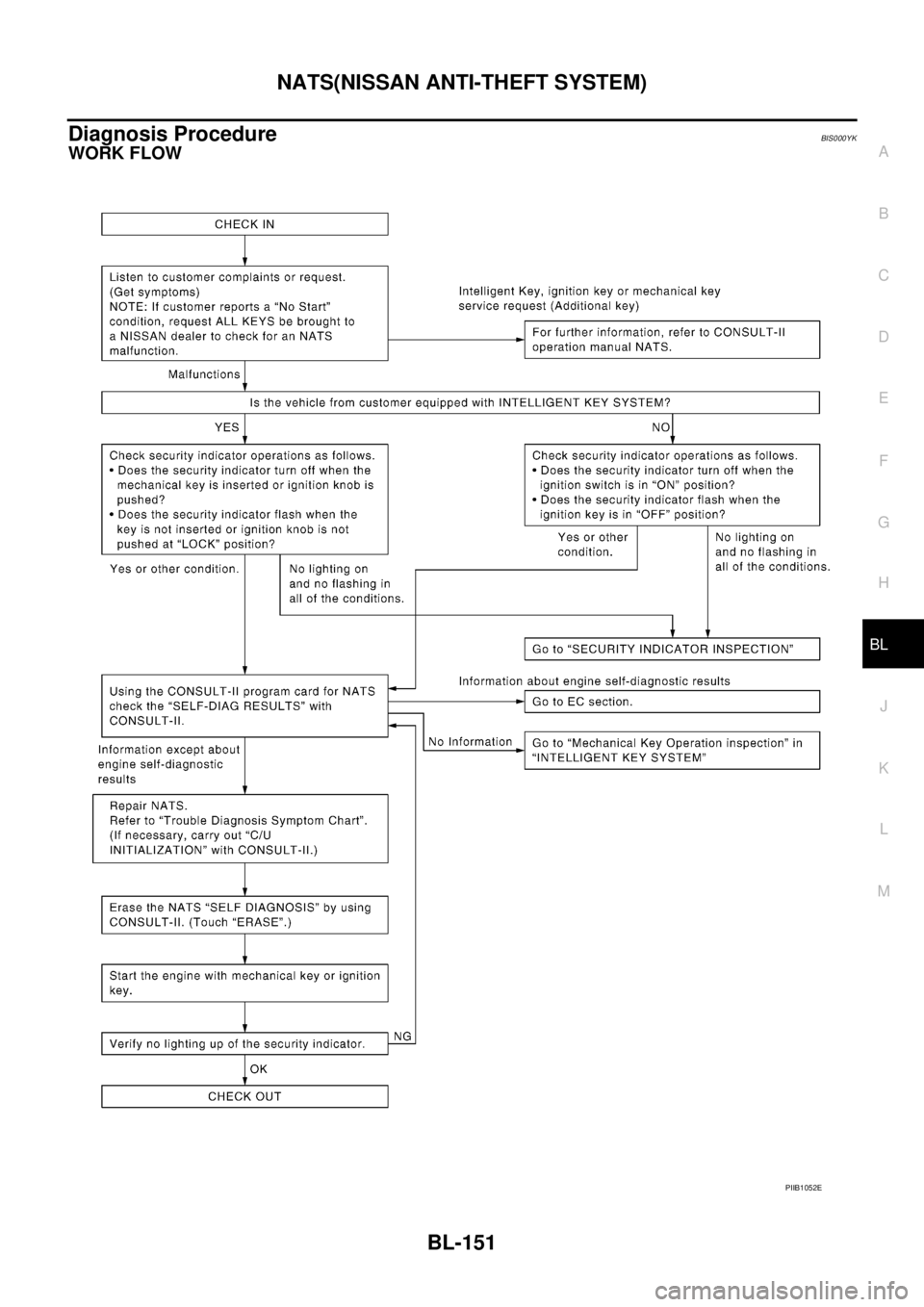

NISSAN TEANA 2003 Service Manual NATS(NISSAN ANTI-THEFT SYSTEM) BL-151 C D E F G H J K L MA B BL Diagnosis ProcedureBIS000YK WORK FLOW PIIB1052E

Page 810 of 3502

NISSAN TEANA 2003 Service Manual BL-152 NATS(NISSAN ANTI-THEFT SYSTEM) Trouble Diagnosis Symptom ChartBIS000YL *: When NATS detects trouble, the security indicator lights up while electronic key is in the “ON” position. Securi

Page 811 of 3502

NISSAN TEANA 2003 Service Manual NATS(NISSAN ANTI-THEFT SYSTEM) BL-153 C D E F G H J K L MA B BL Diagnostic Procedure 1BIS000YN Self-diagnostic results: “CHAIN OF ECM-IMMU” display on CONSULT-II screen First perform the “SELF

Page 812 of 3502

NISSAN TEANA 2003 Service Manual BL-154 NATS(NISSAN ANTI-THEFT SYSTEM) 4. CHECK GROUND CIRCUIT FOR BCM 1. Turn ignition switch OFF. 2. Check continuity between BCM connector M4 terminal 52 (B) and ground. OK or NG OK >> GO TO 5. NG

Page 813 of 3502

NISSAN TEANA 2003 Service Manual NATS(NISSAN ANTI-THEFT SYSTEM) BL-155 C D E F G H J K L MA B BL 2. PERFORM INITIALIZATION WITH CONSULT-II Perform initialization with CONSULT-II. Re-register all ignition key or mechanical key IDs.

Page 814 of 3502

NISSAN TEANA 2003 Service Manual BL-156 NATS(NISSAN ANTI-THEFT SYSTEM) Diagnostic Procedure 4BIS000YQ Self-diagnostic results: “LOCK MODE” displayed on CONSULT-II screen 1. CHECK SELF-DIAGNOSTIC RESULTS Check SELF-DIAGNOSTIC RE

Page 815 of 3502

NISSAN TEANA 2003 Service Manual NATS(NISSAN ANTI-THEFT SYSTEM) BL-157 C D E F G H J K L MA B BL 4. PERFORM INITIALIZATION WITH CONSULT-II AGAIN 1. Replace BCM. 2. Perform initialization with CONSULT-II. For initialization, refer t

Page 816 of 3502

NISSAN TEANA 2003 Service Manual BL-158 NATS(NISSAN ANTI-THEFT SYSTEM) 4. CHECK POWER SUPPLY FOR NATS ANTENNA AMP. Check voltage between NATS antenna amp. connector M22 terminal 1 (W/L) and ground with CONSULT-II or tester. OK or N
