ATC-58
TROUBLE DIAGNOSIS

1. CHECK POWER SUPPLY CIRCUIT FOR UNIFIED METER AND A/C AMP.
1. Disconnect unified meter and A/C amp. connector.
2. Check voltage between unified meter and A/C amp. harness
connector M42 terminals 21, 22 and 35, unified meter and A/C
amp. harness connector M45 terminal 46 and ground.
OK or NG
OK >> GO TO 2.
NG >> Check 10A and 15A fuses [Nos. 6, 10, 11, 12 and 19, located in the fuse block (J/B)]. Refer to PG-
79, "FUSE BLOCK - JUNCTION BOX (J/B)" .

If fuses are OK, check harness for open circuit. Repair or replace if necessary.

If fuses are NG, harness for short circuit and replace fuse.
2. CHECK GROUND CIRCUIT FOR UNIFIED METER AND A/C AMP.
1. Turn ignition switch OFF.
2. Check continuity between unified meter and A/C amp. harness
connector M42 terminal 29, 30 and ground.
OK or NG
OK >> Replace unified meter and A/C amp.
NG >> Repair harness or connector.
Terminals Ignition switch position
(+)
(-) OFF ACC ON Unified
meter and
A/C amp.
connectorTerminal No.
M42 21
GroundBattery volt-
ageBattery volt-
ageBattery
voltage
M42 22 Approx. 0 V Approx. 0 VBattery
voltage
M42 35 Approx. 0 VBattery volt-
ageBattery
voltage
M45 46 Approx. 0 V Approx. 0 VBattery
voltage
RJIA1984E
29, 30 – Ground : Continuity should exist.
RJIA1985E

TROUBLE DIAGNOSIS
ATC-75
C
D
E
F
G
H
I
K
L
MA
B
AT C

1. CHECK POWER SUPPLY FOR BLOWER MOTOR
1. Disconnect blower motor connector.
2. Turn ignition switch ON.
3. Check voltage between blower motor harness connector M48
terminal 1 and ground.
OK or NG
OK >> GO TO 2.
NG >> Check power supply circuit and 15A fuses [Nos. 10 and
11, located in the fuse block (J/B)]. Refer to PG-79,
"FUSE BLOCK - JUNCTION BOX (J/B)" .

If fuses are OK, check harness for open circuit. Repair or replace if necessary.

If fuses are NG, check harness for short circuit and replace fuse.
2. CHECK FAN FEEDBACK CIRCUIT
1. Turn ignition switch OFF.
2. Reconnect blower motor connector.
3. Turn ignition switch ON.
4. Check voltage between unified meter and A/C amp. harness
connector M45 terminal 47 and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 9.
3. CHECK BLOWER MOTOR
Check blower motor. Refer to AT C - 7 7 , "
Blower Motor" .
OK or NG
OK >> GO TO 4.
NG >> Replace blower motor.
4. CHECK POWER SUPPLY FOR FAN CONTROL AMP.
1. Turn ignition switch ON.
2. Check voltage between fan control amp. harness connector
M86 terminal 3 and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.1 – Ground : Battery voltage
RJIA2860E
47 – Ground : Battery voltage.
RJIA3266E
Terminals
Condition Voltage (+)
(−)
Fan control
amp. connectorTe r m i n a l N o .
M86 3 GroundFan speed: 1st
speedApprox. 8 V
RJIA2862E

BL-22
POWER DOOR LOCK SYSTEM

System DescriptionBIS000VW
Power is supplied at all times

through 50A fusible link (letter M , located in the fuse and fusible link box)

to BCM terminal 55.

through 15A fuse [No. 17, located in the fuse block (J/B)]

to BCM terminal 42.

to key switch terminal 1 (without intelligent key system)

through 15A fuse [No. 18, located in the fuse block (J/B)]

to key switch terminal 3 (with intelligent key system)
When key switch is ON (key is inserted in ignition key cylinder), power is supplied

through key switch terminal 4 (without intelligent key system) or 8 (with intelligent key system)

to BCM terminal 37.
Ground is supplied

to BCM terminal 52

through body grounds M71 and M72.

to power window main switch (door lock and unlock switch) terminal 17

through body grounds M71 and M72.

to front door lock assembly (driver side) (door unlock sensor) terminal 5

through body grounds M71 and M72.
LOCK OPERATION
When the door is locked with power window main switch (door lock and unlock switch)
Ground is supplied

to BCM terminal 60

through power window main switch (door lock and unlock switch) terminal 18

through power window main switch (door lock and unlock switch) terminal 17

through body grounds M71 and M72.
When the driver side door locked with hand or key cylinder
Ground is intercepted

to BCM terminal 7.
When you meet either the above-mentioned
Power is supplied

through BCM terminal 50

to each door lock actuators terminal 3
Ground is supplied

to each door lock actuators terminal 2

through BCM terminal 51.
Each door lock actuator locks the door lock.
UNLOCK OPERATION
When the door is unlocked with power window main switch (door lock and unlock switch)
Ground is supplied

to BCM terminal 61

through power window main switch (door lock and unlock switch) terminal 6

through power window main switch (door lock and unlock switch) terminal 17

through body grounds M71 and M72.
When the driver side door unlocked with hand or key cylinder
Ground is supplied

to BCM terminal 7

through front door lock assembly (driver side) (door unlock sensor) terminal 4

through front door lock assembly (driver side) (door unlock sensor) terminal 5

BL-32
POWER DOOR LOCK SYSTEM

BCM Power Supply and Ground CircuitBIS000W5
1. CHECK FUSE

Check 15A fuse [No.17, located in fuse block (J/B)]

Check 15A fuse [No.18, located in fuse block (J/B)] (With Intelligent Key)

Check 50A fusible link (letter M located in the fuse and fusible link box)
NOTE:
Refer to BL-21, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse, refer to PG-
3, "POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check voltage between BCM connector M4 terminals 42, 55 and
ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace BCM power supply circuit.
3. CHECK GROUND CIRCUIT
Check continuity between BCM connector M4 terminal 52 and
ground.
OK or NG
OK >> Power supply and ground circuit are OK.
NG >> Repair or replace BCM ground circuit.42 (Y/R) – Ground : Battery voltage
55 (W/B) – Ground : Battery voltage
PIIA6374E
52 (B) – Ground : Continuity should exist.
PIIA9131E

BL-46
REMOTE KEYLESS ENTRY SYSTEM

REMOTE KEYLESS ENTRY SYSTEMPFP:28596
Component Parts and Harness Connector LocationBIS000WE
System DescriptionBIS000WF
INPUTS
Power is supplied at all times

through 50A fusible link (letter M , located in the fuse and fusible link box)

to BCM terminal 55.

through 15A fuse [No. 17, located in the fuse block (J/B)]

to BCM terminal 42.
When the key switch is ON (key is inserted in ignition key cylinder), power is supplied

through 15A fuse [No. 17, located in the fuse block (J/B)]

through key switch terminals 1 and 4

to BCM terminal 37.
When the ignition switch is ACC or ON, power is supplied

through 10A fuse [No. 6, located in the fuse block (J/B)]

to BCM terminal 11.
When the ignition switch is ON or START, power is supplied

through 10A fuse [No. 1, located in the fuse block (J/B)]
1. BCM M3,M4,M5 2. Front door switch B10
(Driver side)3. Rear door switch (LH) B14
4. Key switch and key lock solenoid
connector M345. Trunk lid lock assembly T7
(Trunk room lamp switch)
PIIB8749E

BL-136
TRUNK LID OPENER

TRUNK LID OPENERPFP:84640
Component Parts and Harness Connector LocationBIS000Y6
System DescriptionBIS000Y7
Power is supplied at all times

through 50A fusible link (letter M, located in fuse and fusible link box)

to BCM terminal 55,

through 15A fuse [No.17, located in fuse block (J/B)]

to BCM terminal 42.
Ground is supplied

to BCM terminals 52

through body grounds M71 and M72.
When trunk lid opener switch is ON (pushed), ground is supplied

to BCM terminal 30

through trunk lid opener switch terminals 3 and 2, and

through body grounds M71 and M72.
And power is supplied

through BCM terminal 68

to trunk lid opener actuator terminal 2.
Ground is supplied

to trunk lid opener actuator terminal 1, and

through body grounds B214 and B217.
Then BCM unlocks trunk lid opener actuator.
TRUNK LID OPENER OPERATION
When trunk lid opener switch or trunk button of key fob is ON, trunk opener actuator unlocked by BCM.
BCM can unlock trunk lid opener actuator when

vehicle speed is less than 5 km/h (3MPH)
BCM does not unlock trunk lid opener actuator when

vehicle speed is more than 5 km/h (3MPH)
1. BCM M3,M4,M5 2. Trunk lid opener switch D9 3. Trunk lid lock assembly T7
(Trunk room lamp switch)
PIIB8753E

HOW TO USE THIS MANUAL
GI-17
C
D
E
F
G
H
I
J
K
L
MB
GI

Optional Splice

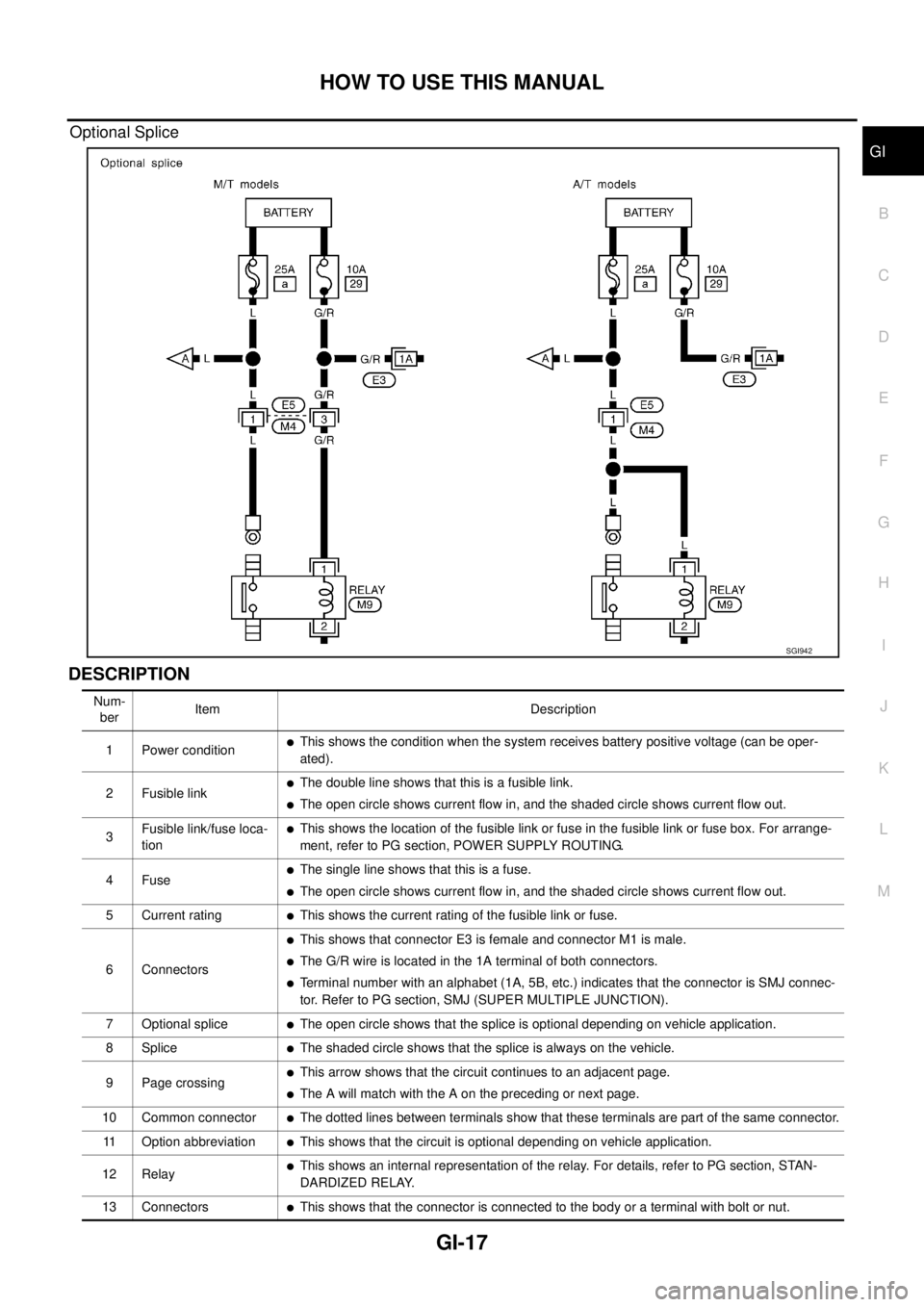

DESCRIPTION
SGI942
Num-
berItem Description
1 Power condition

This shows the condition when the system receives battery positive voltage (can be oper-
ated).
2 Fusible link

The double line shows that this is a fusible link.

The open circle shows current flow in, and the shaded circle shows current flow out.
3Fusible link/fuse loca-
tion

This shows the location of the fusible link or fuse in the fusible link or fuse box. For arrange-
ment, refer to PG section, POWER SUPPLY ROUTING.
4Fuse

The single line shows that this is a fuse.

The open circle shows current flow in, and the shaded circle shows current flow out.
5 Current rating

This shows the current rating of the fusible link or fuse.
6 Connectors

This shows that connector E3 is female and connector M1 is male.

The G/R wire is located in the 1A terminal of both connectors.

Terminal number with an alphabet (1A, 5B, etc.) indicates that the connector is SMJ connec-
tor. Refer to PG section, SMJ (SUPER MULTIPLE JUNCTION).
7 Optional splice

The open circle shows that the splice is optional depending on vehicle application.
8Splice

The shaded circle shows that the splice is always on the vehicle.
9 Page crossing

This arrow shows that the circuit continues to an adjacent page.

The A will match with the A on the preceding or next page.
10 Common connector

The dotted lines between terminals show that these terminals are part of the same connector.
11 Option abbreviation

This shows that the circuit is optional depending on vehicle application.
12 Relay

This shows an internal representation of the relay. For details, refer to PG section, STAN-
DARDIZED RELAY.
13 Connectors

This shows that the connector is connected to the body or a terminal with bolt or nut.

GI-18
HOW TO USE THIS MANUAL

14 Wire color

This shows a code for the color of the wire.
B = Black
W = White
R = Red
G = Green
L = Blue
Y = Yellow
LG = Light GreenBR = Brown
OR or O = Orange
P = Pink
PU or V (Violet) = Purple
GY or GR = Gray
SB = Sky Blue
CH = Dark Brown
DG = Dark Green
When the wire color is striped, the base color is given first, followed by the stripe color as shown
below:
Example: L/W = Blue with White Stripe
15 Option description

This shows a description of the option abbreviation used on the page.
16 Switch

This shows that continuity exists between terminals 1 and 2 when the switch is in the A posi-
tion. Continuity exists between terminals 1 and 3 when the switch is in the B position.
17 Assembly parts

Connector terminal in component shows that it is a harness incorporated assembly.
18 Cell code

This identifies each page of the wiring diagram by section, system and wiring diagram page
number.
19 Current flow arrow

Arrow indicates electric current flow, especially where the direction of standard flow (vertically
downward or horizontally from left to right) is difficult to follow.

A double arrow “ ” shows that current can flow in either direction depending on cir-
cuit operation.
20 System branch

This shows that the system branches to another system identified by cell code (section and
system).
21 Page crossing

This arrow shows that the circuit continues to another page identified by cell code.

The C will match with the C on another page within the system other than the next or preced-
ing pages.
22 Shielded line

The line enclosed by broken line circle shows shield wire.
23Component box in
wave line

This shows that another part of the component is also shown on another page (indicated by
wave line) within the system.
24 Component name

This shows the name of a component.
25 Connector number

This shows the connector number.

The letter shows which harness the connector is located in.

Example: M : main harness. For detail and to locate the connector, refer to PG section "Main
Harness", “Harness Layout”. A coordinate grid is included for complex harnesses to aid in
locating connectors.
26 Ground (GND)

The line spliced and grounded under wire color shows that ground line is spliced at the
grounded connector.
27 Ground (GND)

This shows the ground connection. For detailed ground distribution information, refer to
"Ground Distribution" in PG section.
28 Connector views

This area shows the connector faces of the components in the wiring diagram on the page.
29 Common component

Connectors enclosed in broken line show that these connectors belong to the same compo-
nent.
30 Connector color

This shows a code for the color of the connector. For code meaning, refer to wire color codes,
Number 14 of this chart.
31Fusible link and fuse
box

This shows the arrangement of fusible link(s) and fuse(s), used for connector views of
"POWER SUPPLY ROUTING" in PG section.
The open square shows current flow in, and the shaded square shows current flow out.
32 Reference area

This shows that more information on the Super Multiple Junction (SMJ) and Joint Connectors
(J/C) exists on the PG section. Refer to "Reference Area" for details. Num-
berItem Description
