ENGINE ASSEMBLYPFP:10001
Removal and InstallationBBS0059F
WARNING:

Situate vehicle on a flat and solid surface.

Place chocks at front and back of rear wheels.

For engines not equipped with engine slingers, attach proper slingers and bolts described in
PARTS CATALOG.
CAUTION:

Always be careful to work safely, avoid forceful or uninstructed operations.

Do not start working until exhaust system and engine coolant are cool enough.

If items or work required are not covered by the engine section, refer to the applicable sections.

Always use the support point specified for lifting.

Use either 2-pole lift type or separate type lift as best you can. If board-on type is used for
unavoidable reasons, support at the rear axle jacking point with transmission jack or similar tool
before starting work, in preparation for the backward shift of center of gravity.

For supporting points for lifting and jacking point at rear axle, refer to GI-37, "Garage Jack and
Safety Stand and 2-Pole Lift" .

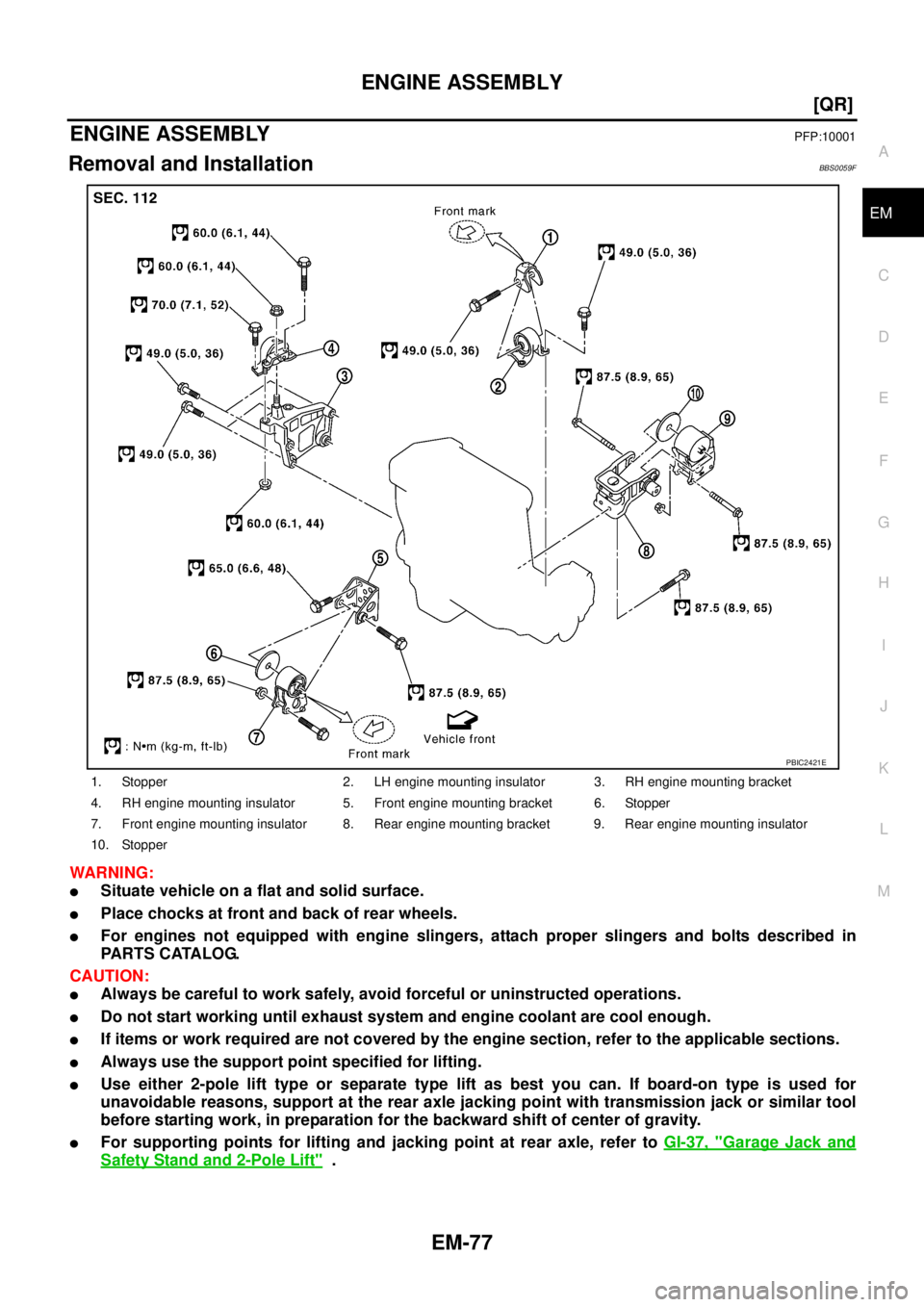

1. Stopper 2. LH engine mounting insulator 3. RH engine mounting bracket
4. RH engine mounting insulator 5. Front engine mounting bracket 6. Stopper
7. Front engine mounting insulator 8. Rear engine mounting bracket 9. Rear engine mounting insulator
10. Stopper
PBIC2421E

EM-224
[VQ]
ENGINE ASSEMBLY


Do not start working until exhaust system and engine coolant are cool enough.

If items or work required are not covered by the engine section, refer to the applicable sections.

Always use the support point specified for lifting.

Use either 2-pole lift type or separate type lift as best you can. If board-on type is used for
unavoidable reasons, support at the rear axle jacking point with transmission jack or similar tool
before starting work, in preparation for the backward shift of center of gravity.

For supporting points for lifting and jacking point at rear axle, refer to GI-37, "Garage Jack and
Safety Stand and 2-Pole Lift" .
REMOVAL
Outline
At first, remove engine and transaxle assembly with front suspension member from vehicle downward. Sepa-
rate front suspension member, and then separate engine from transaxle.
Preparation
1. Release fuel pressure. Refer to EC-392, "FUEL PRESSURE RELEASE" .
2. Drain engine coolant from radiator. Refer to CO-34, "
Changing Engine Coolant" .
CAUTION:

Perform this step when engine is cold.

Do not spill engine coolant on drive belts.
3. Remove the following parts:

Engine cover; Refer to EM-133, "INTAKE MANIFOLD COLLECTOR" .

Hood assembly; Refer to BL-13, "HOOD" .

Front road wheels and tires.

Undercover and splash guards (RH and LH).

Air duct (inlet), air cleaner case (upper) with mass air flow sensor and air duct assembly; Refer to EM-
131, "AIR CLEANER AND AIR DUCT" .

Battery, battery tray and battery tray bracket; Refer to SC-4, "BATTERY" .

Drive belts; Refer to EM-128, "DRIVE BELTS" .

Radiator, reservoir of radiator; Refer to CO-37, "RADIATOR" .

Front wiper arm; Refer to WW-4, "FRONT WIPER AND WASHER SYSTEM" .

Cowl top cover. Refer to EI-21, "COWL TOP" .
4. Disconnect engine room harness at the ECM side.
CAUTION:
To keep clean harness connector and avoid damage and foreign materials, cover them completely
with plastic bags or something similar.
Engine Room
1. Disconnect heater hoses. Refer to CO-52, "WATER OUTLET AND WATER PIPING" .

Install plug to avoid leakage of engine coolant.
2. Remove EVAP hose. Refer to EM-133, "
INTAKE MANIFOLD COLLECTOR" .
3. Disconnect fuel feed hose (with fuel damper) quick connector at centralized under-floor piping side. Refer
to EM-155, "
FUEL INJECTOR AND FUEL TUBE" .

Install plug to avoid leakage of fuel.
4. Disconnect shift control cable at transaxle side. Refer to AT- 2 1 3 , "
SHIFT CONTROL SYSTEM" .
5. Disconnect brake booster vacuum hose at engine side. Refer to EM-133, "
INTAKE MANIFOLD COLLEC-
TOR" .
6. Remove IPDM E/R mounting bolt and IPDM E/R bracket mounting bolts, and move it to aside. Refer to
PG-17, "
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)" .
7. Remove alternator. Refer to SC-27, "
CHARGING SYSTEM" .
8. Remove A/C compressor with piping connected, and temporarily secure it to aside. Refer to ATC-133,
"Components" .
9. Disconnect suction hoses of power steering oil pump at reservoir tank side.

Install plug to avoid leakage of power steering fluid.

EM-226
[VQ]
ENGINE ASSEMBLY

6. Remove front suspension member mounting nuts and bolts. Refer to FSU-5, "FRONT SUSPENSION
ASSEMBLY" .
7. Carefully lower engine, transaxle and front suspension member assembly. When performing work,
observe the following caution.
CAUTION:

Confirm there is no interference with vehicle.

Make sure that all connection points have been disconnected.

Keep in mind the center of vehicle gravity changes. If necessary, use jack(s) to support vehicle
at rear jacking point(s) to prevent it from falling it off the lift.
Separation Work
1. Remove power steering oil pump, power steering piping and power steering bracket from engine and tran-
saxle assembly. Refer to PS-39, "
HYDRAULIC LINE" .
2. Remove starter motor. Refer to SC-14, "
STARTING SYSTEM" .
3. Disconnect harness connector of engine mounting insulators (front and rear).
4. Remove engine mounting (front) and engine mounting (rear) through-bolts.
5. Lift with hoist and separate engine and transaxle assembly from front suspension member.
CAUTION:
Before and during this lifting, always make sure that any harnesses are not connected.
6. Remove each engine mounting insulator and each engine mounting bracket from engine, transaxle and
front suspension member.
7. Separate engine and transaxle. Refer to AT- 2 4 1 , "
TRANSAXLE ASSEMBLY" (A/T), CVT-193, "TRAN-
SAXLE ASSEMBLY" (CVT).
INSTALLATION
Note the following, and install in the reverse order of removal.

Do not allow engine mounting insulator to be damage and careful no engine oil gets on it.

For a path with a specified installation orientation, refer to component figure in EM-223, "Removal and
Installation" .

Make sure all engine mounting insulators are seated properly, then tighten nuts and bolts.
INSPECTION AFTER INSTALLATION
Inspection for Leaks
The following are procedures for checking fluids leak, lubricates leak and exhaust gases leak.

Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-14, "
RECOMMENDED FLUIDS AND LUBRICANTS" .

Use procedure below to check for fuel leakage.
–Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel
leakage at connection points.
–Start engine. With engine speed increased, check again for fuel leakage at connection points.

Run engine to check for unusual noise and vibration.

Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gases, or any oil/fluids
including engine oil and engine coolant.

Bleed air from lines and hoses of applicable lines, such as in cooling system.

After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the
specified level, if necessary.

GI-4
PRECAUTIONS

Precautions Necessary for Steering Wheel Rotation After Battery DisconnectBAS00072
NOTE:

This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT
SYSTEM).

Remove and install all control units after disconnecting both battery cables with the ignition knob in the
″LOCK″ position.

Always use CONSULT-II to perform self-diagnosis as a part of each function inspection after finishing
work. If DTC is detected, perform trouble diagnosis according to self-diagnostic results.
For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-
anism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.
OPERATION PROCEDURE
1. Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.
2. Use the Intelligent Key or mechanical key to turn the ignition switch to the ″ACC″ position. At this time, the
steering lock will be released.
3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.
4. Perform the necessary repair operation.
5. When the repair work is completed, return the ignition switch to the ″LOCK″ position before connecting
the battery cables. (At this time, the steering lock mechanism will engage.)
6. Perform a self-diagnosis check of all control units using CONSULT-II.
General PrecautionsBAS00073

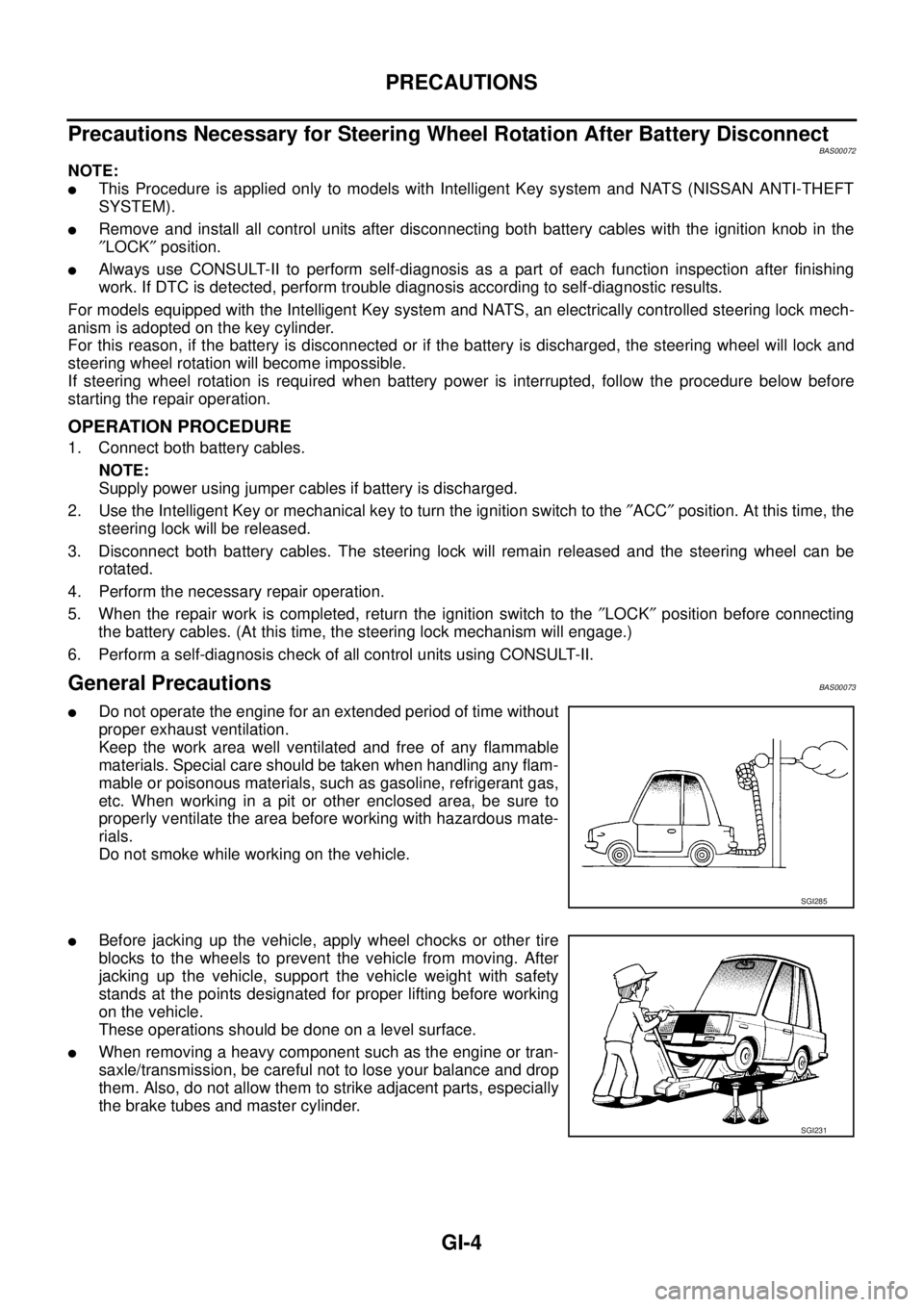

Do not operate the engine for an extended period of time without
proper exhaust ventilation.
Keep the work area well ventilated and free of any flammable
materials. Special care should be taken when handling any flam-
mable or poisonous materials, such as gasoline, refrigerant gas,
etc. When working in a pit or other enclosed area, be sure to
properly ventilate the area before working with hazardous mate-
rials.
Do not smoke while working on the vehicle.

Before jacking up the vehicle, apply wheel chocks or other tire
blocks to the wheels to prevent the vehicle from moving. After
jacking up the vehicle, support the vehicle weight with safety
stands at the points designated for proper lifting before working
on the vehicle.
These operations should be done on a level surface.

When removing a heavy component such as the engine or tran-
saxle/transmission, be careful not to lose your balance and drop
them. Also, do not allow them to strike adjacent parts, especially
the brake tubes and master cylinder.
SGI285
SGI231
