TROUBLE DIAGNOSIS
EC-55
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

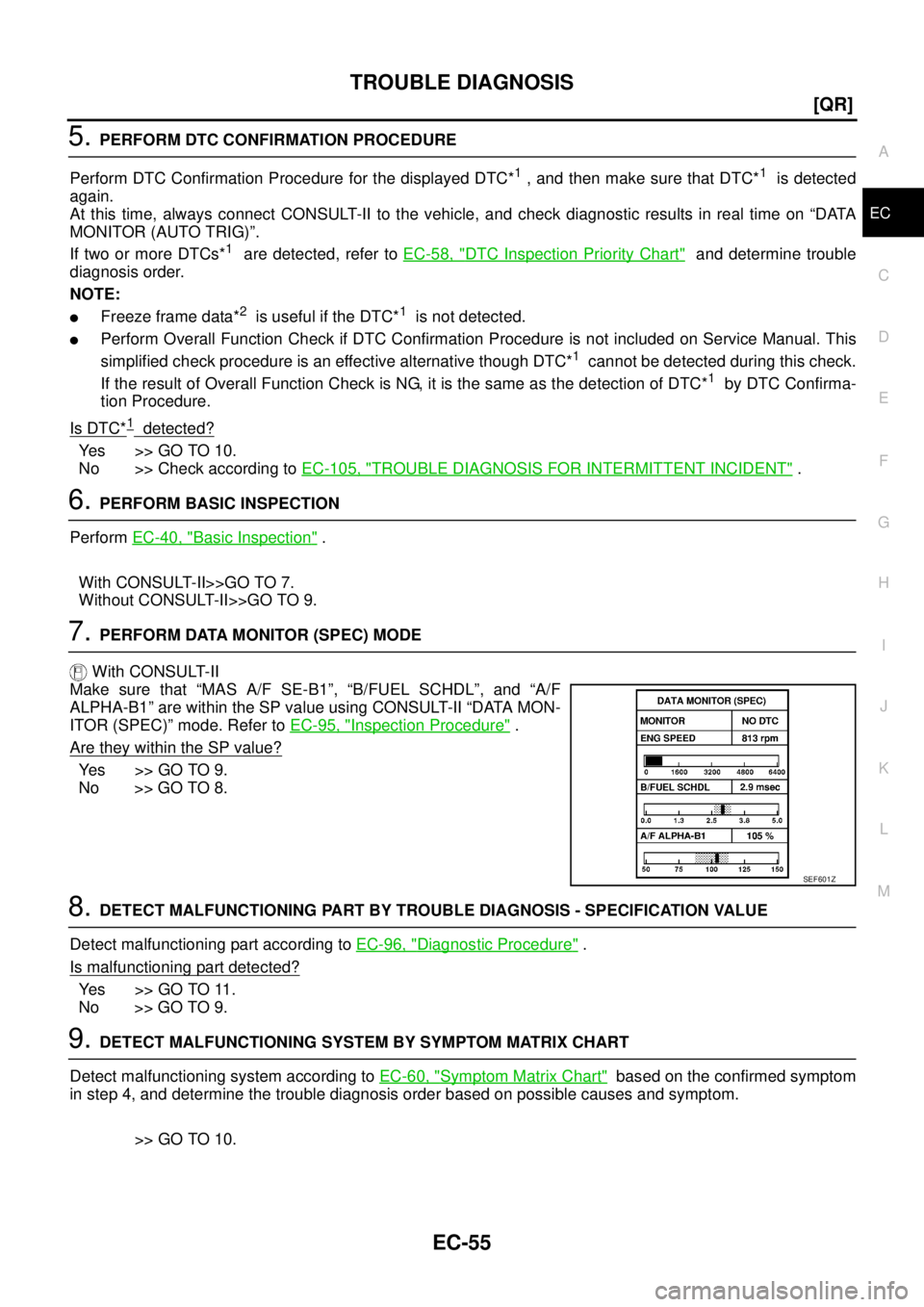

5. PERFORM DTC CONFIRMATION PROCEDURE
Perform DTC Confirmation Procedure for the displayed DTC*
1 , and then make sure that DTC*1 is detected
again.
At this time, always connect CONSULT-II to the vehicle, and check diagnostic results in real time on “DATA
MONITOR (AUTO TRIG)”.
If two or more DTCs*
1 are detected, refer to EC-58, "DTC Inspection Priority Chart" and determine trouble
diagnosis order.
NOTE:
Freeze frame data*2 is useful if the DTC*1 is not detected.
Perform Overall Function Check if DTC Confirmation Procedure is not included on Service Manual. This
simplified check procedure is an effective alternative though DTC*
1 cannot be detected during this check.
If the result of Overall Function Check is NG, it is the same as the detection of DTC*
1 by DTC Confirma-
tion Procedure.
Is DTC*
1 detected?
Ye s > > G O T O 1 0 .
No >> Check according to EC-105, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
6. PERFORM BASIC INSPECTION
Perform EC-40, "
Basic Inspection" .
With CONSULT-II>>GO TO 7.
Without CONSULT-II>>GO TO 9.
7. PERFORM DATA MONITOR (SPEC) MODE
With CONSULT-II
Make sure that “MAS A/F SE-B1”, “B/FUEL SCHDL”, and “A/F
ALPHA-B1” are within the SP value using CONSULT-II “DATA MON-
ITOR (SPEC)” mode. Refer to EC-95, "
Inspection Procedure" .
Are they within the SP value?
Ye s > > G O T O 9 .
No >> GO TO 8.
8. DETECT MALFUNCTIONING PART BY TROUBLE DIAGNOSIS - SPECIFICATION VALUE
Detect malfunctioning part according to EC-96, "
Diagnostic Procedure" .
Is malfunctioning part detected?
Ye s > > G O T O 11 .
No >> GO TO 9.
9. DETECT MALFUNCTIONING SYSTEM BY SYMPTOM MATRIX CHART
Detect malfunctioning system according to EC-60, "
Symptom Matrix Chart" based on the confirmed symptom
in step 4, and determine the trouble diagnosis order based on possible causes and symptom.
>> GO TO 10.
SEF601Z
Page 1338 of 3502
![NISSAN TEANA 2003 Service Manual EC-56
[QR]
TROUBLE DIAGNOSIS
10. DETECT MALFUNCTIONING PART
Inspect according to Diagnostic Procedure of the system.
NOTE:
The Diagnostic Procedure in EC section described based on open circuit insp NISSAN TEANA 2003 Service Manual EC-56
[QR]
TROUBLE DIAGNOSIS
10. DETECT MALFUNCTIONING PART
Inspect according to Diagnostic Procedure of the system.
NOTE:
The Diagnostic Procedure in EC section described based on open circuit insp](/manual-img/5/57392/w960_57392-1337.png)
EC-56
[QR]
TROUBLE DIAGNOSIS
10. DETECT MALFUNCTIONING PART
Inspect according to Diagnostic Procedure of the system.
NOTE:
The Diagnostic Procedure in EC section described based on open circuit inspection. A short circuit inspection
is also required for the circuit check in the Diagnostic Procedure. For details, refer to Circuit Inspection in GI-
24, "How to Perform Efficient Diagnosis for an Electrical Incident" .
Is malfunctioning part detected?
Yes >> GO TO 11.
No >> Monitor input data from related sensors or check voltage of related ECM terminals using CON-
SULT-II. Refer to EC-72, "
ECM Terminals and Reference Value" , EC-90, "CONSULT-II Reference
Value in Data Monitor Mode" .
11 . REPAIR OR REPLACE THE MALFUNCTIONING PART
1. Repair or replace the malfunctioning part.
2. Reconnect parts or connectors after repair and replacement.
3. Check DTC. If DTC is displayed, erase it, refer to EC-35, "
HOW TO ERASE EMISSION-RELATED DIAG-
NOSTIC INFORMATION" .
>> GO TO 12.
12. FINAL CHECK
When DTC was detected in step 2, perform DTC Confirmation Procedure or Overall Function Check again,
and then make sure that the malfunction have been repaired securely.
When symptom was described from the customer, refer to confirmed symptom in step 3 or 4, and make sure
that the symptom is not detected.
OK or NG
NG (DTC*1 is detected)>>GO TO 10.
NG (Symptom remains)>>GO TO 6.
OK >> 1. Before returning the vehicle to the customer, make sure to erase unnecessary DTC*
1 in ECM.
(Refer to EC-35, "
HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION" .)
2.INSPECTION END
*1: Include 1st trip DTC.
*2: Include 1st trip freeze frame data.
DIAGNOSTIC WORKSHEET
Description
There are many operating conditions that lead to the malfunction of
engine components. A good grasp of such conditions can make trou-
bleshooting faster and more accurate.
In general, each customer feels differently about a incident. It is
important to fully understand the symptoms or conditions for a cus-
tomer complaint.
Utilize a diagnostic worksheet like the one on the next page in order
to organize all the information for troubleshooting.
SEF907L
Page 1339 of 3502
TROUBLE DIAGNOSIS
EC-57
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

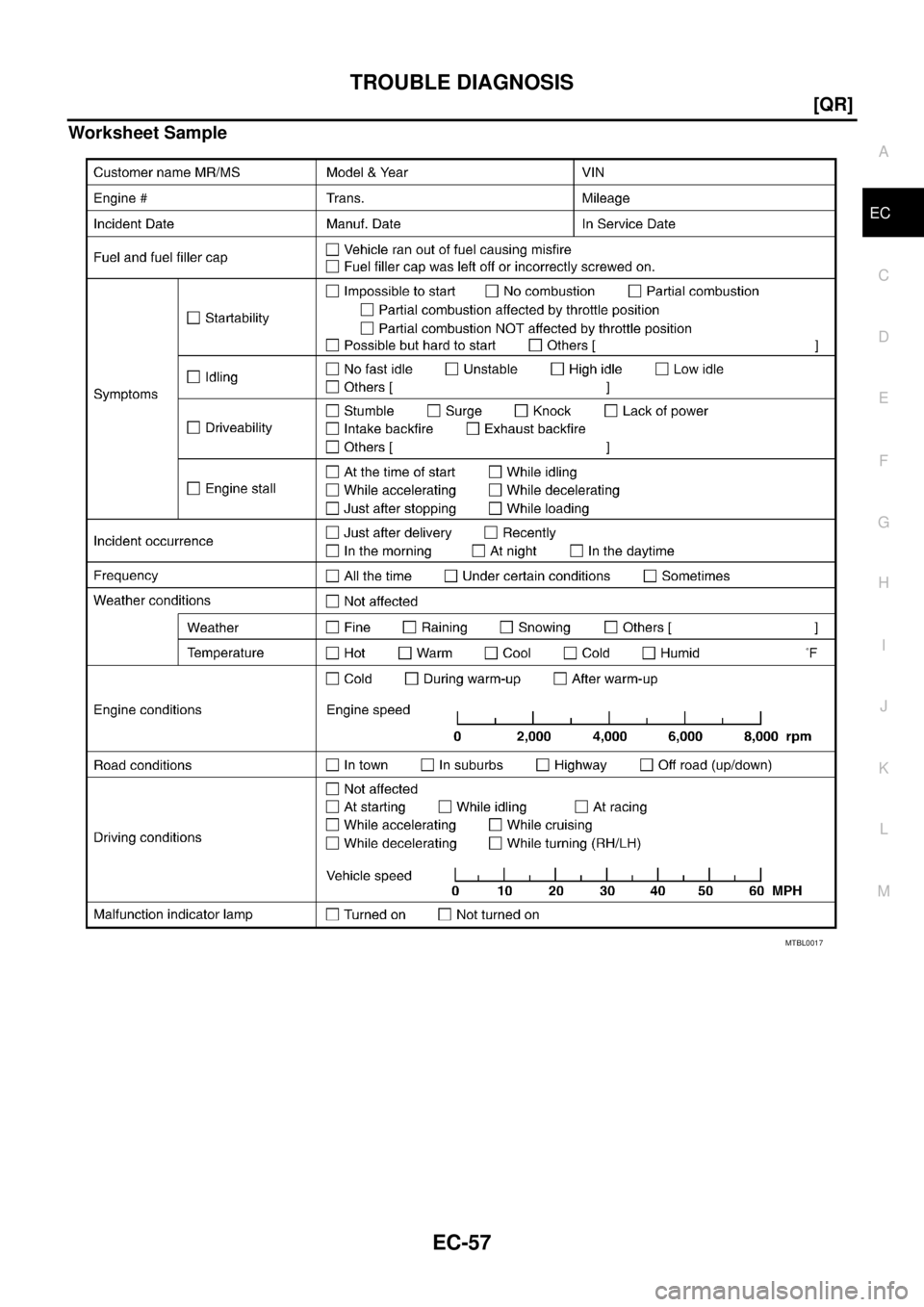

Worksheet Sample
MTBL0017
Page 1340 of 3502
![NISSAN TEANA 2003 Service Manual EC-58
[QR]
TROUBLE DIAGNOSIS
DTC Inspection Priority ChartBBS005C0
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.
NOTE:
If DTC U10 NISSAN TEANA 2003 Service Manual EC-58
[QR]
TROUBLE DIAGNOSIS
DTC Inspection Priority ChartBBS005C0
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.
NOTE:
If DTC U10](/manual-img/5/57392/w960_57392-1339.png)
EC-58
[QR]
TROUBLE DIAGNOSIS
DTC Inspection Priority ChartBBS005C0
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.
NOTE:
If DTC U1000 and/or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC
U1000 and U1001. Refer to EC-113, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
Priority Detected items (DTC)
1
U1000 U1001 CAN communication line
P0102 P0103 Mass air flow sensor
P0117 P0118 Engine coolant temperature sensor
P0122 P0123 P0222 P0223 P1225 P1226 P2135 Throttle position sensor
P0327 P0328 Knock sensor
P0335 Crankshaft position sensor (POS)
P0340 Camshaft position sensor (PHASE)
P0500 Vehicle speed sensor
P0605 ECM
P1229 Sensor power supply
P1610-P1615 NATS
P1706 Park/Neutral position (PNP) switch
P2122 P2123 P2127 P2128 P2138 Accelerator pedal position sensor
2
P0132 P0134 Heated oxygen sensor 1
P0550 Power steering pressure sensor
P1065 ECM power supply
P1122 Electric throttle control function
P1124 P1126 Throttle control motor relay
P1128 Throttle control motor
P1720 Vehicle speed sensor
P1805 Brake switch
3
P0011 Intake valve timing control
P1121 Electric throttle control actuator
P1217 Engine over temperature (OVERHEAT)
Page 1341 of 3502
![NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS
EC-59
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
Fail-Safe ChartBBS005C1
When the DTC listed bellow is detected, the ECM enters fail-safe mode and the MI lights up.
When there is an open circu NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS
EC-59
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
Fail-Safe ChartBBS005C1
When the DTC listed bellow is detected, the ECM enters fail-safe mode and the MI lights up.
When there is an open circu](/manual-img/5/57392/w960_57392-1340.png)
TROUBLE DIAGNOSIS
EC-59
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
Fail-Safe ChartBBS005C1
When the DTC listed bellow is detected, the ECM enters fail-safe mode and the MI lights up.
When there is an open circuit on MI circuit, the ECM can not warn the driver by lighting up MI when there is
trouble on engine control system. Therefore, when Electrical controlled throttle and part of the ECM related
diagnoses are continuously detected as NG for 5-trips, ECM warns the driver that engine control system has
trouble and MI circuit is open by means of operating fail-safe function.
The fail-safe function also operates when above diagnoses except MI circuit are detected and demands the
driver to repair the trouble.
DTC No. Detected items Engine operating condition in fail-safe mode
P0102
P0103Mass air flow sensor circuit Engine speed will not rise more than 2,400 rpm due to the fuel cut.
P0122
P0123
P0221
P0222
P2135Throttle position sensor The ECM controls the electric throttle control actuator in regulating the throttle opening in
order for the idle position to be within +10 degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal
condition.
So, the acceleration will be poor.
P1121 Electric throttle control
actuator(When electric throttle control actuator does not function properly due to the return spring
malfunction:)
ECM controls the electric throttle actuator by regulating the throttle opening around the
idle position. The engine speed will not rise more than 2,000 rpm.
(When throttle valve opening angle in fail-safe mode is not in specified range:)
ECM controls the electric throttle control actuator by regulating the throttle opening to 20
degrees or less.
(ECM detect the throttle valve is stuck open:)
While the vehicle is driving, it slows down gradually by fuel cut. After the vehicle stops, the
engine stalls.
The engine can restart in N or P position, and engine speed will not exceed 1,000 rpm or
more.
P1122 Electric throttle control
functionECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P1124
P1126Throttle control motor relay ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P1128 Throttle control motor ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P1229 Sensor power supply ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P1805 Brake switchECM controls the electric throttle control actuator by regulating the throttle opening to a
small range.
Vehicle condition Driving condition
When engine is idling Normal
When accelerating Poor acceleration
P2122
P2123
P2127
P2128
P2138Accelerator pedal position
sensorThe ECM controls the electric throttle control actuator in regulating the throttle opening in
order for the idle position to be within +10 degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal
condition.
So, the acceleration will be poor.
Engine operating condition in fail-safe mode Engine speed will not rise more than 2,500 rpm due to the fuel cut
Page 1342 of 3502
![NISSAN TEANA 2003 Service Manual EC-60
[QR]
TROUBLE DIAGNOSIS
Symptom Matrix ChartBBS005C2
SYSTEM — BASIC ENGINE CONTROL SYSTEM
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SP NISSAN TEANA 2003 Service Manual EC-60
[QR]
TROUBLE DIAGNOSIS
Symptom Matrix ChartBBS005C2
SYSTEM — BASIC ENGINE CONTROL SYSTEM
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SP](/manual-img/5/57392/w960_57392-1341.png)
EC-60
[QR]
TROUBLE DIAGNOSIS
Symptom Matrix ChartBBS005C2
SYSTEM — BASIC ENGINE CONTROL SYSTEM
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel pump circuit 11232 22 3 2EC-295
Fuel pressure regulator system334444444 4EC-49
Fuel injector circuit 11232 22 2EC-289
Evaporative emission system 334444444 4EC-27
Air Positive crankcase ventilation sys-
tem334444444 41EC-30
Incorrect idle speed adjustment 33 1111 1EC-40
Electric throttle control actuator 112332222 2 2EC-197
,
EC-200
,
EC-207
,
EC-213
IgnitionIncorrect ignition timing adjustment33111 11 1EC-40
Ignition circuit 11222 22 2EC-329
Main power supply and ground circuit 22333 33 23EC-106
Mass air flow sensor circuit 11222 22 2EC-124
Engine coolant temperature sensor circuit 11222322312EC-131
Throttle position sensor circuit 12 22222 2EC-136
,
EC-157
,
EC-229
,
EC-231
,
EC-265
Accelerator pedal position sensor circuit3212 2EC-233
,
EC-251
,
EC-258
,
EC-272
Heated oxygen sensor 1 circuit 1232 22 2EC-143
,
EC-150
,
EC-301
Knock sensor circuit 2 2 3EC-164
Crankshaft position sensor (POS) circuit 2 2EC-169
Camshaft position sensor (PHASE) circuit 2 2EC-176
Vehicle speed signal circuit 2 3 3 3EC-183
Power steering pressure sensor circuit 2 3333EC-185
Page 1343 of 3502
TROUBLE DIAGNOSIS
EC-61
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
1 - 6: The numbers refer to the order of inspection.
(continued on next page)ECM 22333333333EC-190
,
EC-193
Intake valve timing control solenoid valve cir-
cuit332 13223 3EC-116
PNP switch circuit 3 33333 3EC-238
Refrigerant pressure sensor circuit 2 3 3 3 3 4EC-339
Electrical load signal circuit 3 3 3 3EC-280
Air conditioner circuit223333333 3 2AT C - 3 4
ABS actuator and electric unit (control unit) 4BRC-8
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Page 1344 of 3502
![NISSAN TEANA 2003 Service Manual EC-62
[QR]
TROUBLE DIAGNOSIS
SYSTEM — ENGINE MECHANICAL & OTHER
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF PO NISSAN TEANA 2003 Service Manual EC-62
[QR]
TROUBLE DIAGNOSIS
SYSTEM — ENGINE MECHANICAL & OTHER
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF PO](/manual-img/5/57392/w960_57392-1343.png)
EC-62
[QR]
TROUBLE DIAGNOSIS
SYSTEM — ENGINE MECHANICAL & OTHER
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel tank
5
5FL-8
Fuel piping 5 5 5 5 5 5EM-34
Vapor lock—
Valve deposit
5 555 55 5—
Poor fuel (Heavy weight gaso-
line, Low octane)—
Air Air duct
55555 5EM-17
Air cleaner
Air leakage from air duct
(Mass air flow sensor —electric
throttle control actuator)
5555
Electric throttle control actuator
EM-19
Air leakage from intake manifold/
Collector/Gasket
Cranking Battery
111111 11SC-4
Alternator circuitSC-27
Starter circuit 3SC-14
Signal plate/Flywheel/Drive plate 6EM-81
PNP switch 4AT- 1 6 1
Engine Cylinder head
55555 55 5EM-65
Cylinder head gasket 4 3
Cylinder block
66666 66 64
EM-81
Piston
Piston ring
Connecting rod
Bearing
Crankshaft
Va l v e
mecha-
nismTiming chain
55555 55 5EM-53
CamshaftEM-41
Intake valve timing controlEM-53
Intake valve
3EM-65
Exhaust valve
