NISSAN TEANA 2003 Service Manual A/T CONTROL SYSTEM
AT-33
D
E
F
G
H
I
J
K
L
MA
B
AT

Control ValveBCS000ZW
FUNCTION OF CONTROL VALVES
Valve name Function
Pressure regulator valve, plug and sleeve
plugRegulates oil discharged from t

A/T CONTROL SYSTEM
AT-33
D
E
F
G
H
I
J
K
L
MA
B
AT

Control ValveBCS000ZW
FUNCTION OF CONTROL VALVES
Valve name Function
Pressure regulator valve, plug and sleeve
plugRegulates oil discharged from the oil pump to provide optimum line pressure for all driv-
ing conditions.
Pressure modifier valve and sleeve Used as a signal supplementary valve to the pressure regulator valve. Regulates pres-
sure-modifier pressure (signal pressure) which controls optimum line pressure for all
driving conditions.
Pilot valve Regulates line pressure to maintain a constant pilot pressure level which controls lock-up
mechanism, overrun clutch, shift timing.
Accumulator control valve Regulates accumulator back-pressure to pressure suited to driving conditions.
Manual valve Directs line pressure to oil circuits corresponding to select positions.
Hydraulic pressure drains when the shift lever is in Neutral.
Shift valve A Simultaneously switches three oil circuits using output pressure of shift solenoid valve A
to meet driving conditions (vehicle speed, throttle opening, etc.).
Provides automatic downshifting and upshifting (1st → 2nd → 3rd → 4th gears/4th →
3rd → 2nd → 1st gears) in combination with shift valve B.
Shift valve B Simultaneously switches two oil circuits using output pressure of shift solenoid valve B in
relation to driving conditions (vehicle speed, throttle opening, etc.).
Provides automatic downshifting and upshifting (1st → 2nd → 3rd → 4th gears/4th →
3rd → 2nd → 1st gears) in combination with shift valve A.
Overrun clutch control valve Switches hydraulic circuits to prevent engagement of the overrun clutch simultaneously
with application of the brake band in D
4 . (Interlocking occurs if the overrun clutch
engages during D
4 .)
1st reducing valve Reduces low & reverse brake pressure to dampen engine-brake shock when downshift-
ing from the 1st position 1
2 to 11 .
Overrun clutch reducing valve Reduces oil pressure directed to the overrun clutch and prevents engine-brake shock.
In the 1st and 2nd positions, line pressure acts on the overrun clutch reducing valve to
increase the pressure-regulating point, with resultant engine brake capability.
Torque converter relief valve Prevents an excessive rise in torque converter pressure.
Torque converter clutch control valve, plug
and sleeveActivates or inactivates the lock-up function.
Also provides smooth lock-up through transient application and release of the lock-up
system.
1-2 accumulator valve and piston Lessens the shock find when the 2nd gear band servo contracts, and provides smooth
shifting.
3-2 timing valve Switches the pace that oil pressure is released depending on vehicle speed; maximizes
the high clutch release timing, and allows for soft downshifting.
Shuttle valve Determines if the overrun clutch solenoid valve should control the 3-2 timing valve or the
overrun clutch control valve and switches between the two.
Cooler check valve At low speeds and with a small load when a little heat is generated, saves the volume of
cooler flow, and stores the oil pressure for lock-up.

Page 42 of 3502

NISSAN TEANA 2003 Service Manual AT-34
TROUBLE DIAGNOSIS

TROUBLE DIAGNOSISPFP:00004
DTC Inspection Priority ChartBCS000ZX
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
c

AT-34
TROUBLE DIAGNOSIS

TROUBLE DIAGNOSISPFP:00004
DTC Inspection Priority ChartBCS000ZX
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.
NOTE:
If DTC “CAN COMM CIRCUIT” is displayed with other DTCs, first perform the trouble diagnosis for
“CAN COMMUNICATION LINE”. Refer to AT- 1 3 3
.
Fail-safeBCS000ZY
The TCM has an electronic Fail-safe mode. This allows the vehicle to be driven even if a major electrical input/
output device circuit is damaged.
Under Fail-safe, the vehicle always runs in third gear, even with a shift lever position of “1”, “2”, “3” or “D”. The
customer may complain of sluggish or poor acceleration.
Always follow the AT- 3 7 , "
WORK FLOW" .
The SELF-DIAGNOSIS results will be as follows:
The first SELF-DIAGNOSIS will indicate damage to the vehicle speed sensor or the revolution sensor.
During the next SELF-DIAGNOSIS, performed after checking the sensor, no damages will be indicated.
FAIL-SAFE FUNCTION
The following fail-safe functions allow vehicles to be driven even when sensor, switch or solenoid malfunction
occurs.
Vehicle Speed Sensor 1 (Revolution Sensor)
Vehicle speed sensor 2 signal is input from combination meter.
Accelerator Pedal Position Sensor Signal
TCM controls the throttle opening angle to a predetermined fixed position to enable driving if a malfunctioning
signal is input to TCM.
Park/Neutral Position (PNP) Switch
When the multiple PNP switch signals are input to TCM, the priority of selector lever position becomes “D”·“3”,
“N”, “R”, “2” and “1” in order by internal TCM determination.
The use of 4th gear is inhibited until normal operation resumes. Because the hydraulic circuit of the control
valve is switched by manual valve according to the selector lever position, however, actual operating condition
of vehicle becomes as follows.
Priority Detected items
1 CAN communication line
2 Except above
Actual lever position PNP switch input signal Running status
“P” “P” position and other position signals P
“R” “R” position and other position signals R
“N” “N” position and other position signals N
“D”·“3” “D” position and other position signals D
1 ⇔D2 ⇔D3
“2”“2” position and other position signals (Except “1” position) 21 ⇔22 ⇔23
“2” position and “1” position signals 21 ⇔22
“1”“1” position and other position signals (Except “2” position) 11 ⇔12 ⇔13
“1” position and “2” position signals 11 ⇔12

Page 43 of 3502

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS
AT-35
D
E
F
G
H
I
J
K
L
MA
B
AT

Shift Solenoid Valve A and B
If non-standard solenoid signal is sent to TCM, use of certain gears is limited. Refer to chart shown below.
: Solenoi

Page 44 of 3502

NISSAN TEANA 2003 Service Manual AT-36
TROUBLE DIAGNOSIS

How to Perform Trouble Diagnoses for Quick and Accurate RepairBCS000ZZ
INTRODUCTION
The TCM receives a signal from the vehicle speed sensor, accelera-
tor pedal position sens

Page 45 of 3502

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS
AT-37
D
E
F
G
H
I
J
K
L
MA
B
AT

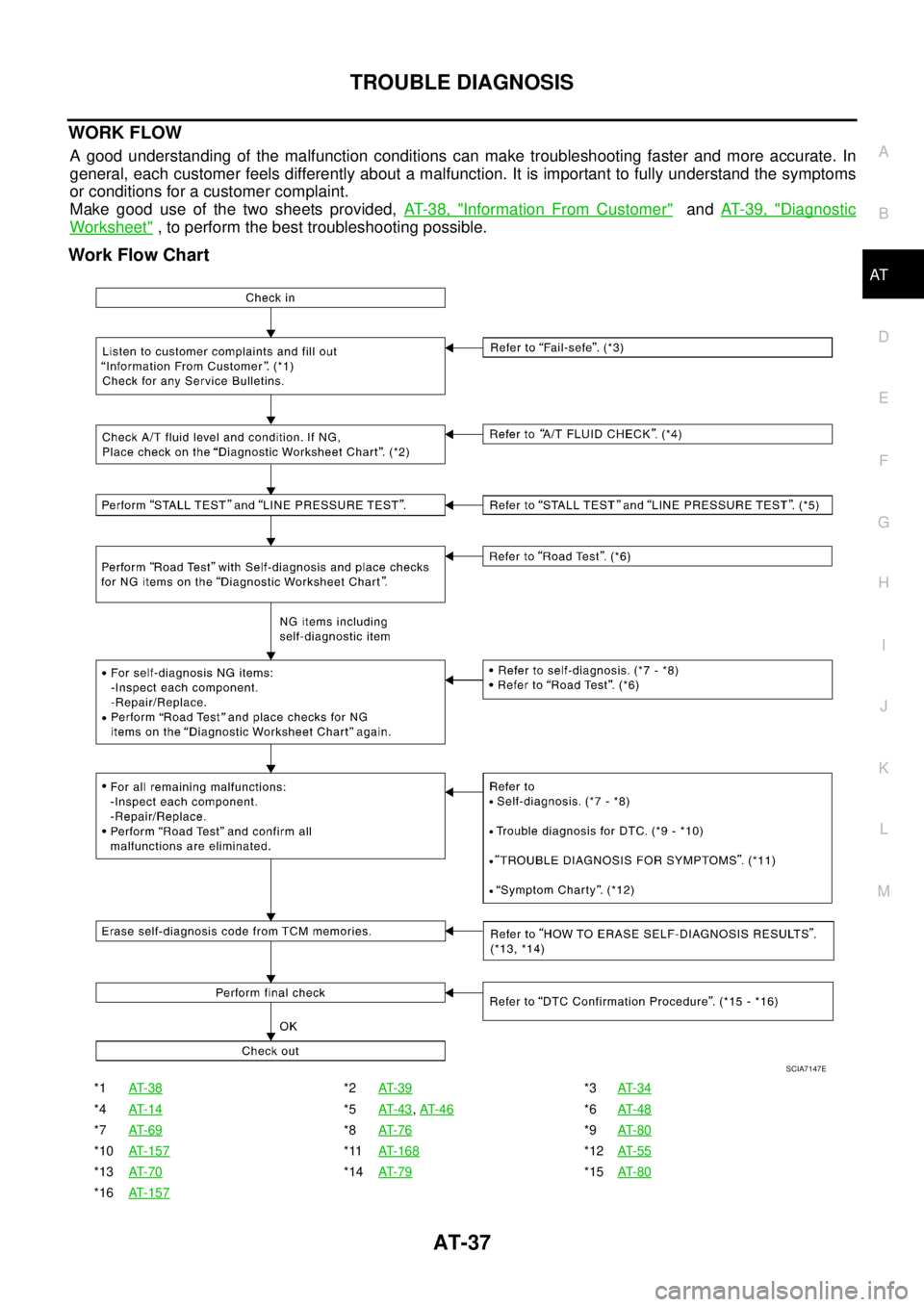

WORK FLOW
A good understanding of the malfunction conditions can make troubleshooting faster and more accurate. In
general, each customer feels diff

Page 46 of 3502

NISSAN TEANA 2003 Service Manual AT-38
TROUBLE DIAGNOSIS

DIAGNOSTIC WORKSHEET
Information From Customer
KEY POINTS
WHAT..... Vehicle & A/T models
WHEN..... Date, Frequencies
WHERE..... Road conditions
HOW..... Operating conditi

Page 47 of 3502

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS
AT-39
D
E
F
G
H
I
J
K
L
MA
B
AT

Diagnostic Worksheet
1.❏ Read the Fail-safe and listen to customer complaints.AT- 3 4, AT- 3 8
2.❏ Check A/T fluidAT- 1 4❏ Leakage (Follow spe

TROUBLE DIAGNOSIS
AT-39
D
E
F
G
H
I
J
K
L
MA
B
AT

Diagnostic Worksheet
1.❏ Read the Fail-safe and listen to customer complaints.AT- 3 4, AT- 3 8
2.❏ Check A/T fluidAT- 1 4❏ Leakage (Follow specified procedure)
❏ Fluid condition
❏ Fluid level
3.❏ Perform “STALL TEST” and “LINE PRESSURE TEST”.AT- 4 3
,
AT- 4 6
❏ “STALL TEST” — Mark possible damaged components/others.
❏ Torque converter one-way clutch
❏ Reverse clutch
❏ Forward clutch
❏ Overrun clutch
❏ Forward one-way clutch❏ Low & reverse brake
❏ Low one-way clutch
❏ Engine
❏ Line pressure is low
❏ Clutches and brakes except high clutch and
brake band are OK
❏ “LINE PRESSURE TEST” — Suspected parts:
4.❏ Perform “Road Test”.AT- 4 8
4-1.“Check Before Engine is Started”AT- 4 8
❏ AT-173, "A/T CHECK Indicator Lamp Does Not Come On" .
❏ Perform self-diagnostics. Enter checks for detected items. AT- 6 9
, AT- 7 6 .
❏ AT-133, "
CAN COMMUNICATION LINE" .
❏ AT-80, "
VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" .
❏ AT-86, "
VEHICLE SPEED SENSOR MTR" .
❏ AT-120, "
TURBINE REVOLUTION SENSOR" .
❏ AT-90, "
SHIFT SOLENOID VALVE A" .
❏ AT-95, "
SHIFT SOLENOID VALVE B" .
❏ AT-100, "
OVERRUN CLUTCH SOLENOID VALVE" .
❏ AT-105, "
TORQUE CONVERTER CLUTCH SOLENOID VALVE" .
❏ AT-110, "
BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER
SOURCE)" .
❏ AT-116, "
ENGINE SPEED SIGNAL" .
❏ AT-136, "
A/T 1ST GEAR FUNCTION" .
❏ AT-140, "
A/T 2ND GEAR FUNCTION" .
❏ AT-143, "
A/T 3RD GEAR FUNCTION" .
❏ AT-146, "
A/T 4TH GEAR FUNCTION" .
❏ AT-151, "
A/T TCC S/V FUNCTION (LOCK-UP)" .
❏ AT-126, "
LINE PRESSURE SOLENOID VALVE" .
❏ AT-156, "
CONTROL UNIT (RAM)" .
❏ AT-157, "
CONTROL UNIT (ROM)" .
4-2.“Check at Idle”AT- 4 8
❏ AT-175, "Engine Cannot Be Started in “P” and “N” Position" .
❏ AT-176, "
In “P” Position, Vehicle Moves Forward or Backward When Pushed" .
❏ AT-176, "
In “N” Position, Vehicle Moves" .
❏ AT-177, "
Large Shock. “N” → “R” Position" .
❏ AT-179, "
Vehicle Does Not Creep Backward in “R” Position" .
❏ AT-181, "
Vehicle Does Not Creep Forward in “D”, “3”, “2” or “1” Position" .

Page 48 of 3502

NISSAN TEANA 2003 Service Manual AT-40
TROUBLE DIAGNOSIS

4. 4-3.“Cruise Test”AT- 5 0
Part 1
❏ AT-182, "
Vehicle Cannot Be Started From D1" .
❏ AT-184, "
A/T Does Not Shift: D1 → D2 or Does Not Kickdown: D4 → D2" .
❏ A

AT-40
TROUBLE DIAGNOSIS

4. 4-3.“Cruise Test”AT- 5 0
Part 1
❏ AT-182, "
Vehicle Cannot Be Started From D1" .
❏ AT-184, "
A/T Does Not Shift: D1 → D2 or Does Not Kickdown: D4 → D2" .
❏ AT-186, "
A/T Does Not Shift: D2 → D3" .
❏ AT-188, "
A/T Does Not Shift: D3 → D4" .
❏ AT-191, "
A/T Does Not Perform Lock-up" .
❏ AT-193, "
A/T Does Not Hold Lock-up Condition" .
❏ AT-195, "
Lock-up Is Not Released" .
❏ AT-195, "
Engine Speed Does Not Return To Idle (Light Braking D4 → D3 )" .
Part 2AT- 5 1
❏ AT-182, "Vehicle Cannot Be Started From D1" .
❏ AT- 1 8 4 , "
A/T Does Not Shift: D1 → D2 or Does Not Kickdown: D4 → D2" .
❏ AT-186, "
A/T Does Not Shift: D2 → D3" .
❏ AT-188, "
A/T Does Not Shift: D3 → D4" .
Part 3AT- 5 2
❏ AT-197, "A/T Does Not Shift: D4 → 33 , When A/T Selector Lever “D” → “3”" .
❏ AT-203, "
Vehicle Does Not Decelerate By Engine Brake (D4 → 33 )" .
❏ AT-198, "
A/T Does Not Shift: 33 → 22 , When Selector Lever “3” → “2” Position" .
❏ AT-205, "
Vehicle Does Not Decelerate By Engine Brake (33 → 22 )" .
❏ AT-200, "
A/T Does Not Shift: 22 → 11 , When Selector Lever “2” → “1” Position" .
❏ AT-208, "
Vehicle Does Not Decelerate By Engine Brake (22 → 11 )" .
❏ Perform self-diagnostics. Enter checks for detected items. AT- 6 9
, AT- 7 6 .
❏ AT-133, "
CAN COMMUNICATION LINE" .
❏ AT-80, "
VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" .
❏ AT-86, "
VEHICLE SPEED SENSOR MTR" .
❏ AT-120, "
TURBINE REVOLUTION SENSOR" .
❏ AT-90, "
SHIFT SOLENOID VALVE A" .
❏ AT-95, "
SHIFT SOLENOID VALVE B" .
❏ AT-100, "
OVERRUN CLUTCH SOLENOID VALVE" .
❏ AT-105, "
TORQUE CONVERTER CLUTCH SOLENOID VALVE" .
❏ AT-110, "
BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER
SOURCE)" .
❏ AT-116, "
ENGINE SPEED SIGNAL" .
❏ AT-136, "
A/T 1ST GEAR FUNCTION" .
❏ AT-140, "
A/T 2ND GEAR FUNCTION" .
❏ AT-143, "
A/T 3RD GEAR FUNCTION" .
❏ AT-146, "
A/T 4TH GEAR FUNCTION" .
❏ AT-151, "
A/T TCC S/V FUNCTION (LOCK-UP)" .
❏ AT-126, "
LINE PRESSURE SOLENOID VALVE" .
❏ AT-156, "
CONTROL UNIT (RAM)" .
❏ AT-157, "
CONTROL UNIT (ROM)" .
5.❏ For self-diagnosis NG items, inspect each component. Repair or replace the damaged parts.
6.❏ Perform “Road Test”.AT- 4 8
7.❏ Perform the Diagnostic Procedures for all remaining items marked NG. Repair or replace the damaged parts.
Refer to the Symptom Chart when you perform the procedures. (The chart also shows some other possible
symptoms and the component inspection orders.)AT- 5 5
8.❏ Erase DTC from TCM and ECM memories.AT- 6 9AT- 7 9

Load next 8 pages

Page: < prev 1-10 ... 9-16 17-24 25-32 33-40 41-48 49-56 57-64 65-72 73-80 ... 3504 next >

oil filter wiper fluid overheating 4WD oil pressure brakes
