Removal and InstallationBIS0010I
CAUTION:
Be careful not to damage the mirror body.
REMOVAL
1. Remove the front door finisher. Refer to EI-35, "DOOR FINISHER" .
2. Remove the tweeter harness connector from the corner cover (tweeter equipped model).
3. Remove the door mirror harness connector.
4. Remove the corner cover.
5. Remove the door mirror mounting nuts, and remove the door mirror assembly.
INSTALLATION
Install in the reverse order of removal.

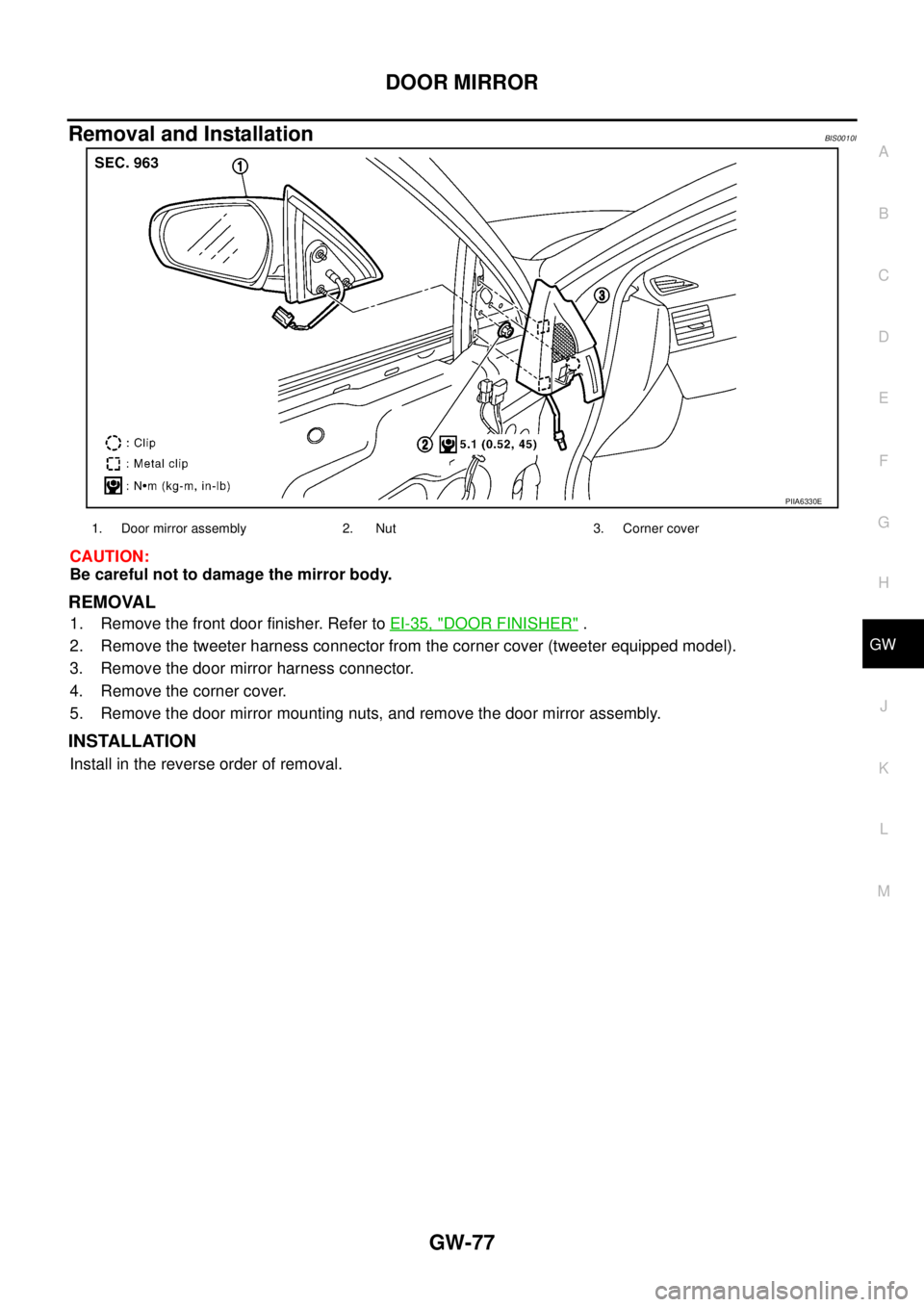

PIIA6330E
1. Door mirror assembly 2. Nut 3. Corner cover
GW-78
DOOR MIRROR
Disassembly and AssemblyBIS0010J
DISASSEMBLY
1. Pull out all the terminals from the connector.
NOTE:
Before pulling out the terminal, note the connector terminal arrangement.
2. Place the mirror body with mirror glass facing upward.
3. Put a strip of protective tape B on mirror body.
4. As shown in the figure, insert a small slotted screwdriver A into
the recess between mirror base (mirror holder)(1) and mirror
holder bracket (2) and push up two pawls (3) to remove mirror
holder lower half side.
NOTE:
Insert screwdriver into recesses, and push up while rotating
(twist) to make work easier.
CAUTION:
When pushing up the tabs, do not forcibly push up only 1
concave but try to push up using 2 concave positions.
5. Remove terminals of mirror heater attachment.
6. Remove base.
7. Remove door mirror actuator.
8. Remove power unit mounting screws, and disconnect connector.

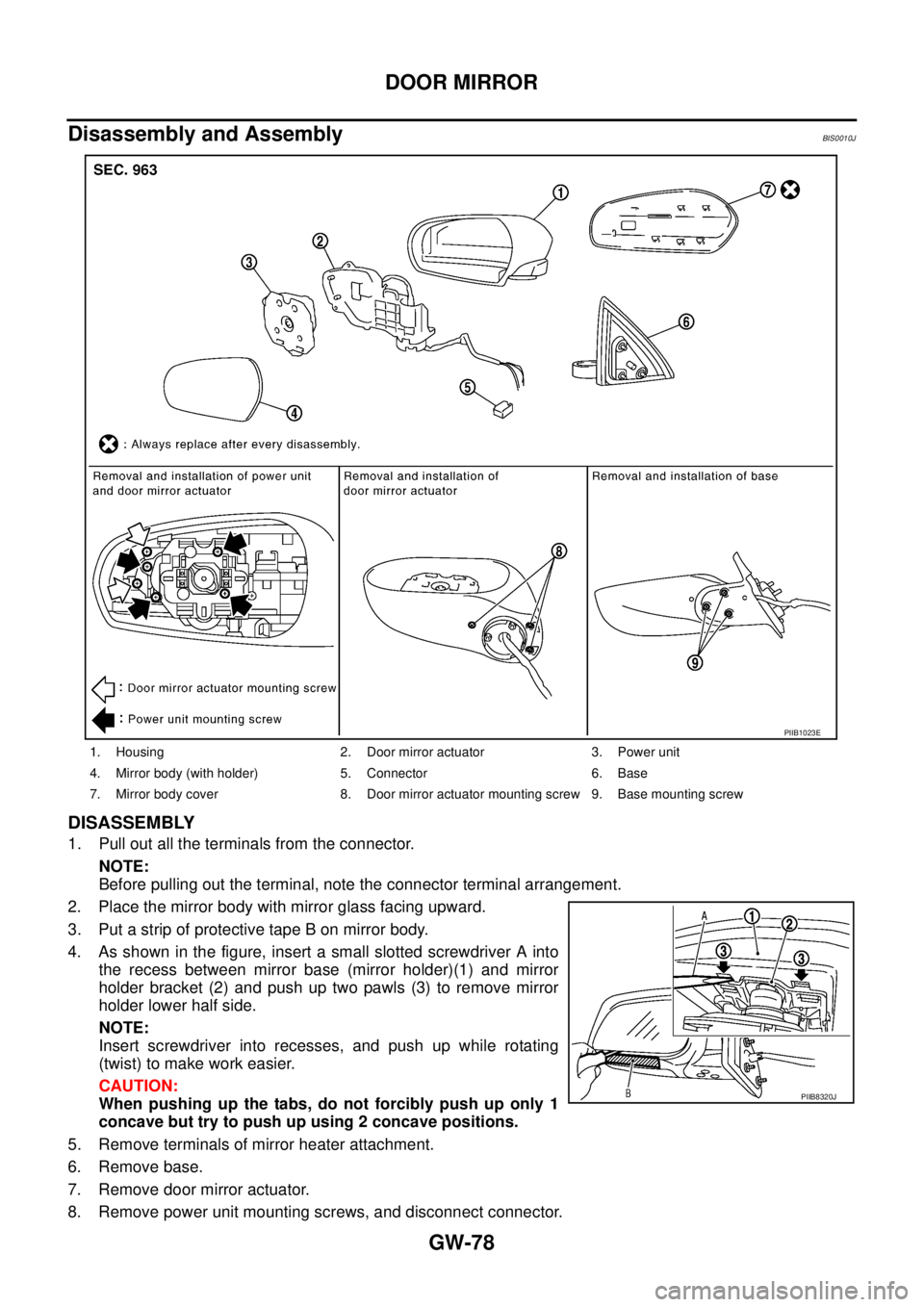

1. Housing 2. Door mirror actuator 3. Power unit
4. Mirror body (with holder) 5. Connector 6. Base
7. Mirror body cover 8. Door mirror actuator mounting screw 9. Base mounting screw
PIIB1023E
PIIB8320J
DOOR MIRROR
GW-79
C
D
E
F
G
H
J
K
L
MA
B
GW
9. Separate the power unit from the door mirror actuator.
ASSEMBLY
1. Connect power unit connector, and install power unit to door mirror actuator.
2. Install door mirror actuator assembly and base to the housing.
3. Set power unit and mirror body assembly in a horizontal position.
4. Warm the lower tabs with a dryer or equivalent.
NOTE:
Warm the lower tabs sufficiently before installing the mirror body. The tabs may be broken if it is cold. Be
careful especially in winter.
5. Engage upper tabs of mirror glass with power unit. Then, press
lower part of mirror glass down until the lower part snaps to
allow engagement of lower tabs.
NOTE:
After installation, visually check that the lower tabs are securely
engaged when viewed from the bottom of mirror surface.
6. Insert the harness terminals into the connector.
NOTE:
Make sure to insert the harness terminals into the correct con-
nector. Do not confuse the locations.
PIIA6332E
