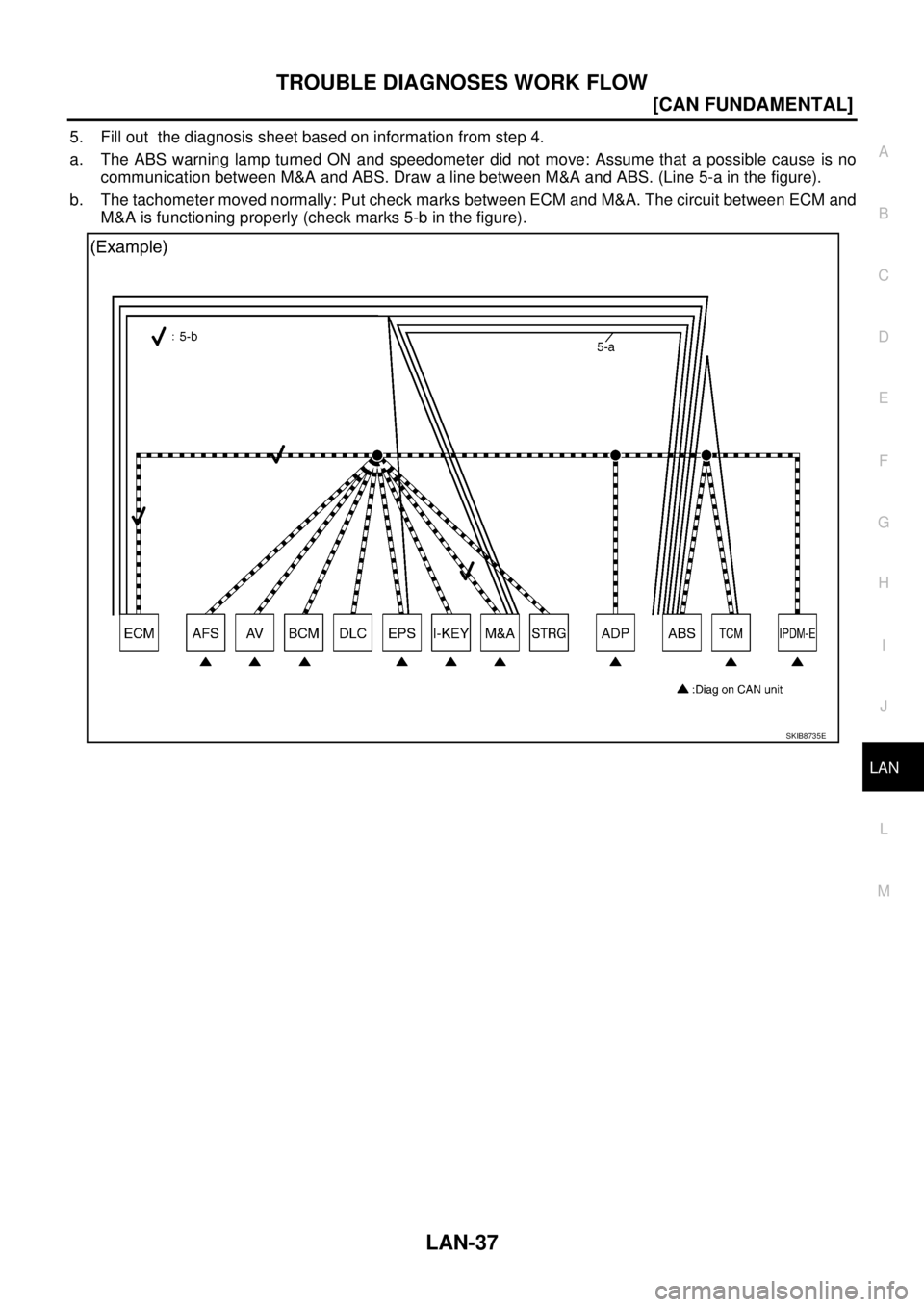

5. Fill out the diagnosis sheet based on information from step 4.
a. The ABS warning lamp turned ON and speedometer did not move: Assume that a possible cause is no
communication between M&A and ABS. Draw a line between M&A and ABS. (Line 5-a in the figure).
b. The tachometer moved normally: Put check marks between ECM and M&A. The circuit between ECM and
M&A is functioning properly (check marks 5-b in the figure).
SKIB8735E
Page 2642 of 3502
LAN-38
[CAN FUNDAMENTAL]
TROUBLE DIAGNOSES WORK FLOW

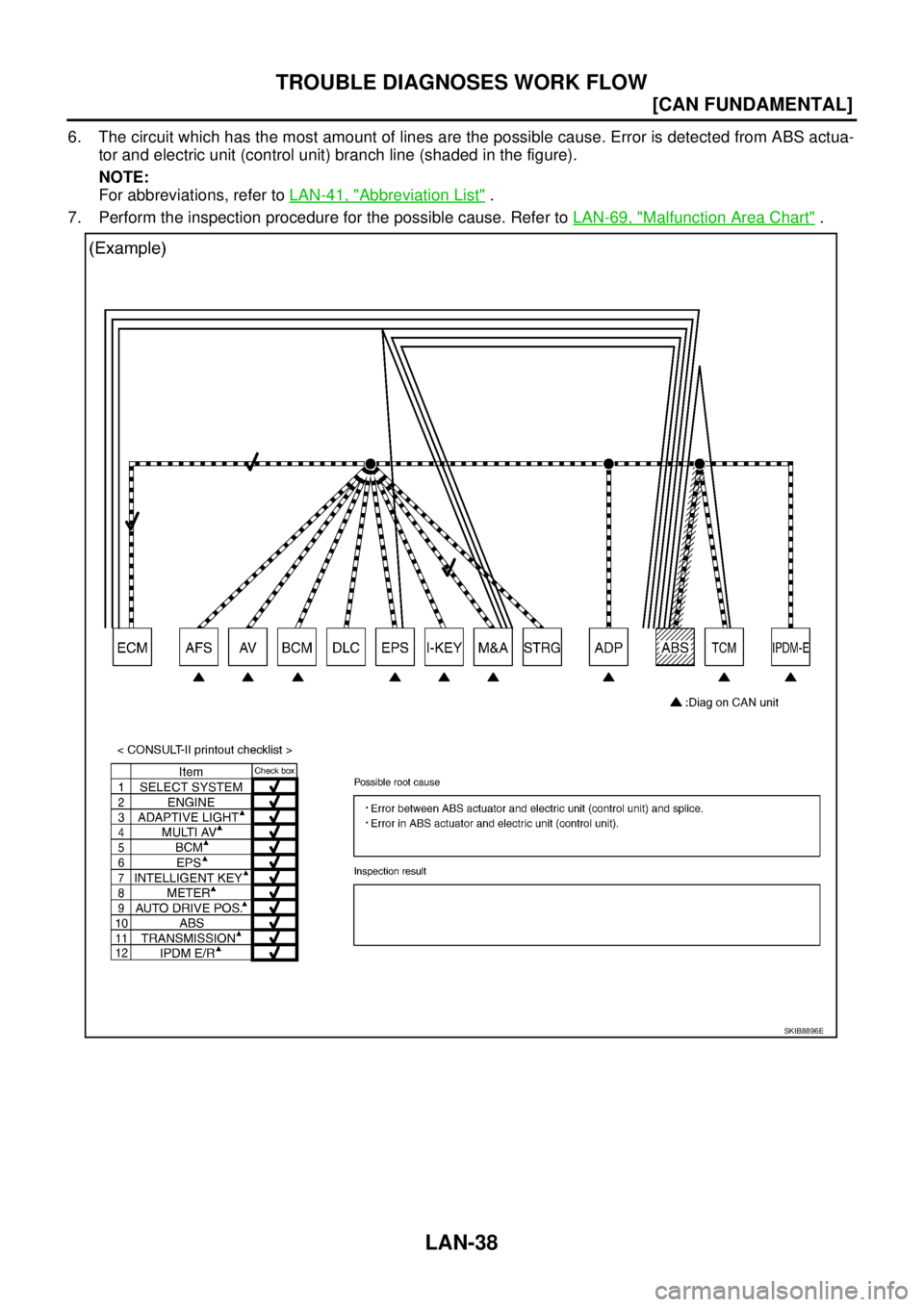

6. The circuit which has the most amount of lines are the possible cause. Error is detected from ABS actua-
tor and electric unit (control unit) branch line (shaded in the figure).
NOTE:
For abbreviations, refer to LAN-41, "
Abbreviation List" .
7. Perform the inspection procedure for the possible cause. Refer to LAN-69, "
Malfunction Area Chart" .
SKIB8896E
Page 2643 of 3502
TROUBLE DIAGNOSES WORK FLOW
LAN-39
[CAN FUNDAMENTAL]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Past Error — Short Circuit —

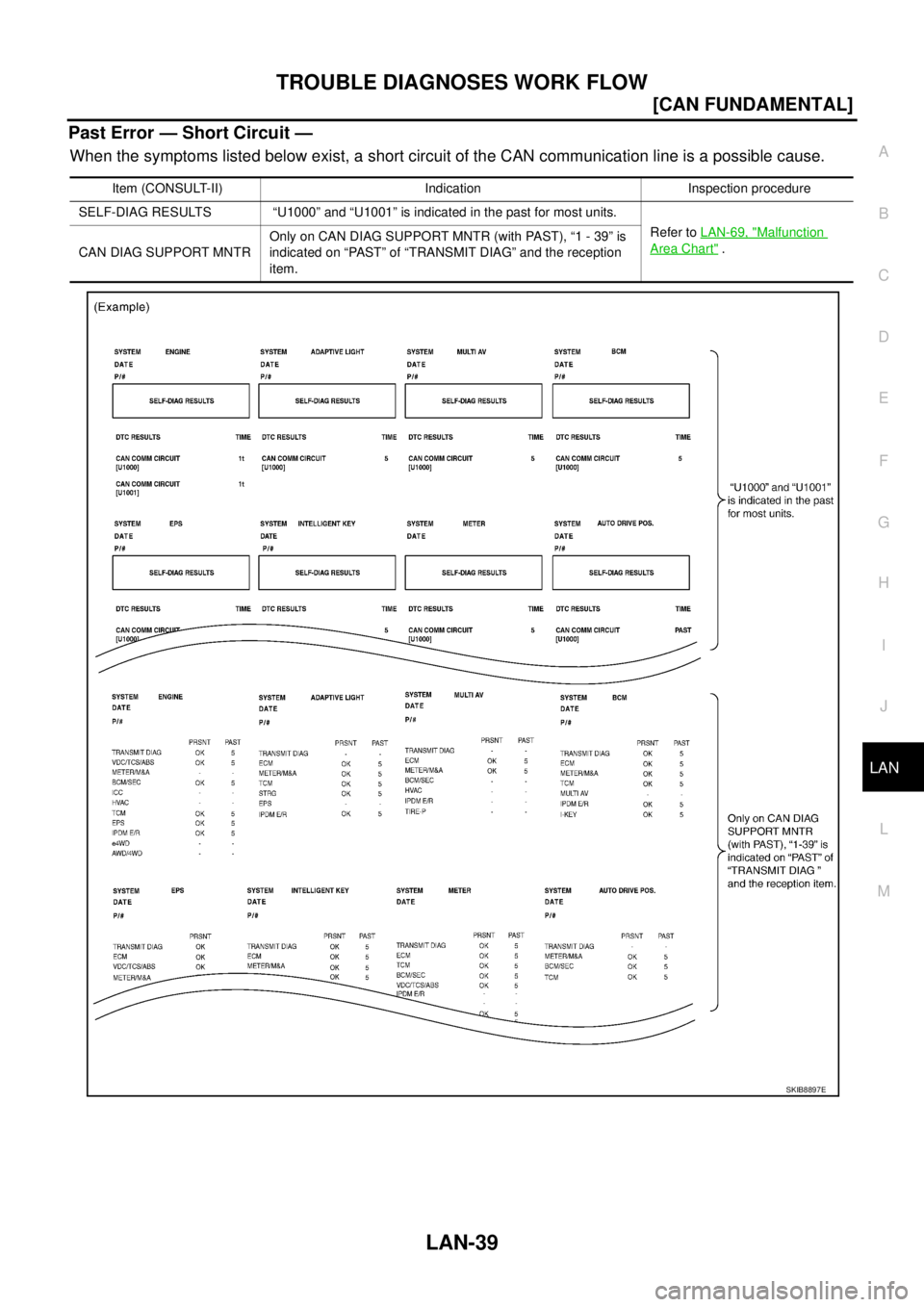

When the symptoms listed below exist, a short circuit of the CAN communication line is a possible cause.
Item (CONSULT-II) Indication Inspection procedure
SELF-DIAG RESULTS “U1000” and “U1001” is indicated in the past for most units.
Refer to LAN-69, "
Malfunction
Area Chart" .
CAN DIAG SUPPORT MNTROnly on CAN DIAG SUPPORT MNTR (with PAST), “1 - 39” is
indicated on “PAST” of “TRANSMIT DIAG” and the reception
item.
SKIB8897E
Page 2644 of 3502
![NISSAN TEANA 2003 Service Manual LAN-40
[CAN]
INDEX FOR DTC
[CAN]INDEX FOR DTCPFP:00004
DTC No. IndexBKS002DG
DTCSelf-diagnosis item
(CONSULT-II indication)DTC detection condition Inspection
U1000 CAN COMM CIRCUITWhen ECM is not t NISSAN TEANA 2003 Service Manual LAN-40
[CAN]
INDEX FOR DTC
[CAN]INDEX FOR DTCPFP:00004
DTC No. IndexBKS002DG
DTCSelf-diagnosis item
(CONSULT-II indication)DTC detection condition Inspection
U1000 CAN COMM CIRCUITWhen ECM is not t](/manual-img/5/57392/w960_57392-2643.png)
LAN-40
[CAN]
INDEX FOR DTC
[CAN]INDEX FOR DTCPFP:00004
DTC No. IndexBKS002DG
DTCSelf-diagnosis item
(CONSULT-II indication)DTC detection condition Inspection
U1000 CAN COMM CIRCUITWhen ECM is not transmitting or receiving CAN
communication signal of OBD (emission-related
diagnosis) for 2 seconds or more.
Refer to LAN-41, "
HOW
TO USE THIS SEC-
TION" . When a control unit (except for ECM) is not
transmitting or receiving CAN communication
signal for 2 seconds or more.
U1001 CAN COMM CIRCUITWhen ECM is not transmitting or receiving CAN
communication signal other than OBD (emis-
sion-related diagnosis) for 2 seconds or more.
U1002 SYSTEM COMMWhen a control unit is not transmitting or receiv-
ing CAN communication signal for 2 seconds or
less.Start the inspection.
Refer to the applicable
section of the indicated
control unit.
U1010 CONTROL UNIT [CAN]When an error is detected during the initial diag-
nosis for CAN controller of each control unit.Replace the control unit
indicating “U1010”.
Page 2645 of 3502
![NISSAN TEANA 2003 Service Manual HOW TO USE THIS SECTION
LAN-41
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
HOW TO USE THIS SECTIONPFP:00008
CautionBKS002DH
This section describes information specific to a vehicle, sheets for trouble diagnos NISSAN TEANA 2003 Service Manual HOW TO USE THIS SECTION
LAN-41
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
HOW TO USE THIS SECTIONPFP:00008
CautionBKS002DH
This section describes information specific to a vehicle, sheets for trouble diagnos](/manual-img/5/57392/w960_57392-2644.png)
HOW TO USE THIS SECTION
LAN-41
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
HOW TO USE THIS SECTIONPFP:00008
CautionBKS002DH
This section describes information specific to a vehicle, sheets for trouble diagnosis, and inspection pro-
cedures.
For trouble diagnosis procedure, refer to LAN-17, "Trouble Diagnosis Procedure" .
Abbreviation ListBKS002DI
Abbreviations in CAN communication signal chart and the diagnosis sheet are as per the following list.
Abbreviation Unit nameSELECT SYSTEM
(CONSULT-II)CAN DIAG SUPPORT MNTR
(CONSULT-II)
ABS ABS actuator and electric unit (control unit) ABS VDC/TCS/ABS
ADP Driver seat control unit AUTO DRIVE POS. –
AFS AFS control unit ADAPTIVE LIGHT –
BCM BCM BCM BCM/SEC
DISPDisplay unit
– DISPLAY
Display control unit
DLC Data link connector – –
ECM ECM ENGINE ECM
I-KEY Intelligent Key unit INTELLIGENT KEY I-KEY
IPDM-E IPDM E/R IPDM E/R IPDM E/R
M&A Unified meter and A/C amp. METER A/C AMP METER/M&A
STRG Steering angle sensor – STRG
TCM TCMA/T
TCM
TRANSMISSION
